Bilstein B8 8112 EVO Coilover | Toyota 4Runner (10-24) (41-324363)

Bilstein B8 8112 EVO Coilover | Toyota 4Runner (10-24) (41-324363)

41-324363

Out of stock

$1,160.00 USD
$1,264.85 USD $1,160.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Bilstein B8 8112 EVO Coilover for the Toyota 4Runner is a high-performance suspension component designed to enhance ride quality and handling. Engineered with ZoneControl CR technology, this coilover features a triple piston design that provides three stages of compression damping and two stages of rebound damping, allowing for precise adjustment and improved responsiveness. The coilover is constructed with durable materials to withstand demanding driving conditions, offering a significant upgrade over stock suspension components. Its threaded spring seat enables ride height adjustment from 0 to 3.8 inches, making it suitable for various setups and preferences. This product is ideal for enthusiasts seeking improved stability, comfort, and control on and off-road.

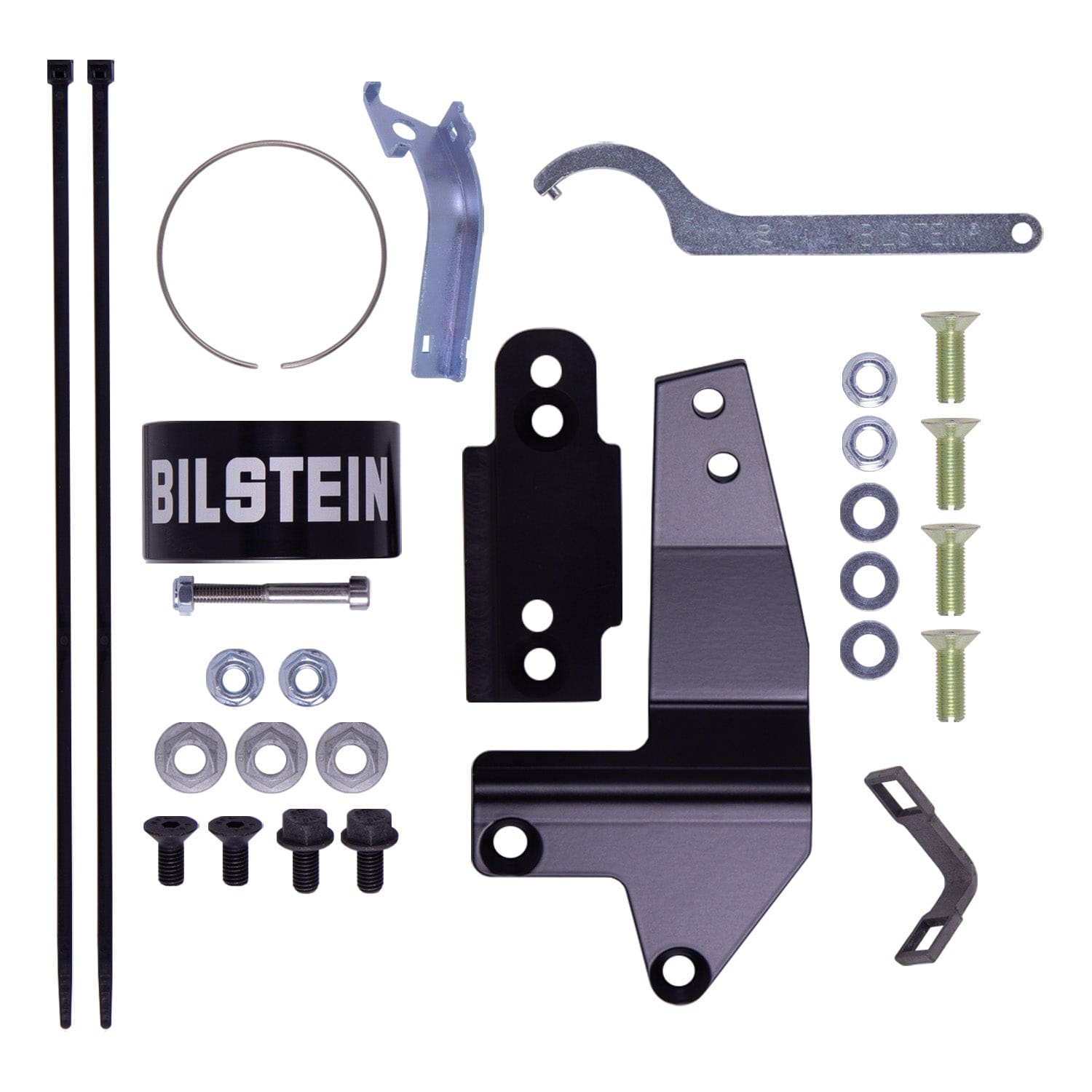

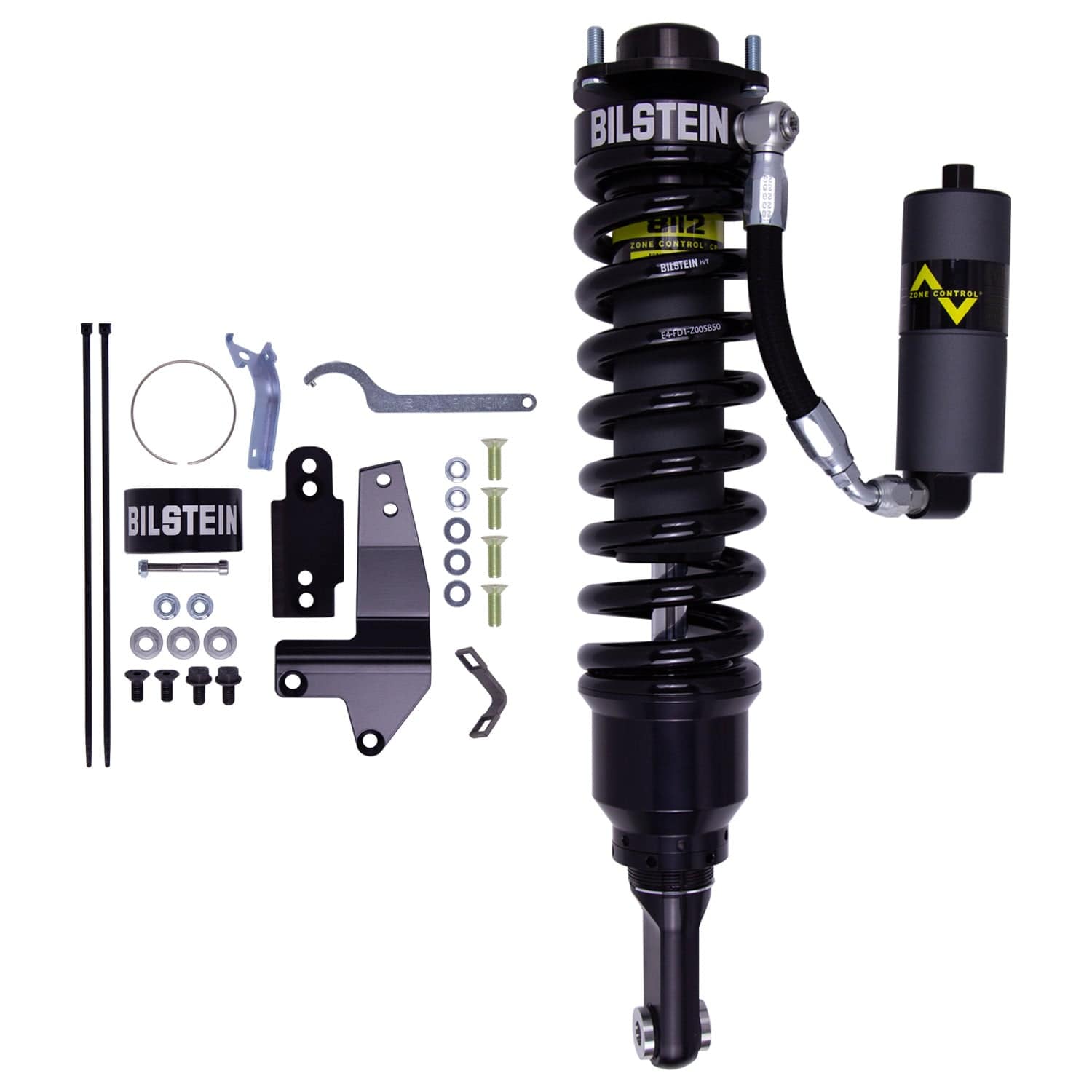

Designed specifically for 2010-2024 Toyota 4Runners, this coilover is a direct fit replacement that maintains compatibility with the vehicle's original mounting points. It is suitable for light trucks and SUVs used in street, off-road, or mixed driving scenarios. The coilover assembly is intended for bolt-on installation, providing a straightforward upgrade for those looking to enhance vehicle performance and adjust ride height. The kit includes the coilover unit and necessary mounting hardware, ensuring a complete and ready-to-install solution. Perfect for daily driving, off-road adventures, or performance tuning, this coilover delivers versatile and reliable suspension performance.

Overview

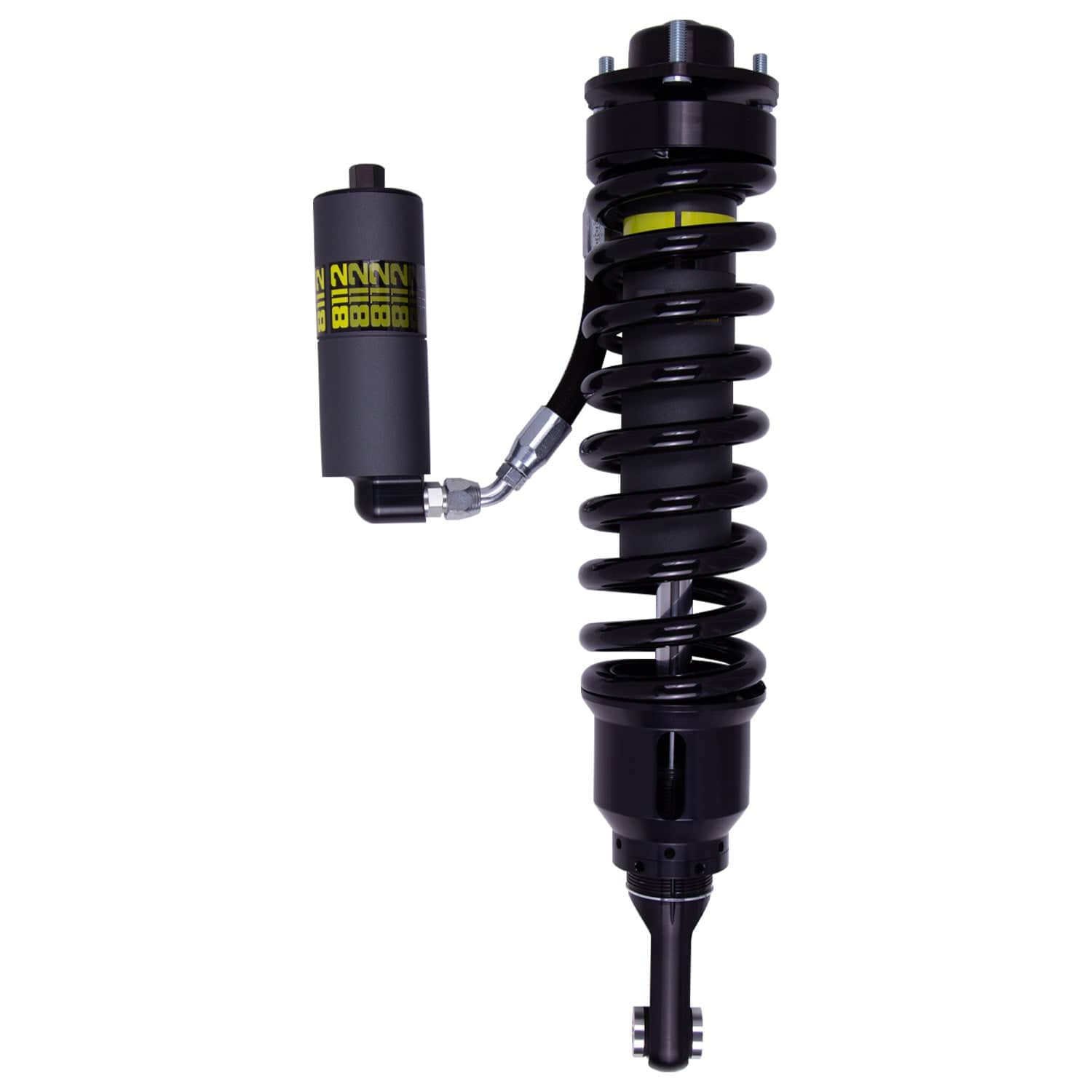

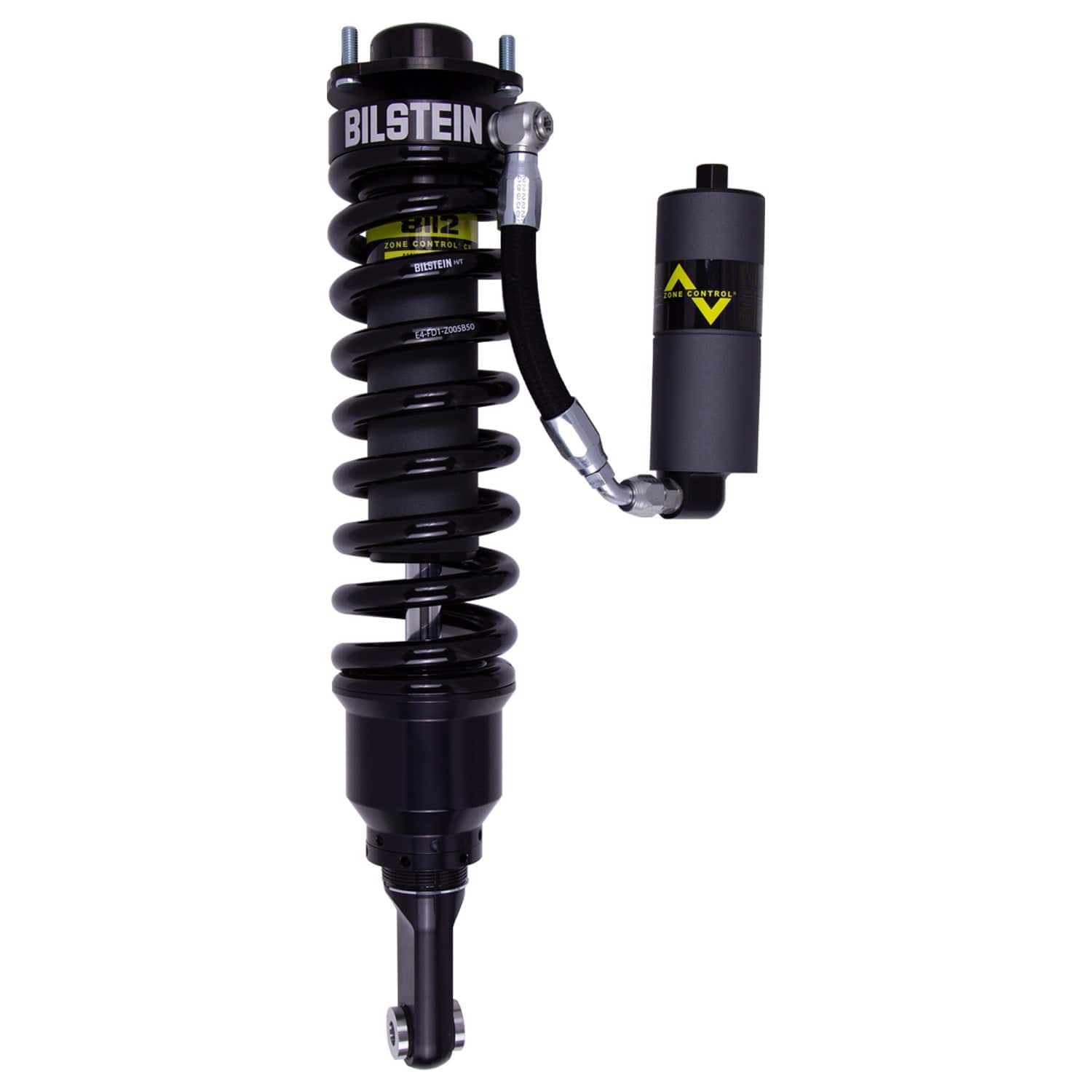

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2010-2024 Toyota 4Runner are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Standard Features

  • ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling
Specifications
Part Number 41-324363
Part Name Shock Absorber and Coil Spring Assembly
Vehicle 2010-2024 Toyota 4Runner
UPC 651860915685
Front Lift Height 1.5 - 3 in.
Body Design Smooth Body (Coilover)
Body Diameter (ID) 60 mm
Body Material Steel
Boot Included No
Collapsed Length 17.99 in.
Collapsed Length 456.9 mm
Damping Adjustable No
Extended Length 22.80 in.
Extended Length 579.1 mm
Finish Dampers: EVO Grey / Springs: Black
Internal Design Monotube
Lower Mount Type Eye 14.1 mm
Optional Heavy Load Springs 53-291387, 53-332837
Reservoir Yes
Segment Light Truck
Series B8 8112 (ZoneControl CR)
Spring Seat Included Yes
Upper Mount Type Special
Notes Without Kinetic Dynamic Suspension System (KDSS)
Vehicle Fitment
  • 2010 Toyota 4Runner
  • 2011 Toyota 4Runner
  • 2012 Toyota 4Runner
  • 2013 Toyota 4Runner
  • 2014 Toyota 4Runner
  • 2015 Toyota 4Runner
  • 2016 Toyota 4Runner
  • 2017 Toyota 4Runner
  • 2018 Toyota 4Runner
  • 2019 Toyota 4Runner
  • 2020 Toyota 4Runner
  • 2021 Toyota 4Runner
  • 2022 Toyota 4Runner
  • 2023 Toyota 4Runner
  • 2024 Toyota 4Runner
View full details
