| Year | Make | Model |
|---|---|---|
| 2005 - 2015 | Toyota | Tacoma Base |
| 2016 - 2023 | Toyota | Tacoma Limited |
| 2005 - 2015 | Toyota | Tacoma Pre Runner |
| 2016 - 2023 | Toyota | Tacoma SR |
| 2016 - 2023 | Toyota | Tacoma SR5 |
| 2021 | Toyota | Tacoma Trail |
| 2023 | Toyota | Tacoma Trail Special Edition |
| 2016 - 2023 | Toyota | Tacoma TRD Off-Road |
| 2015 | Toyota | Tacoma TRD Pro |
| 2017 - 2023 | Toyota | Tacoma TRD Pro |
| 2016 - 2023 | Toyota | Tacoma TRD Sport |
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 16-23 (41-322697)
Bilstein B8 8112 ZoneControl CR Coilover | Toyota Tacoma 16-23 (41-322697)
SKU:41-322697
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
The Bilstein B8 8112 ZoneControl CR Coilover for the Toyota Tacoma is a high-performance suspension component designed to enhance ride quality and handling. This coilover features Bilstein's revolutionary ZoneControl technology, which provides position-sensitive damping with a triple piston design that offers three stages of compression valving and two stages of rebound valving. The threaded spring seat allows for precise ride height adjustment from 0 to 3.8 inches, enabling customization for various driving conditions and load requirements. Constructed with durable materials, these coilovers are engineered to deliver consistent performance, improved stability, and a comfortable ride, whether on-road or off-road.

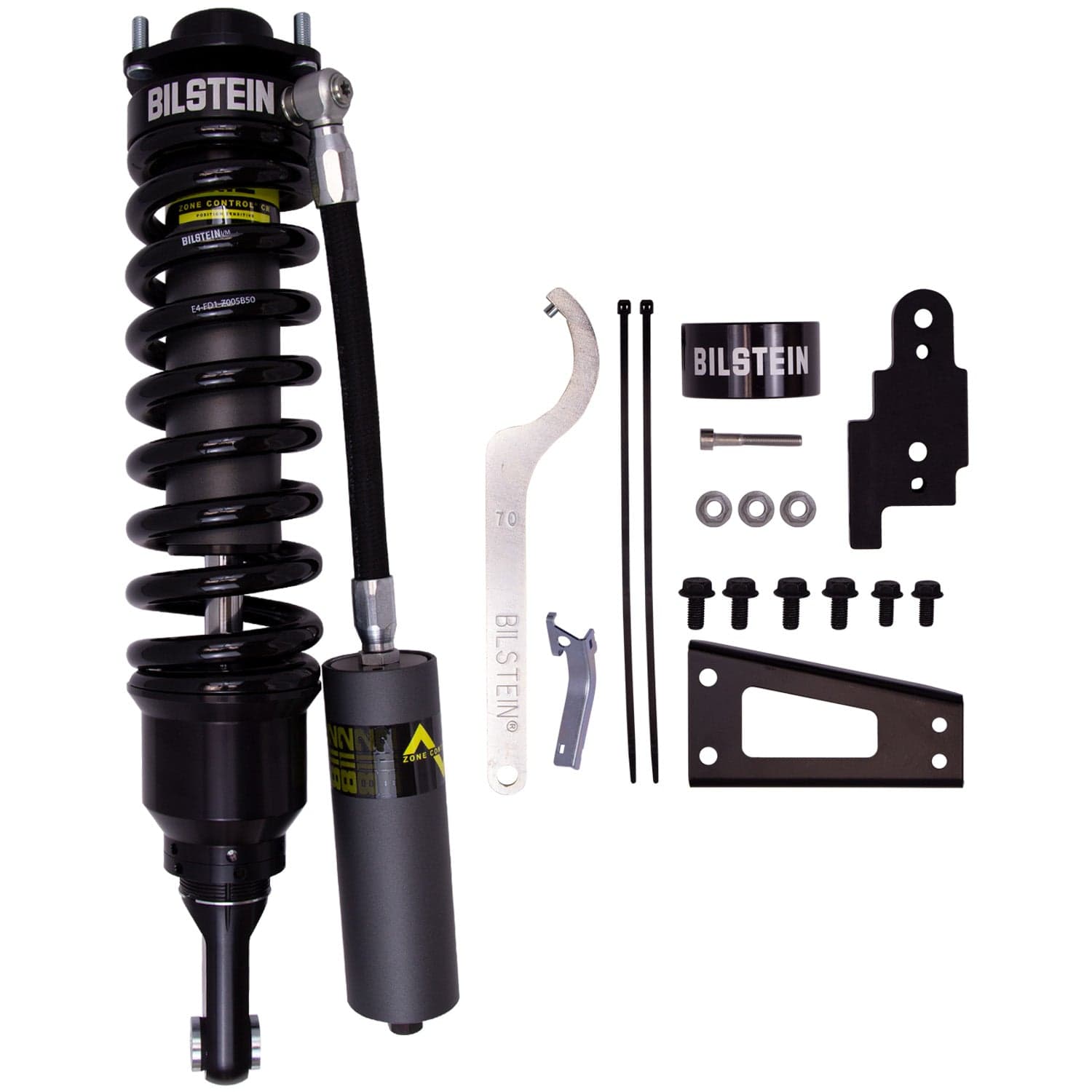

Designed specifically for 2016-2023 Toyota Tacoma models, these coilovers are a direct fit for trucks and SUVs with light-duty applications. They are suitable for a range of uses, including daily driving, off-road adventures, and performance tuning. Installation is straightforward as a bolt-on upgrade, replacing factory components without the need for extensive modifications. The kit includes the coilover units with adjustable ride height and damping settings, providing versatility for different driving styles and terrains. These coilovers are ideal for enthusiasts seeking enhanced control, durability, and ride quality in their Tacoma.
Share
Overview
Overview

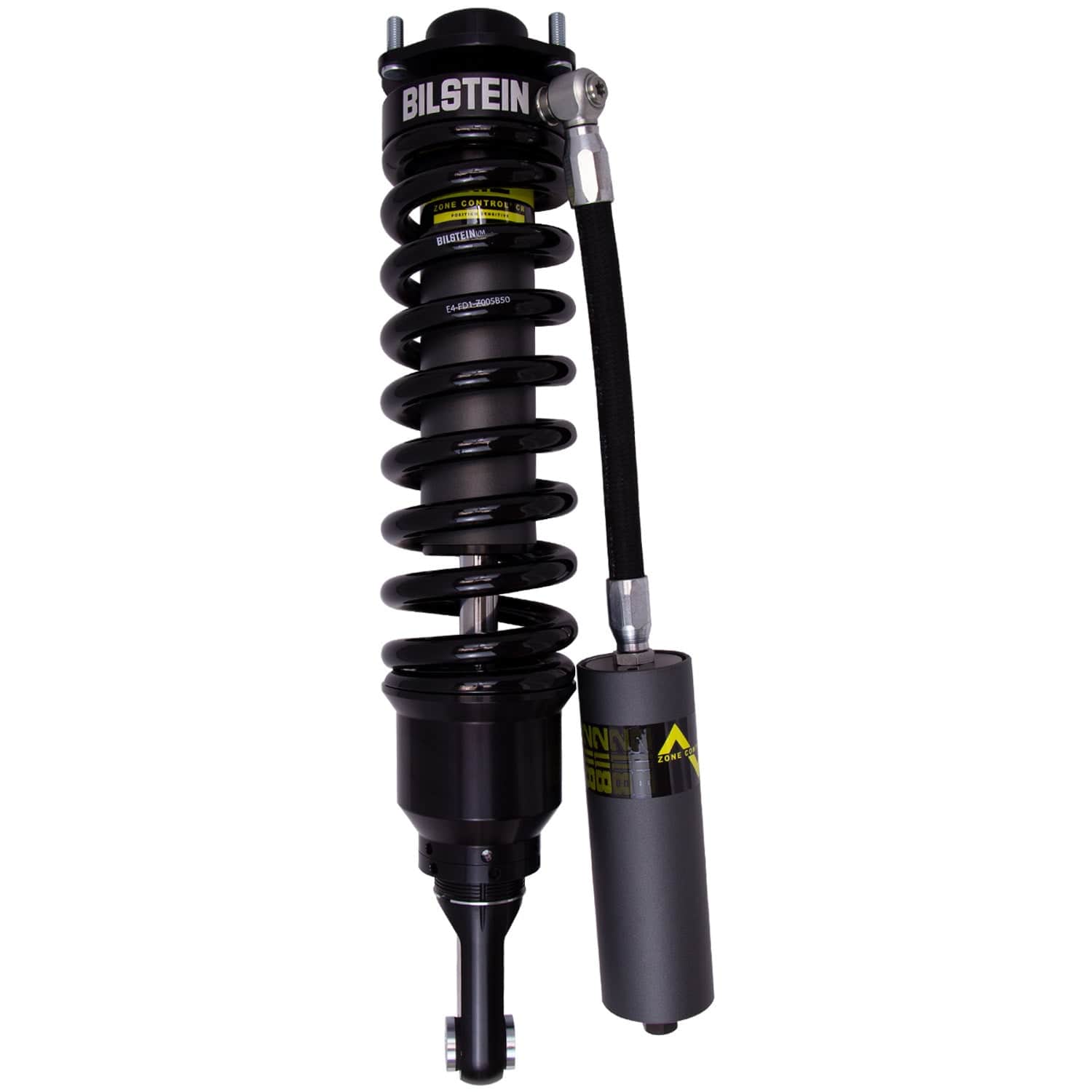

Bilstein B8 8112 (ZoneControl) CR Suspension Kit for the 2016-2023 Toyota Tacoma are a direct fit, position sensitive coilover designed for light trucks and SUV's. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8 (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Standard Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-322697 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2016-2023 Toyota Tacoma |
| UPC | 651860887128 |
| Front Lift Height | 0.4 - 2 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.43 in. |
| Collapsed Length | 442.6 mm |
| Damping Adjustable | No |
| Extended Length | 22.39 in. |
| Extended Length | 568.8 mm |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
Vehicle Fitment
- 2016 Toyota Tacoma
- 2017 Toyota Tacoma
- 2018 Toyota Tacoma
- 2019 Toyota Tacoma
- 2020 Toyota Tacoma
- 2021 Toyota Tacoma
- 2022 Toyota Tacoma
- 2023 Toyota Tacoma
