| Year | Make | Model |
|---|---|---|
| 2022 - 2024 | BMW | 230i Base |
| 2023 - 2024 | BMW | 230i xDrive Base |
| 2021 - 2024 | BMW | 330e Base |
| 2021 - 2024 | BMW | 330e xDrive Base |
| 2019 - 2024 | BMW | 330i Base |
| 2019 - 2024 | BMW | 330i xDrive Base |
| 2021 - 2024 | BMW | 430i Base |
| 2021 - 2024 | BMW | 430i xDrive Base |
| 2020 | BMW | 440i Base |
| 2020 | BMW | 440i xDrive Base |
| 2020 - 2024 | BMW | M340i Base |
| 2020 - 2024 | BMW | M340i xDrive Base |
| 2021 - 2024 | BMW | M440i Base |
| 2021 - 2024 | BMW | M440i xDrive Base |
| 2022 - 2024 | BMW | Z4 M40i |
| 2020 | BMW | Z4 M40i First Edition |
| 2020 - 2021 | BMW | Z4 sDrive M40i |
| 2020 - 2024 | BMW | Z4 sDrive30i |
| 2021 - 2023 | Toyota | GR Supra A91 Edition |
| 2020 - 2024 | Toyota | GR Supra Base |
| 2020 | Toyota | GR Supra Launch Edition |
| 2020 - 2024 | Toyota | GR Supra Premium |
Bilstein EVO R Suspension Kit for 2022-2024 BMW 230i
Bilstein EVO R Suspension Kit for 2022-2024 BMW 230i
SKU:89-312780
Out of stock
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Bilstein EVO R Suspension Kit for the 2022-2024 BMW 230i is a high-performance coilover system designed for enthusiasts seeking precise handling and adjustable ride characteristics. Engineered specifically for demanding motorsport conditions, this kit features 2-way manually adjustable dampers that allow for independent compression and rebound tuning. With a monoball mounting setup and camber adjustment options where applicable, the EVO R provides a customizable suspension platform. Its robust construction ensures durability and consistent performance, making it suitable for both track days and spirited street driving. The kit enhances vehicle stability, cornering grip, and overall ride quality, delivering a significant upgrade over stock suspension components.

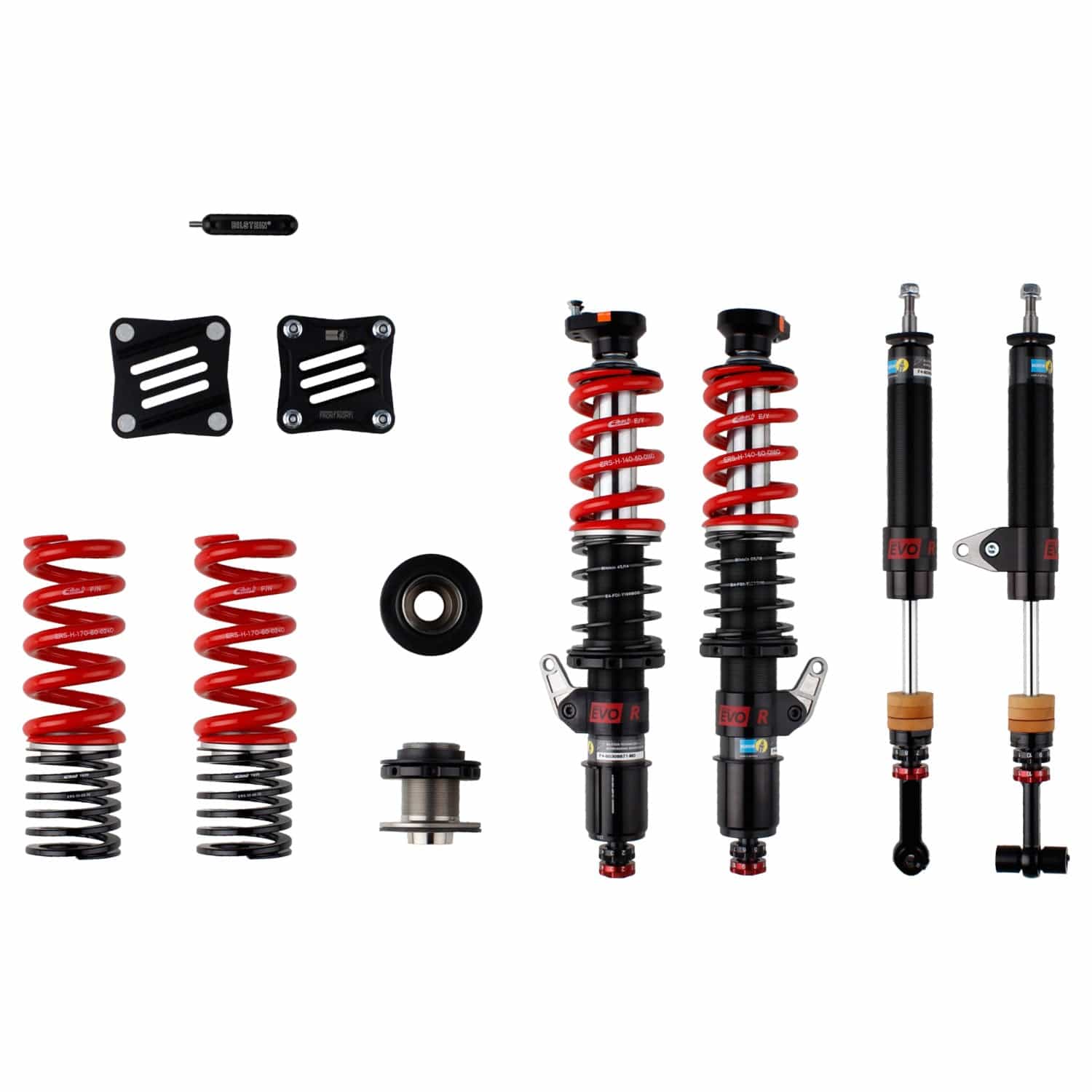

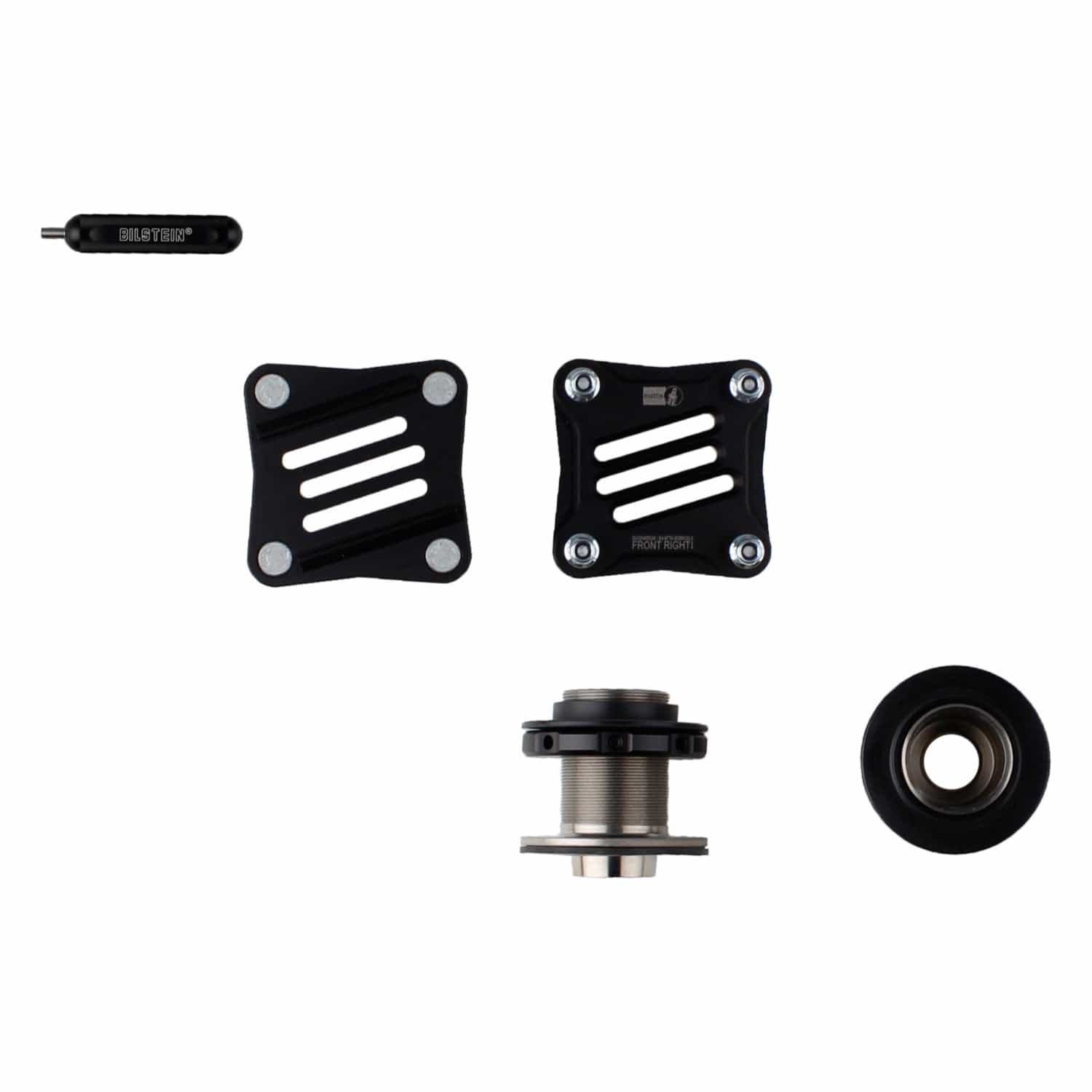

Designed for 2022-2024 BMW 230i models, this coilover kit is a direct bolt-on upgrade that replaces the factory suspension. It is ideal for track enthusiasts, performance drivers, and those seeking a more aggressive stance with adjustable ride height and damping settings. The kit includes adjustable upper mounts and all necessary hardware for installation, providing a comprehensive solution for tuning and performance optimization. Compatible with vehicles equipped with the factory suspension, it allows for precise setup adjustments to suit various driving conditions and preferences. Whether for daily driving, spirited canyon runs, or track use, this suspension kit offers versatile performance enhancements.
Share
Overview
Overview

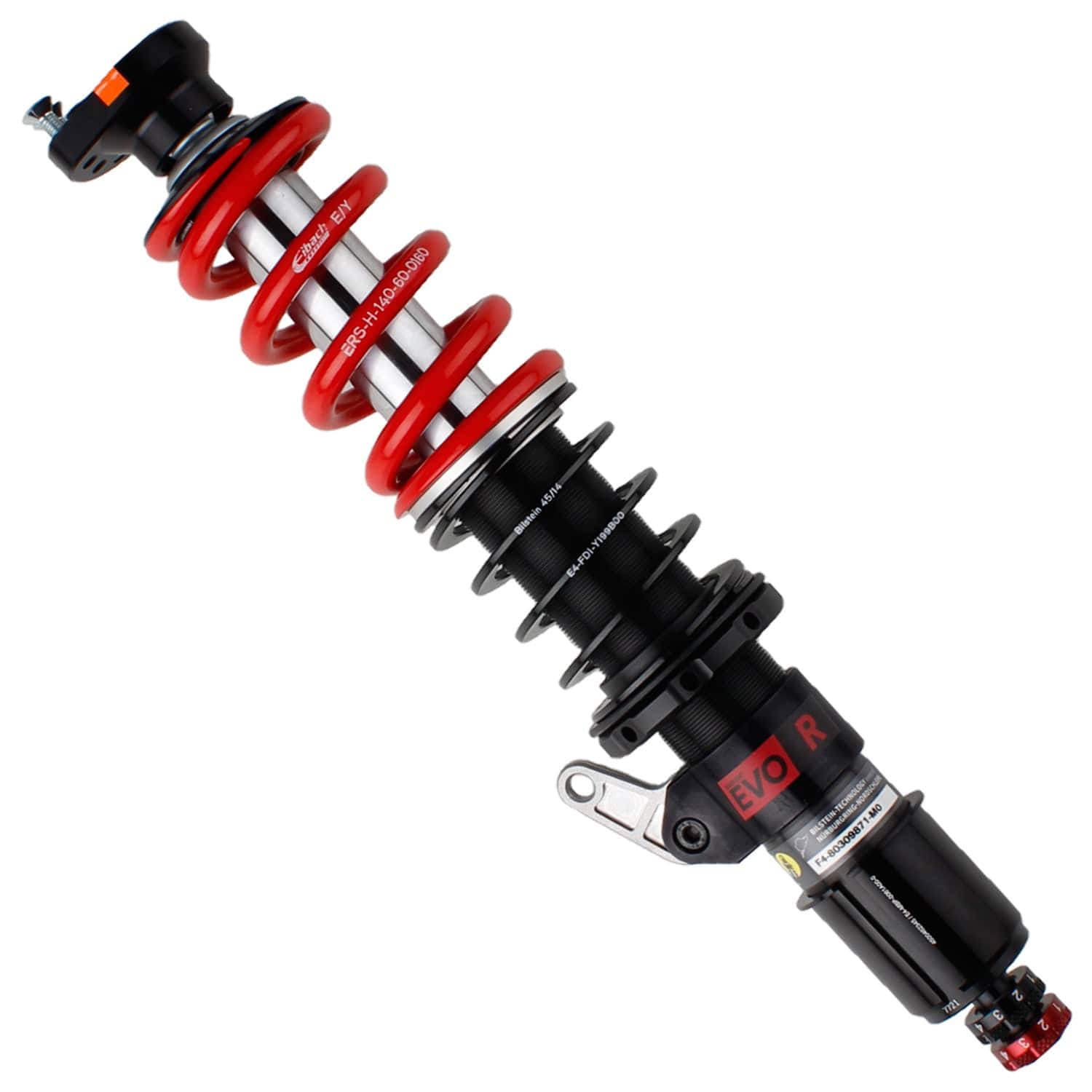

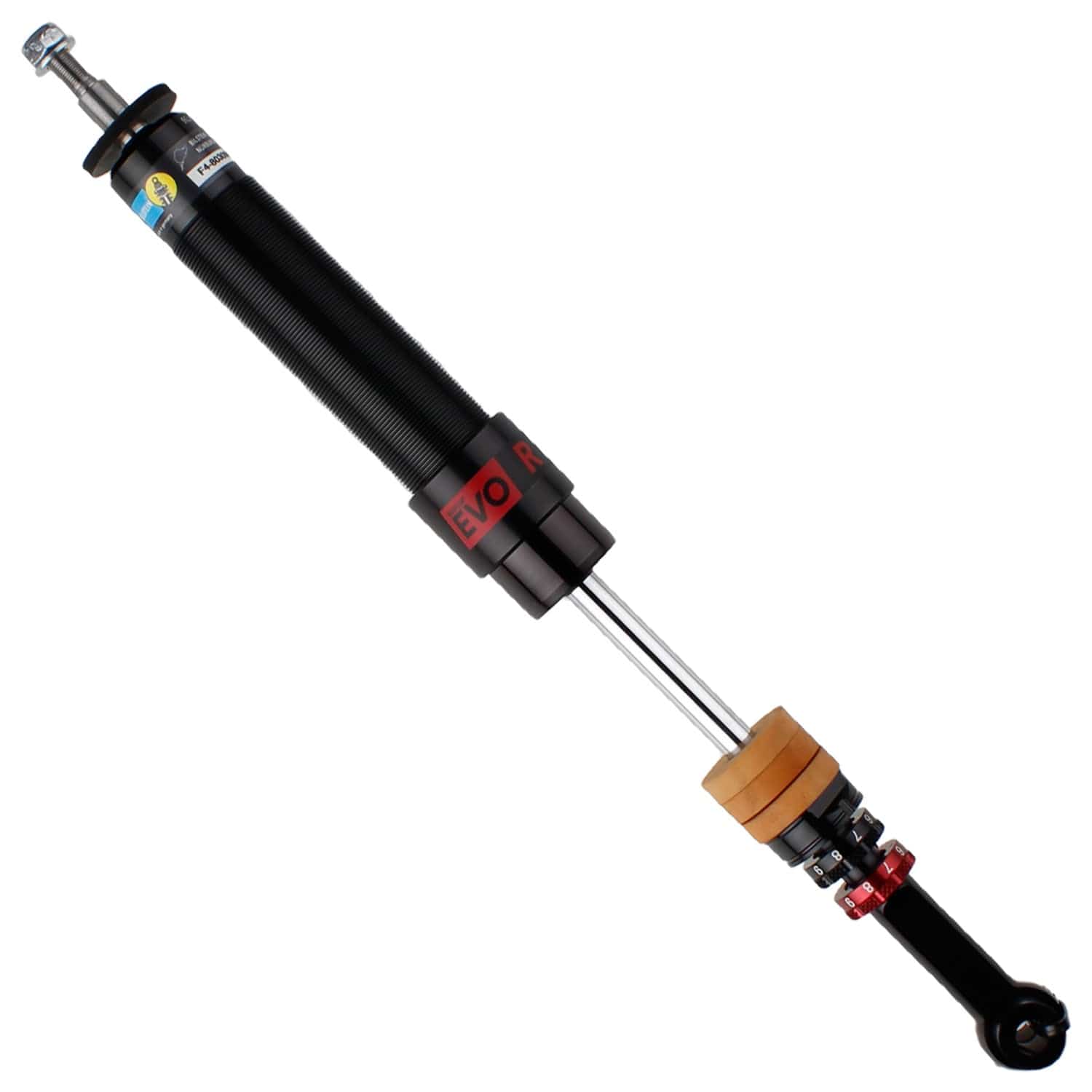

Bilstein EVO R for the 2022-2024 BMW 230i is the next step in the evolution of performance suspension tuning. EVO R is a coilover kit built and tuned specifically for the demanding conditions of motorsports. Featuring 2-way manually adjustable Dampers and monoball mounting equipment. The 2-way independent compression and rebound adjustment system provides 100 different setting variations for precision adjustment. Where applicable, adjustable monoball upper mounts allow for adjustment to camber settings. Monotube damper construction and high quality components provide consistent performance under the most demanding motorsports conditions.
Proven performance, reliability and exceptional versatility is achieved to provide the ultimate performance coilover setup. Bilstein EVO R Suspension Kit are designed and hand built in Germany to each specific application. EVO R coilovers feature technology and tuning knowledge acquired from Bilstein's experience conquering the Nurburgring.
Standard Features
- Aluminum and lightweight construction for more stability, faster cornering and quicker laps
- Aluminum adjusters are easy-to-read and scale from 1 (soft) to 10 (hard)
- Two totally personalized aluminum dials offer 100 possible damper settings 10x10 Pro-Click adjustment lets you define rebound and bump separately and confidently for a completely personalized damper setup
Specifications
| Part Number | 89-312780 |
| Part Name | Suspension Kit |
| Vehicle | 2022-2024 BMW 230i |
| UPC | 651860864945 |
| Front Lowered Height | 10 - 30 mm |
| Rear Lowered Height | 10 - 30 mm |
| Finish | Dampers: Grey / Springs: Red |
| Internal Design | Monotube |
| Segment | Tuning |
| Series | EVO R |
| Notes | Without Electronic Suspension |
Vehicle Fitment
- 2022 BMW 230i
- 2023 BMW 230i
- 2024 BMW 230i
