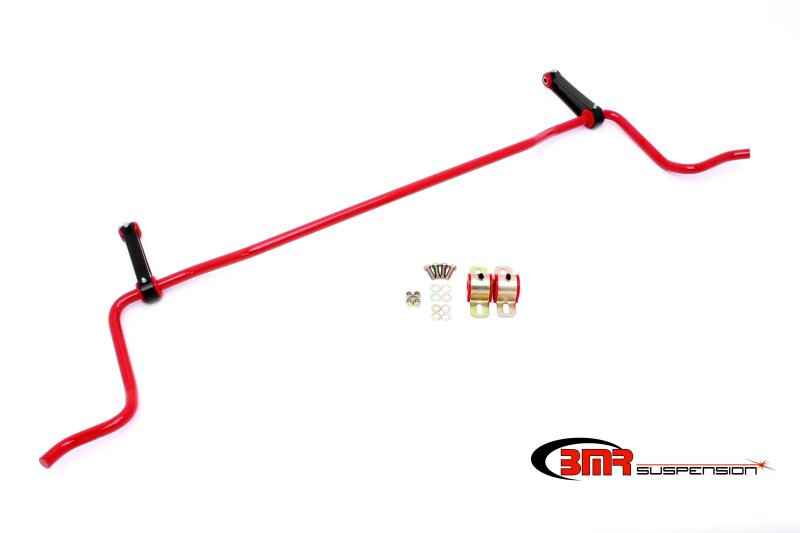

BMR 05-10 S197 Mustang Rear Solid 22mm Sway Bar Kit w/ Bushings & Billet Links - Red
BMR 05-10 S197 Mustang Rear Solid 22mm Sway Bar Kit w/ Bushings & Billet Links - Red
SKU:SB023R
Out of stock
Regular price
$339.95 USD
Regular price
$339.95 USD
Sale price
$339.95 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The BMR Suspension SB023 rear sway bar kit is a high-performance component designed to enhance handling and stability for 2005–2010 Ford Mustang S197 models. Constructed from heavy-duty 22mm bar stock and cold formed for increased torsional fatigue resistance, this sway bar effectively reduces body roll and improves cornering response. It features CNC-formed manufacturing for precise tolerances and durability, along with billet aluminum end links and 88-durometer polyurethane bushings that minimize deflection and maintain optimal performance. The non-adjustable design provides approximately a 52% increase in torsional spring rate over stock, resulting in sharper handling and better control during street, autocross, or road race driving.
This sway bar kit is specifically engineered for 2005–2010 Mustang S197 models, compatible with coupe and fastback body styles, excluding convertibles unless additional OE bracing is removed. It is a direct bolt-on upgrade that enhances vehicle dynamics by controlling body roll and understeer/oversteer behavior. The kit includes the sway bar, billet aluminum end links, and polyurethane bushings, offering a straightforward installation process typically completed within 1-2 hours. Ideal for street performance, autocross, and track use, this component delivers improved handling characteristics and long-lasting performance, making it a reliable upgrade for enthusiasts seeking enhanced cornering and stability.
Share
Overview
Overview
The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspensions SB023 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-duty 22mm bar stock, the SB023 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB023 attaches to your Mustang with billet aluminum end links and 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keep grease in the bushing. The CNC-machined, billet aluminum sway bar end links eliminate deflection. BMR Suspension designed the SB023 sway bar for street performance, autocross, and road race applications. The non-adjustable SB023 gives you a 52% increase in rate over the stock bar (depending on year and model). The rate increases gives you improved handling characteristics so you can drive harder through corners with minimal body roll. This allows for more sway bar control, which equals better handling. When performance is a must, rely on BMR Suspension! BMR Suspensions SB023 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.! NOTE: BMR SB023 rear sway bar is not compatible with convertible models unless the additional OE convertible bracing is removed.
