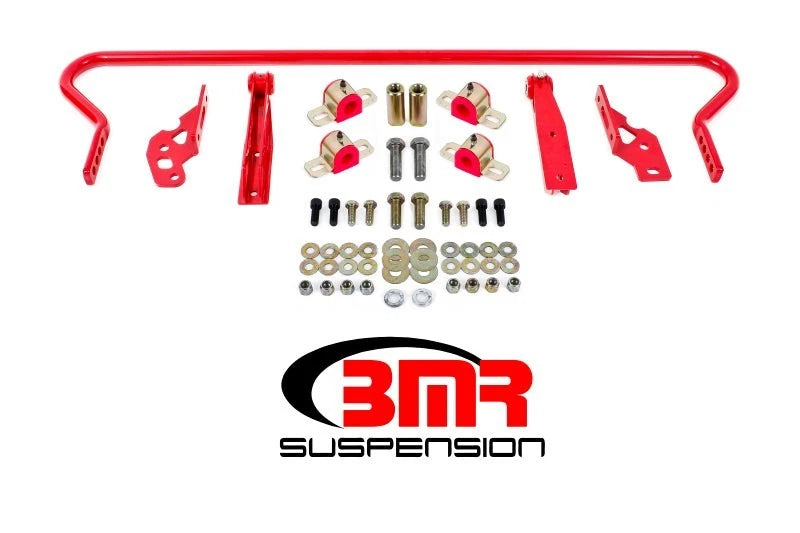

BMR 11-14 S197 Mustang Rear Hollow 25mm Adj. Sway Bar Kit w/ Bushings - Red
BMR 11-14 S197 Mustang Rear Hollow 25mm Adj. Sway Bar Kit w/ Bushings - Red
SKU:SB042R
In stock
Regular price
$389.95 USD
Regular price
$389.95 USD
Sale price
$389.95 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The BMR Suspension 11-14 S197 Mustang Rear Hollow 25mm Adjustable Sway Bar Kit with Bushings is a high-performance suspension component designed to enhance handling and stability. Constructed from heavy-wall 25mm DOM tubing, this sway bar is cold formed to improve resistance to torsional fatigue and maintain its shape over time. It features CNC-formed manufacturing for precise tolerances and consistent quality. The kit includes fabricated end links and 88-durometer polyurethane bushings, which reduce deflection compared to stock rubber bushings. The sway bar is four-way adjustable, allowing fine-tuning of torsional spring rate to optimize understeer or oversteer characteristics, providing improved control and handling dynamics for spirited driving or track use.
Designed specifically for 2011–2014 Ford Mustang S197 models, this sway bar is a direct bolt-on upgrade that enhances vehicle stability and cornering performance. It is suitable for street, track, or aggressive driving applications, offering a customizable setup to match your driving style. The kit includes the heavy-duty sway bar, fabricated laser-cut, TIG-welded steel end links, and polyurethane bushings, ensuring durability and consistent performance. Compatible with Mustang models equipped with the appropriate suspension setup, this sway bar provides a significant upgrade over stock components for improved handling and reduced body roll during high-performance driving.
Share
Overview
Overview
The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspensions SB042 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 25mm DOM tubing, the SB042 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB042 attaches to your Mustang with fabricated end links and 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The fabricated laser cut, TIG-welded steel sway bar end links are reinforced to minimize deflection. The sway bar is 4-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.
