• Clutch Masters FX725 Twin Disc Clutch Kit w/ Steel Flywheel | 1990 - 1992 Mitsubishi Eclipse (05048-TD7R-2SY)
1 1

Clutch Masters FX725 Twin Disc Clutch Kit w/ Steel Flywheel | 90-92 Eclipse (05048-TD7R-2SY)

Clutch Masters FX725 Twin Disc Clutch Kit w/ Steel Flywheel | 90-92 Eclipse (05048-TD7R-2SY)

05048-TD7R-2SY

Out of stock

$1,650.00 USD
$1,870.00 USD $1,650.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

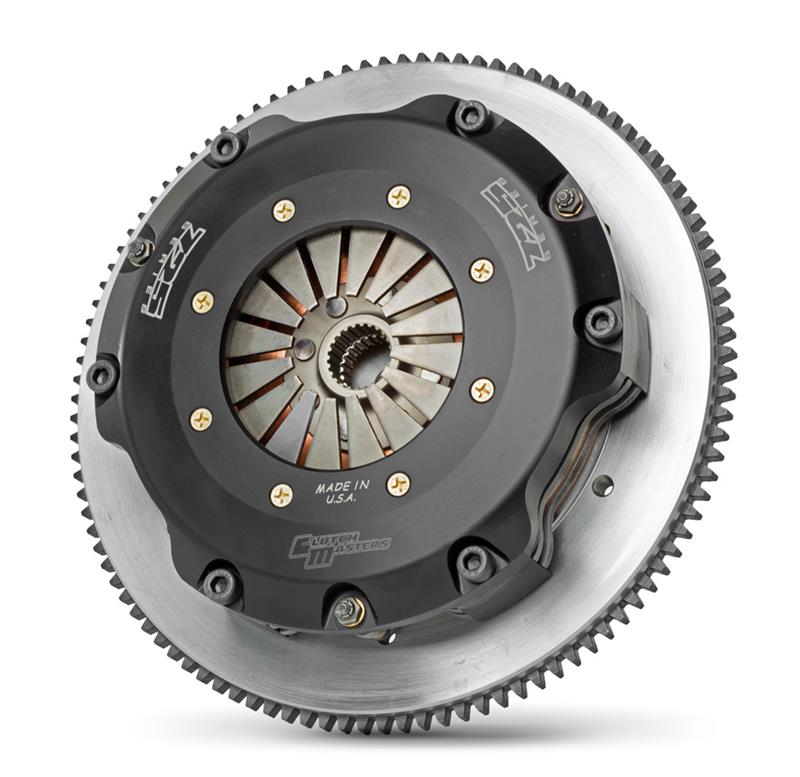

The Clutch Masters FX725 Twin Disc Clutch Kit with Steel Flywheel is a high-performance multi-plate clutch system designed for demanding driving conditions. Built with twin disc technology, this kit provides exceptional torque capacity and horsepower handling, making it suitable for both racing and high-performance street applications. The inclusion of a steel flywheel enhances durability and heat dissipation, ensuring consistent clutch engagement. The system is engineered to deliver smooth operation despite its high clamping force, offering a reliable upgrade for enthusiasts seeking increased performance and durability from their clutch setup.

This clutch kit is specifically designed for the 1990-1992 Mitsubishi Eclipse models. It is a direct replacement for the stock clutch, providing a bolt-on upgrade that improves power transfer and responsiveness. Ideal for street and track use, the FX725 kit supports high horsepower builds and aggressive driving styles. The package includes the twin disc clutch assembly and steel flywheel, with installation requiring standard mechanical skills. Suitable for vehicles with high torque output, this system ensures reliable performance under demanding conditions.

Overview

Twin Disc Clutch Kit w/ Steel Flywheel by Clutch Masters

Clutch Masters introduces the finest and most economical multi-plate clutch systems available for today s high performance vehicles, the 725 Series. Clutch Masters Twin Disc systems are pure racing technology that also works well in high performance street applications. They are designed to hold tremendous horsepower and torque ratings, while retaining a very smooth operation. By slightly increasing the clamping force of the pressure plate and adding to the square inches of usable disc area, Clutch Masters Twin Discs significantly increase clamping values with only a 25-50% increase in pedal pressure depending on the application. The cover assembly is machined from billet aluminum with 25% more tensile strength than competitors cast units. The flywheel is machined from chromoly steel to meet SFI spec 1.2 for competition in NHRA, NDRA, IDRC, IHRA, SCCA and NASA. Each steel flywheel includes a replaceable heat shield. The 725 series is a smaller diameter assembly, which creates less rotating mass and offering quicker, and smoother shifting with improved throttle response. Clutch Masters TD725 Stage 7 package is a Full Race system with 1 ceramic sprung disc, and 1 ceramic rigid disc

Features

  • Cover Assembly with attached Diaphragm
  • Pressure Plate Ring
  • Two Discs
  • One Mid Plate
  • Chromoly Steel Flywheel
  • Release Bearing
  • Pilot Bearing (when applicable)
  • Pressure Plate Bolts

Benefits

  • Components can be purchased separately for economical repair
  • Positive release for ease of high RPM staging and shifting
  • Most have experienced better 4/10's times and averaged hundreds of passes without complications or repair

Applications

  • 1990 - 1992 Mitsubishi Eclipse

What's In The Box?

  • 1 - Twin Disc Clutch Kit w/ Steel Flywheel

Warranty

  • Manufacturers Standard Warranty
