• Clutch Masters FX725 Twin Disc Clutch Kit w/ Steel Flywheel | 1990, 1993 - 1998 Mitsubishi Eclipse (05048-TD7R-4S)
1 1

Clutch Masters FX725 Twin Disc Clutch | Mitsubishi Eclipse/Galant (90-98) (05048-TD7R-4S)

Clutch Masters FX725 Twin Disc Clutch | Mitsubishi Eclipse/Galant (90-98) (05048-TD7R-4S)

05048-TD7R-4S

Out of stock

$1,650.00 USD
$1,870.00 USD $1,650.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

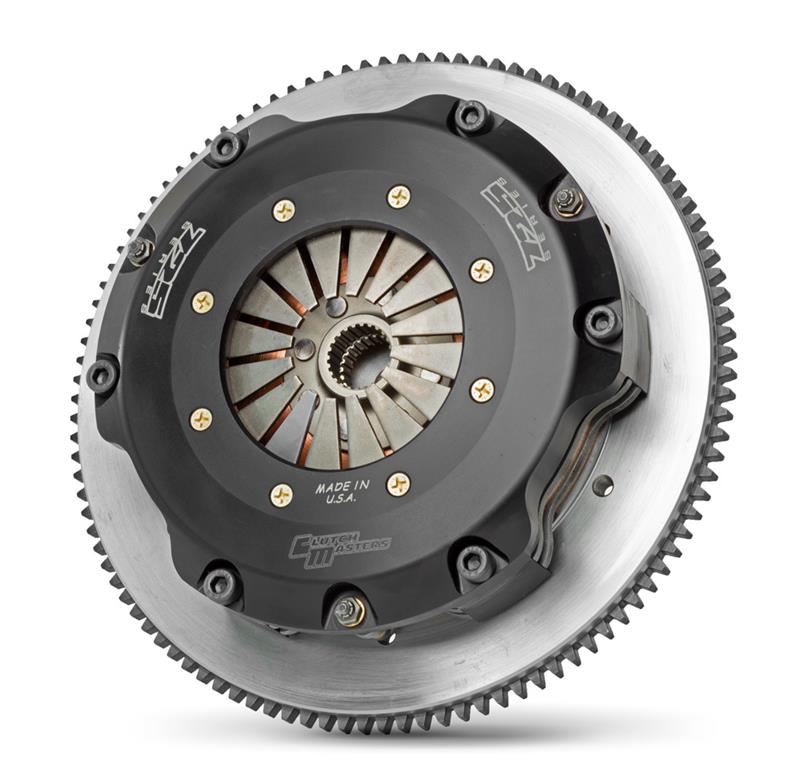

The Clutch Masters FX725 Twin Disc Clutch Kit with Steel Flywheel is a high-performance multi-plate clutch system designed for demanding driving conditions. Built with racing technology, this twin disc setup provides exceptional torque capacity and horsepower handling, making it suitable for both street and track applications. The kit features a durable steel flywheel and a pressure plate with increased clamping force, ensuring reliable engagement and smooth operation even under high-stress conditions. Its design emphasizes performance, durability, and consistency, delivering a significant upgrade over stock clutches for enhanced acceleration and power transfer.

This clutch kit is compatible with Mitsubishi Eclipse and Galant models from 1990 to 1998. It is a direct replacement for factory components, offering a bolt-on installation that requires no additional modifications. Ideal for high-performance street driving or racing, the FX725 Twin Disc Clutch is engineered to handle increased power levels while maintaining drivability. The kit includes the twin disc clutch assembly and steel flywheel, providing everything needed for a comprehensive upgrade. Suitable for enthusiasts seeking maximum performance and reliability in their Mitsubishi vehicles.

Overview

Twin Disc Clutch Kit w/ Steel Flywheel by Clutch Masters

Clutch Masters introduces the finest and most economical multi-plate clutch systems available for today s high performance vehicles, the 725 Series. Clutch Masters Twin Disc systems are pure racing technology that also works well in high performance street applications. They are designed to hold tremendous horsepower and torque ratings, while retaining a very smooth operation. By slightly increasing the clamping force of the pressure plate and adding to the square inches of usable disc area, Clutch Masters Twin Discs significantly increase clamping values with only a 25-50% increase in pedal pressure depending on the application. The cover assembly is machined from billet aluminum with 25% more tensile strength than competitors cast units. The flywheel is machined from chromoly steel to meet SFI spec 1.2 for competition in NHRA, NDRA, IDRC, IHRA, SCCA and NASA. Each steel flywheel includes a replaceable heat shield. The 725 series is a smaller diameter assembly, which creates less rotating mass and offering quicker, and smoother shifting with improved throttle response. Clutch Masters TD725 Stage 7 package is a Full Race system with 1 ceramic sprung disc, and 1 ceramic rigid disc.

Features

  • Cover Assembly with attached Diaphragm
  • Pressure Plate Ring
  • Two Discs
  • One Mid Plate
  • Chromoly Steel Flywheel
  • Release Bearing
  • Pilot Bearing (when applicable)
  • Pressure Plate Bolts

Benefits

  • Components can be purchased separately for economical repair
  • Positive release for ease of high RPM staging and shifting
  • Most have experienced better 4/10's times and averaged hundreds of passes without complications or repair

Applications

  • 1990, 1993 - 1998 Mitsubishi Eclipse

What's In The Box?

  • 1 - Twin Disc Clutch Kit w/ Steel Flywheel

Warranty

  • Manufacturers Standard Warranty
