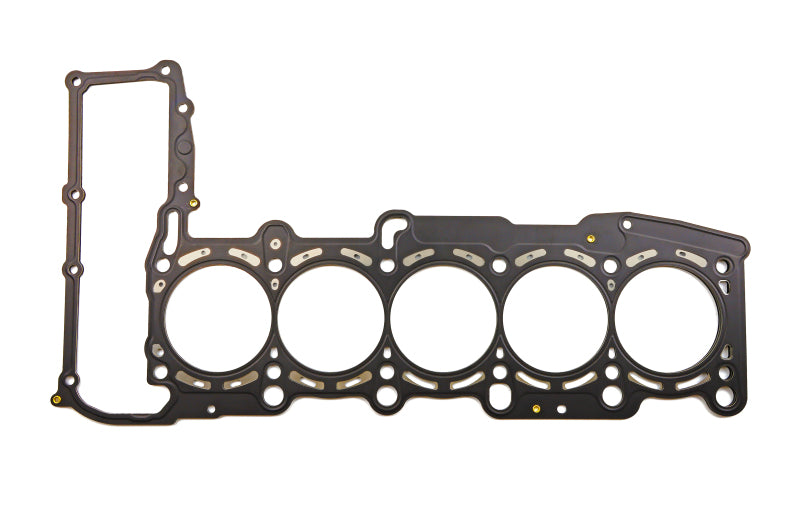

Cometic Audi 2.5L 20v TFSI DAZA/DNWA .055 83.5mm Bore MLX Head Gasket

Cometic Audi 2.5L 20v TFSI DAZA/DNWA .055 83.5mm Bore MLX Head Gasket

C14145-055

In stock

$159.88 USD
$177.65 USD $159.88 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Cometic Audi 2.5L 20v TFSI DAZA/DNWA .055 83.5mm Bore MLX Head Gasket is a high-performance multi-layer steel (MLS) head gasket designed to provide superior sealing for high-output engines. Constructed with multiple embossed layers of stainless steel, the outer layers feature a Viton rubber coating that enhances heat resistance and sealing durability. With a compressed operating thickness of 0.036 inches, this gasket is engineered to withstand the shearing forces between aluminum heads and blocks or cast iron components. Its robust design ensures maximum sealing performance without the need for sealants, making it suitable for demanding engine environments. The gasket’s materials and construction deliver rebound resistance and corrosion protection, ideal for high-performance applications.

This gasket is specifically designed for use with the 2.5L 20v TFSI engines in Audi models with DAZA or DNWA engine codes, featuring an 83.5mm bore. It is compatible with aluminum heads and blocks, as well as cast iron blocks, serving as a direct replacement or upgrade for stock gaskets. Suitable for high-performance, street, or track use, this gasket ensures reliable sealing under extreme conditions. Installation involves replacing the existing head gasket with this MLS component, which requires no additional sealants. The kit includes a single gasket designed to meet the demands of high-output engines, providing enhanced durability and sealing integrity for optimal engine performance.

Overview

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

View full details
