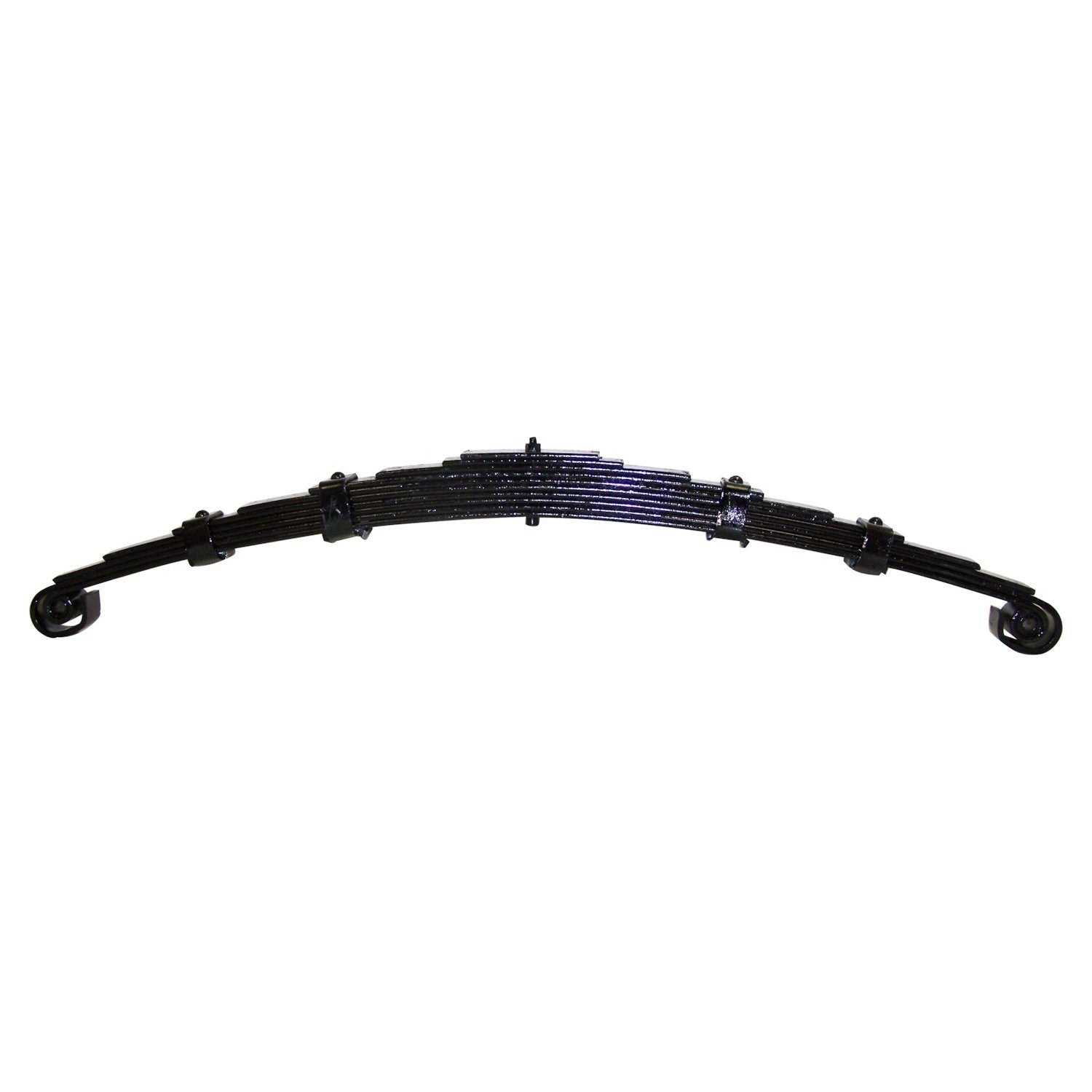

Crown Automotive 916056 HD Front 10 Leaf Spring Assembly For Jeep CJ Willys MB

Product Details:

• Brand Name: Crown Automotive
• Manufacturer Part Number: 916056

Description:

Crown Automotive carries over 9600 unique quality replacement parts encompassing over 766 000 different applications for every model of Jeep produced since 1941.

Features:

• Front Left or Right
• 10-Leaf
• Heavy Duty

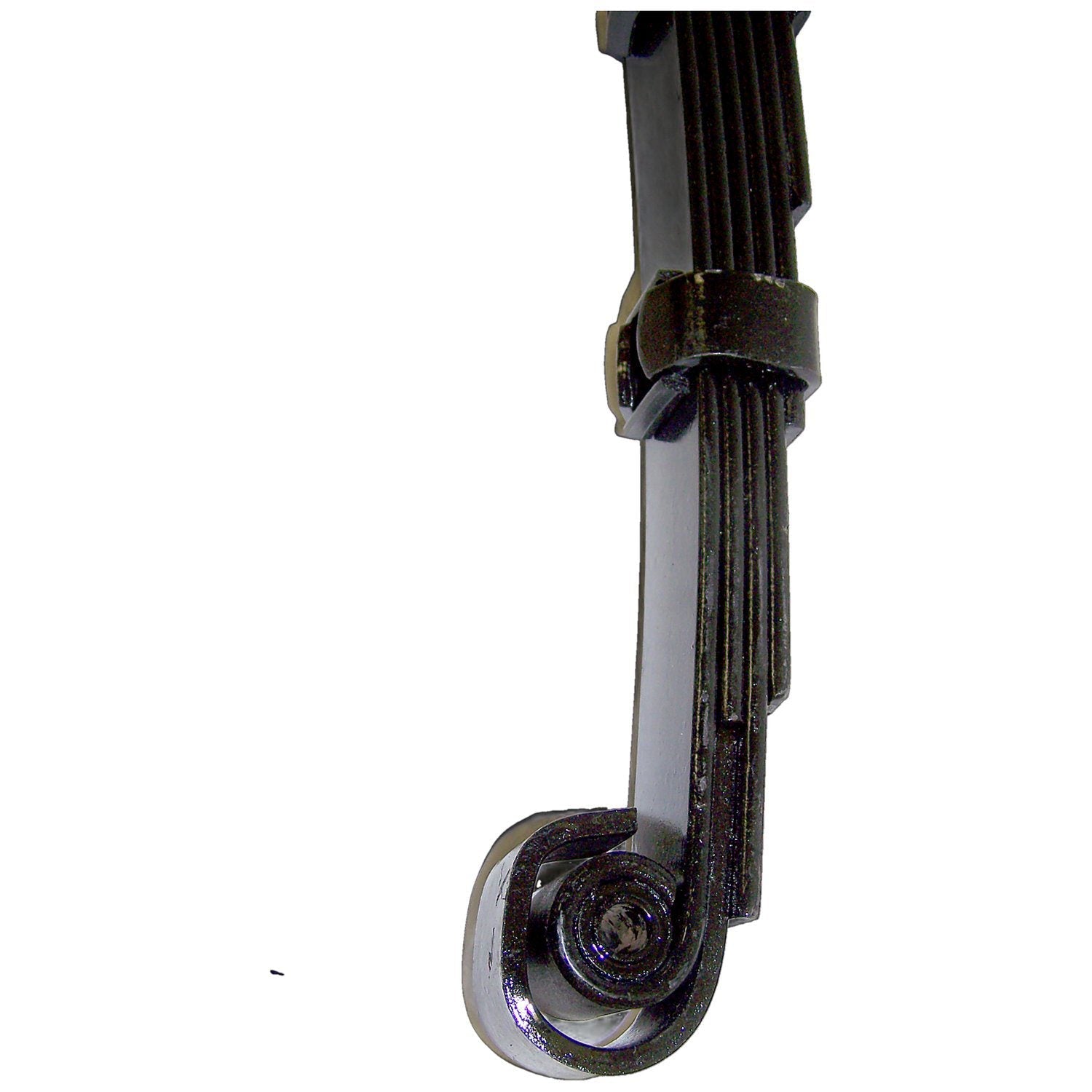

• Bushings Pressed into Both Ends
• Use Existing Hardware
• 12-Month Warranty

Product Attributes:

• 10 Leaf Heavy Duty Front Leaf Spring; Bushings pressed into both ends.
• Length (Along Spring) Center of Front Bushing to Centering Pin: 18.25
• Length (Along Spring) Centering Pin to Center of Rear Bushing: 18.25
• Length (Along Spring) Overall (Center to Center): 36.5
• "Main Leaf Length (Along Spring): 35.25"
• Spring Width: 1.75
• Number of Leafs: 10
• Main Leaf Thickness: 0.2375
• Overall Spring Thickness: 2.229
• Spring Eye Front: 0.5645
• Spring Eye Rear: 0.442
• Free Arch (Ground to Main Leaf): 4.5
• Spring Rate (lb/in): 0
