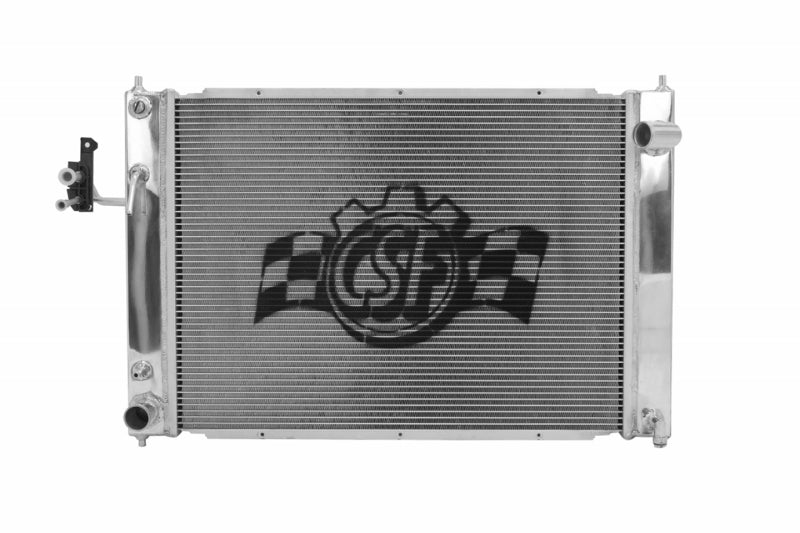

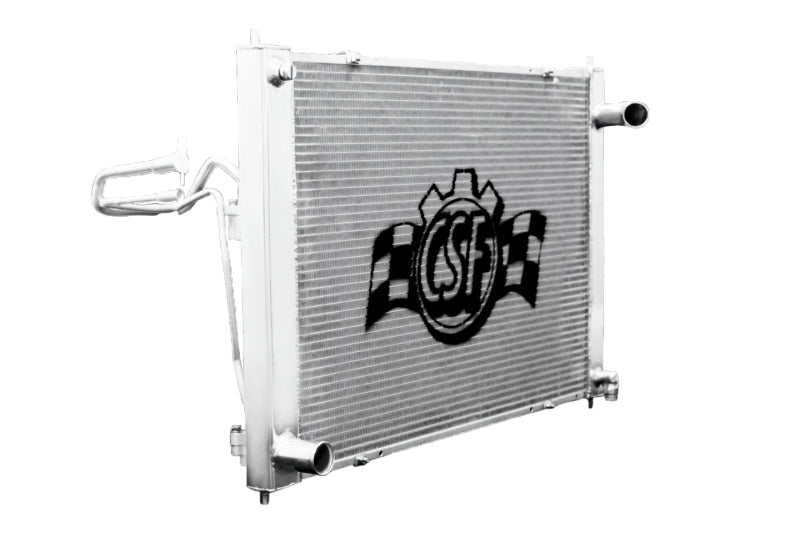

CSF 08-13 Nissan 370Z A/T Radiator

CSF 08-13 Nissan 370Z A/T Radiator

7011

In stock

$725.00 USD
$779.00 USD $725.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The CSF 08-13 Nissan 370Z A/T Radiator is a high-performance all-aluminum radiator designed to optimize engine cooling for the Nissan 370Z and G37 models. With over five decades of expertise, CSF manufactures radiators that excel in both street and track environments. This radiator features a 2-Row core integrated with CSF's exclusive B-Tube Technology, which employs specially engineered "B" shaped tubes that are brazed over the seam for enhanced strength and efficiency. The design allows for thinner, lighter aluminum with improved cooling performance, increasing heat transfer surface area by approximately 15% compared to standard tubes. The radiator also utilizes ultra-efficient multi-louvered fins, precisely aligned to maximize airflow and heat rejection, making it ideal for high horsepower builds and motorsports applications.

This radiator is a direct fit for 2008 to 2013 Nissan 370Z models equipped with automatic transmissions. It is engineered to serve as a high-performance upgrade or replacement, suitable for street driving, track use, or racing environments that demand superior cooling. The design ensures optimal heat dissipation under demanding conditions, helping maintain engine temperature and performance. Installation is straightforward as a bolt-on replacement, and the radiator is built to meet or exceed OEM standards for durability and efficiency. This product is ideal for enthusiasts seeking reliable, race-ready cooling solutions for their Nissan 370Z.

Overview

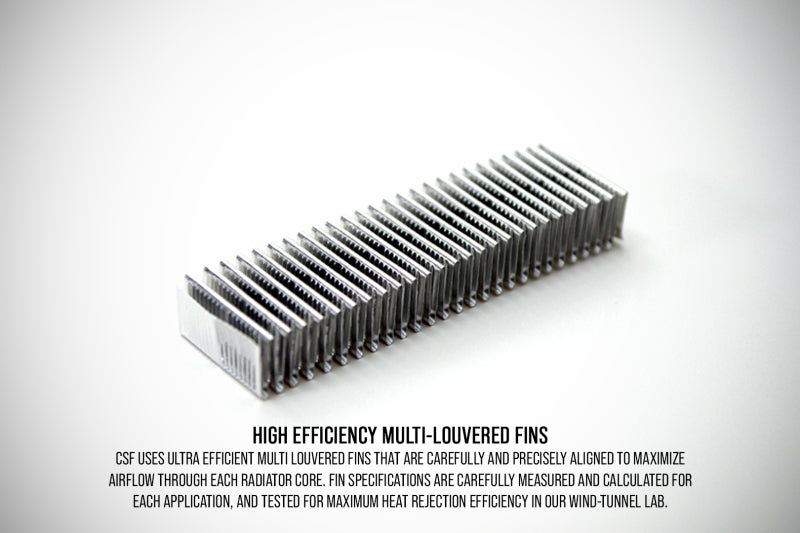

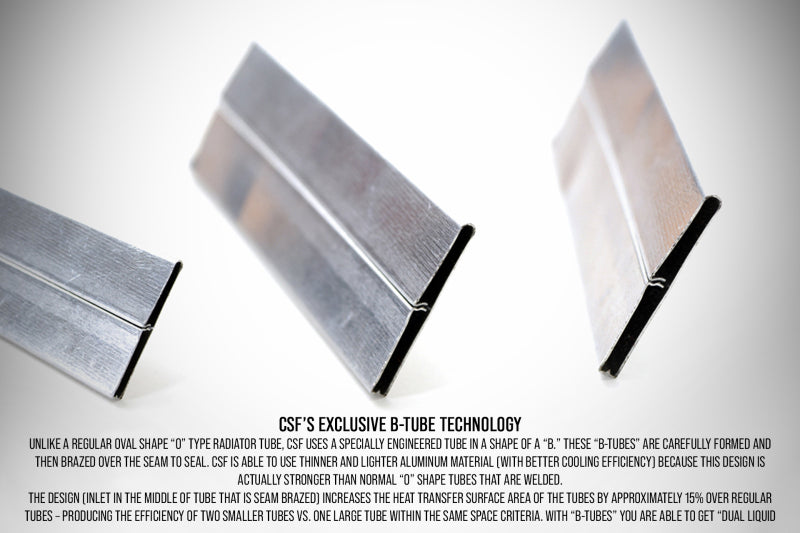

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 370Z/G37 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

View full details
