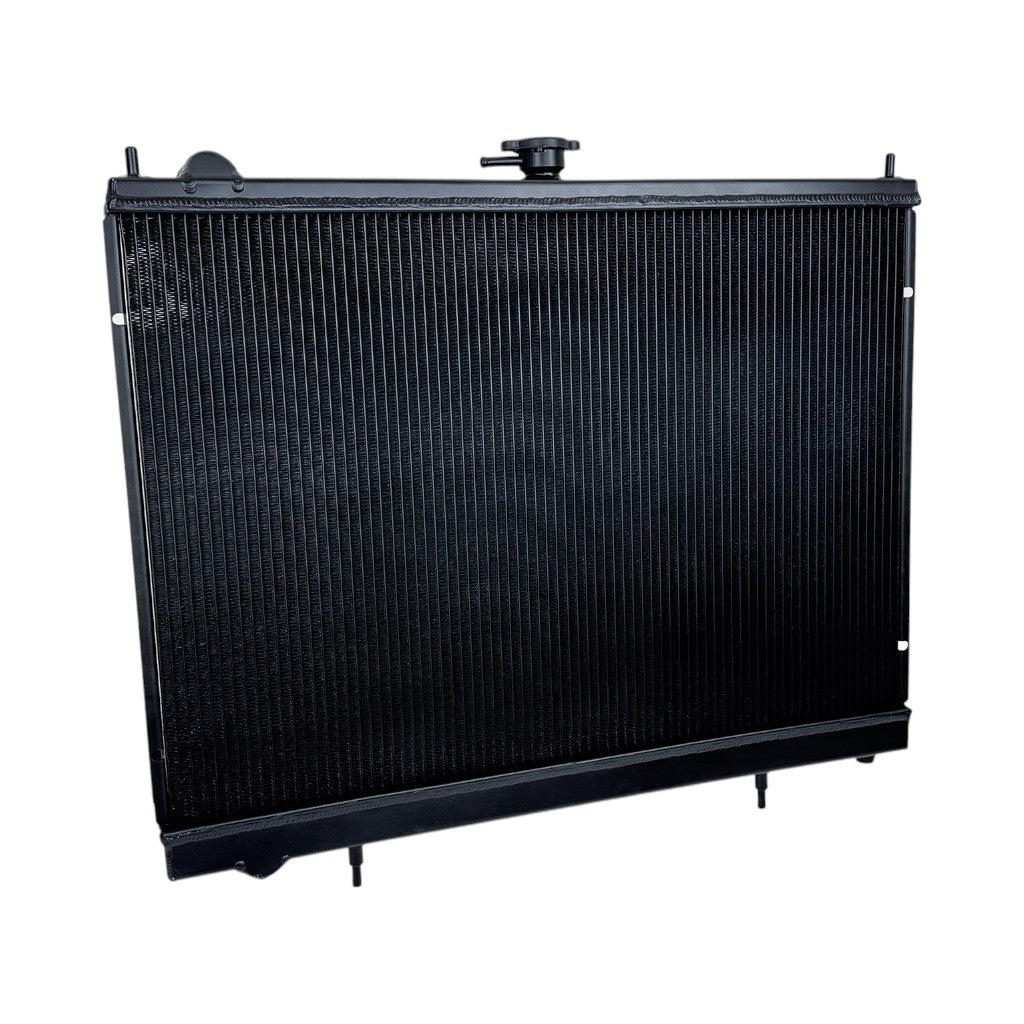

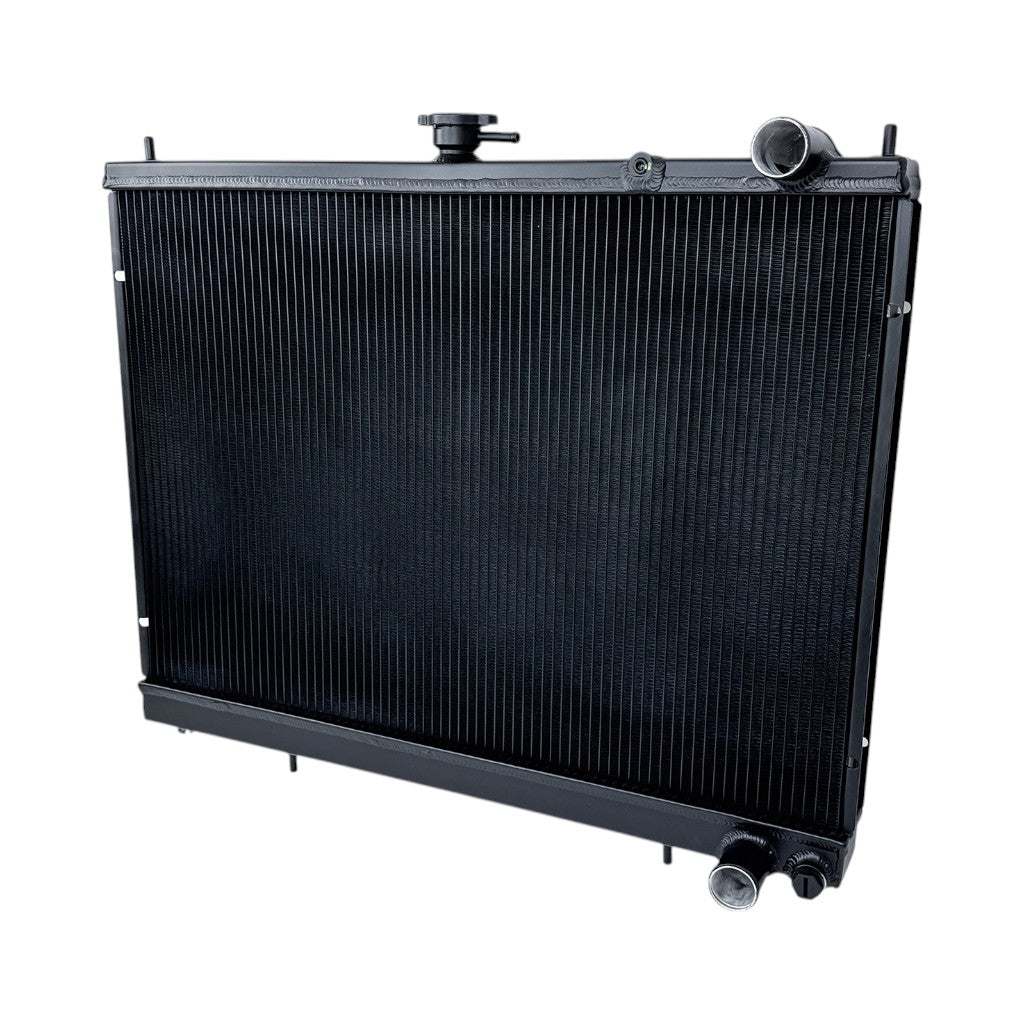

CSF High Performance Cooling Radiator (Black) | NISSAN Skyline GT-R (R34) 1999-2002

CSF High Performance Cooling Radiator (Black) | NISSAN Skyline GT-R (R34) 1999-2002

7231B

In stock

$518.00 USD
$629.00 USD $518.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The CSF High Performance Cooling Radiator (Black) for the Nissan Skyline GT-R R34 from 1999 to 2002 is a high-efficiency cooling component designed to enhance engine thermal management. Featuring a 2-Row 42mm core, this radiator significantly increases fluid capacity and improves heat dissipation. The use of CSF’s exclusive B-Tube Technology boosts heat transfer by approximately 15% compared to standard oval welded tubes, ensuring more effective cooling. The multi-louvered fins maximize airflow through the core, further optimizing thermal performance. Constructed with high-quality materials, this radiator offers durability and superior heat exchange capabilities, making it an ideal upgrade for high-performance or heavily modified engines.

Designed specifically for 1999-2002 Nissan Skyline GT-R R34 models, this radiator is a direct replacement that fits seamlessly into the OEM mounting points. Its enhanced cooling efficiency makes it suitable for street, track, or high-performance applications where optimal engine temperature management is critical. Installation is straightforward, with no modifications required for compatible models. The kit includes the radiator core and necessary mounting hardware, providing a comprehensive upgrade for enthusiasts seeking improved cooling capacity and reliability. This radiator is perfect for those looking to maintain peak engine performance under demanding conditions.

Overview

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant’s heat to dissipate from.

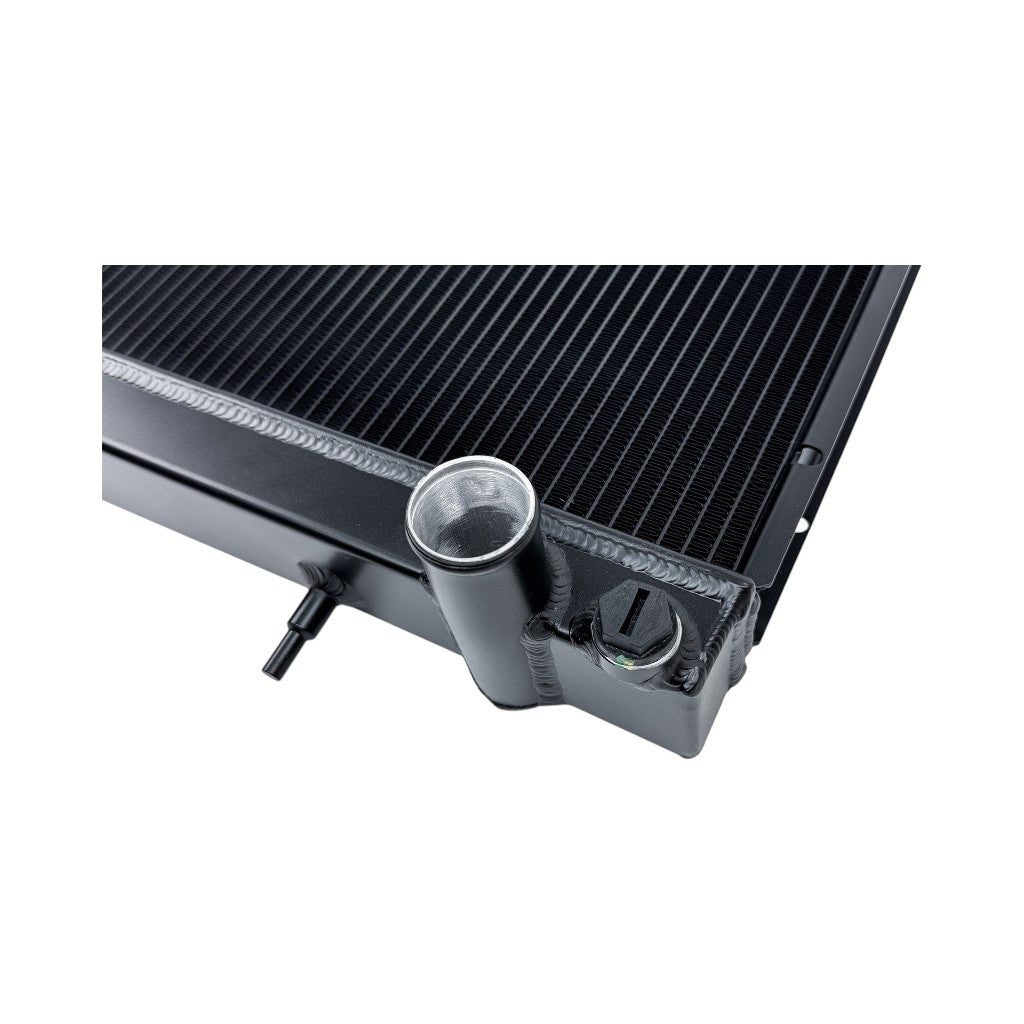

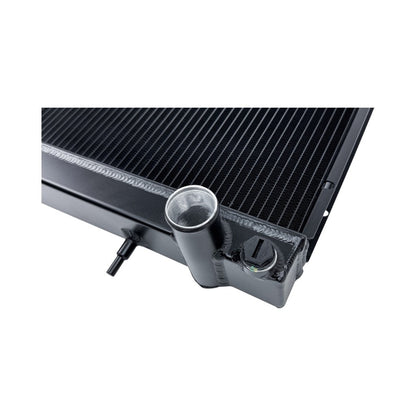

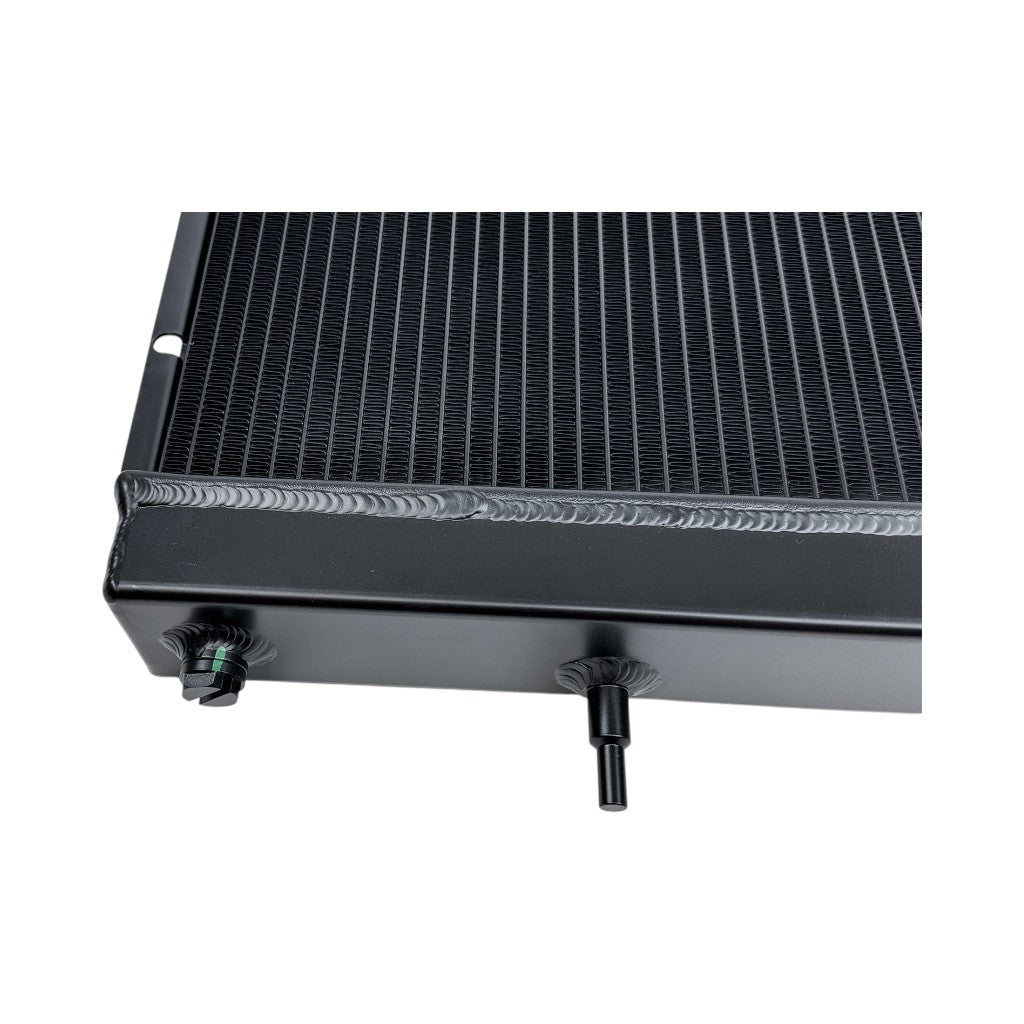

Each end tank is constructed from high-grade aluminum for strength and durability. The TIG-Welded construction further increases the overall strength. Each top end tank includes a pre-plugged 1/8th NPT and each bottom end tank includes M16x1.5P ports for temperature sensors. The CSF radiators mount in the factory location and require no modifications or cutting.

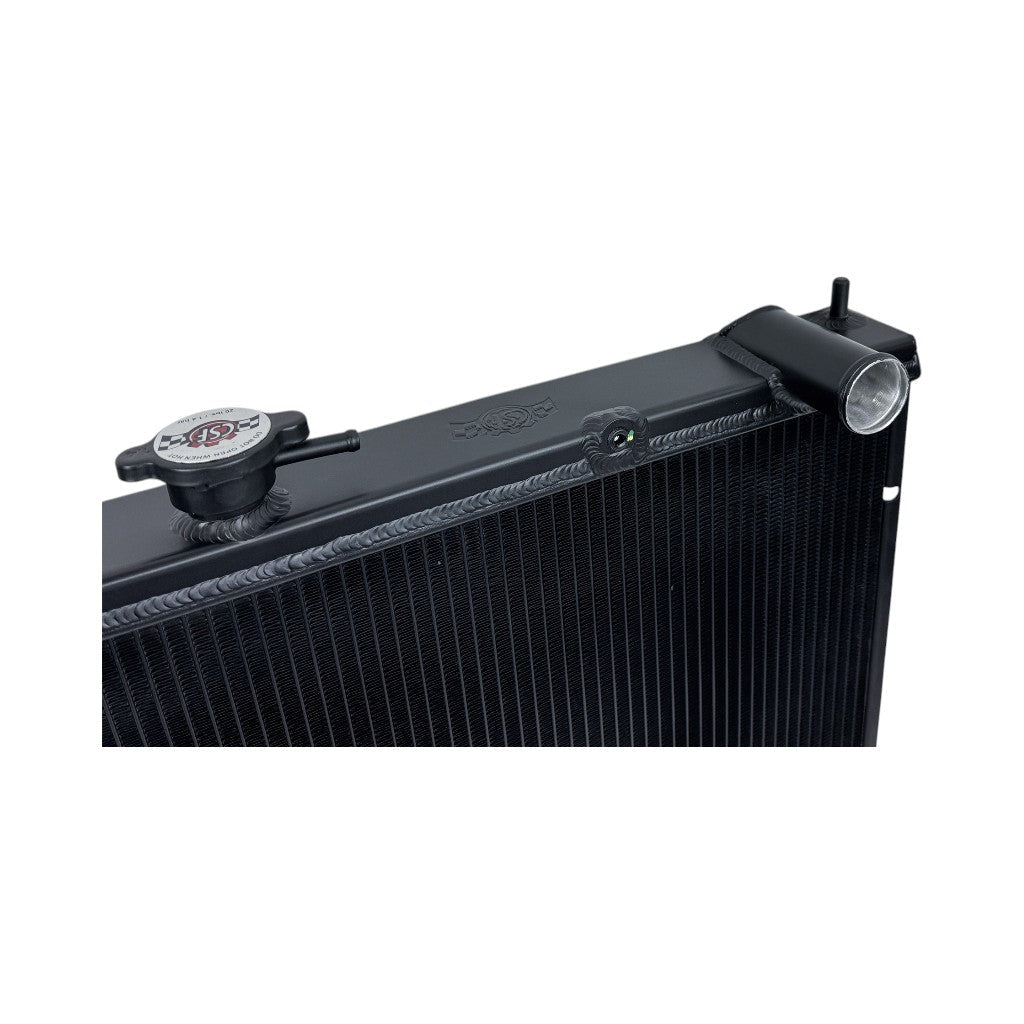

Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot.

  • 2-Row – 42mm Ultra-High-Performance Core
  • 75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • CNC Machined Mounting Pins and OEM Style Inlet/Outlet
  • 1/8th NPT Temp Sensor Port on Top End Tank
  • M16 x 1.5P temperature sensor port with pre-installed plug
  • 100% All Aluminum TIG-Welded Construction
  • 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
  • True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • OE Location Fan Shroud Mounting Points
  • 2-Year Limited Warranty

Applications:

  • 1999-2002 Nissan R34 Skyline GT-R (incl. Nismo, V-Spec, M·spec, etc)
  • 1999-2002 Nissan R34 Skyline GT / 25GT / 25GT-V / 25GT FOUR / 25GT Turbo
  • 1999-2002 Nissan R34 Skyline 25GT-X / 25GT-X FOUR / 25GT-X Turbo

OEM Part Numbers:

  • Nissan: 21410-AA401
