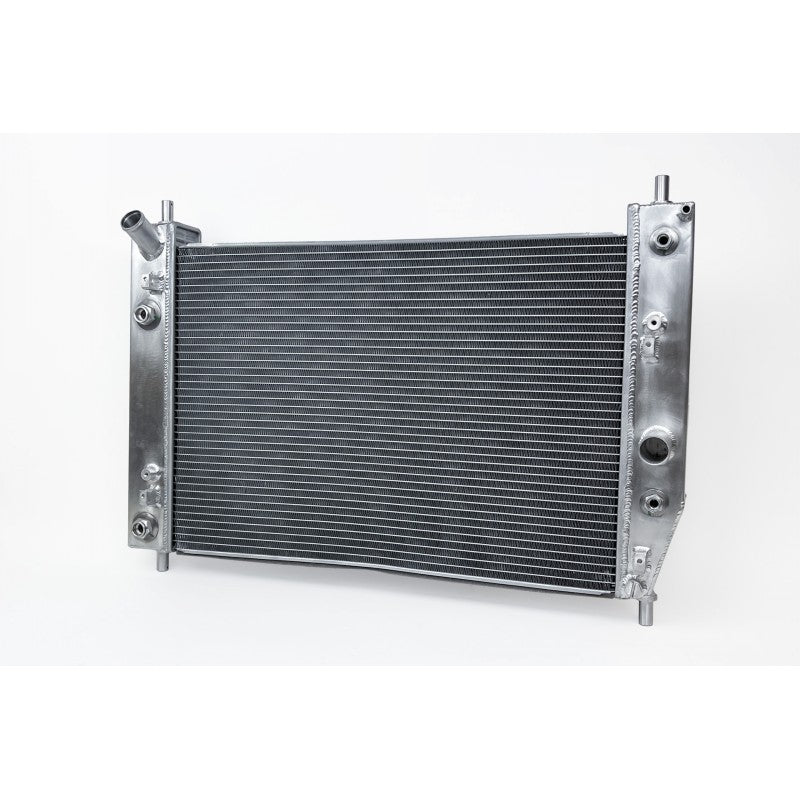

CSF High Performance Cooling Radiator | CHEVROLET Corvette C6 2005-2013

The original OE radiator from Chevy features plastic tanks with a single row aluminum core design. While this is generally accepted as good quality and durable, it is not the best option for high horsepower builds and hard driving. Big V8s get hot, and the LS is no exception. Anything you can do to help keep temperatures in check will improve longevity of your motor and components.

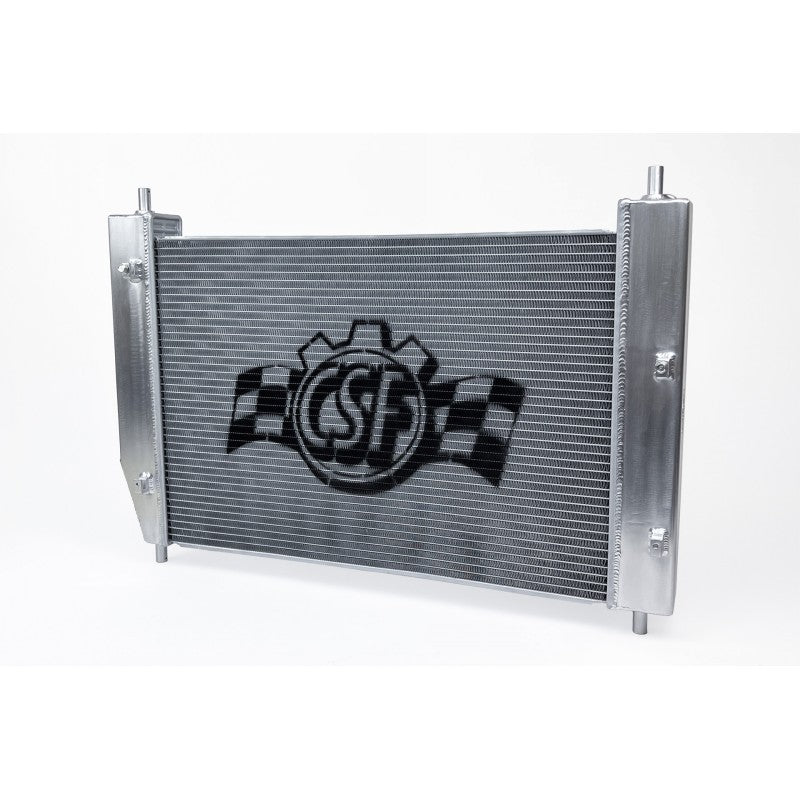

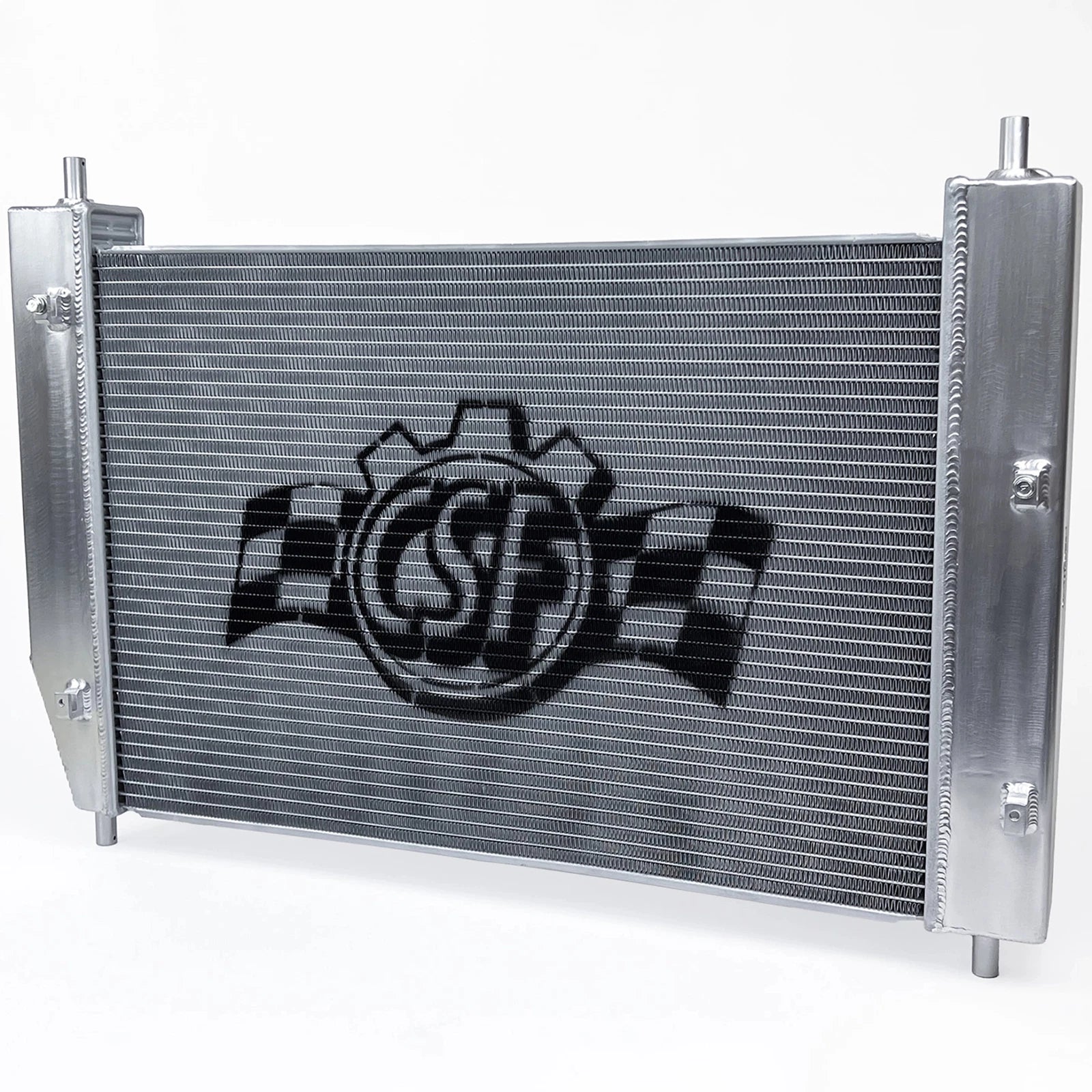

The CSF C6 Corvette Radiator uses a 193% larger 2-Row 52mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the 8mm super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The improved airflow characteristics of the CSF core offers superior cooling when paired with intercoolers and heat exchangers installed in front for supercharger and turbo kits.

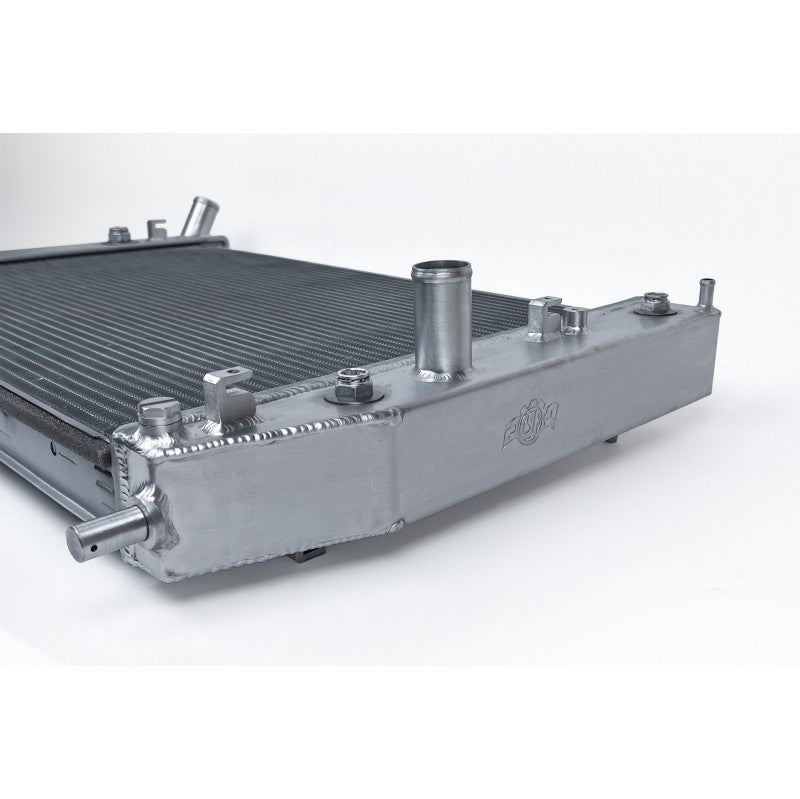

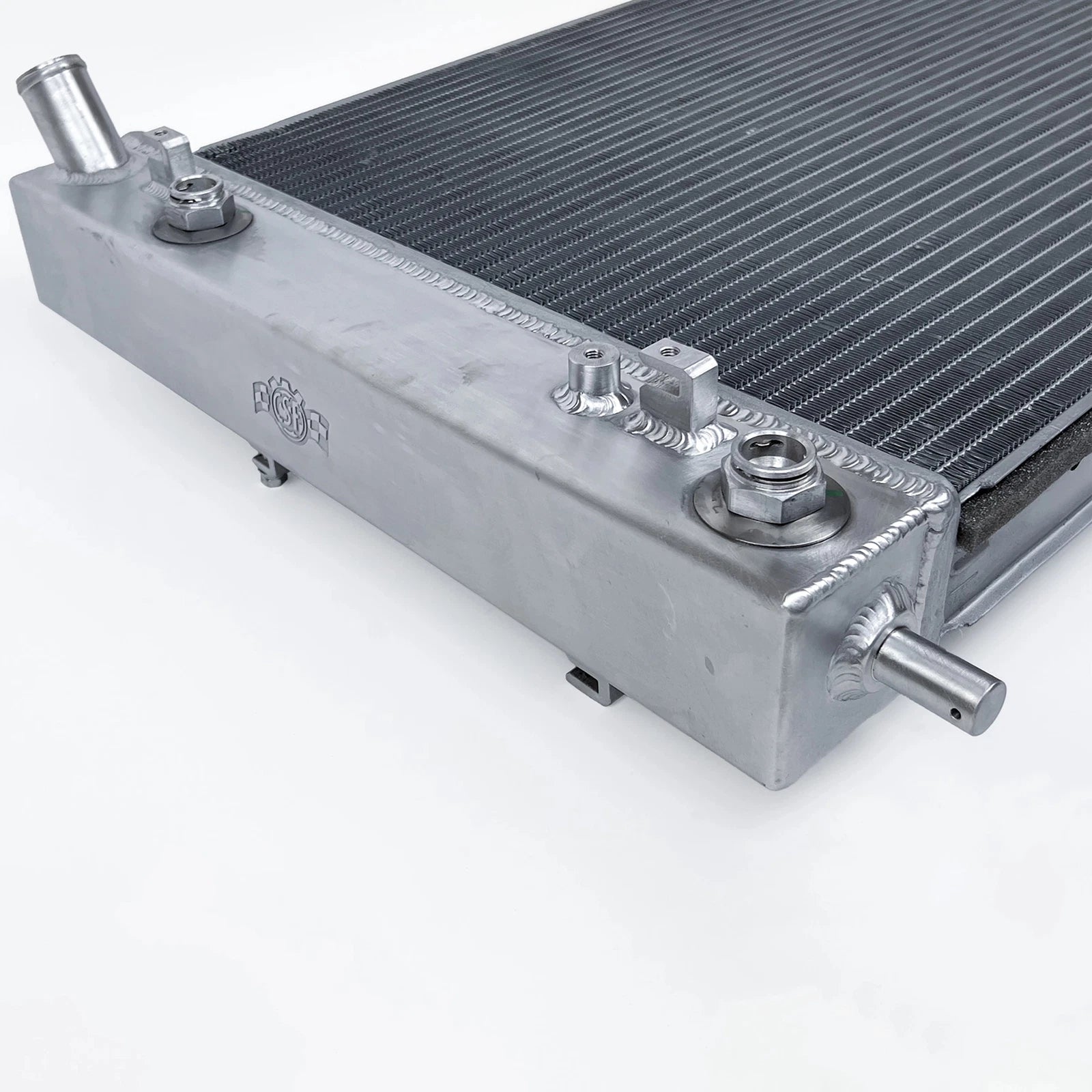

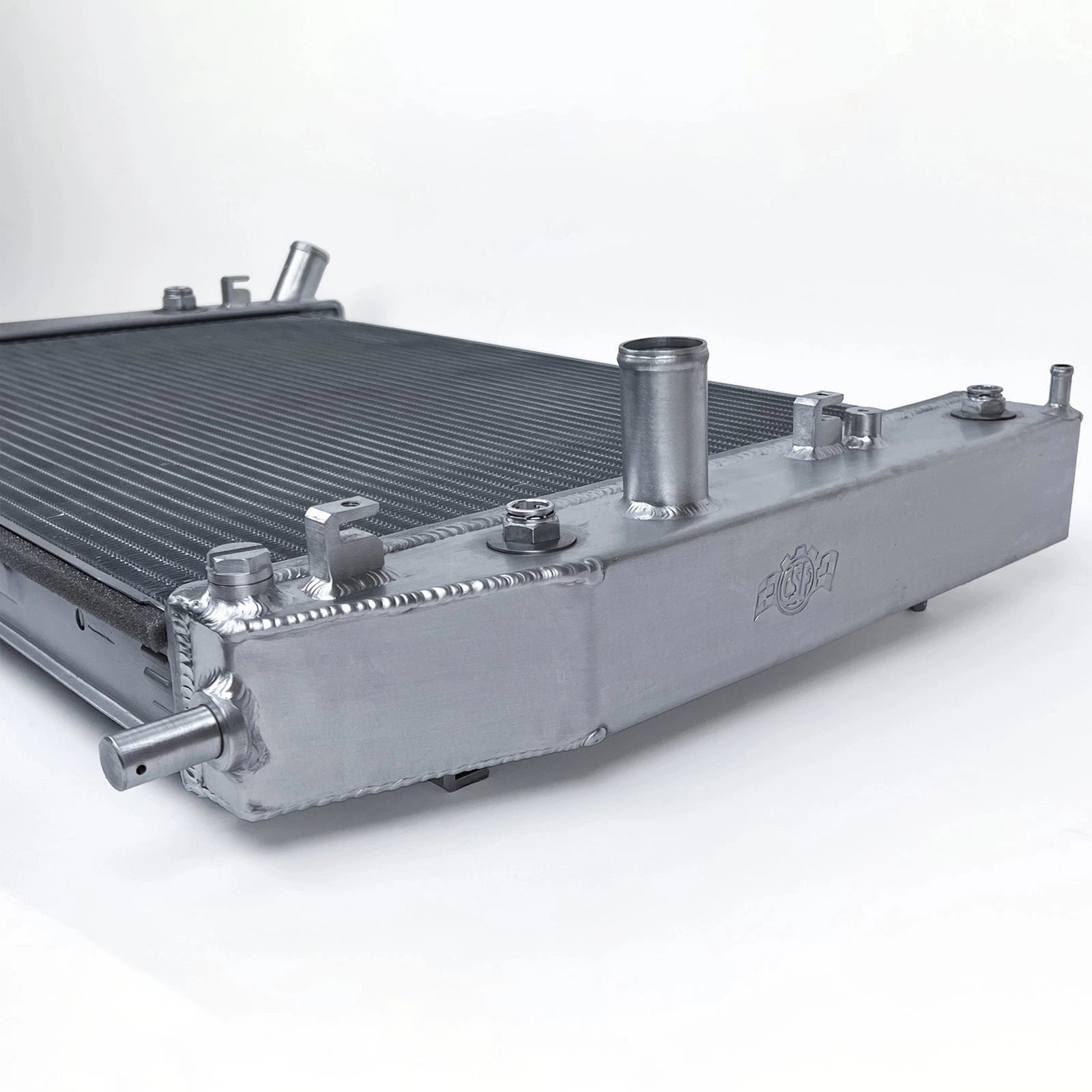

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting. The core height is also slightly reduced to create additional clearance for supercharger installations.

• 2-Row, 52mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 8mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Shorter core height provides clearance for supercharger installations
  • No need to modify the radiator core support or trim the radiator
  • Fits all OEM and Aftermarket Intake Systems

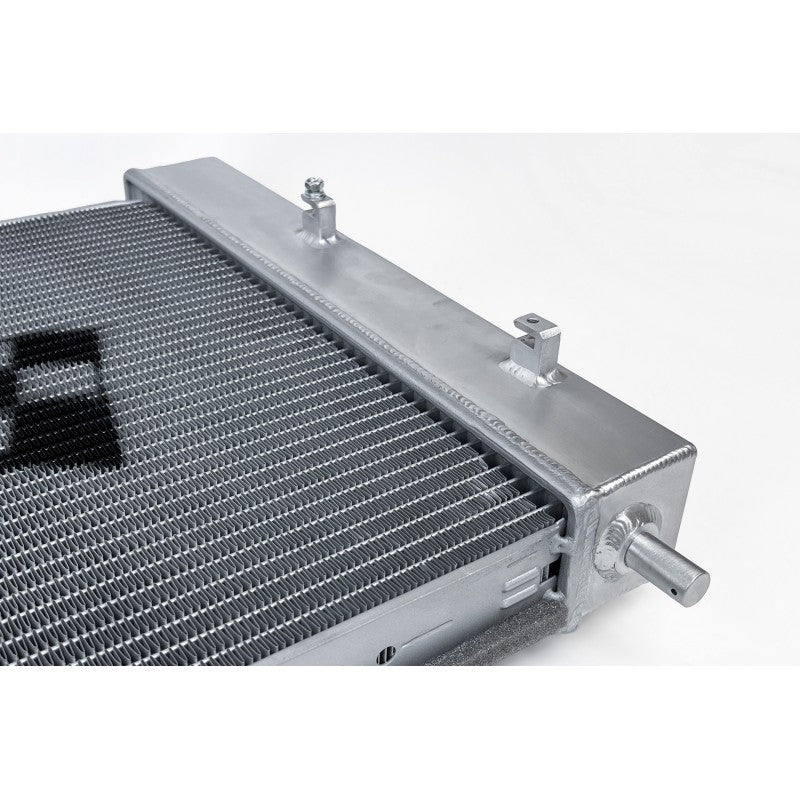

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

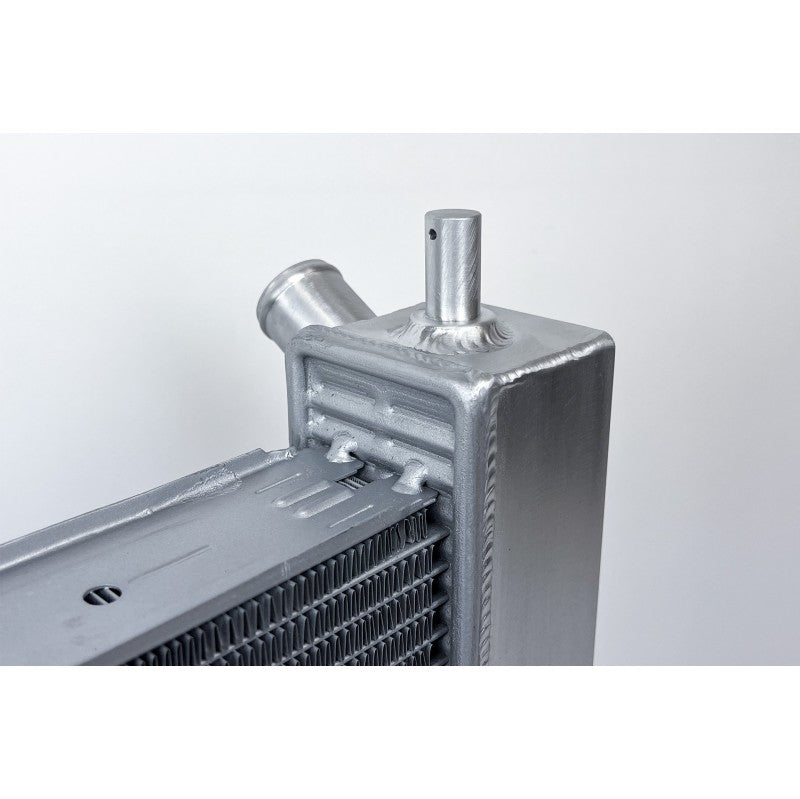

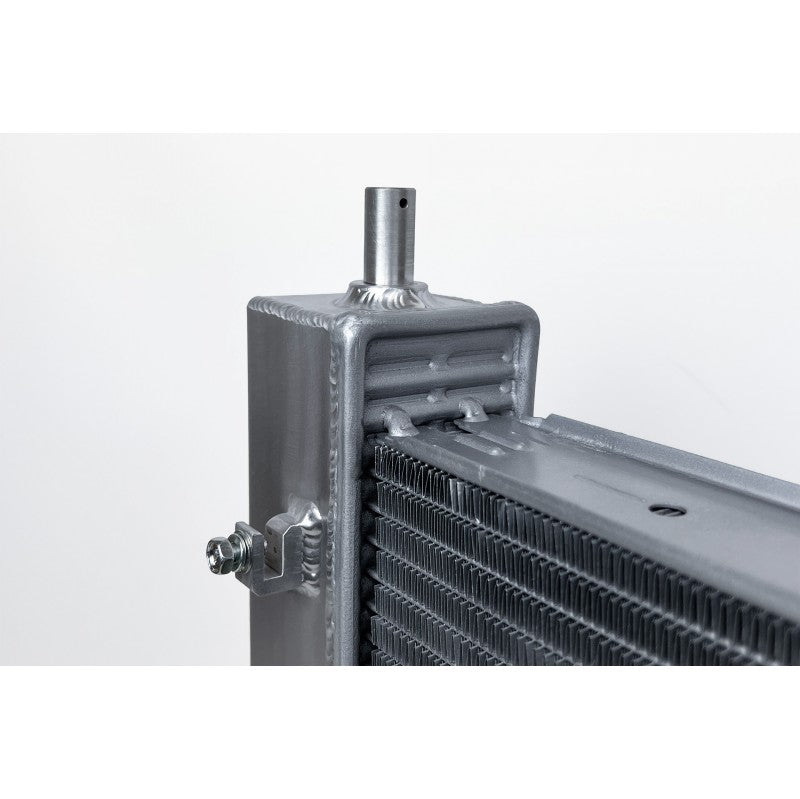

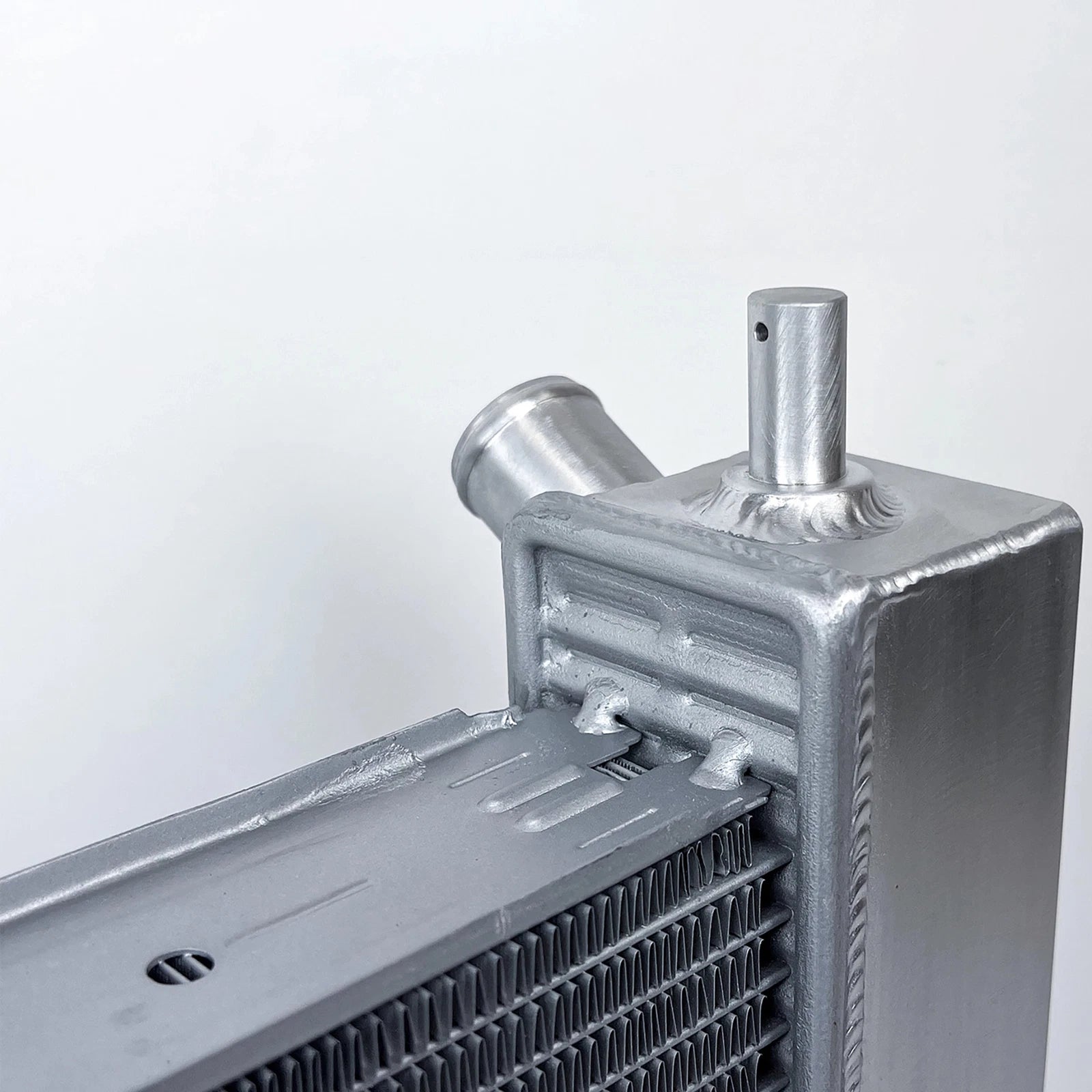

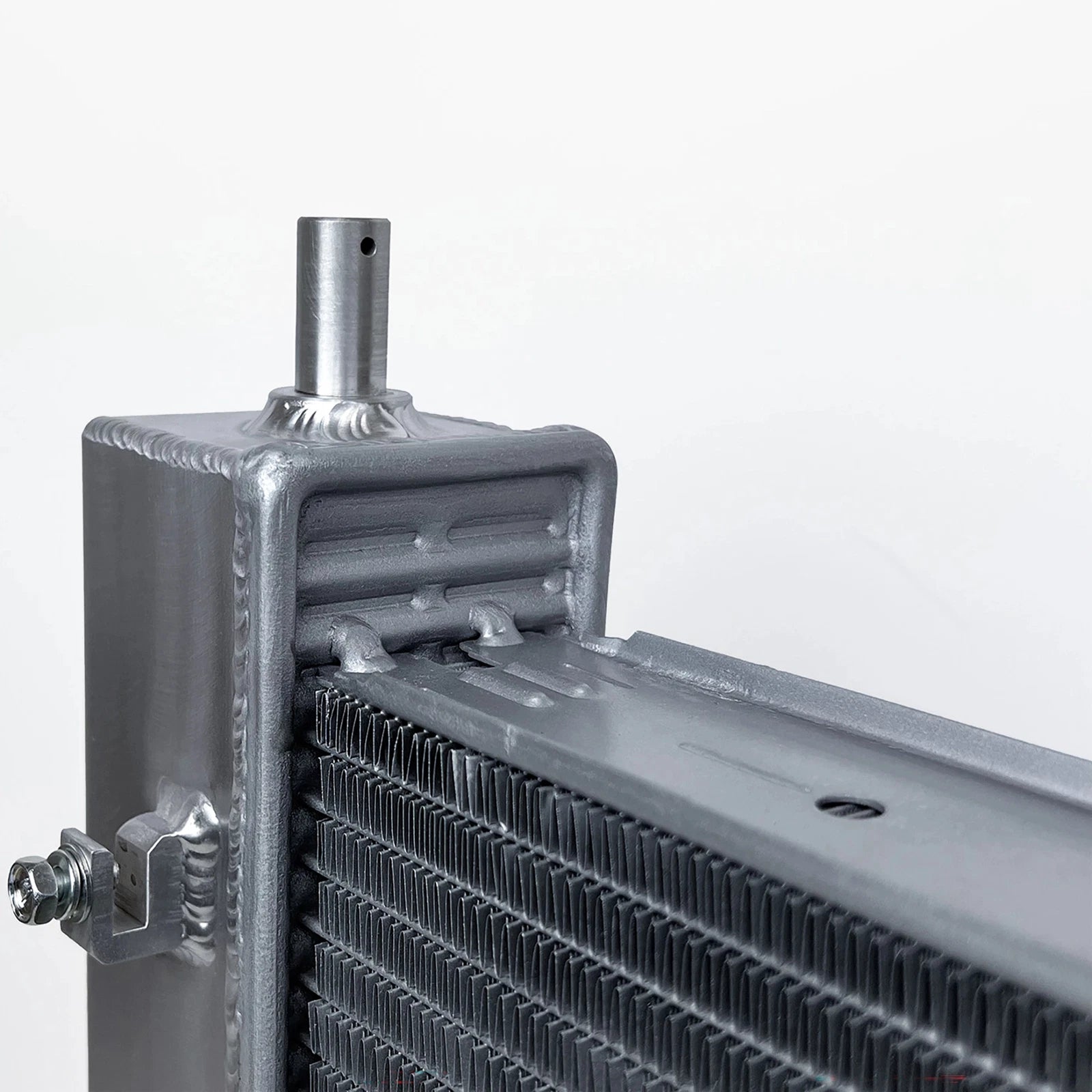

  • Mounting Pins have Cotter Pin Holes for securing A&A Corvette’s Top Shroud

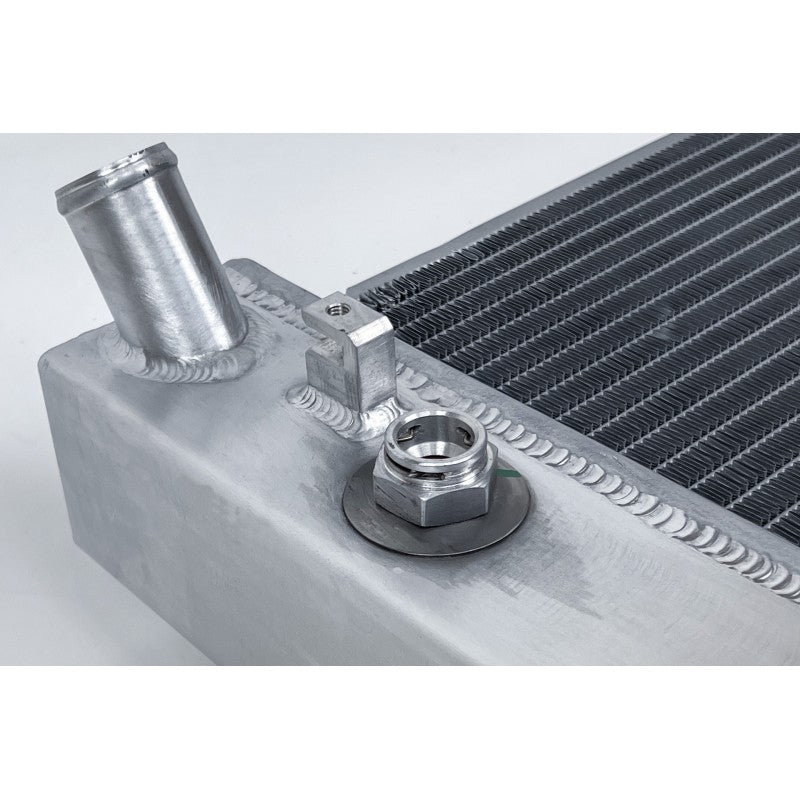

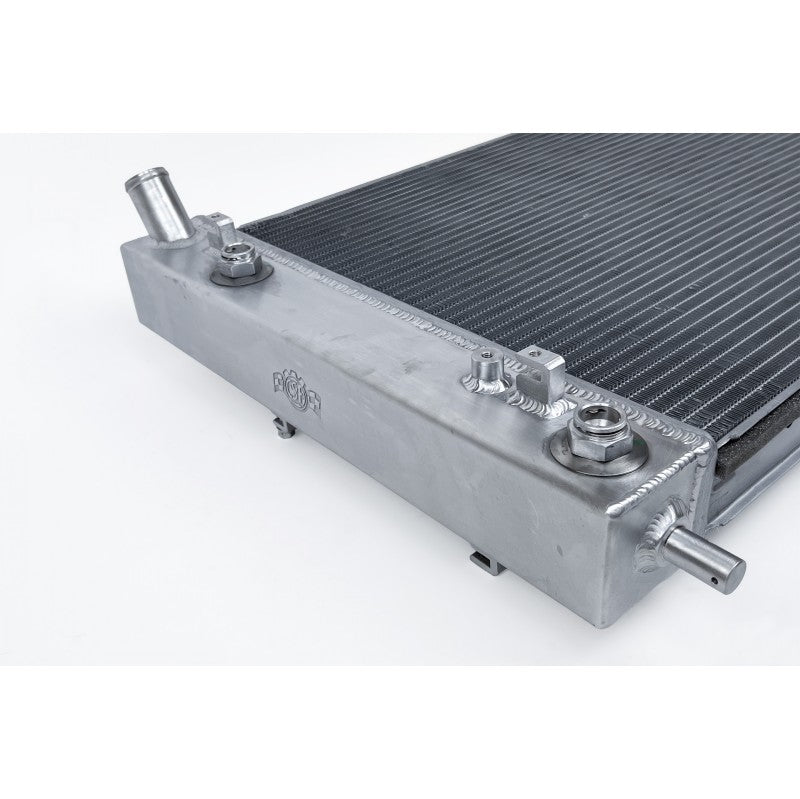

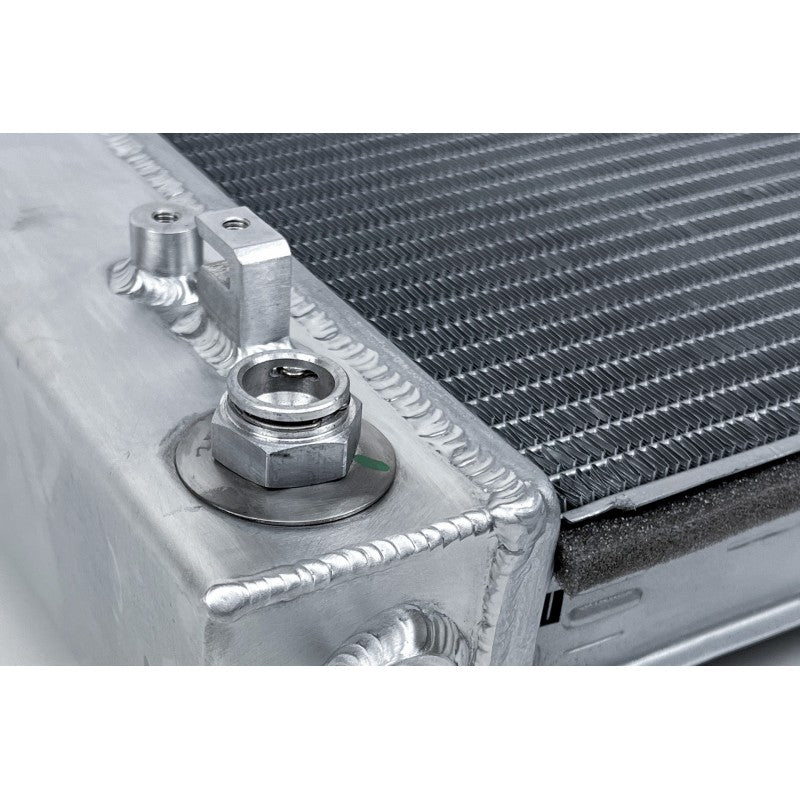

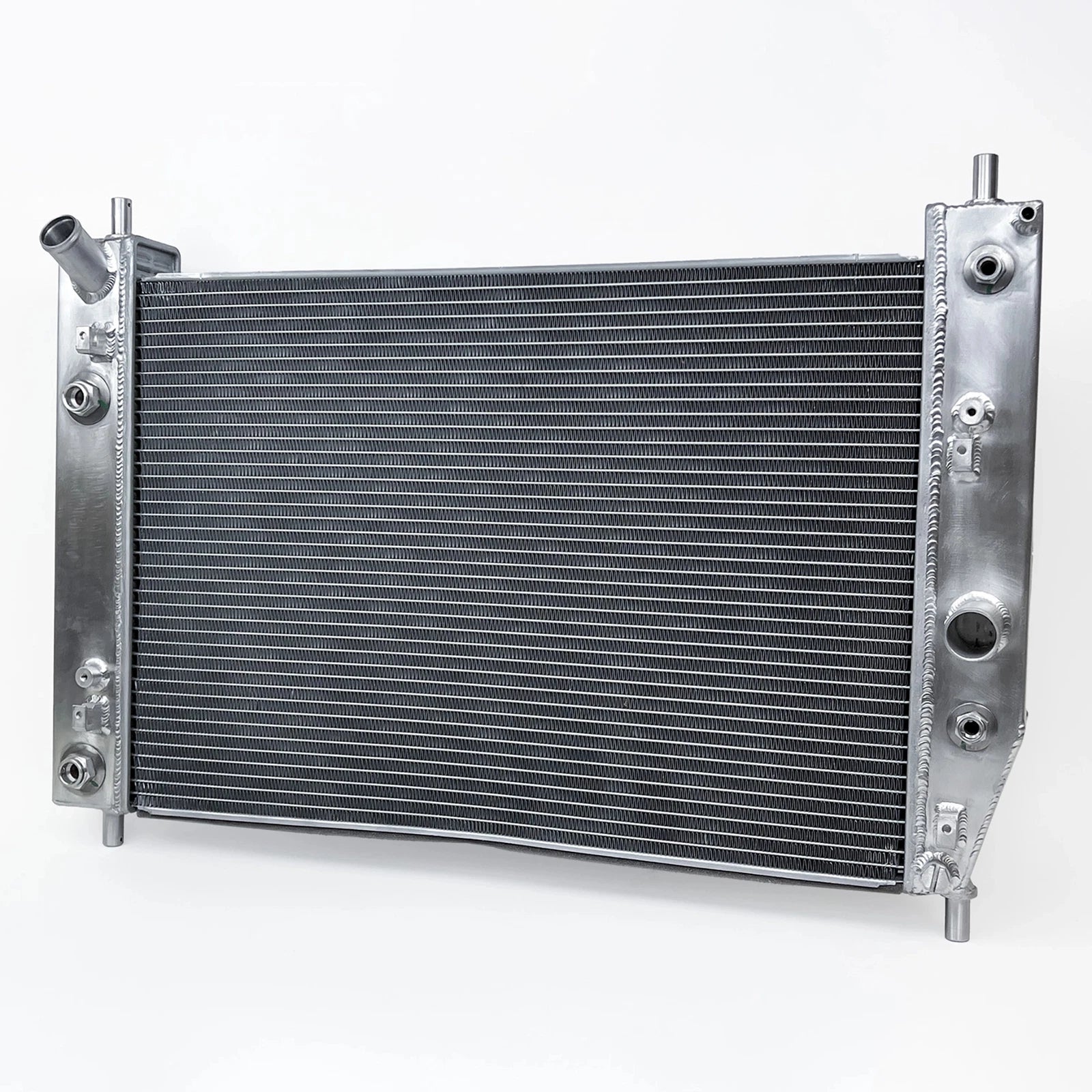

• Built In Engine Oil cooler & Automatic Transmission Cooler with Factory-style Quick Connect Fittings

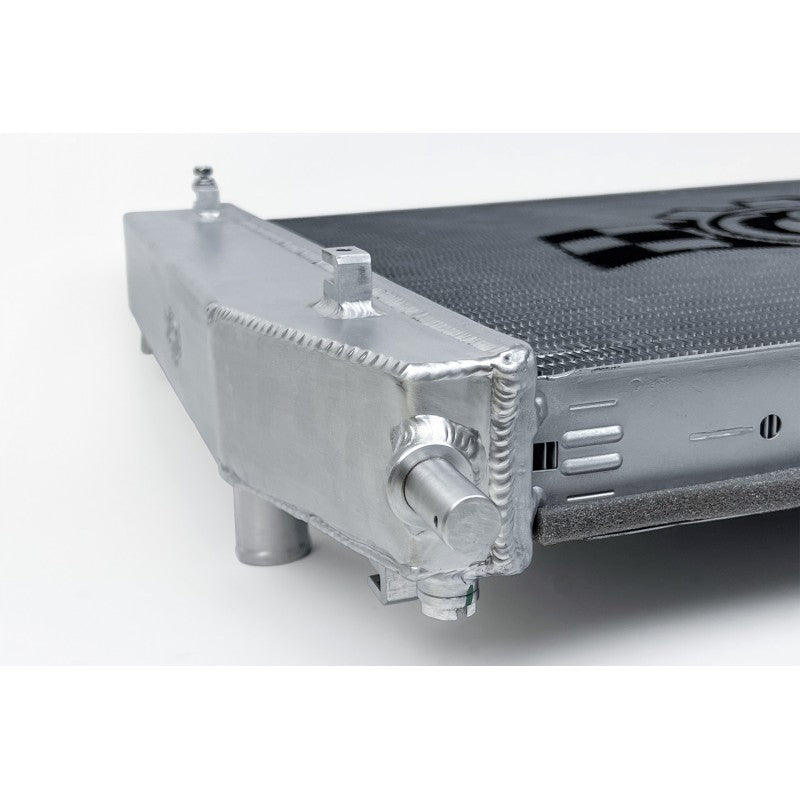

• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 2005-2013 Chevrolet C6 Corvette (excluding ZR1 & Z06 w/Z07 Performance Package)

OEM Part Numbers:

• Chevrolet: 10353889
• Chevrolet: 15145946
• Chevrolet: 21996495
• Chevrolet: 10353890
• Chevrolet: 20873508
• Chevrolet: 25861236
