CSF High Perf Radiator Nissan R33 GTR (7230)
CSF High Perf Radiator Nissan R33 GTR (7230)
SKU:7230
In stock
Regular price
$468.59 USD
Regular price
$569.00 USD
Sale price
$468.59 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments

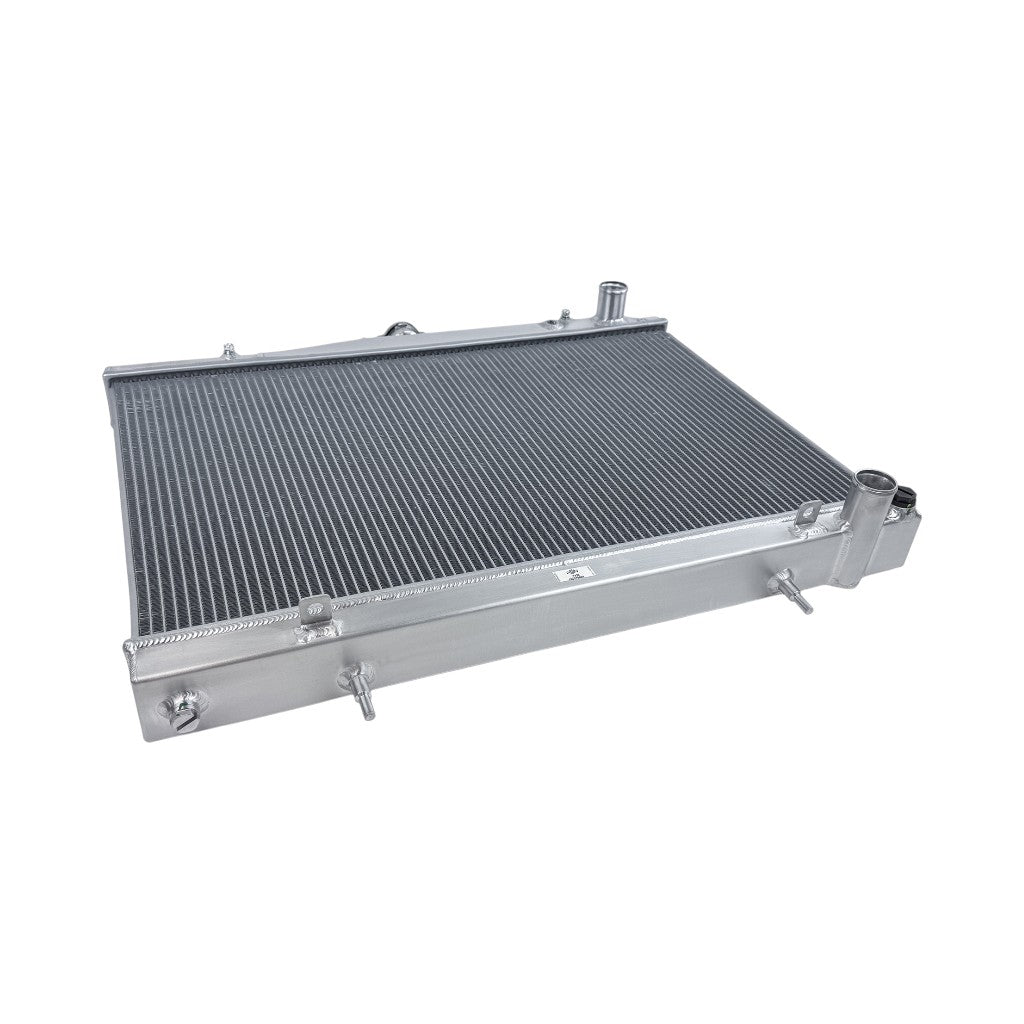

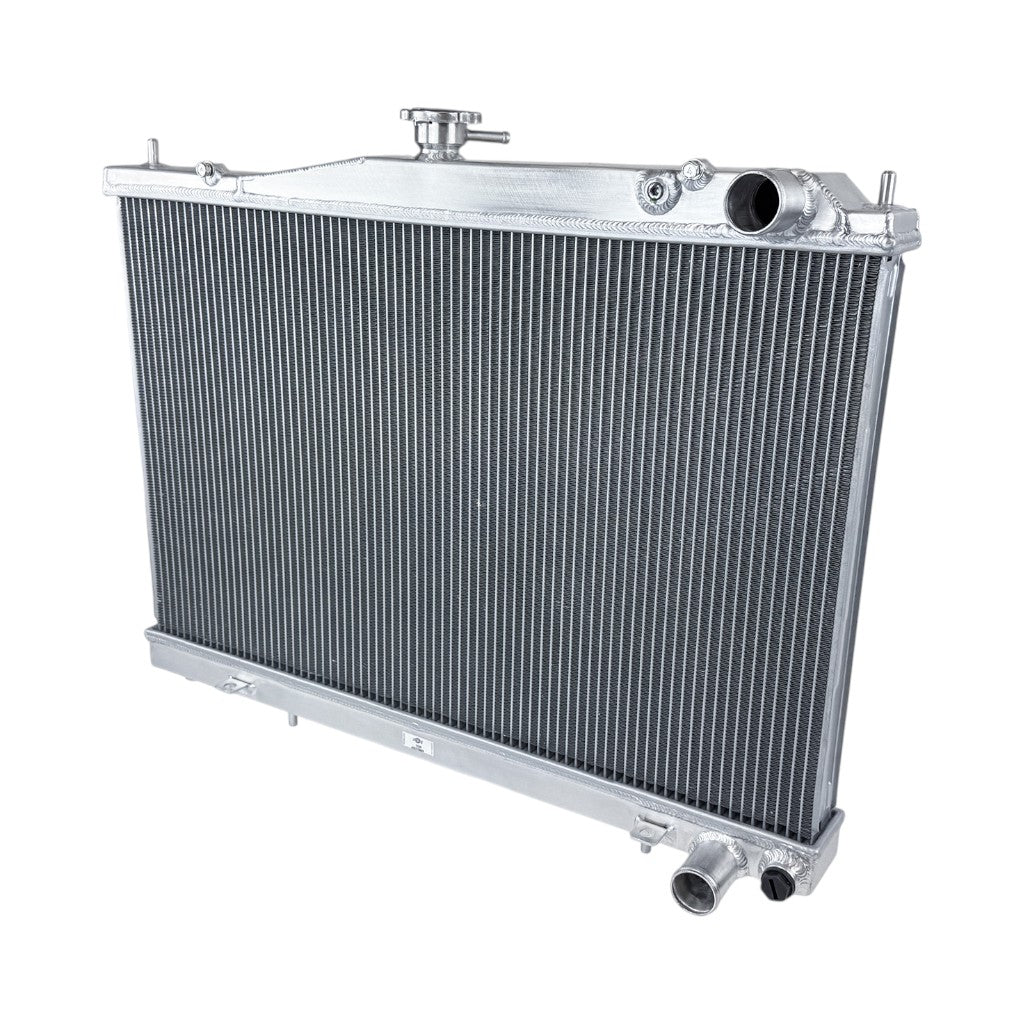

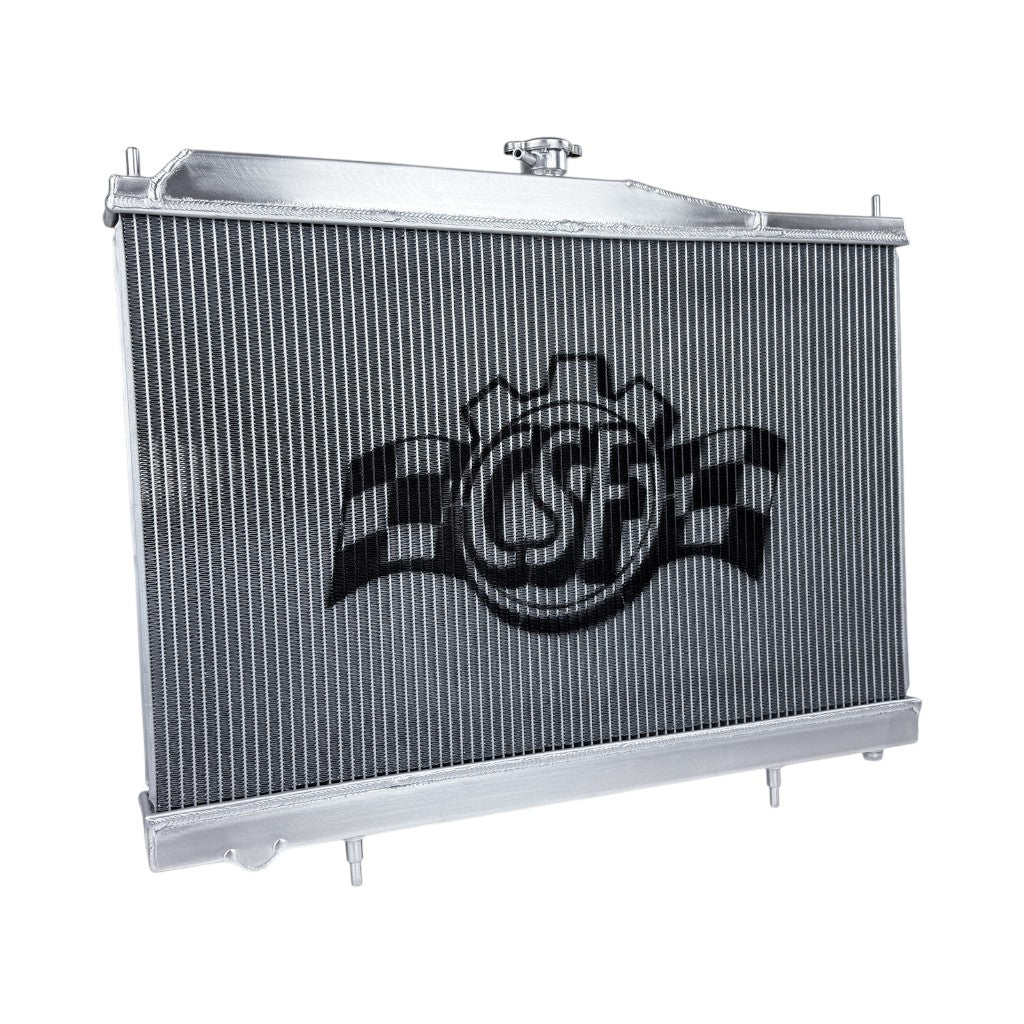

The CSF High Performance Radiator for Nissan R33 GTR (model 7230) is a high-capacity cooling component designed to enhance thermal management in performance applications. Featuring a 2-Row 42mm core, this radiator significantly increases fluid capacity and improves heat dissipation. The use of CSF’s exclusive B-Tube Technology boosts heat transfer efficiency by approximately 15% compared to standard oval welded tubes. Its multi-louvered fins maximize airflow through the core, ensuring optimal cooling performance even under demanding conditions. Constructed with high-quality materials, this radiator offers durability and consistent thermal performance, making it an ideal upgrade for high-performance or modified vehicles.
Designed specifically for the Nissan R33 GTR, this radiator fits models equipped with the RB26DETT engine from 1995 to 1999. It serves as a direct replacement for the stock unit, providing improved cooling capacity for street, track, or high-performance driving. The installation is straightforward, with bolt-on compatibility that requires no additional modifications. This radiator enhances overall engine cooling efficiency, helping to prevent overheating during aggressive driving or extended track sessions. It is an essential upgrade for enthusiasts seeking reliable, high-performance cooling solutions for their R33 GTR.
Share
Overview
Overview
The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant’s heat to dissipate from.

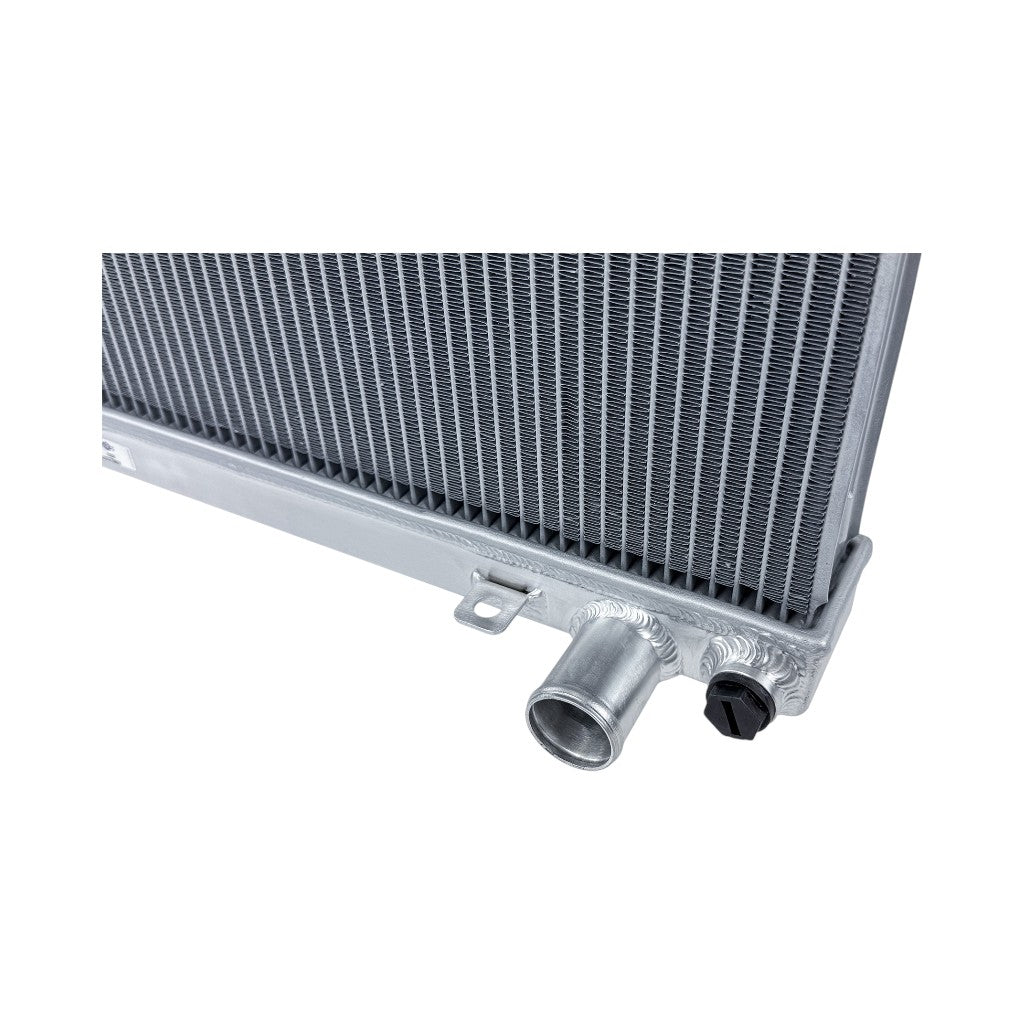

Each end tank is constructed from high-grade aluminum for strength and durability. The TIG-Welded construction further increases the overall strength. Each top end tank includes a pre-plugged 1/8th NPT and each bottom end tank includes M16x1.5P ports for temperature sensors. The CSF radiators mount in the factory location and require no modifications or cutting.

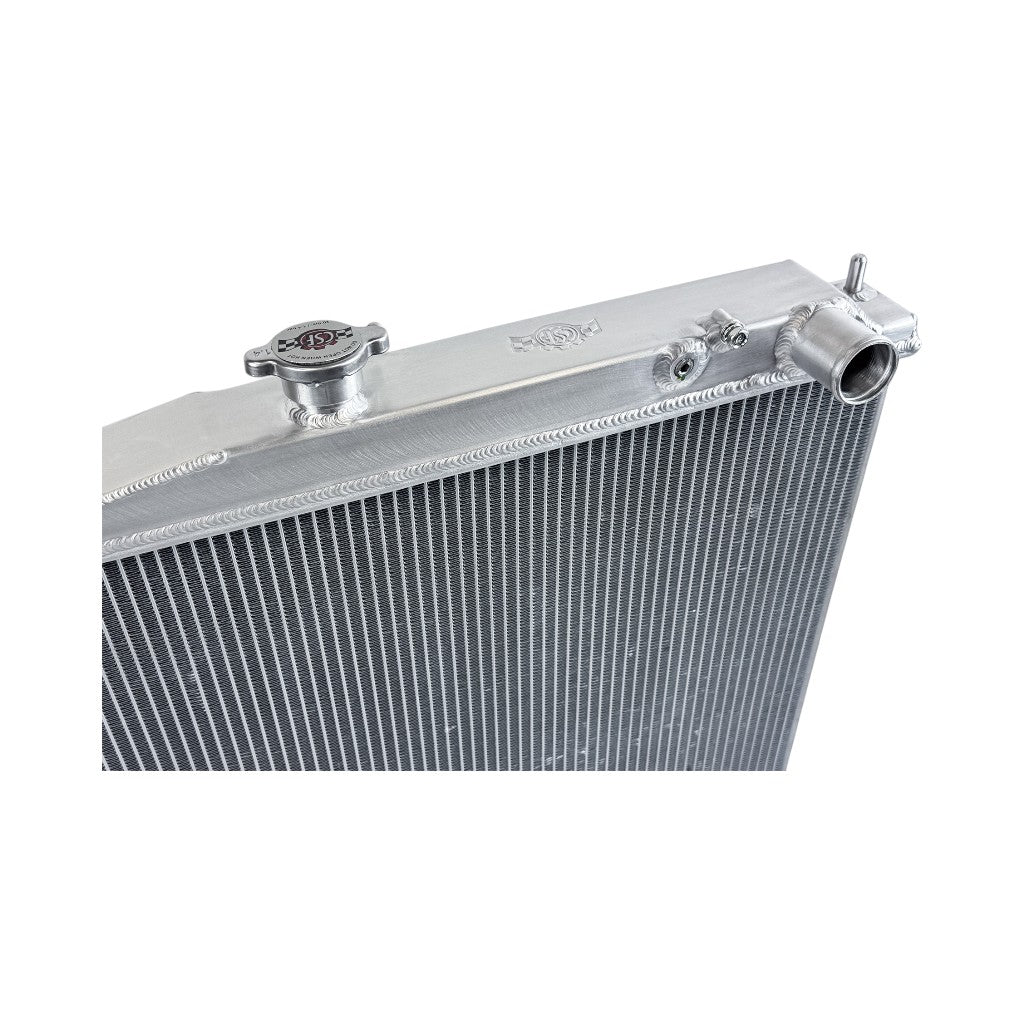

Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot.
- 2-Row – 42mm Ultra-High-Performance Core
- 75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Pins and OEM Style Inlet/Outlet
- 1/8th NPT Temp Sensor Port on Top End Tank
- M16 x 1.5P temperature sensor port with pre-installed plug
- 100% All Aluminum TIG-Welded Construction
- 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- OE Location Fan Shroud Mounting Points
- 2-Year Limited Warranty
Applications:
- 1995-1998 Nissan R33 Skyline GT-R (incl. Nismo, V-Spec, CRS, etc)
- 1994-1997 Nissan R33 Skyline GTS / GTS-25 / GTS-4 / GTS-25t
OEM Part Numbers:
- Nissan: 21410-15U17
