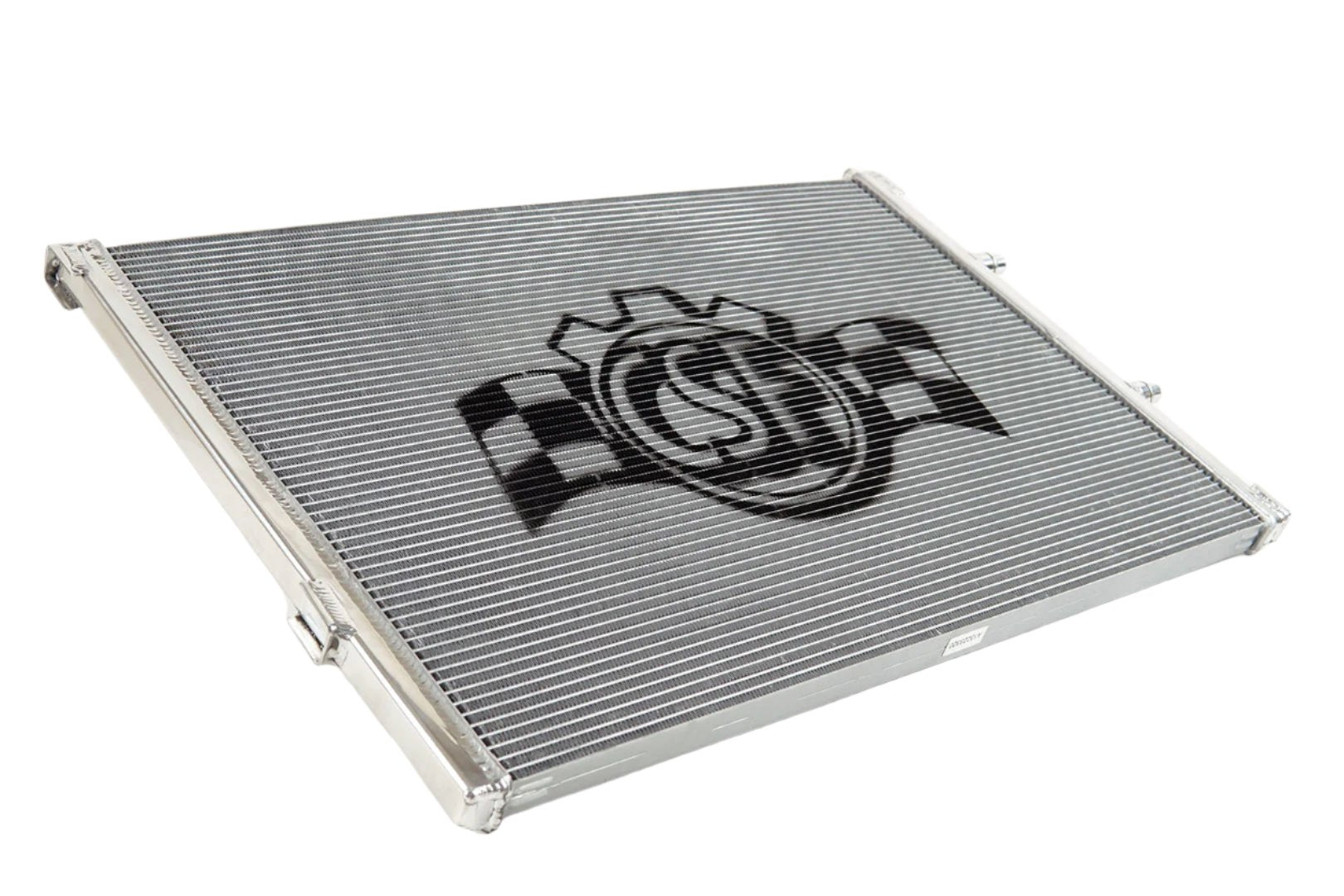

CSF High Performance Front Mount Heat Exchanger | Mercedes E63 / CLS63 AMG

As with all of CSF’s high-performance products, the same degree of engineering that has gone into the effectiveness of each product has gone into other aspects of its quality – from its hand-polished mirror finish to extensive testing and perfect “drop-in” fitment that the CSF name prides itself upon.

AMG Auxiliary Radiator Features (CSF# 8197):

• 1 Row, 23mm Super-High Efficiency Core w/ CSF’s Exclusive B-Tube Technology vs OEM 16mm Core
• 59 Rows vs OEM 42 Rows; Over 40% More Tubes Than The OEM Heat Exchanger, Resulting in a Core Efficiency With Over 300% Increase in Flow Area and Twice the Cooling Performance
• Ultra-Efficient, 5mm Tall Multi-Louvered Fins for Maximum Surface Area Contact
• 17.429cm² Flow Area vs OEM 5.748cm²

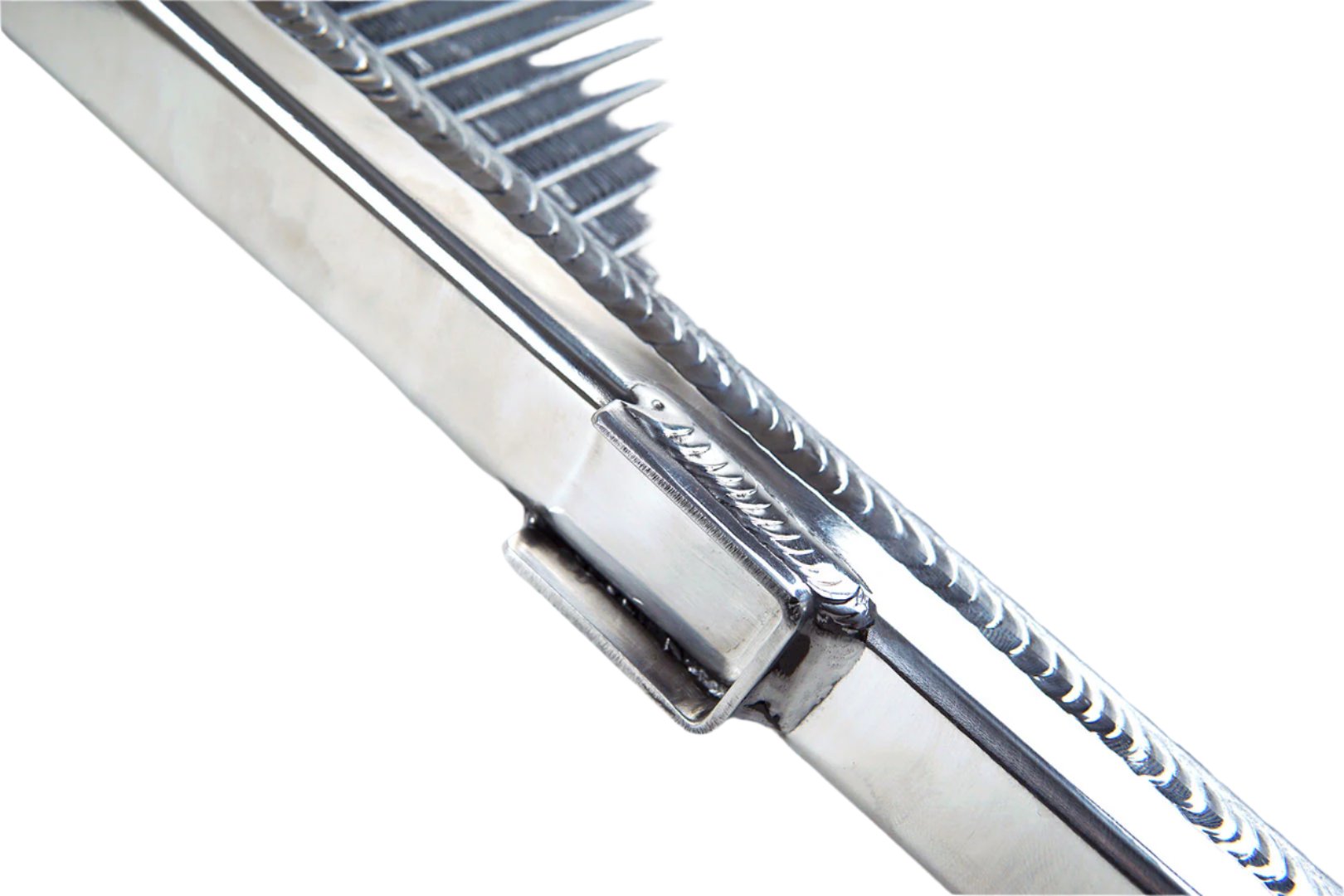

• 100% All-Aluminum TIG-Welded Construction
• Individually Leak and Pressure Tested

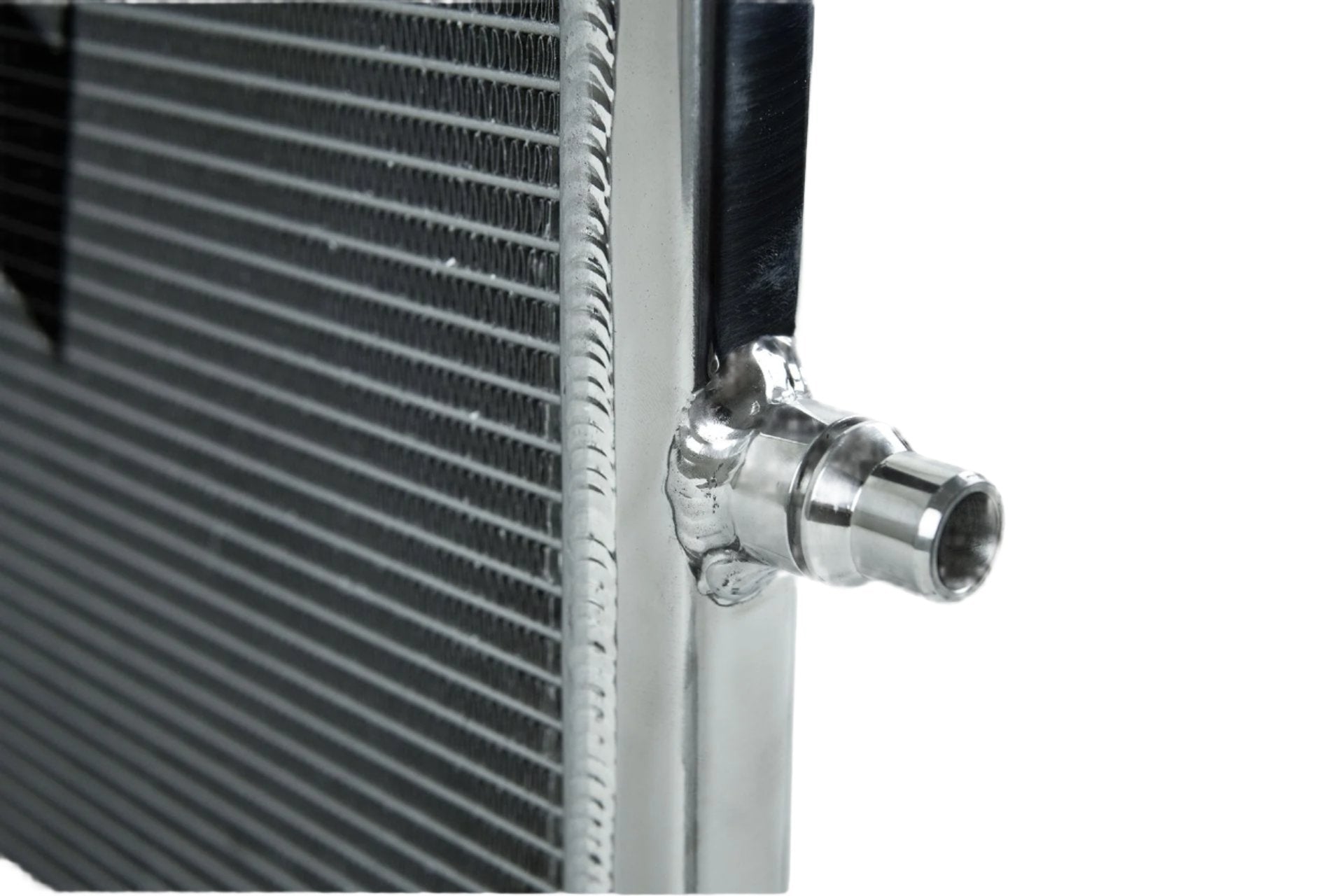

• CNC Machined Brackets and Fittings

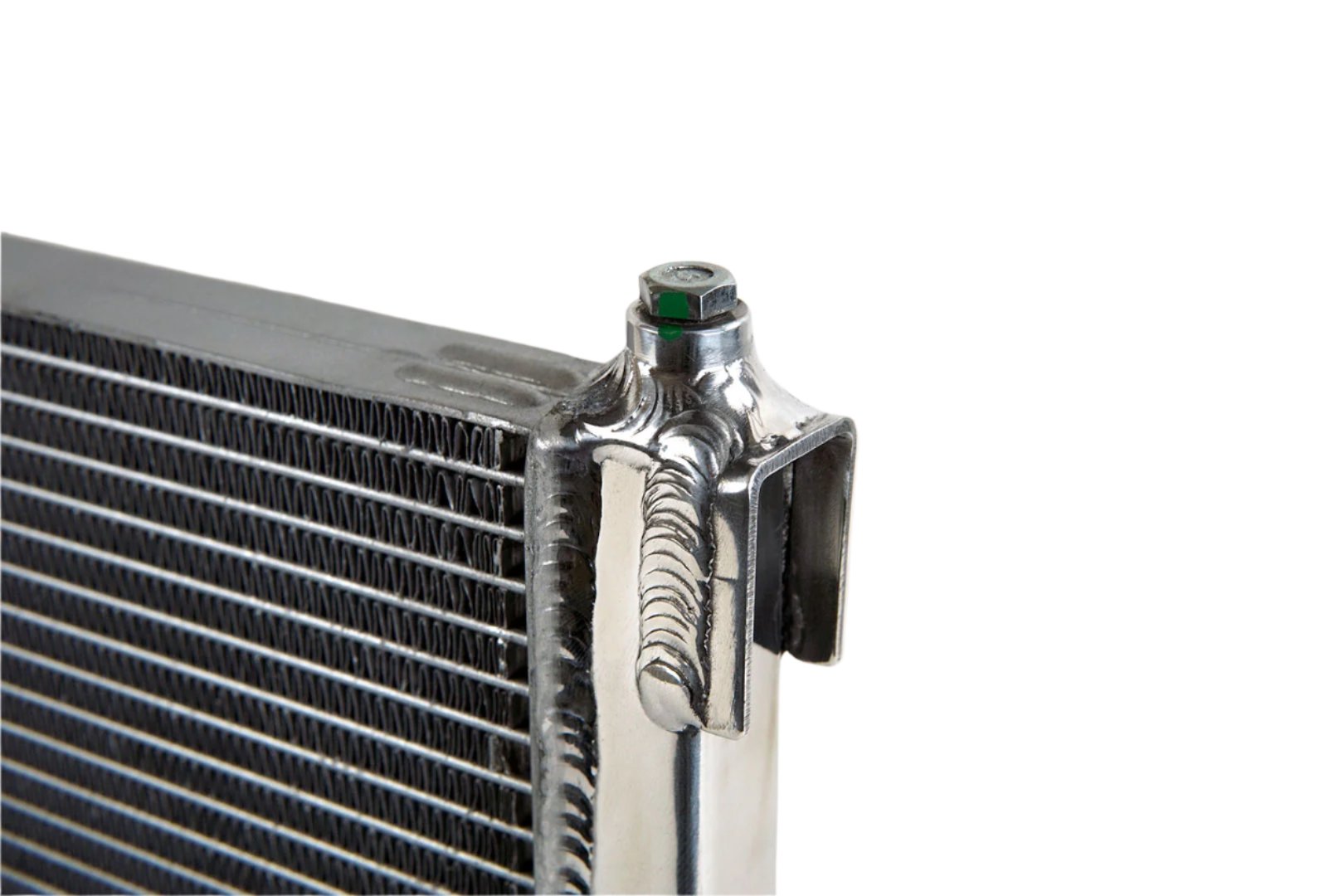

• Integrated All-Aluminum Race Style Bleeder Screw
• 1 Hour “Mirror Finish” Hand Polish
• True “Drop-in Fit” Requires No Modifications to Install
• Replaces OEM Part#: 197-500-01-03

Fitment:

• 2012-2014 Mercedes Benz CLS 63 AMG 5.5L V8 (W218)
• 2014-2018 Mercedes Benz CLS 63 AMG S 5.5L V8 (W218)
• 2012-2016 Mercedes Benz E 63 AMG Sedan 5.5L V8 (W212)
• 2014-2016 Mercedes Benz E 63 AMG S Sedan 5.5L V8 (W212)
• 2012-2014 Mercedes Benz E 63 AMG Wagon 5.5L V8 (W212)
• 2014-2016 Mercedes Benz E 63 AMG S Wagon 5.5L V8 (W212)
• 2013-2019 Mercedes Benz SL 63 AMG Convertible 5.5L V8 (W231)
• 2013-2019 Mercedes Benz SL 65 AMG Convertible 5.5L V8 (W231)
• 2011-2015 Mercedes Benz SLS AMG Coupe 6.3L V8 (W197)
• 2012-2015 Mercedes Benz SLS AMG Convertible 6.3L V8 (W197)
