CSF Radiator | FORD Mustang ECOBOOST 2.3L 2015+

CSF Radiator | FORD Mustang ECOBOOST 2.3L 2015+

7072

In stock

$468.59 USD
$569.00 USD $468.59 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

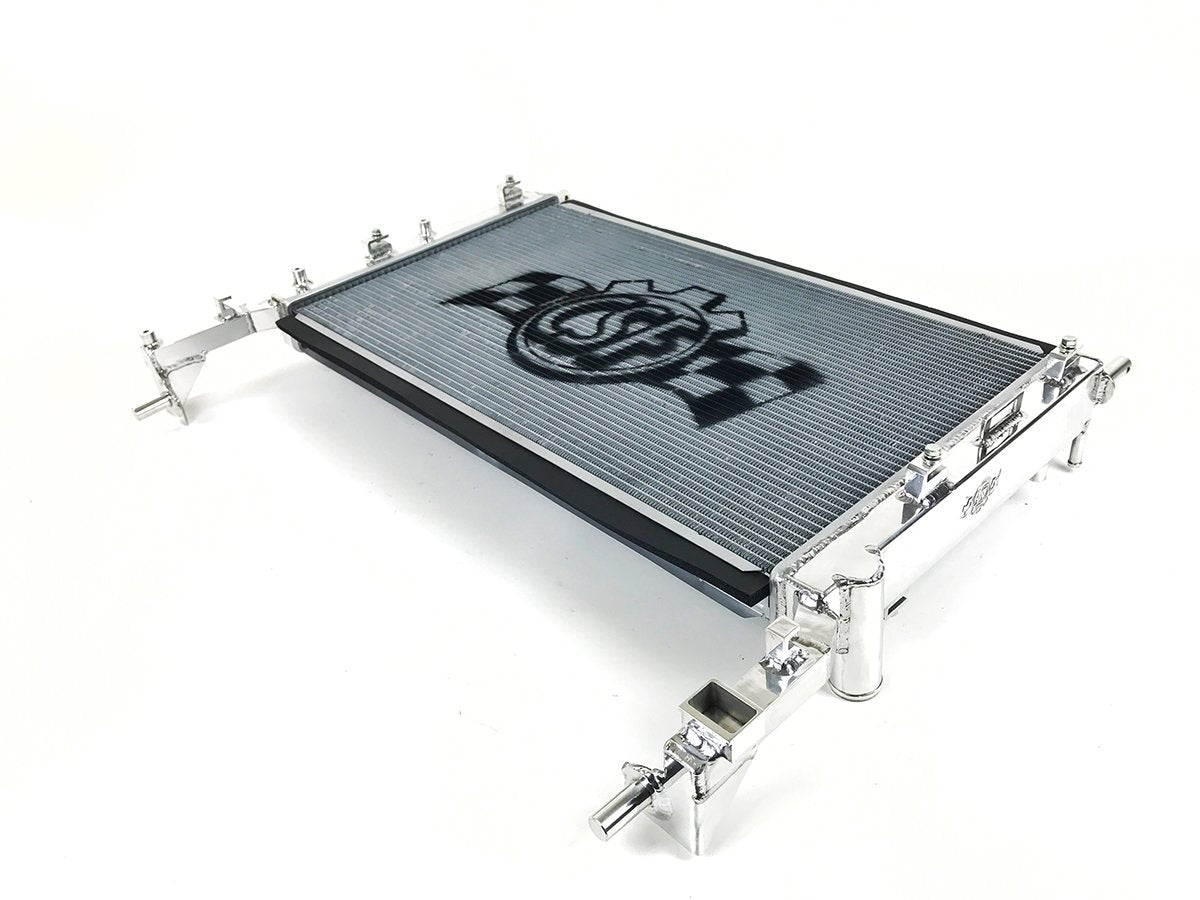

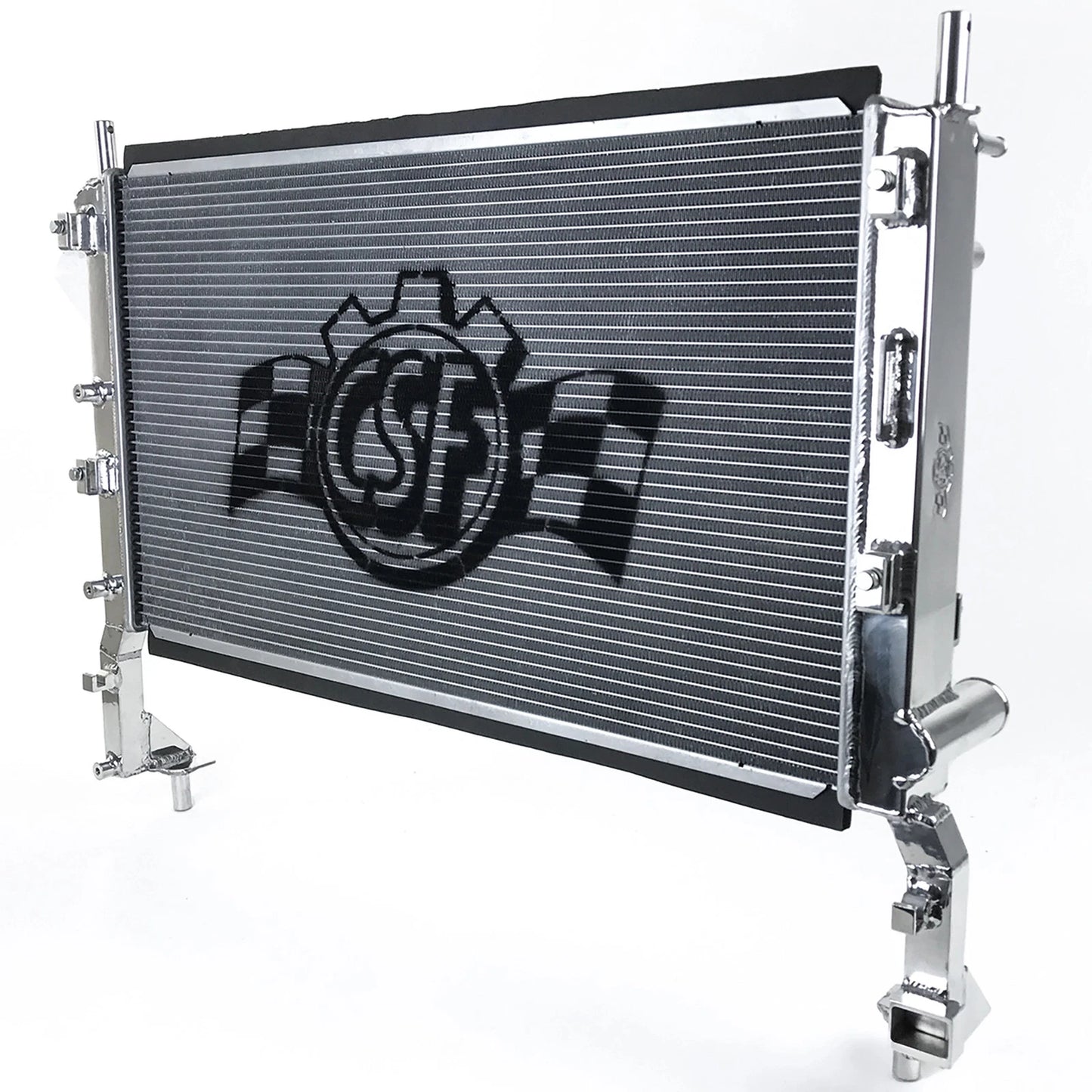

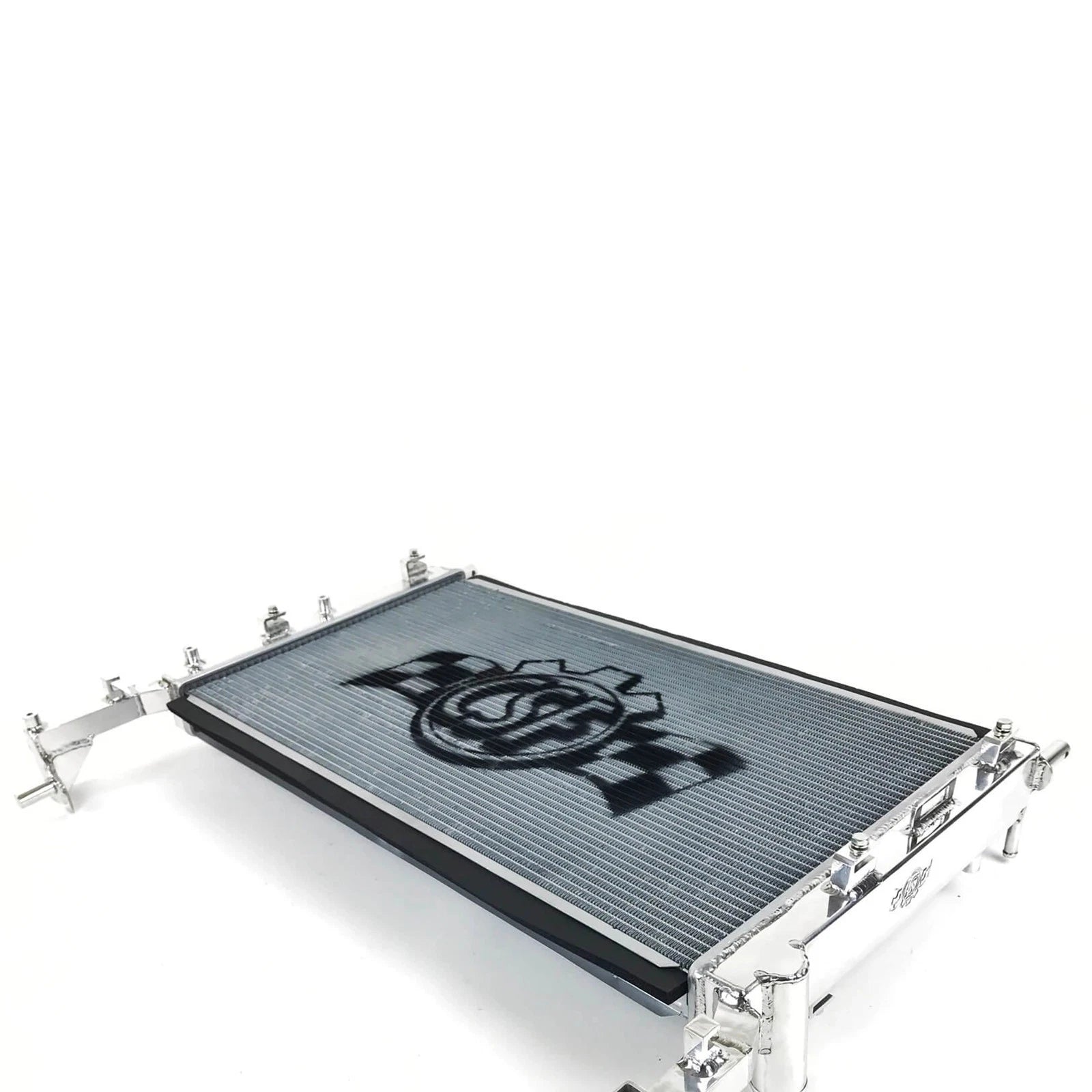

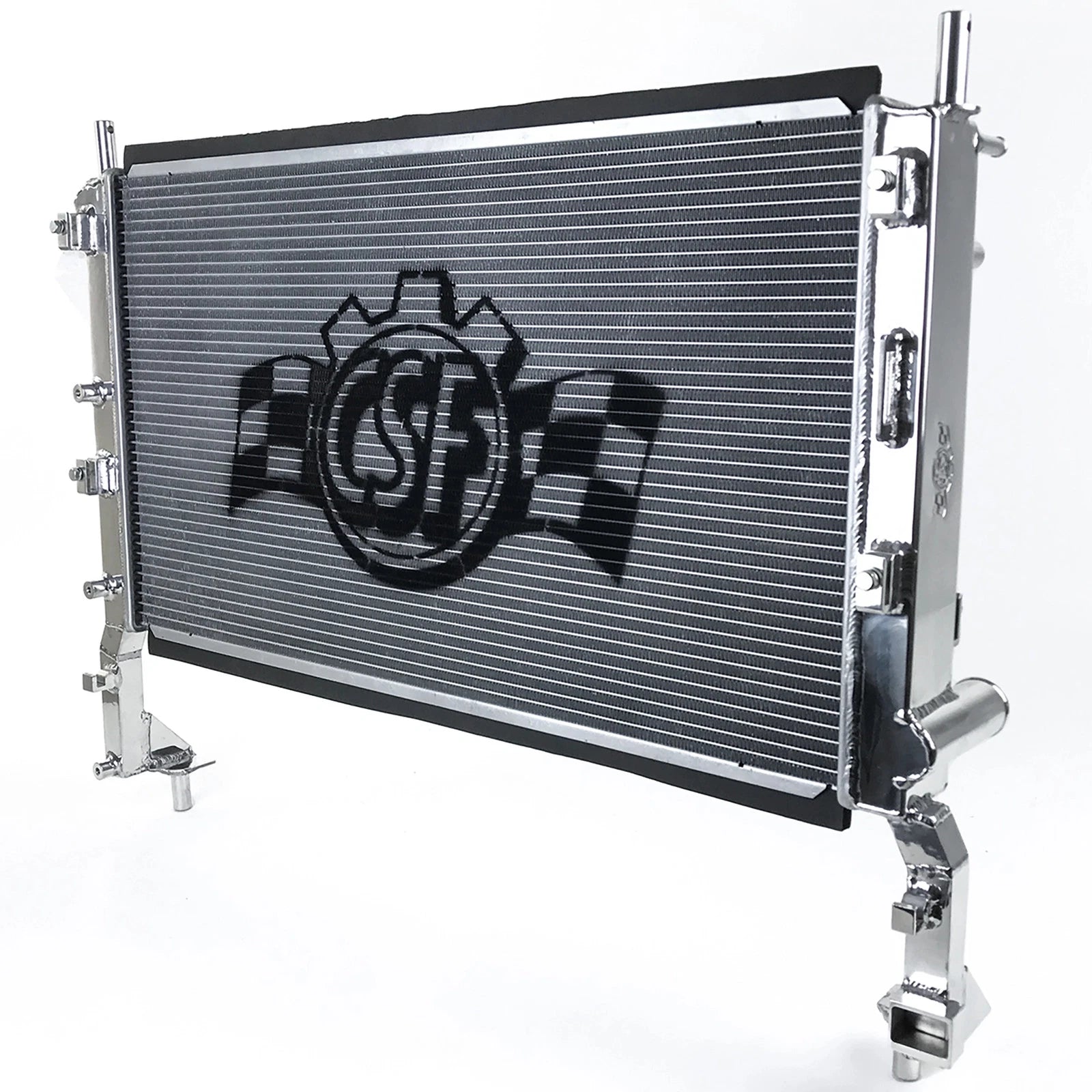

The CSF Radiator for the Ford Mustang EcoBoost 2.3L is a high-performance all-aluminum cooling component designed to enhance engine temperature management. Built with over five decades of expertise, this radiator features a 2-Row core utilizing CSF's exclusive B-Tube Techno... construction, ensuring superior heat dissipation and durability. It is engineered to deliver optimal cooling efficiency for both street driving and track use, making it an essential upgrade for high horsepower builds and motorsport applications. The radiator's robust construction and advanced design help maintain consistent engine temperatures under demanding conditions, reducing the risk of overheating and improving overall performance.

This radiator is specifically designed for 2015 and newer Ford Mustang EcoBoost models, providing a direct fit for vehicles equipped with the 2.3L engine. It serves as a high-quality replacement or upgrade for the stock unit, suitable for enthusiasts seeking enhanced cooling capacity. Installation is straightforward, with bolt-on compatibility that requires no additional modifications. The kit includes the radiator and necessary mounting hardware, making it ideal for street, track, or racing environments where reliable cooling is critical. This product ensures your Mustang maintains peak performance during intense driving conditions.

Overview

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Ford Mustang running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

The CSF Ford Mustang radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

Applications

  • 2015-2023 Ford Mustang EcoBoost - Turbocharged 2.3L L4

OEM Part Numbers

  • Ford: FR3Z 8005 J
  • Ford: FR3Z-8005-J
  • Ford: FR3Z8005J
  • Ford: FR3Z 8005 H
  • Ford: FR3Z-8005-H
  • Ford: FR3Z8005H
