CSF Radiator | FORD Super Duty 6.4L Turbo Diesel 2008-2010

CSF Radiator | FORD Super Duty 6.4L Turbo Diesel 2008-2010

7062

In stock

$1,135.00 USD
$1,259.00 USD $1,135.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

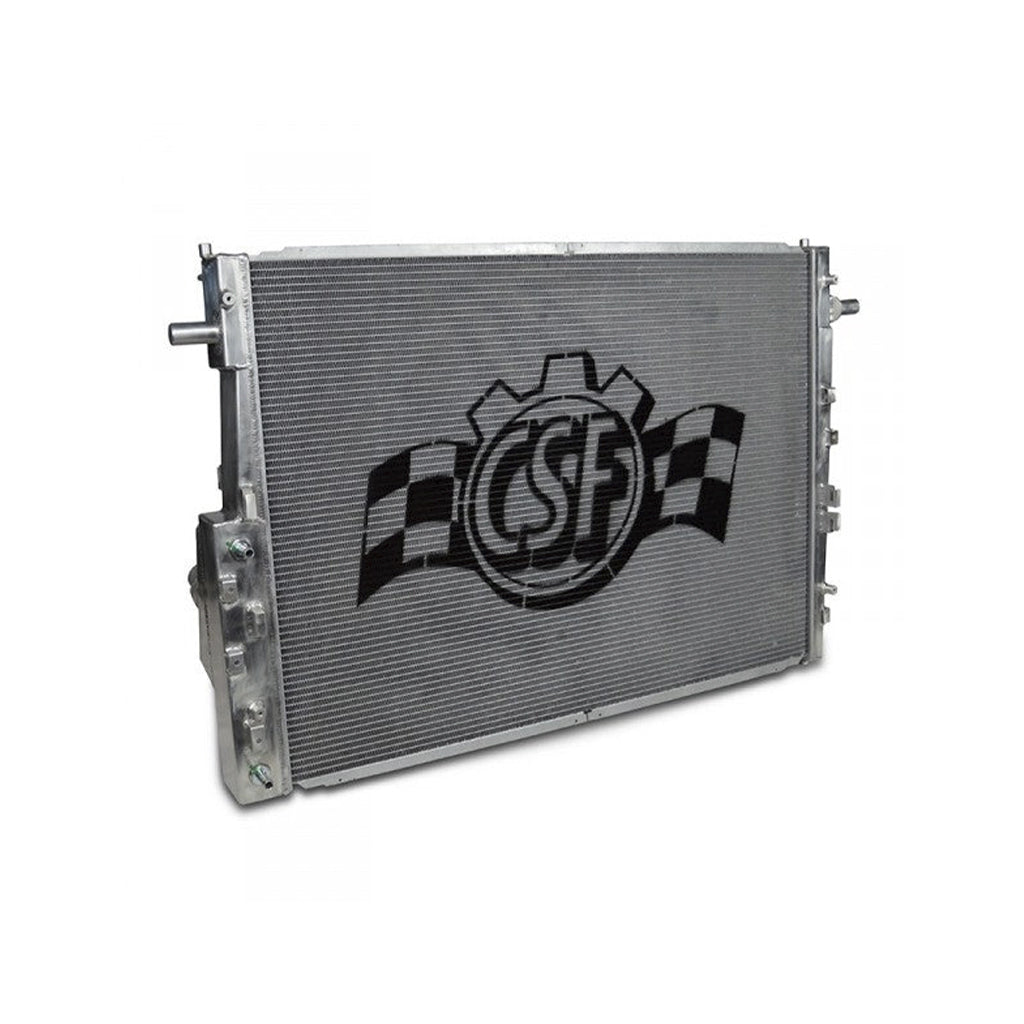

The CSF Radiator for Ford Super Duty 6.4L Turbo Diesel from 2008 to 2010 is a high-performance, all-aluminum cooling component designed to enhance engine thermal management. Featuring a 2-Row core with CSF's exclusive B-Tube Technology, this radiator provides superior heat dissipation and durability under demanding conditions. Its heavy-duty construction ensures reliable cooling performance both on and off-road, making it an ideal upgrade for off-roaders, overlanders, and heavy-duty applications. The use of premium materials and advanced design techniques results in improved cooling efficiency, helping to maintain optimal engine temperatures and prevent overheating during intense driving or towing.

This radiator is specifically engineered to fit 2008-2010 Ford Super Duty models equipped with the 6.4L Turbo Diesel engine. It serves as a direct replacement for the stock unit, offering a straightforward bolt-on installation. Designed for rugged use, it is suitable for off-road adventures, heavy towing, and daily driving where enhanced cooling capacity is essential. The kit includes the radiator itself, with all necessary mounting points and fittings for a seamless upgrade. Compatibility with stock mounting points and existing hardware ensures a hassle-free installation, making it an excellent choice for those seeking increased cooling performance and reliability in demanding environments.

Overview

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Super Duty running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

The CSF Super Duty radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Whether you are off-roading, towing, or just casually driving, trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

Applications

  • 2008-2010 Ford F-250 Super Duty - Turbocharged 6.4L V8
  • 2010 Ford F-350 Super Duty - Turbocharged 6.4L V8
  • 2010 Ford F-450 Super Duty - Turbocharged 6.4L V8
  • 2010 Ford F-550 Super Duty - Turbocharged 6.4L V8

OEM Part Numbers

  • Ford: 8C3Z 8009 B
  • Ford: 8C3Z-8009-B
  • Ford: 8C3Z8009B
  • Ford: 8C3Z 8009 F
  • Ford: 8C3Z-8009-F
  • Ford: 8C3Z8009F
