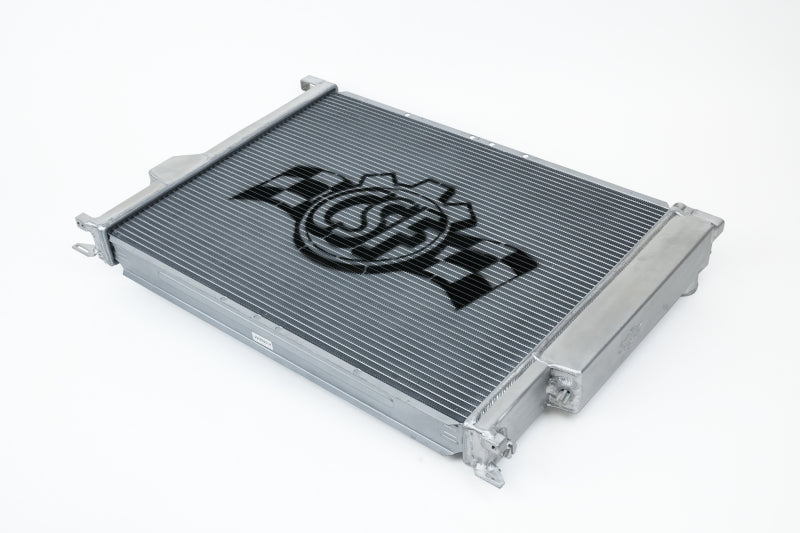

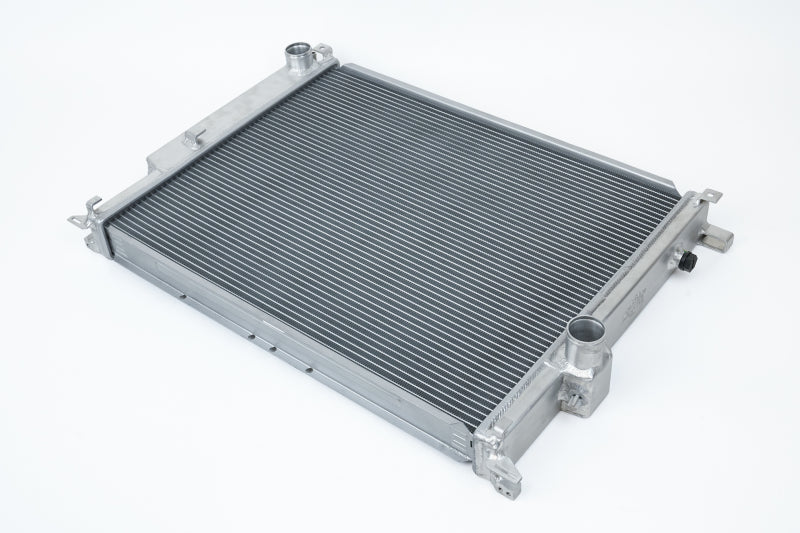

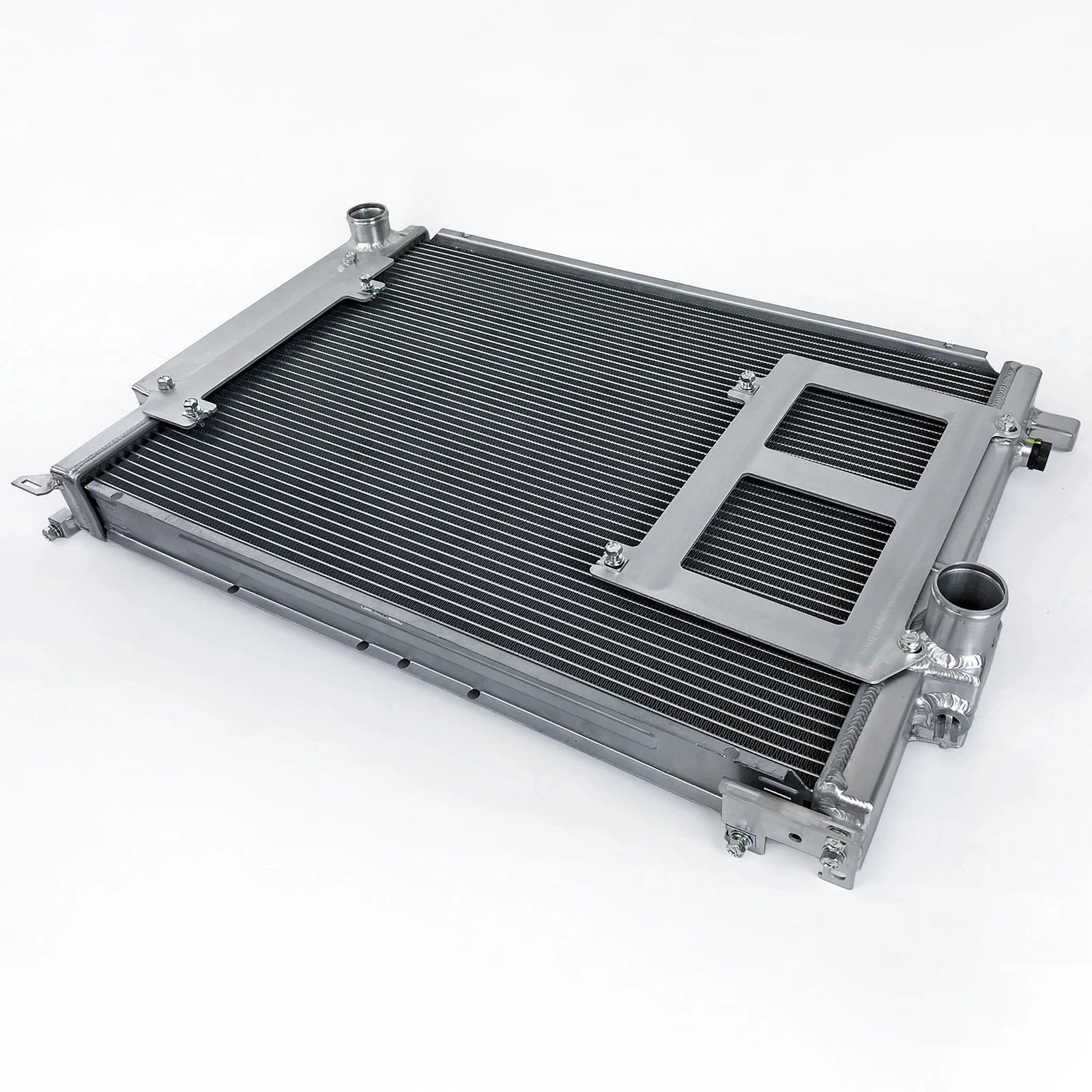

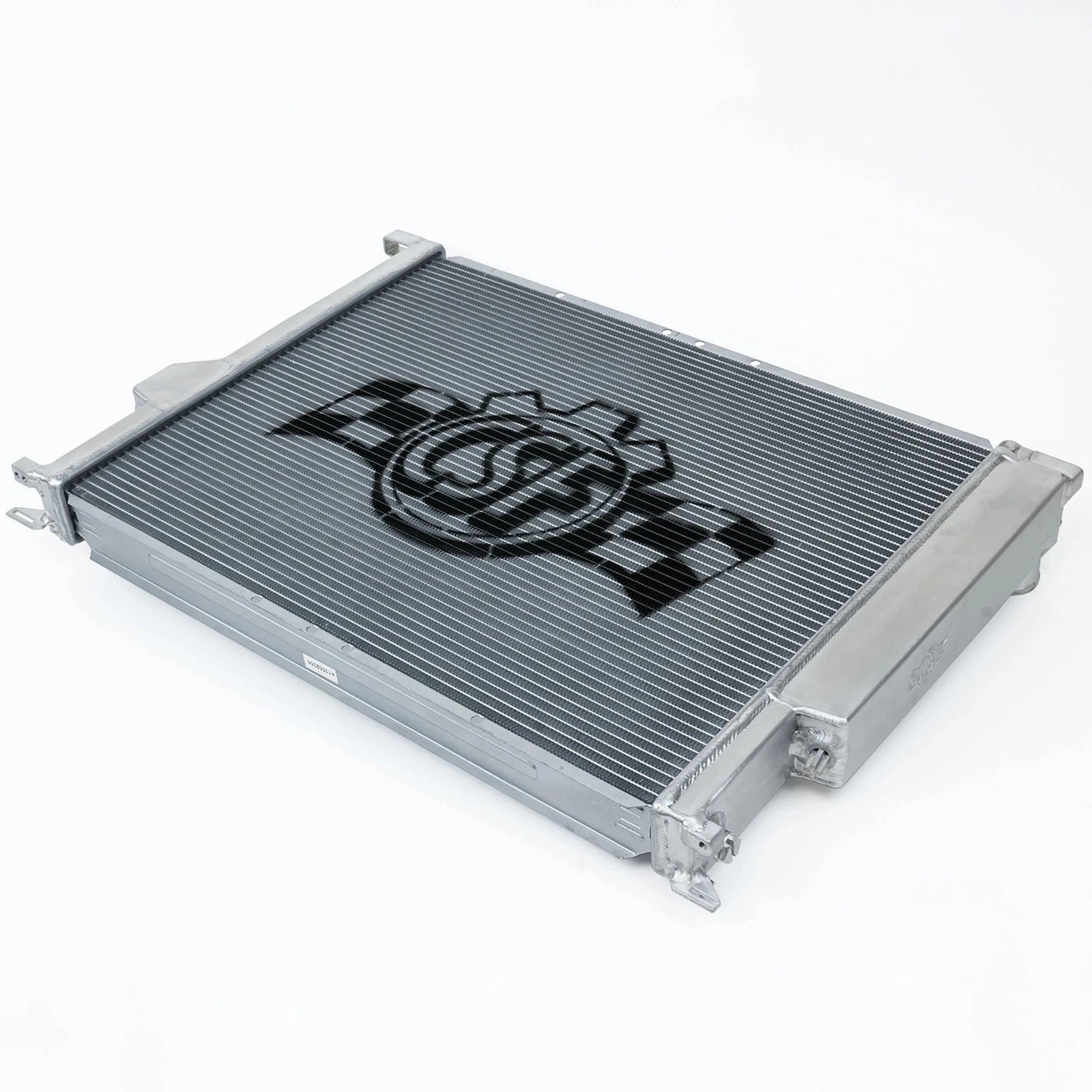

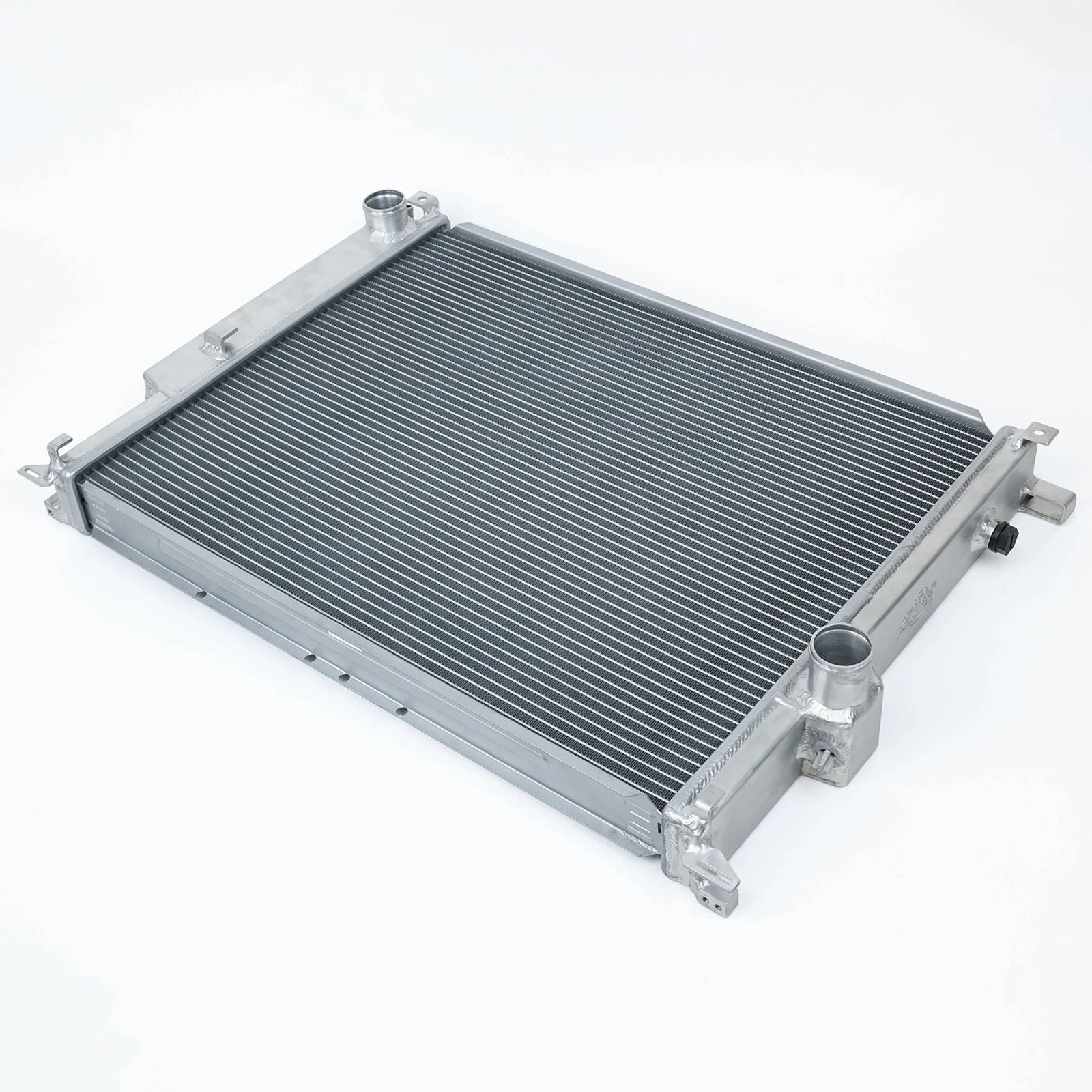

CSF Swap High Performance Radiator | E36 3-Series S54

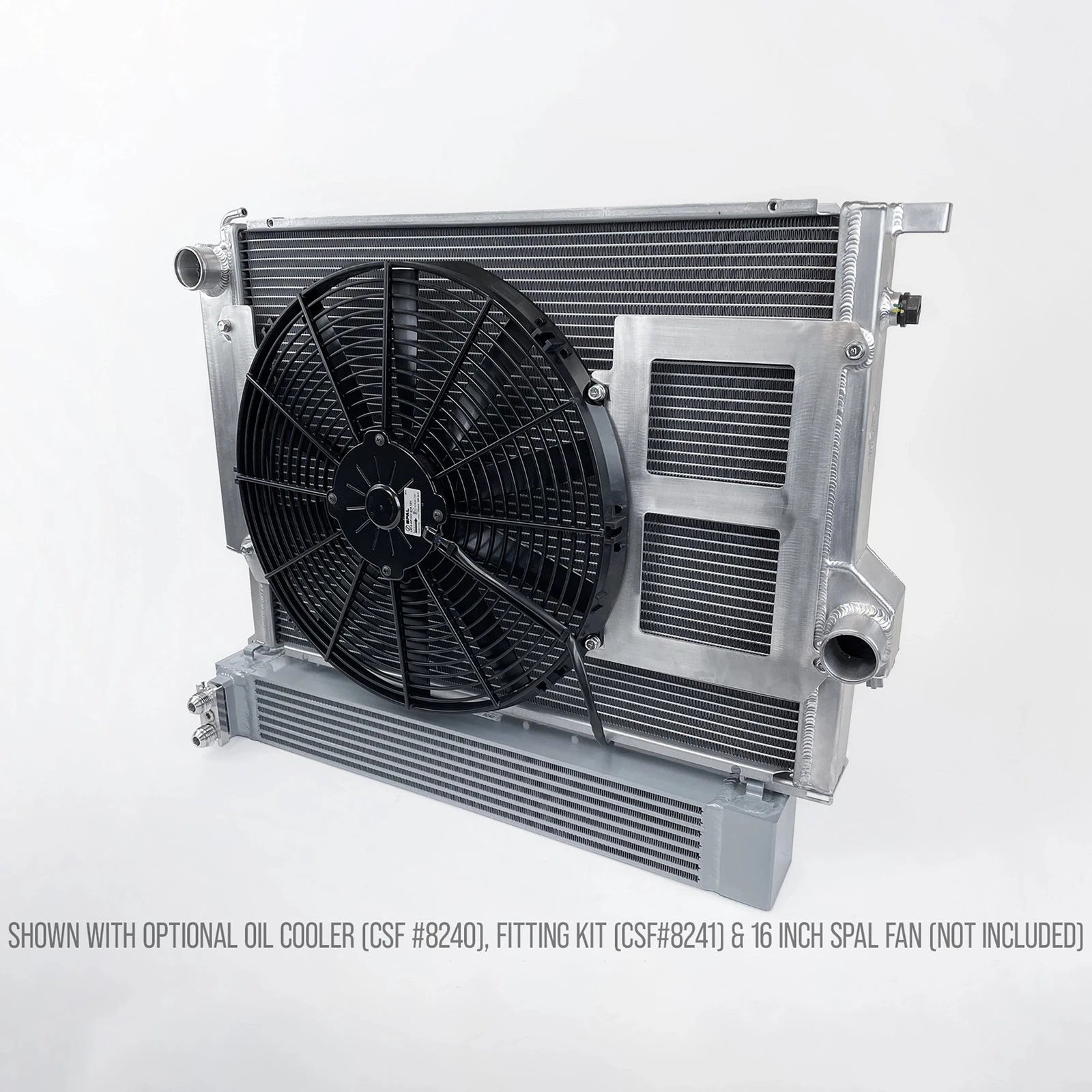

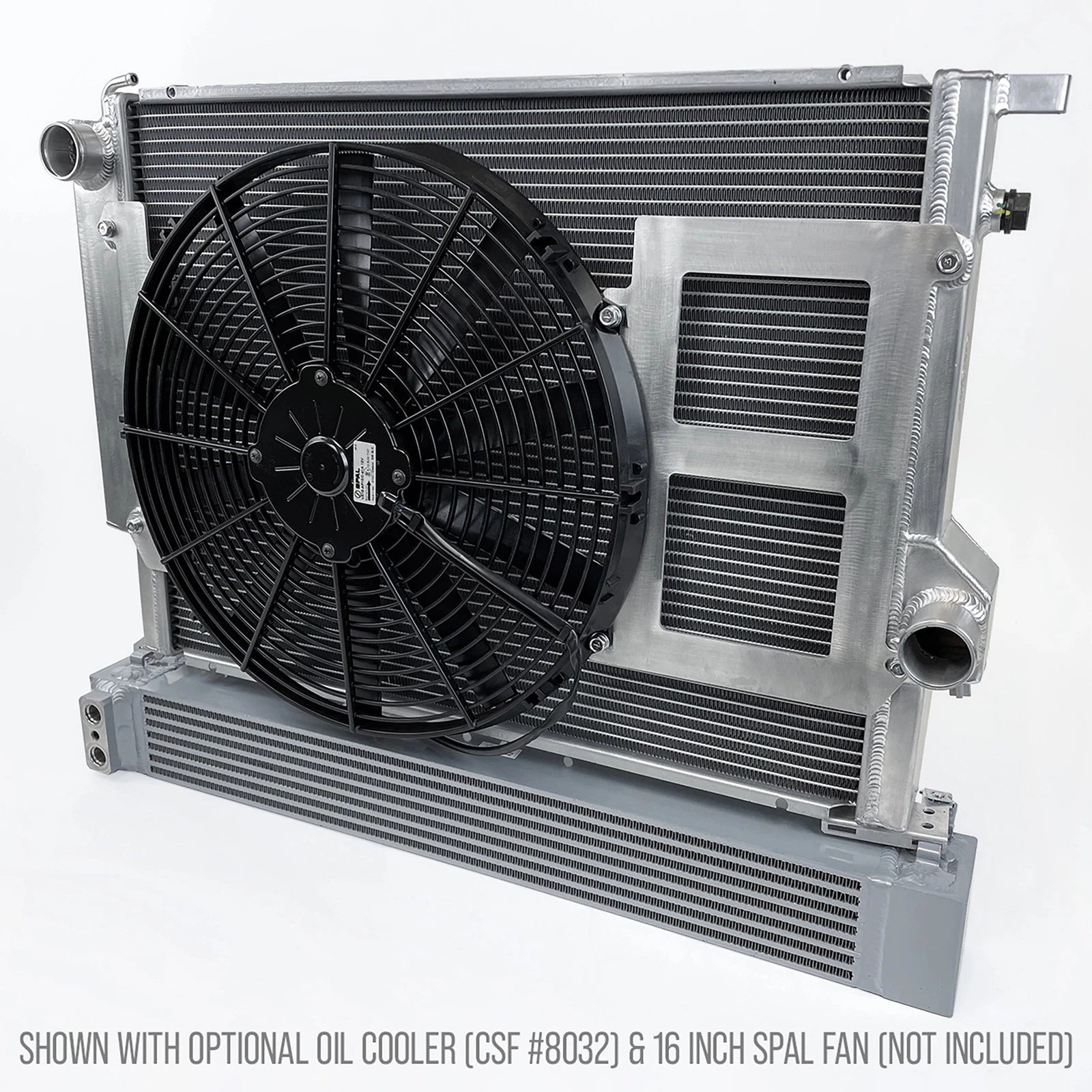

Because the S54 requires a much more robust oil cooling system than the E36's S52 or E30's S14, CSF made special provisions to fit two different race spec oil coolers. To do this, the height of the radiator was reduced slightly so the oil coolers can fit under it in a factory style location. The radiator includes mounting brackets which can be adjusted to fit both oil coolers (CSF #8032 & #8240). CSF also includes brackets for an electric fan conversion. These brackets are designed to fit a single 16 inch SPAL Fan (not included). While it is possible to retain a clutch type fan, it is much easier to convert to an electric fan on top of the performance benefits.

• 2-Row – 42mm Ultra-High-Performance Core
• CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

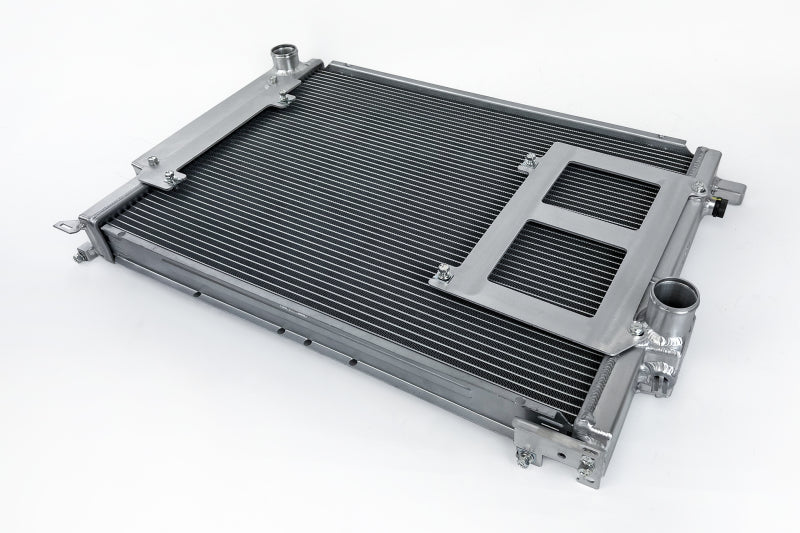

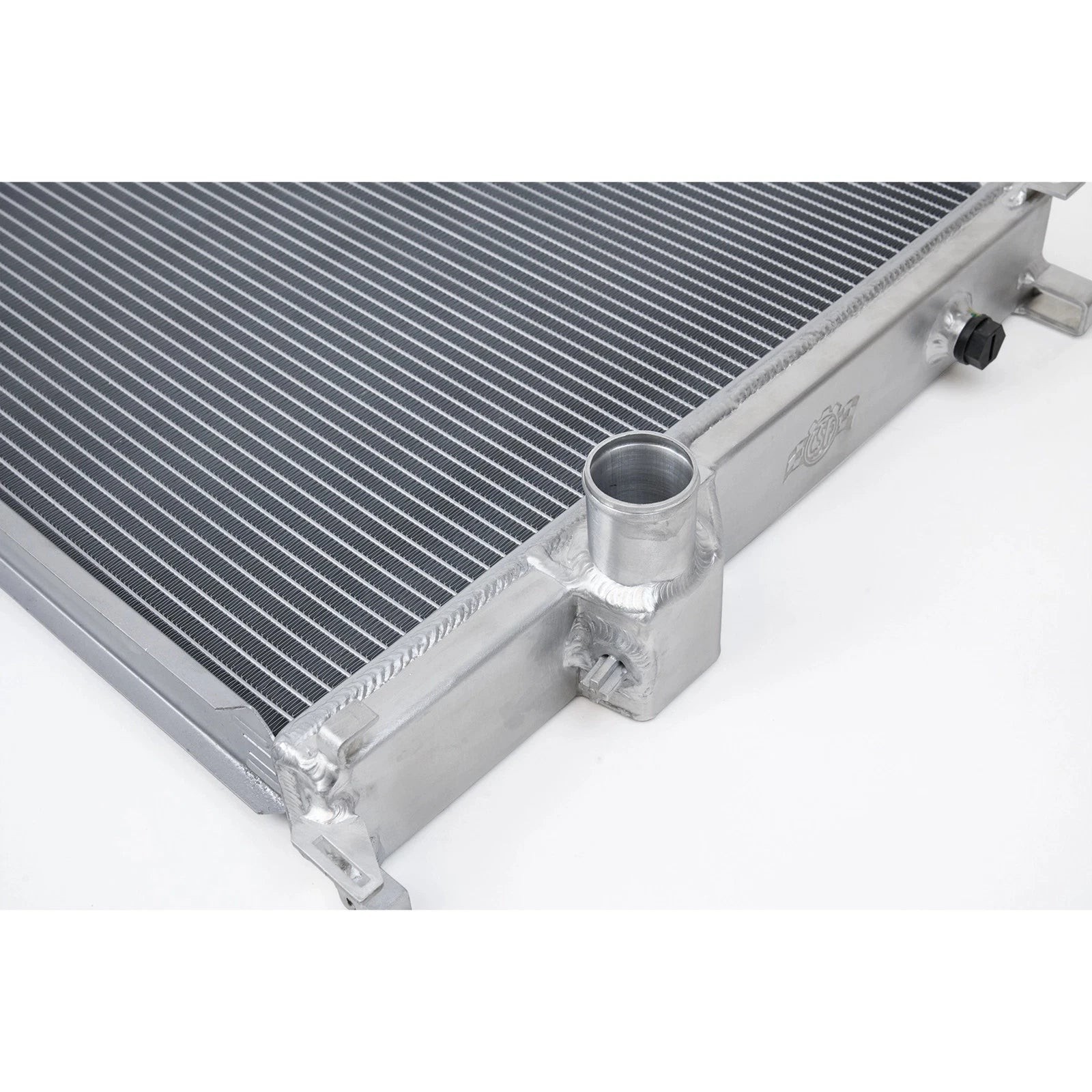

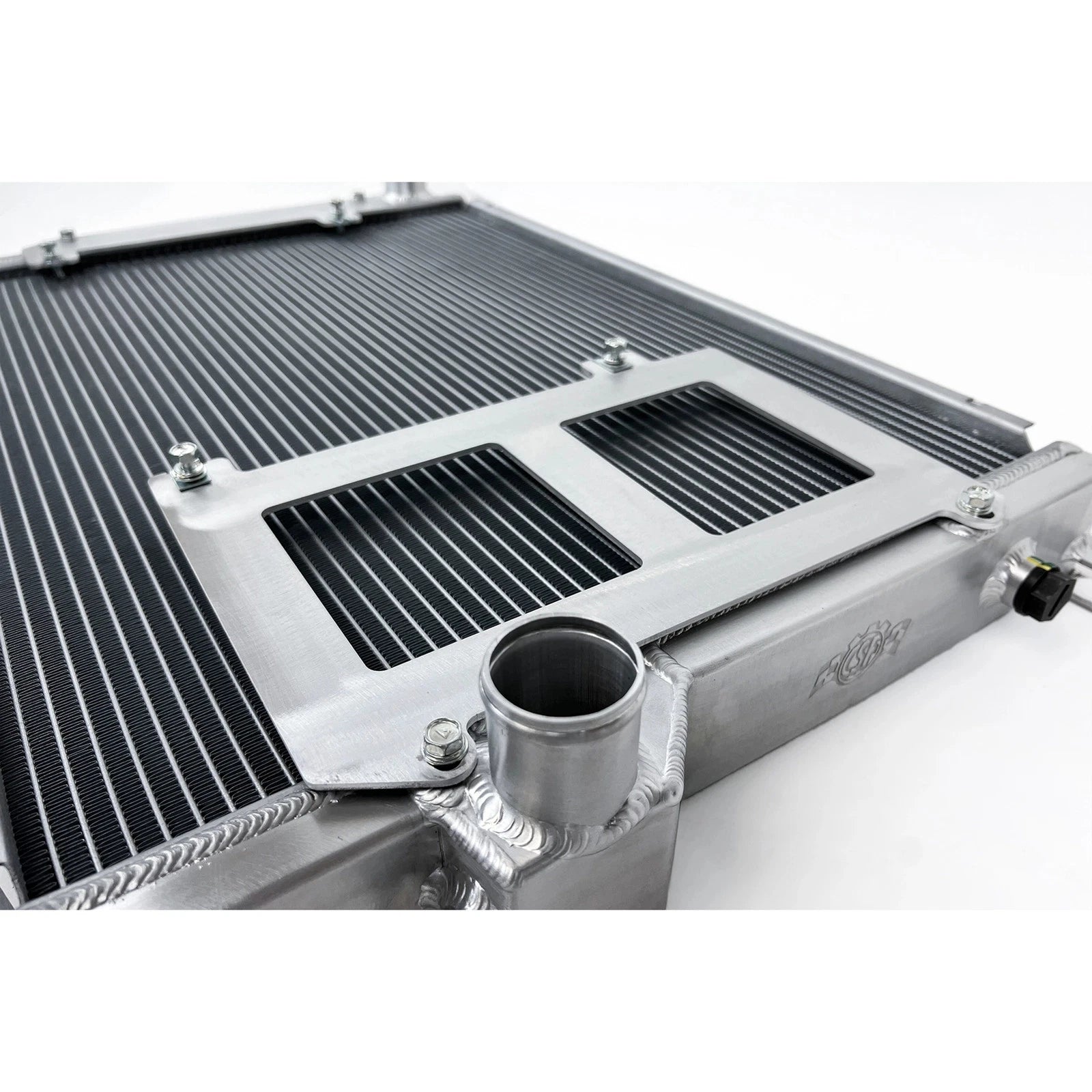

• CNC Machined Mounting Brackets, Fittings, and OEM Style Inlet/Outlet

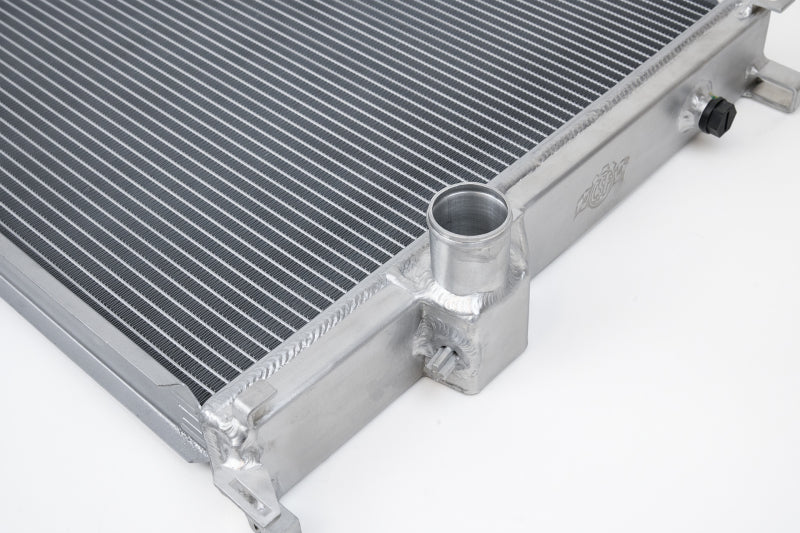

• 100% All Aluminum TIG-Welded Construction
• Smooth Satin Finish

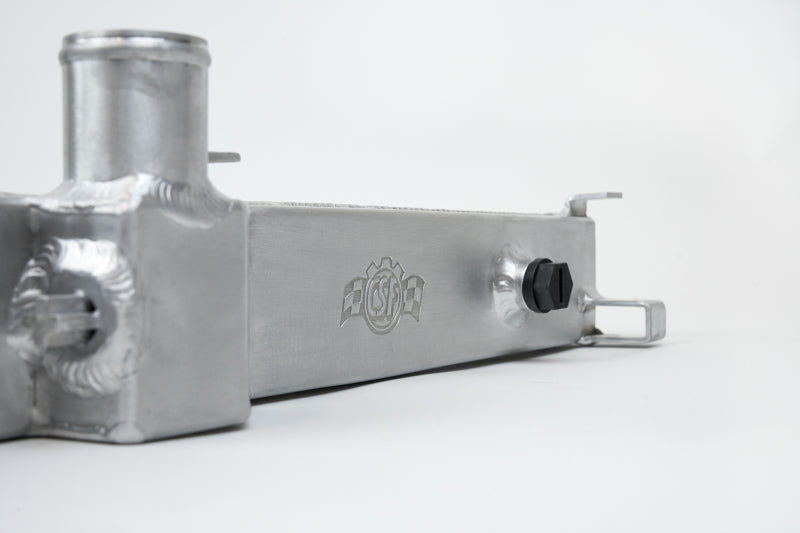

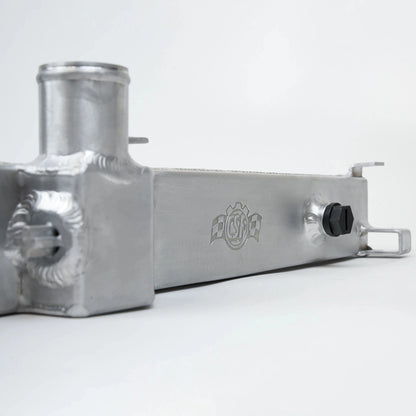

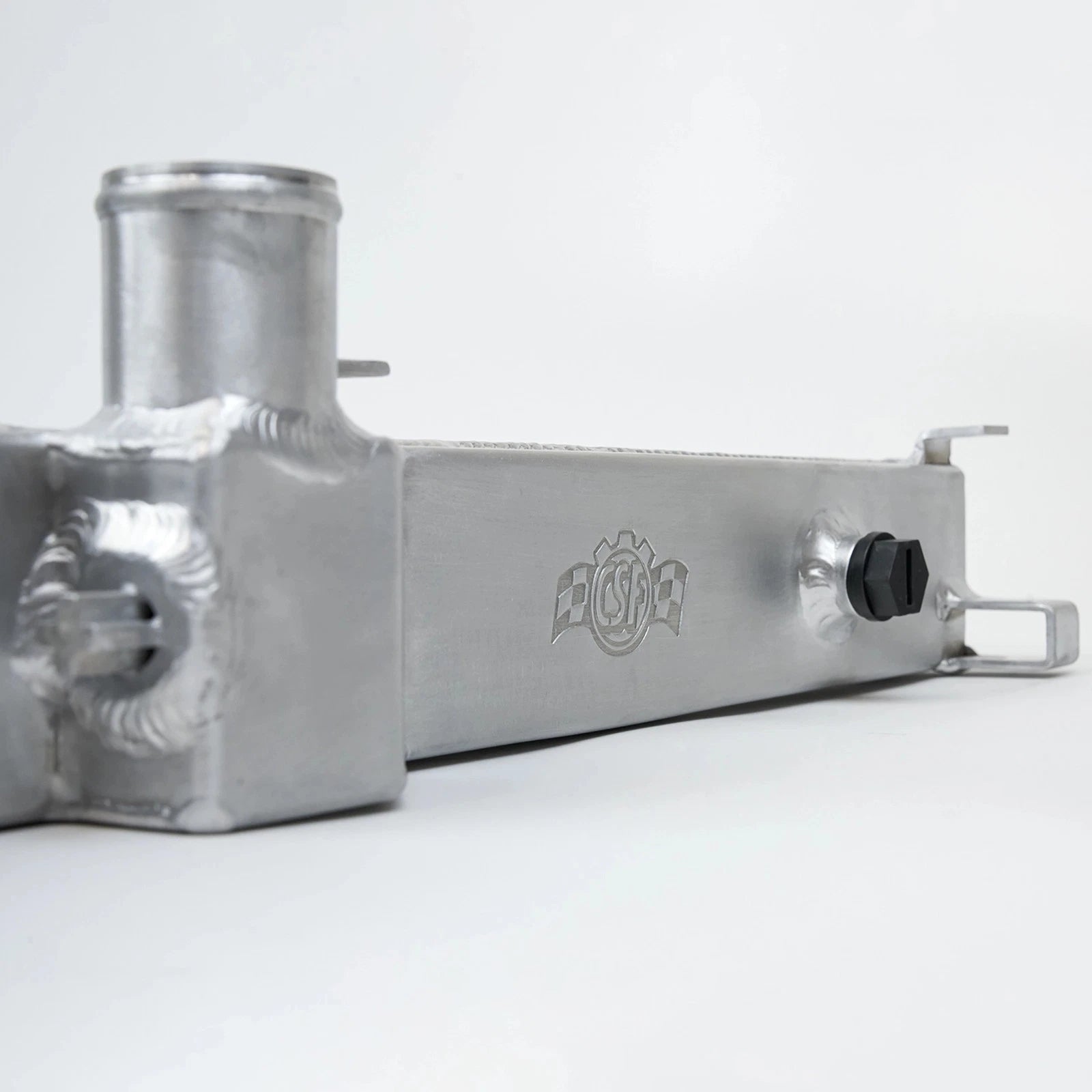

• All-Aluminum Race Style Drain Plug
• Includes 2 top cover plates (black and satin) to cover the top of the radiator for a clean OEM+ look

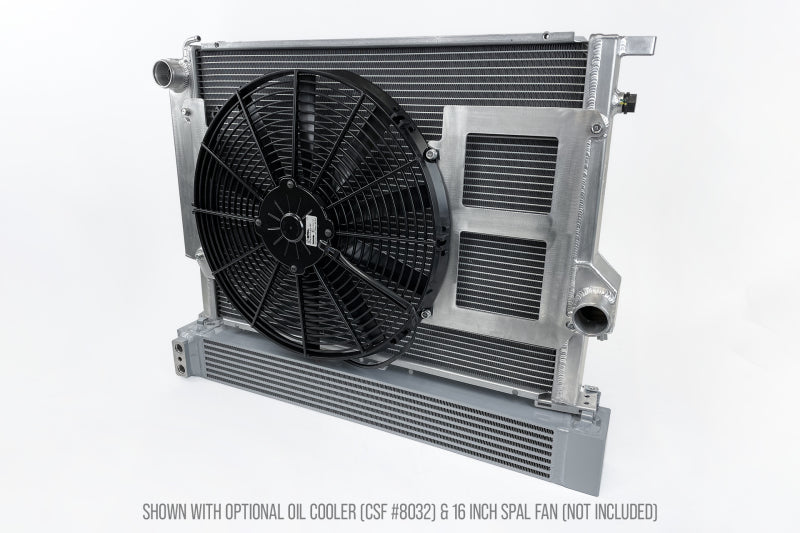

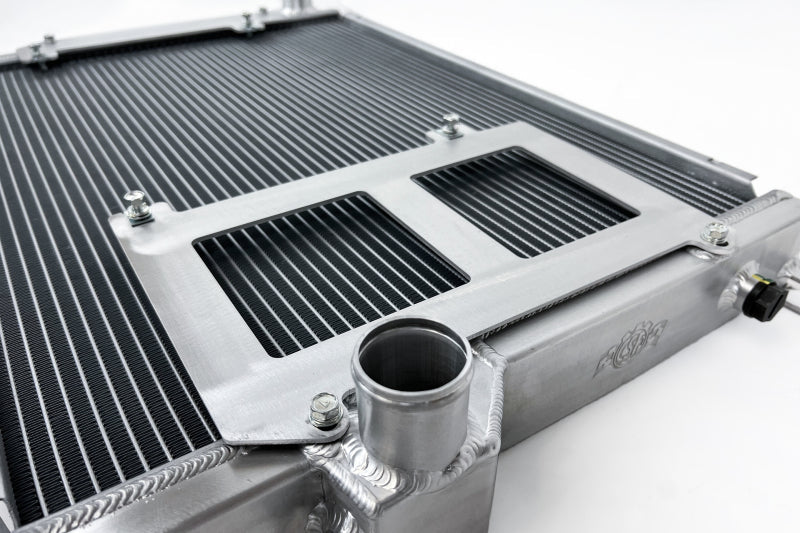

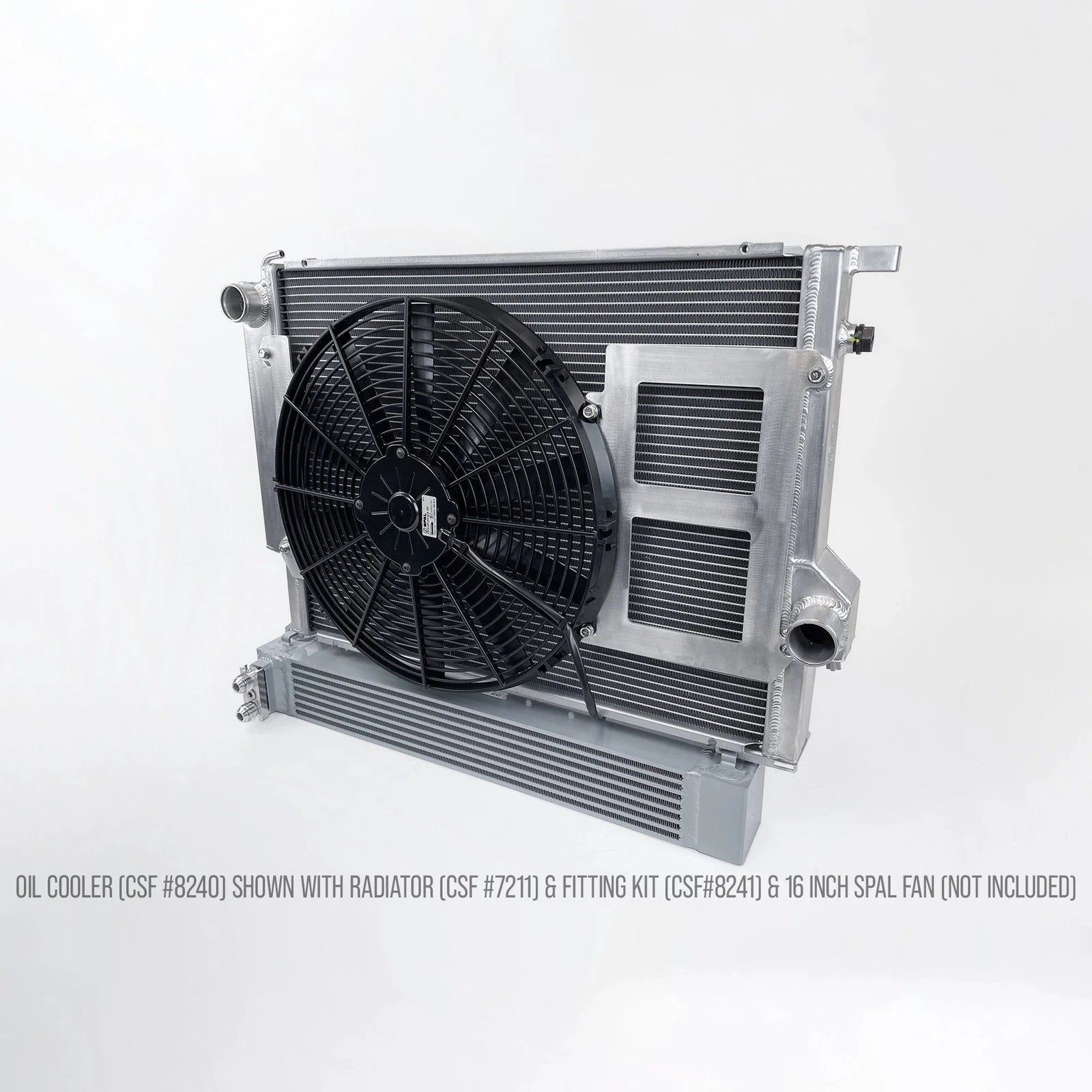

• Includes fan brackets for use of 16 inch SPAL Fan (SPAL #30100400 – not included)

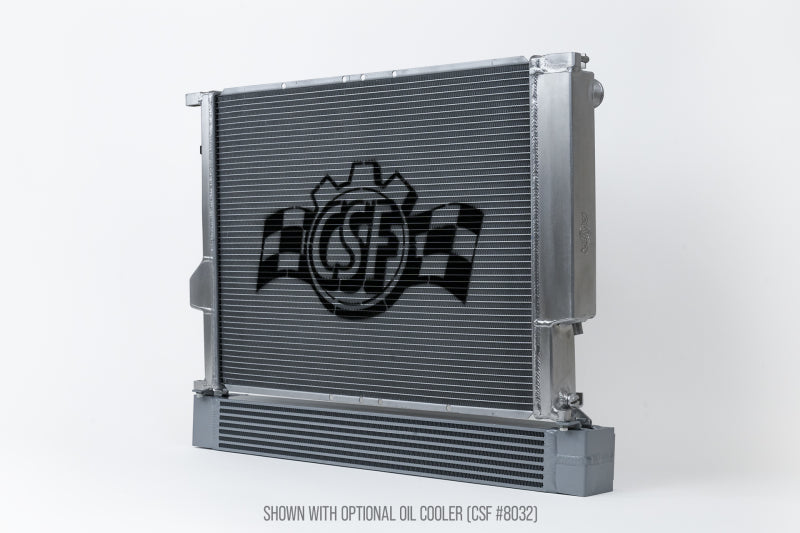

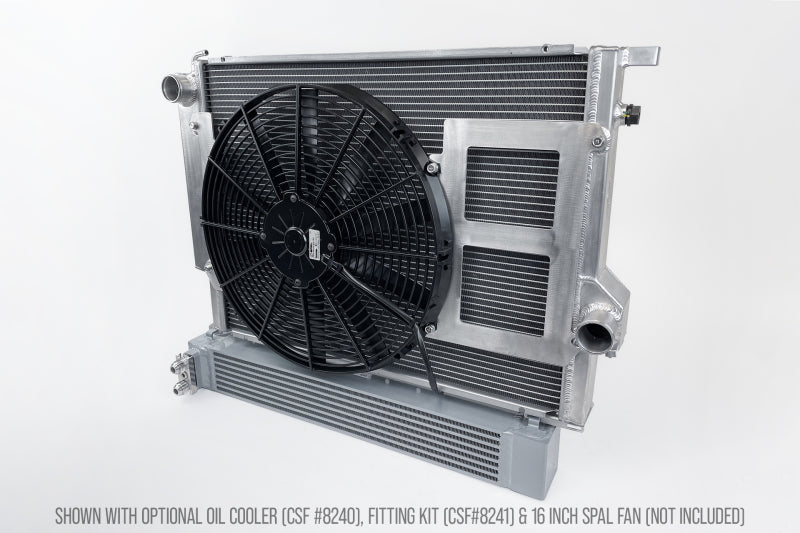

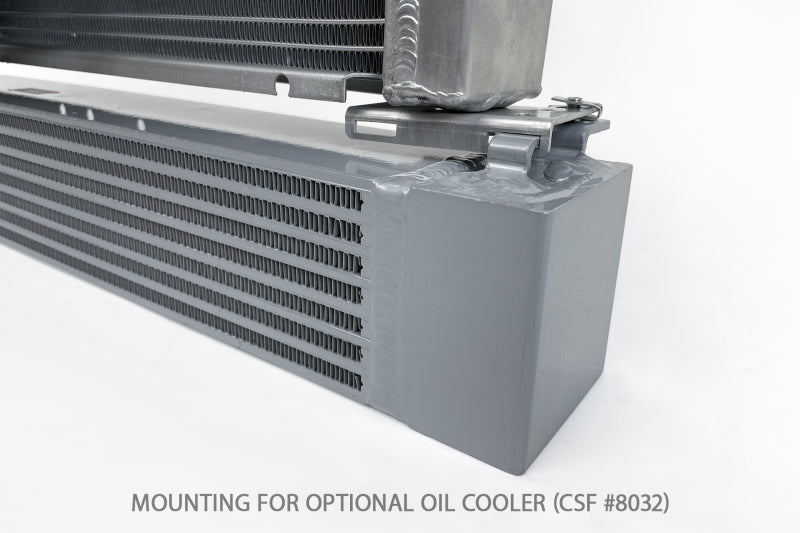

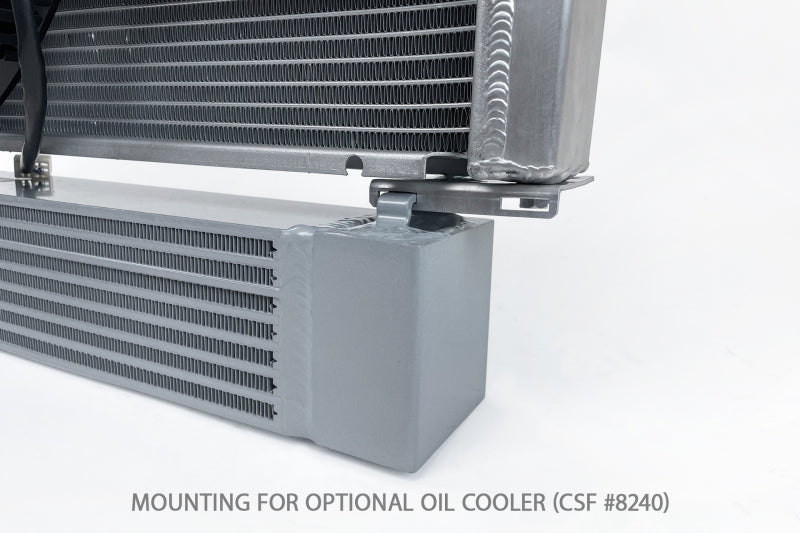

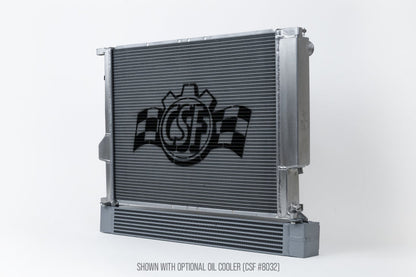

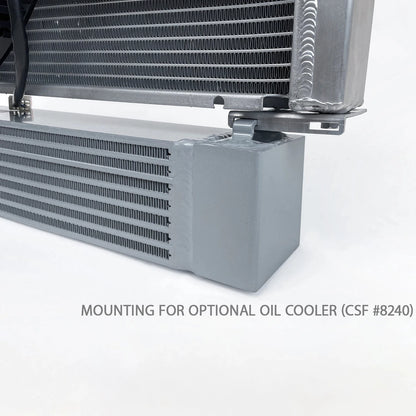

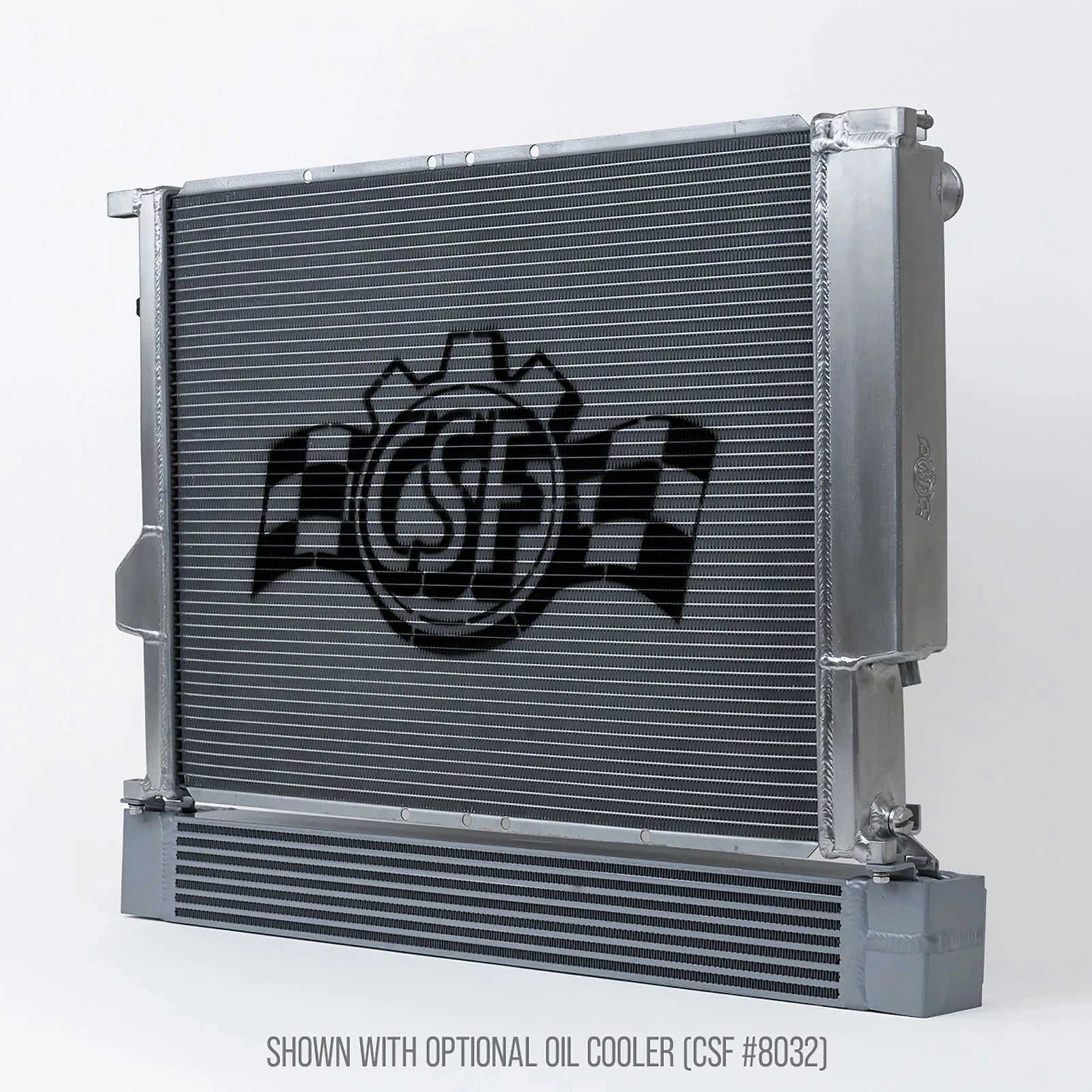

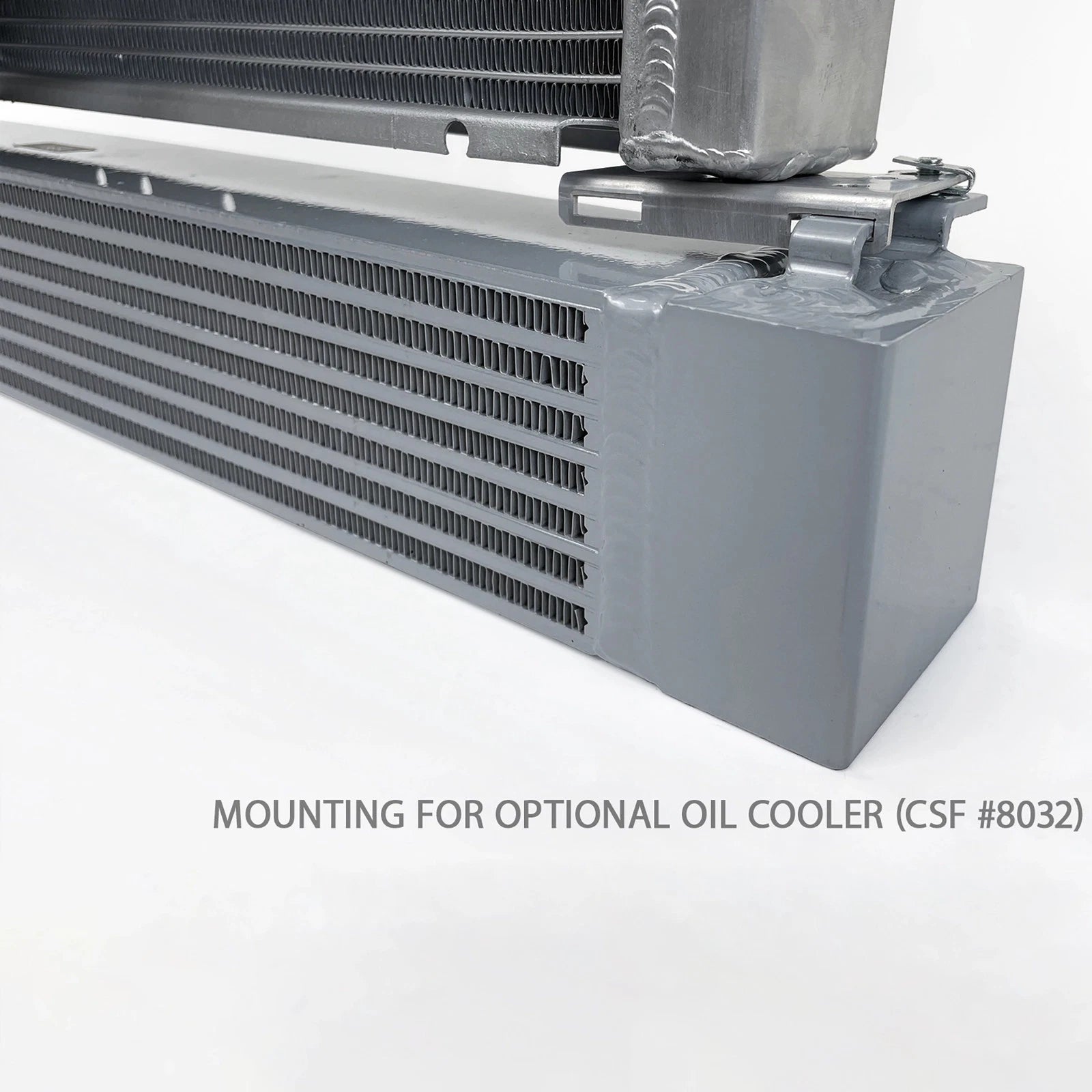

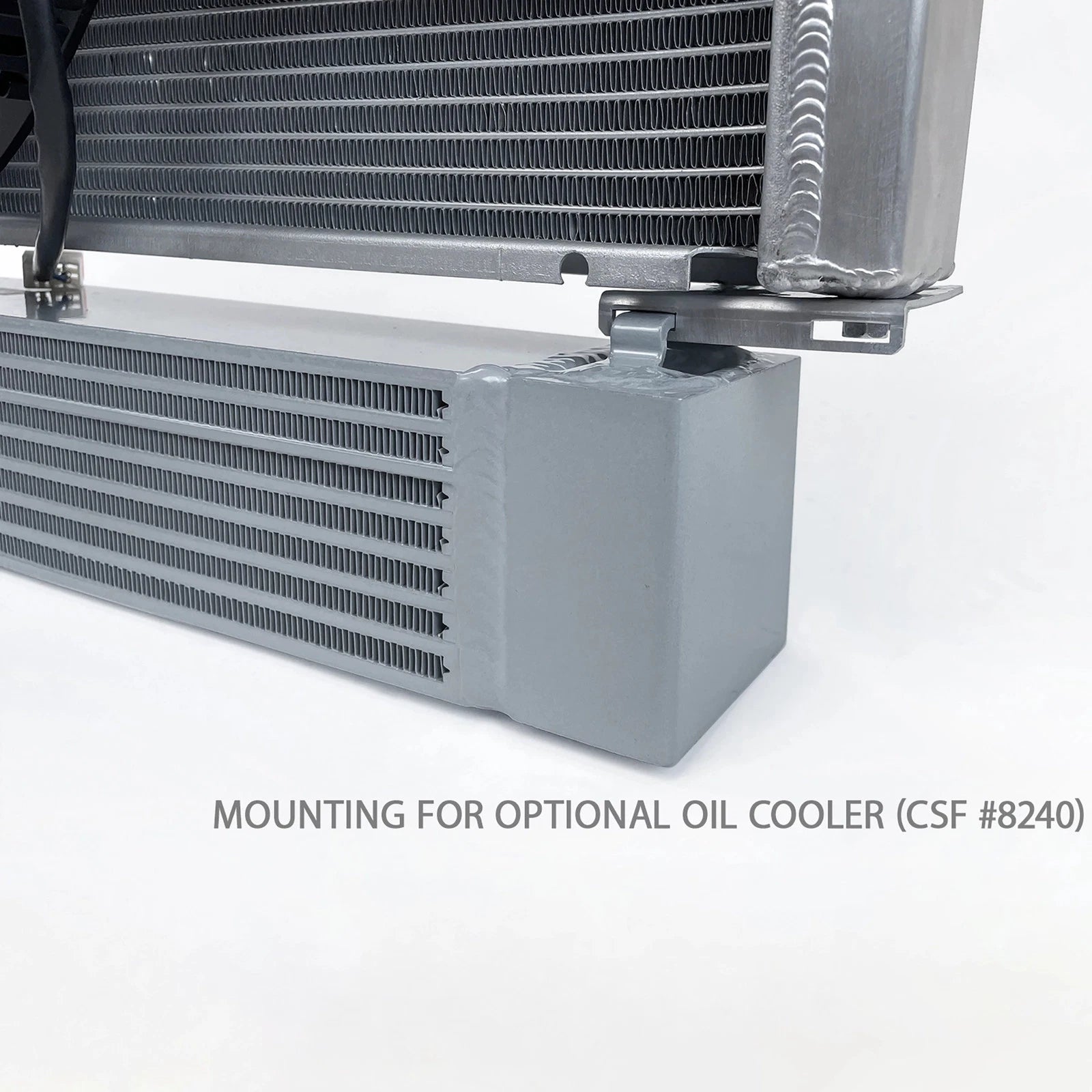

• Includes Oil Cooler Mounting Bracket for fitment of both the CSF #8240 (w/ A/C) & CSF #8032 (w/o A/C)
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Also works for BMW S50 & S52 Swaps for E36 Chassis
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 1992-1999 BMW E36 3-Series (including M3)
  • S54 / S52 / S50 Swaps
• 1999-2006 BMW E46 3-Series (excluding M3)
  • S54 Swaps
