• Cusco Center Lock Type Pillow Ball Upper Mount Rear
1 1

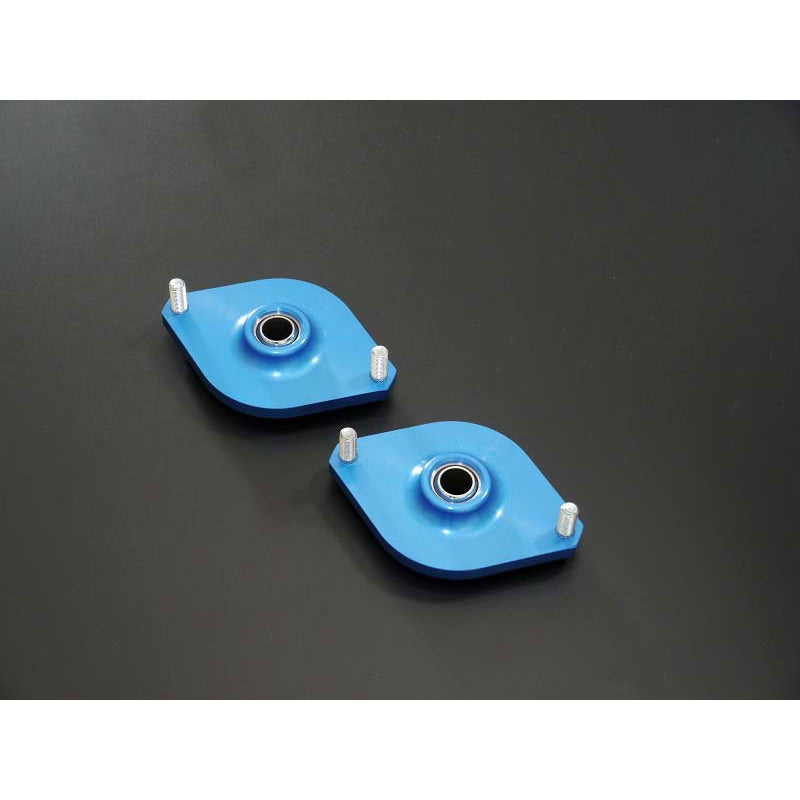

Cusco Center Lock Pillow Ball Upper Mount | Toyota JZX110/Altezza/GXE10/JZS171/SXE10 (195 421 A65)

Cusco Center Lock Pillow Ball Upper Mount | Toyota JZX110/Altezza/GXE10/JZS171/SXE10 (195 421 A65)

195 421 A65

Out of stock

$320.00 USD
$400.00 USD $320.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Cusco Center Lock Pillow Ball Upper Mount is a high-performance suspension component designed for Toyota JZX110, Altezza, GXE10, JZS171, and SXE10 models. This upper mount features a pillowball assembly that replaces the factory rubber mount, providing a more direct and solid connection between the suspension and chassis. The pillowball design enhances steering response and handling precision by reducing deflection and maintaining alignment stability during aggressive driving. Constructed with durable materials, this mount is built to withstand the stresses of spirited driving and rally conditions, offering improved feedback and durability over standard mounts.

This center lock pillowball upper mount is compatible with specific Toyota models from 1997 to 2005, including various chassis codes. It is primarily intended for street and track use, delivering precise suspension tuning and improved vehicle control. The installation involves replacing the factory upper mount with this bolt-on upgrade, ensuring a secure fit. Suitable for enthusiasts seeking improved handling and alignment consistency, this mount is an ideal upgrade for performance-oriented street driving or rally applications. The kit includes the necessary hardware for installation, ensuring a straightforward upgrade process.

Overview

CUSCO offers severaltypes of mounts, (camber adjust, fixed, center lock, gravel spec) depending on your vehicle application.The most popular type is the Camber Adjustable type with the pillowball assembly built in. There are also non camber adjustable fixed pillowball type as well as gravel spec made for gravel rally.These upper mounts replace the flimsy factory rubber for a more solid and direct road surface input to the driver as well as keeping alignment specs to the static position during hard cornering.

Benefit

A must-have item when upgrading to suspension coilovers, where the solid state of the mounts translates the road irregularities to be fully absorbed by the suspension rather than rubber components. This enables improved steering control of the vehicle.

Features / Specification

Both center lock and camber adjustable type use 6mm thick plate uses 2017S duralumin. Made to cater to many different types of shock absorbers such OE or Aftermarket Coilover Kit with a full line of custom pillow nuts and collars.

To use CUSCO Upper Mount Kit, please select the proper Top Nut and Collars carefully for your shock absorbers.

  • Can be replaced with a spring seat for series-wound springs
  • Stable maneuverability and quick behavior due to increased rigidity
  • The plate part is super duralumin 2017S *Some models are made of steel
  • 10mm thickness type, steel plate set for some models
  • Various size pillow collars are available to accommodate any shock
