Cusco Street Zero-A AWD 40-Way Adj Coilover Kit | Prius ZVW55 (1A262N CN)

Cusco Street Zero-A AWD 40-Way Adj Coilover Kit | Prius ZVW55 (1A262N CN)

1A2 62N CN

Out of stock

$1,680.00 USD
$2,100.00 USD $1,680.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

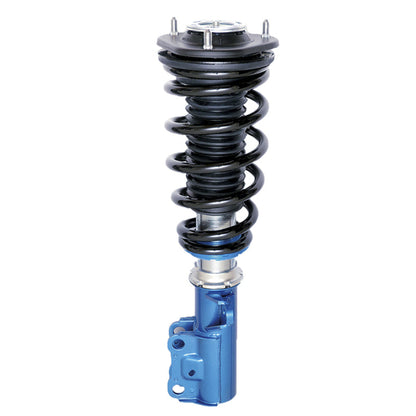

The Cusco Street Zero-A AWD 40-Way Adjustable Coilover Kit is a high-performance suspension component designed for the Toyota Prius ZVW55. This coilover kit offers precise control over ride height and damping force, featuring 40 steps of damping adjustment to fine-tune ride comfort and handling characteristics. Constructed with durable materials, it provides a low-down stance while maintaining quiet operation and comfort for daily driving. The full-length adjustable vehicle height feature allows users to customize their ride height easily, ensuring optimal clearance and stance. Equipped with standard upper mounts (except models with upper mountless structures), this coilover kit is engineered for street performance, combining comfort with sporty handling.

Designed specifically for the 2016–2022 Prius ZVW55 models, this coilover kit is a direct bolt-on upgrade for street use. It is suitable for drivers seeking improved ride quality, lowered stance, and adjustable damping for varied road conditions. The kit includes coilover units with adjustable height and damping, making it ideal for street, daily driving, and light spirited use. Compatibility is limited to models with standard upper mounts, and installation involves replacing the factory suspension components. This coilover kit enhances vehicle stability and handling, providing a customizable suspension setup tailored to individual preferences and driving styles.

Overview

Low-down ride comfort and quietness are top-level. "Damping force 40-step adjustment" and "full-length adjustable vehicle height adjustment" provide optimal ride comfort regardless of the amount of low-down and fine-tuned vehicle height adjustment of the street series.

  • 40 steps of damping force adjustment
  • Full length adjustable vehicle height adjustment
  • Upper mount standard equipment (except models with upper mountless structure)
  • The minivan is standard equipped with a genuine shape rubber upper mount with high quietness.
  • Adopted CPRV (Pressure Control Valve)
  • Silent design that suppresses the operating sound (squeaky sound) of damping adjustable shocks
  • Compatible with e-con2 (Applicable models only)

Damping force (ride comfort) 40-stage adjustable type that clearly shows the difference

  • With a wide damping force adjustment range and uniform damping changes from 1 to 40 steps, you can easily adjust the ride comfort to your liking in any situation or stage. In addition, the knurled dial eliminates the need for tools for damping adjustment.

Full length adjustable vehicle height adjustment

  • "Overall length adjustment type" that does not change the suspension stroke even if the vehicle height is lowered. Both fine vehicle height adjustment and high ride comfort are achieved.

Upper mount standard equipment

  • Dedicated upper mount is standard equipment. By equipping the minivan with a quiet genuine rubber upper mount as standard equipment, we have achieved even greater comfort and improved workability by eliminating the need to change the upper mount from the genuine shock.

Adoption of CPRV (Pressure Control Valve)

  • A CPRV (pressure adjustment valve) is adopted to optimize the change width so that the damping force does not drop more than necessary at low speeds. It provides the best ride comfort and high steering stability in all areas from low speed to high speed.

Designed specifically for each model to ensure sufficient bump stroke even when lowered

  • Since it is specially designed for each car model in the lineup, sufficient bump stroke is secured. In addition, we have thoroughly tested everything from a single passenger to a full passenger, and in the case of a minivan, we have made comfortable settings for the third seat.

Adoption of a twin-tube shock provides a mild ride and sufficient stroke

  • A dual-tube structure low-pressure gas shock absorber is used to provide a mild ride. The generous shell case and piston diameter ensure ample oil capacity, and by exhibiting smooth damping characteristics, both a smooth ride and high driving performance are achieved.

e-con2 compatible

  • Compatible with "e-con2" that allows you to adjust the damping force with a single button from the driver's seat. The optimum damping force can be adjusted at any time according to the scene (applicable models only).

Attention to detail

  • "Nickel chrome plating" is used for the adjustment screws to protect them from rust, sand and dust. In addition, we are thoroughly particular about quality, such as inserting a high polymer thrust sheet to prevent the lock nut from loosening and improve quietness.

SPECIFICATIONS:

  • Dumping Force: 40 steps
  • Recommended Ride Height Range (mm): Front -35 to -10; Rear -35 to -10
  • Max Ride Height Range (mm): Front -55 to -5; Rear -40 to 0
  • Default Height (mm): -35 / -30
  • Spring Rate (kgf/mm): Front 5 or (6); Rear 4.8
  • Height Adjust: Front Full-length Adjustable; Rear Threaded spacer
  • Upper mount: Front OEM Shape Rubber Upper Mount; Rear Non-adjustable HD rubber upper mount
