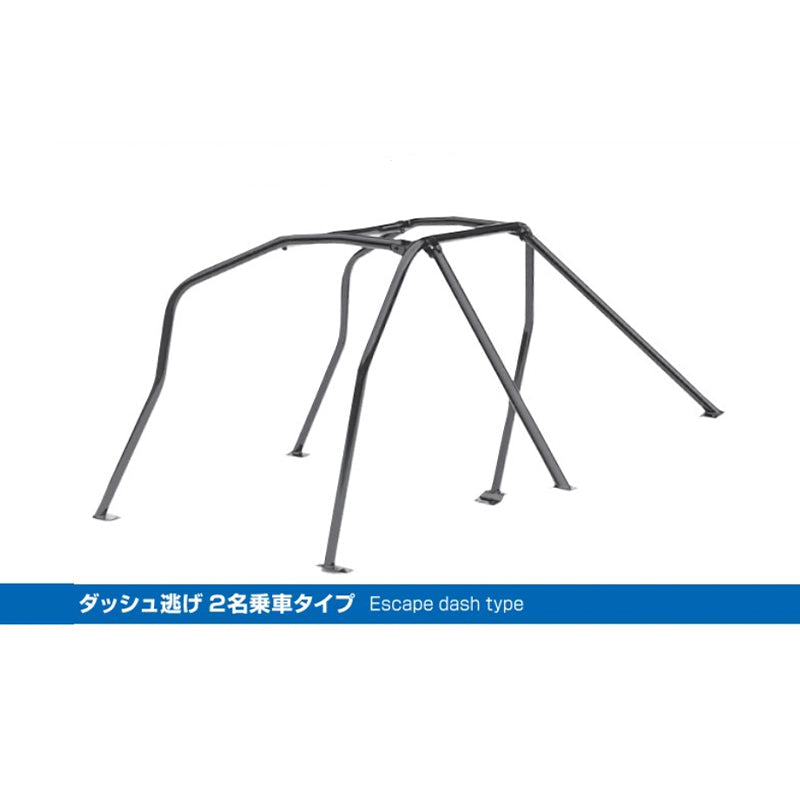

Cusco 8-Point Around Dash Roll Cage (2 Passenger, Non-Sun Roof) | Honda Civic Type R EK9 (311 270 G20)

Flexible configurations from simple 4 point enthusiast spec, to the most elaborate and extreme FIA regulation homologation-grade systems. Safety 21 cages provide Sunday racers to top professionals the protection needed for racing.

• Made from cold drawn seamless carbon steel
• Variations of types that correspond widely to JAF competition regulations
• Pursuing weight reduction from the entire roll cage to joints
• High rigidity with bending processing that clears JAF domestic safety regulations
• Front cage design that does not obstruct the driver's field of vision
• Body rigidity and safety are further improved by setting the mounting position at the base of the suspension or at a position with high chassis strength.

SPECIFICATIONS:

• Material Steel: Cold drawn seamless carbon steel
• Pipe diameter: 40mm
• Pipe thickness: t=2.0mm
• Mounting plate area/wall thickness: 60m² or more/t=2.6mm
• Reinforcing plate area/wall thickness: 120m² or more/t=3.2mm
• Cage weight: 30.0Kg (average)
