| Year | Make | Model |
|---|---|---|
| 2008-2014 | Cadillac | CTS |
| 2004-2009 | Cadillac | XLR |
| 2005-2013 | Chevrolet | Corvette |

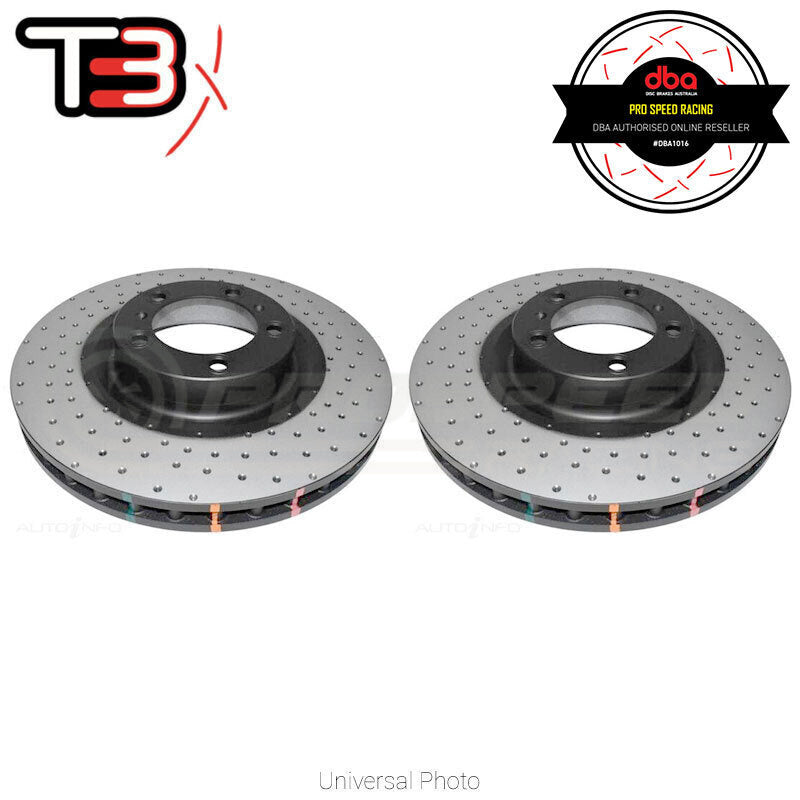

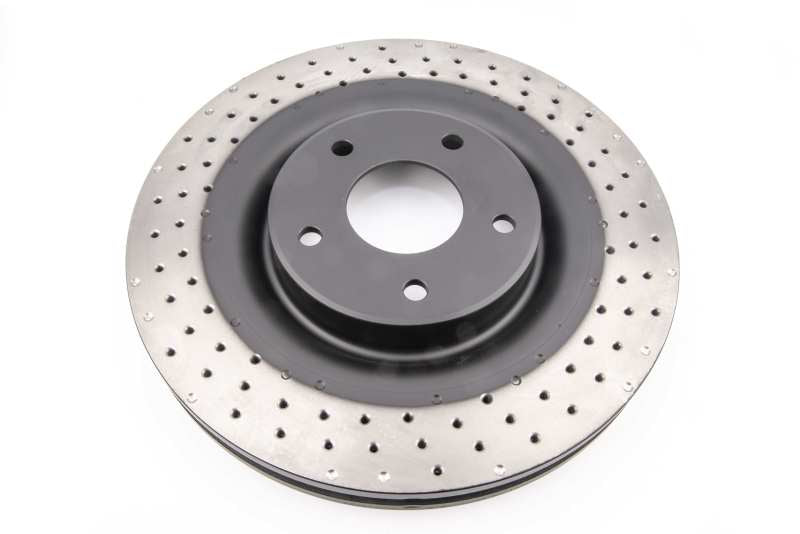

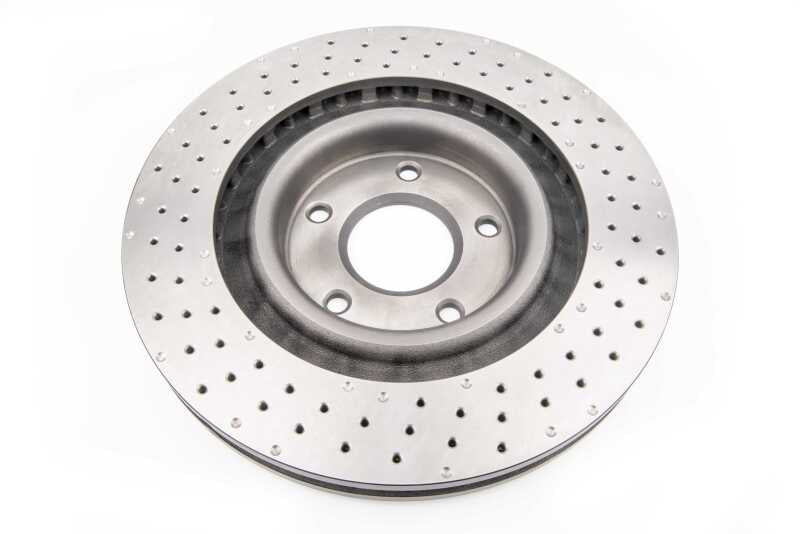

DBA Front 4000 Series Cross Drilled Brake Rotor | Chevrolet Corvette (05-13) (DBA42990XD)
DBA Front 4000 Series Cross Drilled Brake Rotor | Chevrolet Corvette (05-13) (DBA42990XD)
SKU:DBA42990XD
Out of stock
Regular price
$222.72 USD
Regular price
$378.61 USD
Sale price
$222.72 USD
Unit price
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The DBA 4000 Series Cross Drilled Brake Rotor for Chevrolet Corvette (2005-2013) is a high-performance replacement component designed to enhance braking efficiency and heat dissipation. Constructed with precision-drilled holes, these rotors improve brake cooling and reduce the risk of brake fade during aggressive driving or track use. The 4000 Series features advanced metallurgy and manufacturing techniques to ensure durability, consistent performance, and resistance to warping under demanding conditions. These rotors are engineered to provide improved stopping power, better pedal feel, and enhanced overall brake system reliability, making them suitable for enthusiasts seeking a balance of street performance and track capability.
Designed to fit 2005-2013 Chevrolet Corvette models, these cross drilled rotors are intended as direct replacements for stock units, offering an upgrade in braking performance. Proper fitment may require measuring existing brake discs and pads to ensure compatibility, as vehicle configurations can vary. They are ideal for street driving, spirited driving, and track days, providing superior heat dissipation and reduced brake fade. Installation is straightforward for those familiar with brake system maintenance, and the kit includes the rotors only. Compatibility should be verified with vehicle specifications to ensure optimal performance and fitment.
Overview
Overview
Â
Notes Regarding Vehicle Compatibility:
Vehicle fitment provided in this listing is to be used as a rough guide only and may not actually suit your vehicle. Due to multiple brake packages sometimes being offered by manufacturers it may be necessary to measure your existing brake discs and/or pads and compare with the measurements provided by DBA here:
Click "Part Number Search" tab and input SKU provided above.
Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.
Â
Â

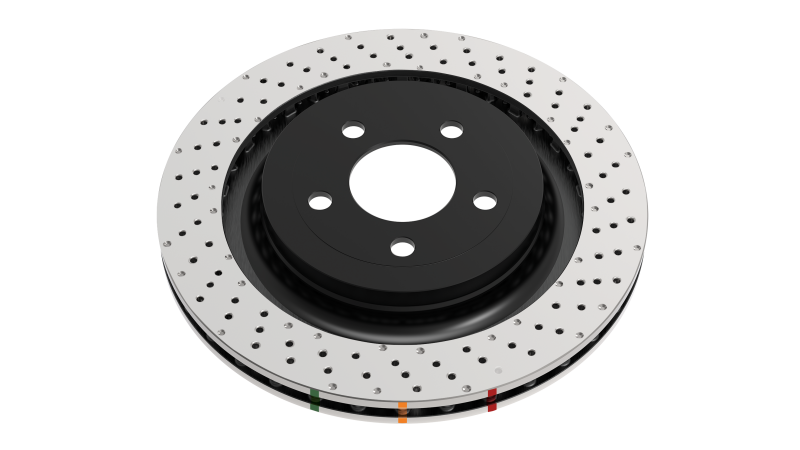

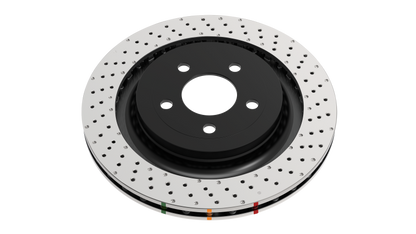

DBA's 4000 Series XD variant features DBA's non-directional cross drilled and dimpled rotor design. The XD finish provides additional cooling benefits above the HD spec, along with enhanced sports looks.
The DBA mix of dimples and drilled holes provides enhanced rotor structural support above transitional cross drilled techniques.
DBA recommends a T3 slot for high performance applications.
Â
Features:
Kangaroo Paw 144 diamond and tear drop pillar ventilation system
- Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron
- An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
- Special formulation designed to respond to DBAs TSP process.
Thermographic Temperature Monitoring
- Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
- When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.
Paint protection on non-friction areas
- Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
