DBA Front 4000 Series Drilled & Slotted Rotor | Land Rover Range Rover (13-18) (DBA43090XS)

DBA Front 4000 Series Drilled & Slotted Rotor | Land Rover Range Rover (13-18) (DBA43090XS)

DBA43090XS

Out of stock

$242.21 USD
$411.76 USD $242.21 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

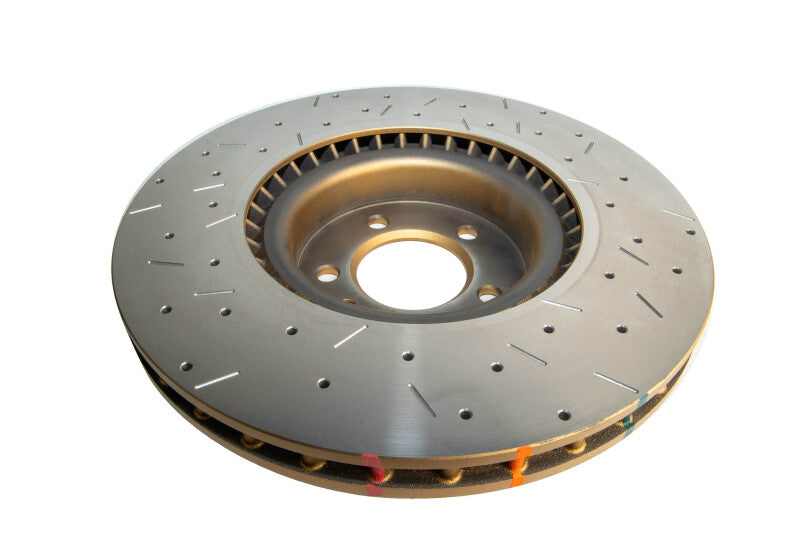

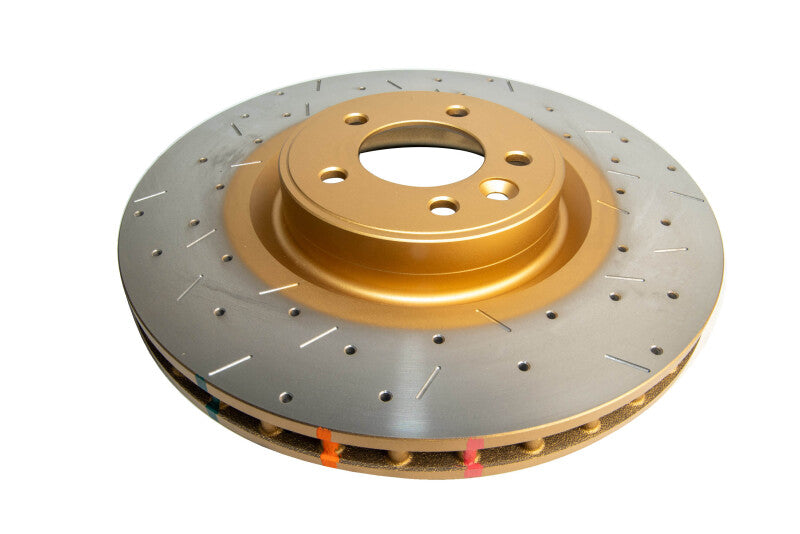

The DBA Front 4000 Series Drilled & Slotted Rotor is a high-performance brake component designed to enhance stopping power and heat dissipation for the Land Rover Range Rover models from 2013 to 2018. Crafted from durable cast iron, these rotors feature a drilled and slotted surface pattern that improves brake pad bite, reduces brake fade, and promotes better cooling during aggressive driving. The drilled holes and slots help vent gases, dust, and water, ensuring consistent braking performance in various conditions. Built for durability and efficiency, these rotors are an ideal upgrade for enthusiasts seeking improved braking response and reliability on the street or track.

Designed to fit 2013-2018 Land Rover Range Rover vehicles, these rotors are intended as direct replacements for stock components. Due to multiple brake package options, users should verify compatibility by measuring existing brake discs and pads against provided specifications. Installation is straightforward as a bolt-on upgrade, suitable for both daily driving and spirited driving scenarios. The kit includes the drilled and slotted rotors, with no additional components required. Proper fitment and performance depend on accurate measurement and comparison, ensuring optimal braking performance for your specific vehicle configuration.

Overview



Notes Regarding Vehicle Compatibility:

Vehicle fitment provided in this listing is to be used as a rough guide only and may not actually suit your vehicle. Due to multiple brake packages sometimes being offered by manufacturers it may be necessary to measure your existing brake discs and/or pads and compare with the measurements provided by DBA here:

DBA Part Finder

Click "Part Number Search" tab and input SKU provided above.

Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.





The 4000XS is a premium cross-drilled and slotted pattern designed to work in conjunction with DBA's patented Kangaroo Paw ventilation system.

The XS pattern increases the number of out-gassing exit points to allow brake pad friction gasses to escape through. This increases the consistency and effectiveness of every brake stop.

These rotors also feature DBA's proprietary XG-150 high carbon alloyed iron and Thermal Stability Profiling (TSP) which prolongs the service life of the rotor.

DBA's revolutionary universal drill and slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

For the spirited driver or performance modified street vehicle, the XS cross-drilled and slotted design is the best option.



Features (Where Applicable):

Kangaroo Paw 144 diamond and tear drop pillar ventilation system

  • Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

XS precision CNC machined slots and cross drilling

  • Increased number of out-gassing exit points for brake pad friction gasses to escape through increases the consistency and effectiveness of every brake stop.
  • Universal drill and slot design eliminates the need for left and right discs

XG150 High Carbon Alloyed Iron

  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
  • Special formulation designed to respond to DBA's TSP process.

Thermographic Temperature Monitoring

  • Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
  • When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.

Paint protection on non-friction areas

  • Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
