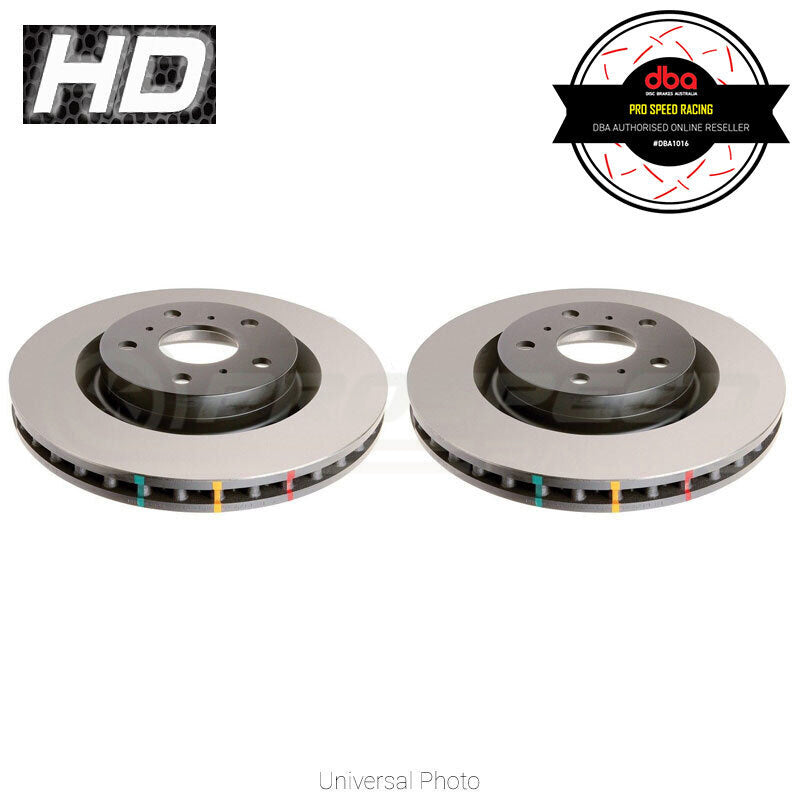

DBA 4000 Series Standard Rear Rotor | Hyundai Elantra 2018-2023 (DBA43659)

DBA 4000 Series Standard Rear Rotor | Hyundai Elantra 2018-2023 (DBA43659)

DBA43659

Out of stock

$82.84 USD
$140.82 USD $82.84 USD
Special Discounts May Apply at Checkout Sold out

The DBA 4000 Series Standard Rear Rotor is a high-performance single-piece disc brake rotor designed for the Hyundai Elantra from 2018 to 2023. Crafted from XG-150 high carbon alloyed iron, these rotors are engineered to deliver improved braking performance beyond standard OEM levels. The inclusion of Thermal Stability Profiling (TSP) ensures the rotors can withstand the increased stress and heat generated during aggressive or repeated braking. Additionally, the patented Kangaroo Paw ventilation system enhances cooling efficiency, reducing brake fade and maintaining consistent braking power under demanding conditions. These features collectively provide enhanced durability, heat dissipation, and overall braking performance for spirited driving or frequent use.

Designed specifically for 2018-2023 Hyundai Elantra models, these DBA rotors are a direct replacement for the factory rear rotors, offering a straightforward bolt-on upgrade. They are suitable for street driving, spirited commuting, and track days where reliable and consistent braking is essential. Installation is a direct fit, requiring no modifications, and the kit includes the necessary components for a complete replacement. These rotors are ideal for drivers seeking increased braking capacity, improved heat management, and longer service life in demanding driving environments.

Overview

DBA's 4000 Series disc brake rotors are a direct replacement single-piece brake rotor, designed for drivers seeking upgraded performance braking in the Specifications tab and beyond standard OE levels.

Cast from XG-150 high carbon alloyed iron and undergoing Thermal Stability Profiling (TSP), DBA's metallurgy is able to handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA's patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

DBA's 4000 Series HD variant features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as under controlled race divisions.



Features:

Kangaroo Paw � 144 diamond and tear drop pillar ventilation system

  • Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

XG150 High Carbon Alloyed Iron

  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
  • Special formulation designed to respond to DBA's TSP process.

Thermographic Temperature Monitoring

  • Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
  • When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.

Paint protection on non-friction areas

  • Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
