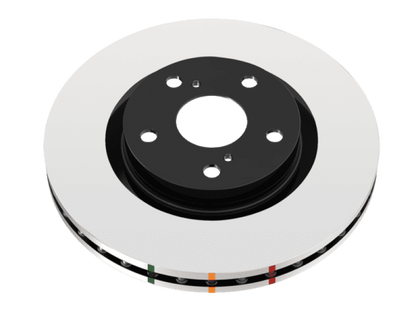

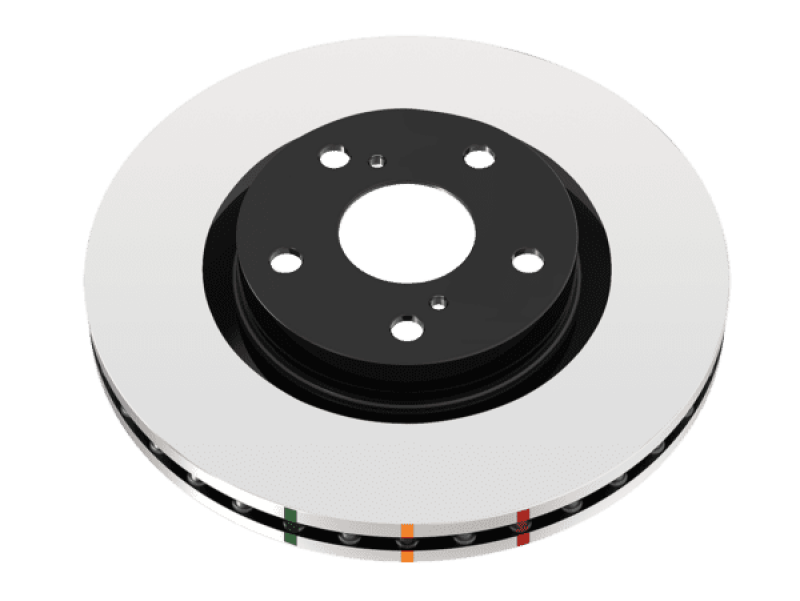

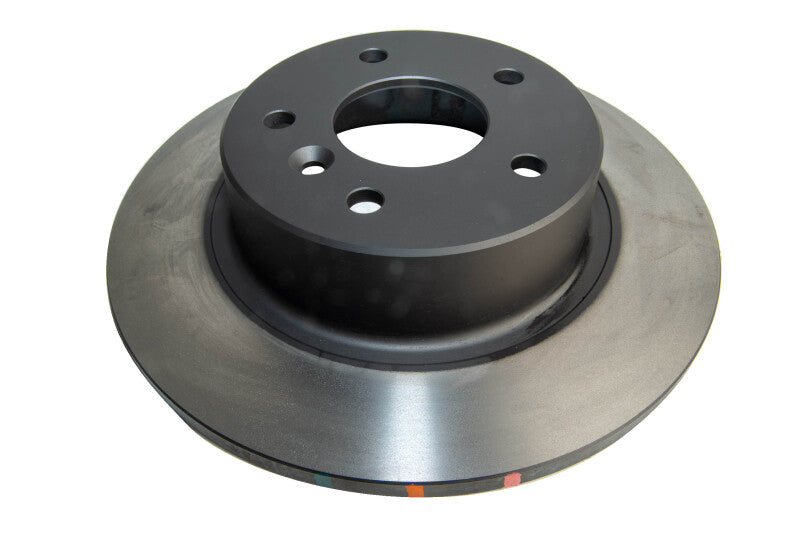

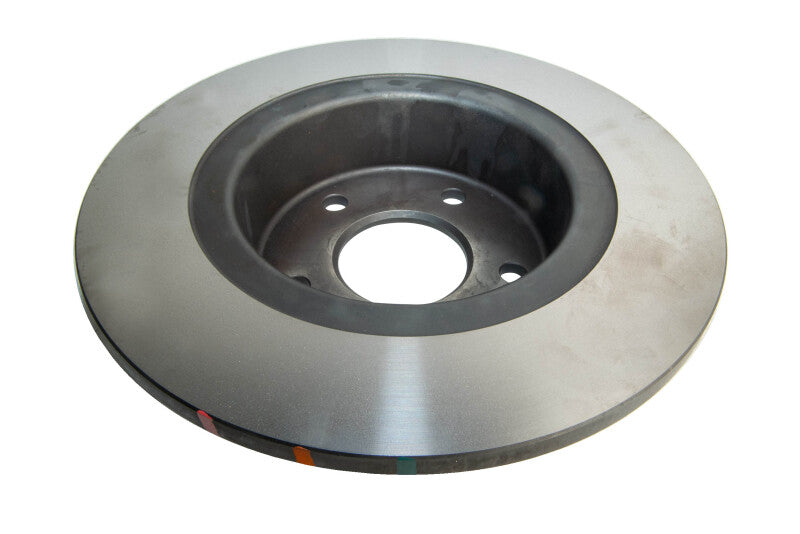

DBA Rear 4000 Series Standard Rotor | Land Rover Discovery Series II (99-04) (DBA4093)
DBA Rear 4000 Series Standard Rotor | Land Rover Discovery Series II (99-04) (DBA4093)
SKU:DBA4093
In stock
Couldn't load pickup availability
The DBA Rear 4000 Series Standard Rotor for the Land Rover Discovery Series II (1999-2004) is a high-quality replacement brake rotor designed to restore braking performance and reliability. Constructed from durable cast iron, this rotor features a vented design that helps dissipate heat effectively during braking. The 4000 Series rotors are engineered to meet or exceed OE specifications, ensuring consistent stopping power and long-lasting performance. Ideal for drivers seeking a reliable, cost-effective upgrade, this rotor provides improved heat management and reduced brake fade under demanding driving conditions.
Designed specifically for the Discovery Series II within the 1999 to 2004 model years, this rotor is a direct replacement for the original equipment. Proper fitment may require measuring existing brake discs and pads, as vehicle configurations can vary. It is suitable for street use and general driving, offering a straightforward bolt-on installation. The kit includes the rotor itself, with no additional components specified. This rotor is compatible with various brake packages for the Discovery II, making it a versatile choice for maintaining or restoring your vehicle’s braking system.
Overview
Overview
Notes Regarding Vehicle Compatibility:
Vehicle fitment provided in this listing is to be used as a rough guide only and may not actually suit your vehicle. Due to multiple brake packages sometimes being offered by manufacturers it may be necessary to measure your existing brake discs and/or pads and compare with the measurements provided by DBA here:
Click "Part Number Search" tab and input SKU provided above.
Returns/Exchanges will incur restocking and freight fees or may be denied in certain circumstances.
Â
Â
DBA's 4000 Series disc brake rotors are a direct replacement single-piece brake rotor, designed for drivers seeking upgraded performance braking in the Specifications tab and beyond standard OE levels. Cast from XG-150 high carbon alloyed iron and undergoing Thermal Stability Profiling (TSP), DBA's metallurgy is able to handle the increased stress and heat generated under intense braking applications, time and time again.
Featuring DBA's patented Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).
DBA's 4000 Series HD variant features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as under controlled race divisions.
Â
Features (Where Applicable):
Kangaroo Paw 144 diamond and tear drop pillar ventilation system
- Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron
- An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
- Special formulation designed to respond to DBA's TSP process.
Thermographic Temperature Monitoring
- Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
- When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.
Paint protection on non-friction areas
- Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
