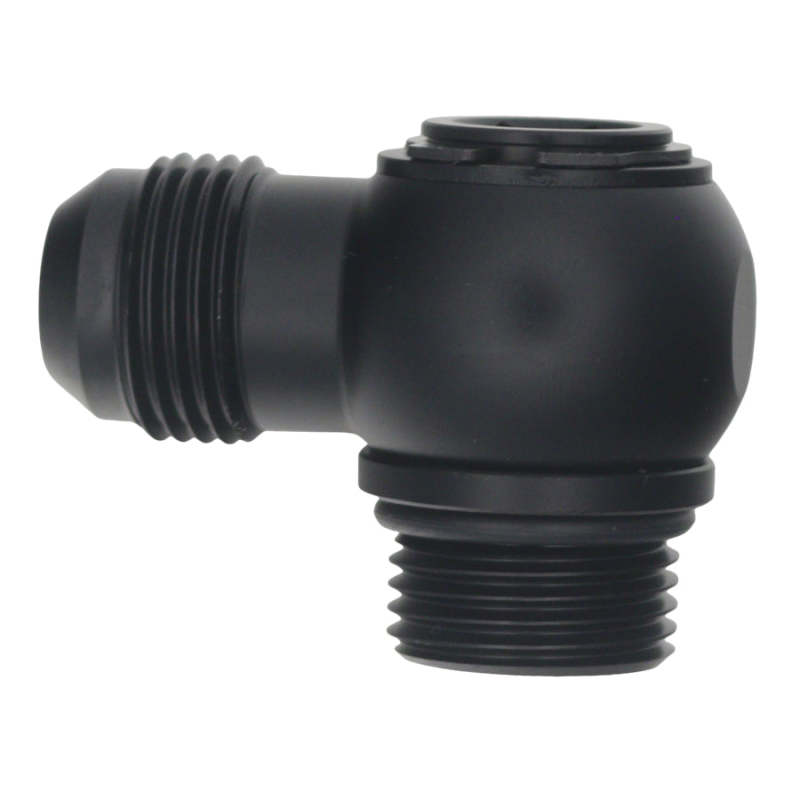

DeatschWerks 10AN ORB Male to 10AN Male Flare Low Profile 90-Degree Swivel

Applicable for various fuel and fluid transfer applications

Part #: 6-02-0417-B

Overview

The DeatschWerks 10AN ORB Male to 10AN Male Flare Low Profile 90-Degree Swivel fitting is a high-quality, versatile component designed for automotive enthusiasts and professionals who require reliable fluid connections in their performance or custom applications. Whether you're building a fuel system, oil line, or other fluid transfer setup, this fitting provides a secure and durable connection with a sleek, low-profile design.

Ideal for use in racing, off-road, or street vehicles, this fitting ensures a tight seal and excellent resistance to vibration and movement. Its 90-degree swivel feature allows for flexible routing in tight spaces, reducing stress on hoses and fittings while maintaining a clean, professional appearance. Crafted from premium materials, it supports high-pressure environments and is built to last under demanding conditions.

Key Features

The DeatschWerks 10AN ORB Male to 10AN Male Flare Low Profile 90-Degree Swivel fitting offers several technical advantages:

• Constructed from anodized matte black aluminum for corrosion resistance and a sleek, professional look that complements any engine bay or custom build.
• Features a low-profile, 90-degree swivel design that facilitates easier installation in confined spaces, helping you achieve optimal hose routing without kinks or stress points.
• Designed with ORB (O-ring boss) and flare connections, providing a secure, leak-free seal suitable for high-pressure fuel, oil, or coolant systems.
• Supports 10AN size fittings, compatible with a wide range of performance fluid transfer components.
• Precision-machined for consistent fitment and durability, ensuring long-lasting performance even under vibration and thermal cycling.
• Swivel design minimizes installation time and allows for precise alignment, reducing the risk of damage or leaks.
• Ideal for custom fuel systems, oil catch cans, or any application requiring reliable, high-flow fluid connections.
• Supports high-pressure applications typical in racing and performance vehicles, ensuring safety and reliability.

Construction & Design

This fitting is crafted from high-grade anodized aluminum, which provides excellent strength-to-weight ratio and corrosion resistance. The low-profile, 90-degree swivel design is engineered to offer maximum flexibility during installation, especially in tight engine bays or chassis compartments. The precision-machined ORB and flare ends ensure a tight, leak-proof connection, while the anodized matte black finish adds a professional aesthetic and additional corrosion protection. Its robust construction guarantees durability and consistent performance over time, even in demanding environments.

Installation & Fitment

The DeatschWerks 10AN ORB Male to 10AN Male Flare Low Profile 90-Degree Swivel fitting is designed for easy, bolt-on installation. It connects directly to compatible 10AN hoses and fittings with no additional adapters required. The swivel feature allows for flexible positioning, making it easier to route hoses in confined spaces. No cutting, drilling, or special tools are necessary beyond standard hand tools. Ensure that the mating components are clean and properly torqued to maintain a leak-free connection.

• Simply thread the ORB end into compatible fittings or ports, and connect the flare end to your hose or component.
• Use appropriate thread sealant if recommended by your system specifications.

Always verify compatibility with your specific application before installation.

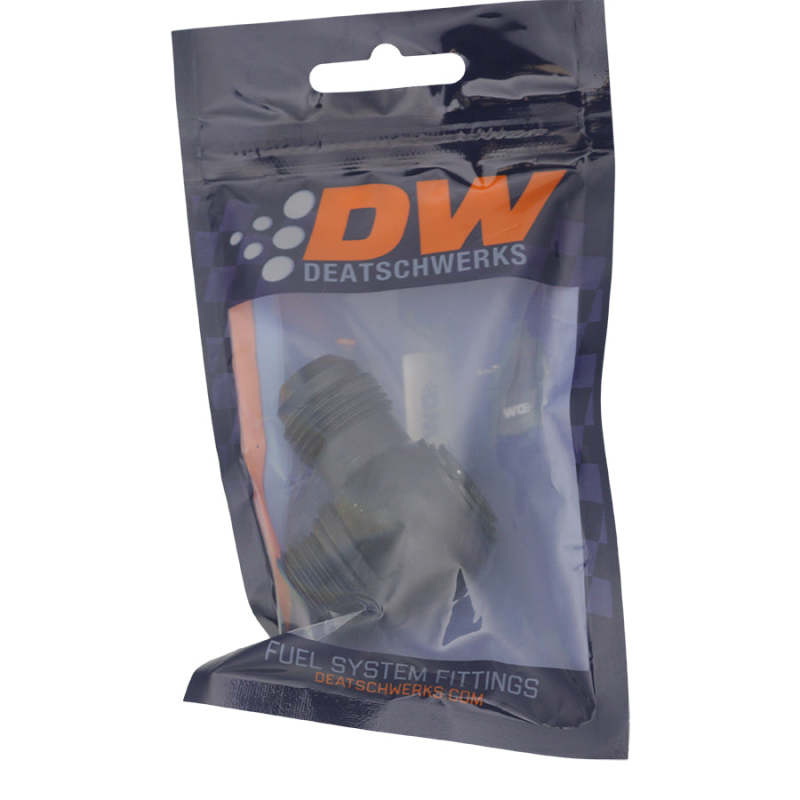

What's Included

• DeatschWerks 10AN ORB Male to 10AN Male Flare Low Profile 90-Degree Swivel fitting

Ideal For

• Performance fuel systems
• Oil and coolant line routing
• Race cars and off-road vehicles
• Custom fluid transfer setups requiring high-pressure, reliable connections
• Enthusiasts seeking durable, corrosion-resistant fittings with flexible routing options
