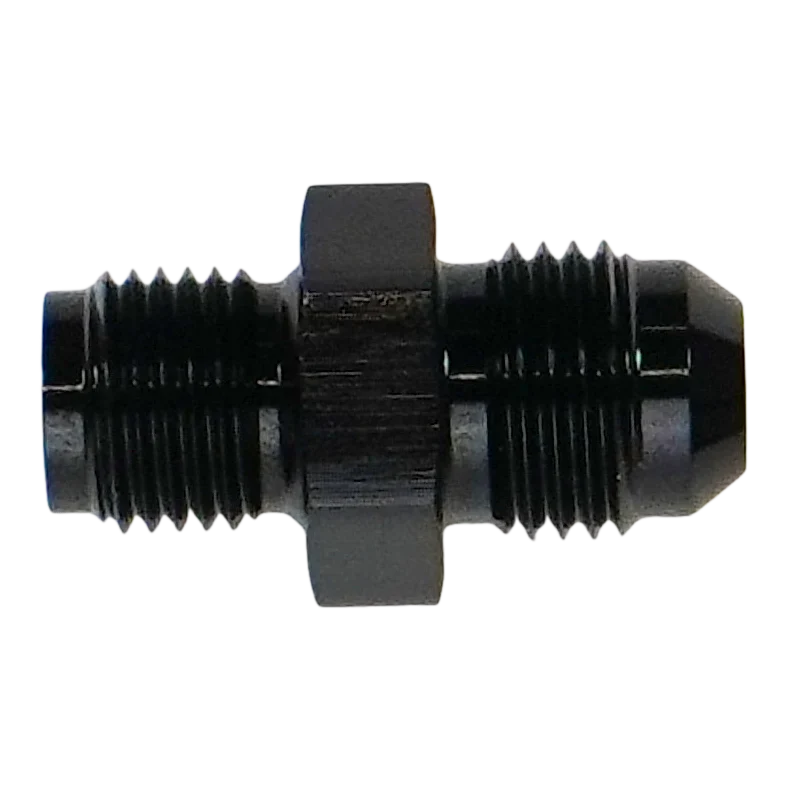

DeatschWerks 6AN Flare Fitting

Compatible with 6AN Male Flare to 1/2"–20 Male Inverted Flare

Part #: 6-02-0646-B

Overview

The DeatschWerks 6AN Male Flare to 1/2"–20 Male Inverted Flare fitting is a high-quality component designed for automotive enthusiasts and professionals who need reliable and durable fluid transfer connections. Whether you're building a custom fuel system, oil line, or coolant setup, this fitting ensures a secure and leak-free connection between different types of fittings and lines.

Constructed with precision and engineered for performance, this fitting is ideal for race cars, street performance builds, and off-road applications where dependable fluid handling is critical. Its robust design helps support consistent flow and pressure, making it a trusted choice for demanding automotive environments.

Key Features

DeatschWerks has engineered this fitting with durability and performance in mind. Here are some of its key features:

• Manufactured from high-quality, corrosion-resistant materials to withstand harsh automotive environments.
• Precision-machined to ensure a perfect fit and seal between 6AN flare and 1/2"–20 inverted flare connections.
• Designed with a male flare end for secure attachment to compatible components, ensuring a leak-free connection under high pressure.
• Inverted flare design provides a reliable seal that resists loosening due to vibration or pressure fluctuations.
• Ideal for fuel, oil, coolant, and other fluid transfer applications in performance and racing vehicles.
• Compatible with a wide range of automotive fittings and lines, offering versatility for custom setups.
• Built to meet or exceed industry standards for quality and performance.
• Easy to install with standard tools, making it suitable for both professional and DIY applications.

Construction & Design

This fitting features a precision-machined body crafted from durable, corrosion-resistant materials such as steel or anodized aluminum, ensuring longevity and resistance to harsh chemicals. The 6AN male flare end provides a secure connection to compatible AN fittings, while the 1/2"–20 male inverted flare end is designed to connect seamlessly with inverted flare lines commonly used in automotive fluid systems. The inverted flare design enhances sealing reliability, reducing the risk of leaks during high-pressure operation. Its compact, lightweight construction makes it suitable for tight engine bays and custom installations, while its robust build ensures consistent performance over time.

Installation & Fitment

This fitting is a straightforward, bolt-on component that requires no special tools beyond standard wrenches. It connects directly between compatible 6AN flare fittings and 1/2"–20 inverted flare lines, making it suitable for custom fuel, oil, or coolant systems. No cutting, drilling, or additional modifications are necessary, allowing for quick and secure installation. Always ensure that fittings are tightened to manufacturer specifications to prevent leaks and ensure optimal performance.

• Connects 6AN male flare to 1/2"–20 male inverted flare
• Compatible with a wide range of automotive fluid lines and fittings
• Simple bolt-on installation with standard tools

What's Included

• DeatschWerks 6AN Male Flare to 1/2"–20 Male Inverted Flare fitting

Ideal For

This fitting is perfect for automotive enthusiasts, racers, and professional builders who require reliable, high-quality fluid connections in fuel systems, oil lines, or coolant setups. Its durability and precise fit make it suitable for high-pressure environments and custom performance applications.
