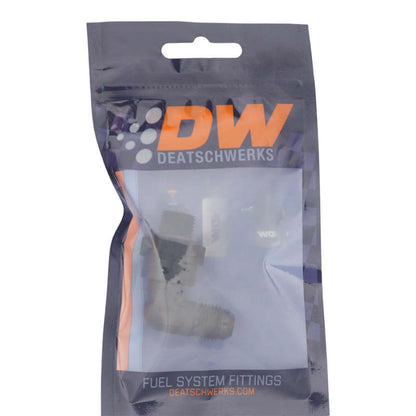

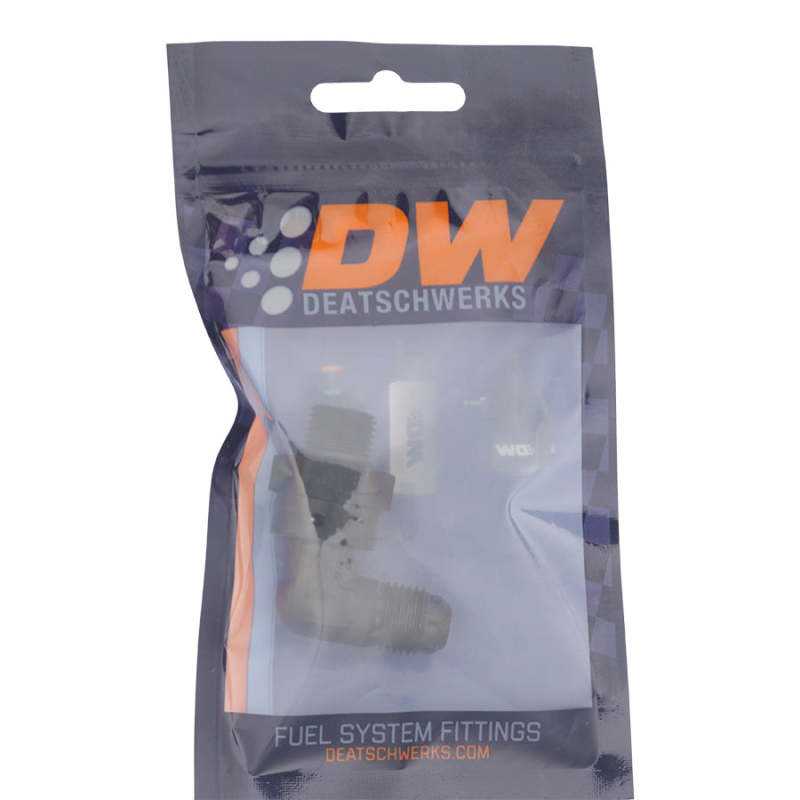

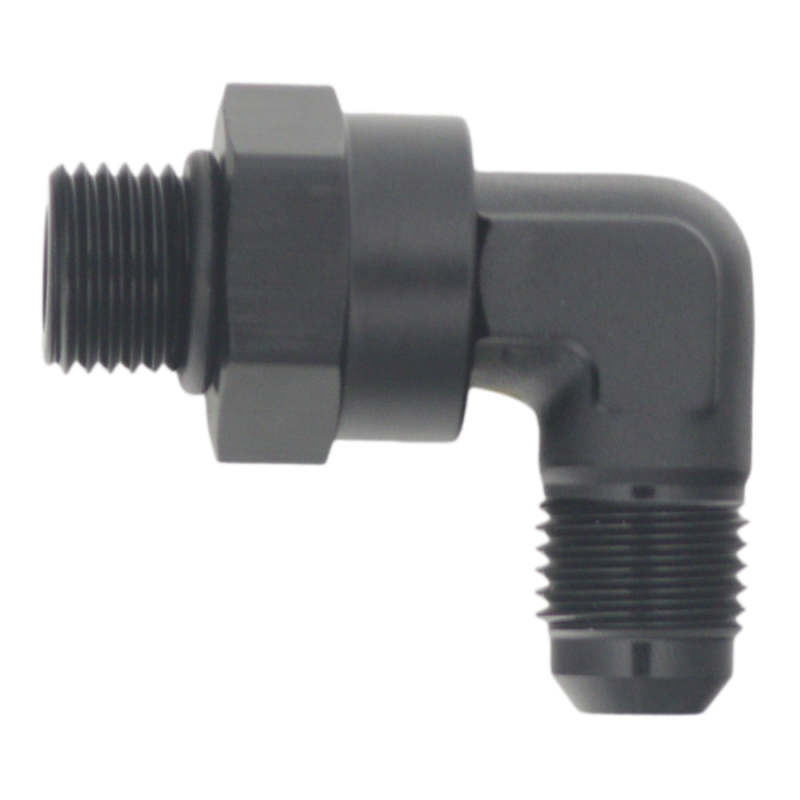

DeatschWerks 6AN ORB Male Swivel to 90-Degree 6AN Male Flare

Applicable for various performance fuel and oil systems requiring high-quality fittings

Part #: 6-02-0414-B

Overview

The DeatschWerks 6AN ORB Male Swivel to 90-Degree 6AN Male Flare fitting is a precision-engineered component designed for high-performance automotive and racing applications. Crafted to provide secure, leak-free connections in fuel, oil, and coolant systems, this fitting ensures reliable operation under demanding conditions. Whether you're building a custom fuel system, upgrading your oil lines, or installing a race-ready setup, this fitting offers the durability and precision you need.

Ideal for enthusiasts and professional builders alike, this fitting helps support increased system integrity and performance. Its high-quality construction minimizes the risk of leaks and ensures consistent flow, making it a vital component for custom plumbing, turbo setups, and other performance modifications.

Key Features

Designed with performance and durability in mind, the DeatschWerks 6AN fitting offers several key features:

• Constructed from anodized matte black aluminum for corrosion resistance and a sleek appearance that complements any engine bay or custom build.
• Features a swivel design at the ORB (O-ring boss) connection, allowing for flexible routing and easier installation in tight spaces without twisting or stressing the lines.
• 90-degree bend on the male flare end facilitates clean, efficient routing of lines around components and accessories, reducing clutter and improving airflow.
• Precision-machined to exact specifications, ensuring a secure fit and leak-free connection every time.
• Compatible with high-pressure fuel systems, oil lines, and coolant lines, supporting applications that demand reliability and safety.
• Designed for easy assembly and disassembly, simplifying maintenance and future modifications.
• Made from lightweight, durable aluminum that withstands high temperatures and harsh environments common in performance vehicles.
• Suitable for use with DeatschWerks and other high-quality AN fittings, hoses, and adapters to create custom fluid transfer systems.

Construction & Design

This fitting is crafted from anodized matte black aluminum, combining strength with corrosion resistance. The swivel feature at the ORB male connection allows for flexible line routing, reducing installation time and stress on hoses. The 90-degree flare end is precision-machined for a tight, leak-proof seal, ensuring consistent performance under high pressure. Its compact design makes it ideal for tight engine bays and custom setups, while the durable materials ensure long-lasting reliability in demanding racing and street environments.

Installation & Fitment

The DeatschWerks 6AN ORB Male Swivel to 90-Degree 6AN Male Flare fitting is designed for straightforward installation. It connects seamlessly with 6AN hoses and fittings, providing a secure, leak-free connection. The swivel feature allows for easy alignment during assembly, reducing installation time and frustration. No special tools are required beyond standard AN fitting wrenches, and no cutting or modifications are necessary for compatible systems.

• Simply thread the ORB swivel into your existing fitting or port, tighten securely, and connect your 6AN hose or line to the flare end.
• Ensure all connections are properly torqued to manufacturer specifications to prevent leaks.

What's Included

• DeatschWerks 6AN ORB Male Swivel to 90-Degree 6AN Male Flare fitting

Ideal For

• High-performance fuel systems
• Oil and coolant line upgrades
• Race cars and street performance builds
• Custom plumbing applications requiring flexible routing and secure connections
