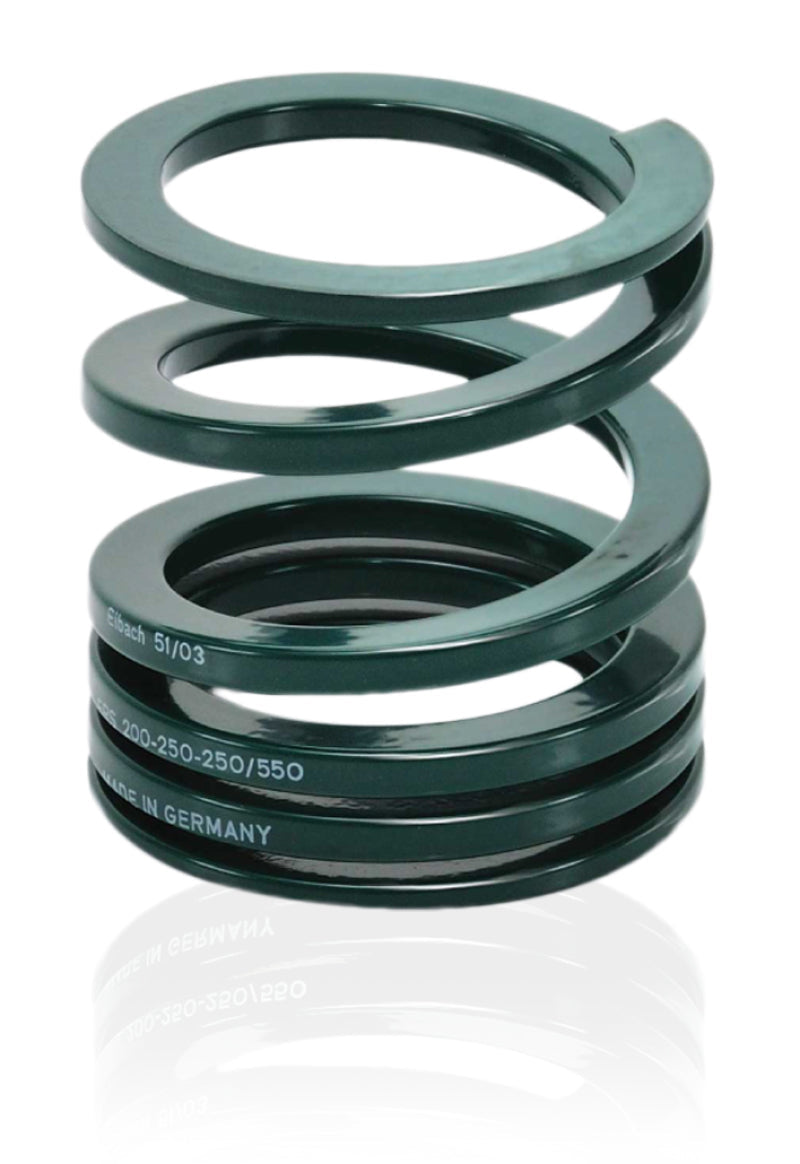

Eibach ERS 2.50 in. ID Progressive Tender Spring (0200.250.XXX-XXX)

Progressive Tender Spring by Eibach

The ERS systems relies on a Main and Tender spring concept that provides a softer initial rate when both springs are compressed together, then delivers the desired firmer ending rate once the tender spring closes completely. The Main spring has a linear-rate characteristic and determines the final rate of the system. The Tender springs are available in a variety of linear-rate as well as progressive-rate characteristics and determine the initial rate of the system.

Features

• Length: 4.25"
• Diameter: 2.50 I.D."
• Block Height: 2.20"
• Travel: 2.05"
• Block Load: 739 lbs
• Provides a Softer Initial Rate When Paired with a Main Spring
• Available in Linear or Progressive Rates
• Each Spring Individually Tested
• Highest Linearity and Guaranteed Consistency

Benefits

• Uncountable individual combination possibilities to create from standard spring components ex stock
• High spring travel (deflection) and therefore high end loads at short mounting lengths
• Block resistance
• Surface treated through shot-peening
• High dynamic durability (component longevity)
• Precise tolerances
• High quality corrosion protection by phosphating and epoxy coating
• Individual protective packaging
• Easy identification (imprinted with Part no.-indicates spring rate and physical dimensions)

Applications

• Universal

What's In The Box?

• 1 - Spring

Warranty

• Eibach Million-Mile Warranty
