• Eibach Front and Rear Front & Rear Coilover Set for 2021-2024 Ford Bronco
1 1
▶ Suspension Drop / Lift Rates
Part #: E86-35-056-05-22 - Set of Front & Rear Coilovers
Comment: Exact lift heights may vary depending on exact packages and weight distributions of vehicle Listed heights are with 150lbs additional weight over front axle and 500lbs additional weight over rear axle. Listed lift heights are heights with full weight front and rear, range is full range of coil over adjustment (full low to full high).
Applications
Front
Rear
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 4-Door 2.7L V6 EcoBoost 4WD | Sasquatch
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco Badlands 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+0.3-2.6"
+1.7-3.1"
2021-2025 Ford Bronco Base 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Outer Banks 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco Base 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Outer Banks 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+0.8-3.4"
+1.7-3.1"
2021-2022 Ford Bronco WILDTRACK 4-Door 2.7L V6 EcoBoost 4WD | HOSS 2.0 | Bilstein
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco FIRST EDITION 4-Door 2.7L V6 EcoBoost 4WD
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 4-Door 2.3L EcoBoost 4WD | Sasquatch
+0.4-3.0"
+1.3-2.7"
2021-2025 Ford Bronco Base 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco OUTERBANKS 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+0.3-2.6"
+1.7-3.1"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 2-Door 2.7L V6 EcoBoost 4WD | Sasquatch
+0-2.2"
+1.3-2.7"
2021-2022 Ford Bronco WILDTRACK 2-Door 2.7L V6 EcoBoost 4WD | HOSS 2.0 | Bilstein
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco FIRST EDITION 2-Door 2.7L V6 EcoBoost 4WD
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco Base 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco OUTERBANKS 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+0.8-3.4"
+1.7-3.1"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 2-Door 2.3L EcoBoost 4WD
+0.4-3.0"
+1.3-2.7"

Eibach Front and Rear Front & Rear Coilover Set for 2021-2024 Ford Bronco

Eibach Front and Rear Front & Rear Coilover Set for 2021-2024 Ford Bronco

E86-35-056-05-22

In stock

$1,990.00 USD
$2,211.11 USD $1,990.00 USD
Special Discounts May Apply at Checkout Sold out
▶ Suspension Drop / Lift Rates
Part #: E86-35-056-05-22 - Set of Front & Rear Coilovers
Comment: Exact lift heights may vary depending on exact packages and weight distributions of vehicle Listed heights are with 150lbs additional weight over front axle and 500lbs additional weight over rear axle. Listed lift heights are heights with full weight front and rear, range is full range of coil over adjustment (full low to full high).
Applications
Front
Rear
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 4-Door 2.7L V6 EcoBoost 4WD | Sasquatch
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco Badlands 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+0.3-2.6"
+1.7-3.1"
2021-2025 Ford Bronco Base 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Outer Banks 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco Base 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Outer Banks 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+0.8-3.4"
+1.7-3.1"
2021-2022 Ford Bronco WILDTRACK 4-Door 2.7L V6 EcoBoost 4WD | HOSS 2.0 | Bilstein
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco FIRST EDITION 4-Door 2.7L V6 EcoBoost 4WD
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 4-Door 2.3L EcoBoost 4WD | Sasquatch
+0.4-3.0"
+1.3-2.7"
2021-2025 Ford Bronco Base 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco OUTERBANKS 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+0.3-2.6"
+1.7-3.1"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 2-Door 2.7L V6 EcoBoost 4WD | Sasquatch
+0-2.2"
+1.3-2.7"
2021-2022 Ford Bronco WILDTRACK 2-Door 2.7L V6 EcoBoost 4WD | HOSS 2.0 | Bilstein
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco FIRST EDITION 2-Door 2.7L V6 EcoBoost 4WD
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco Base 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco OUTERBANKS 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+0.8-3.4"
+1.7-3.1"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 2-Door 2.3L EcoBoost 4WD
+0.4-3.0"
+1.3-2.7"

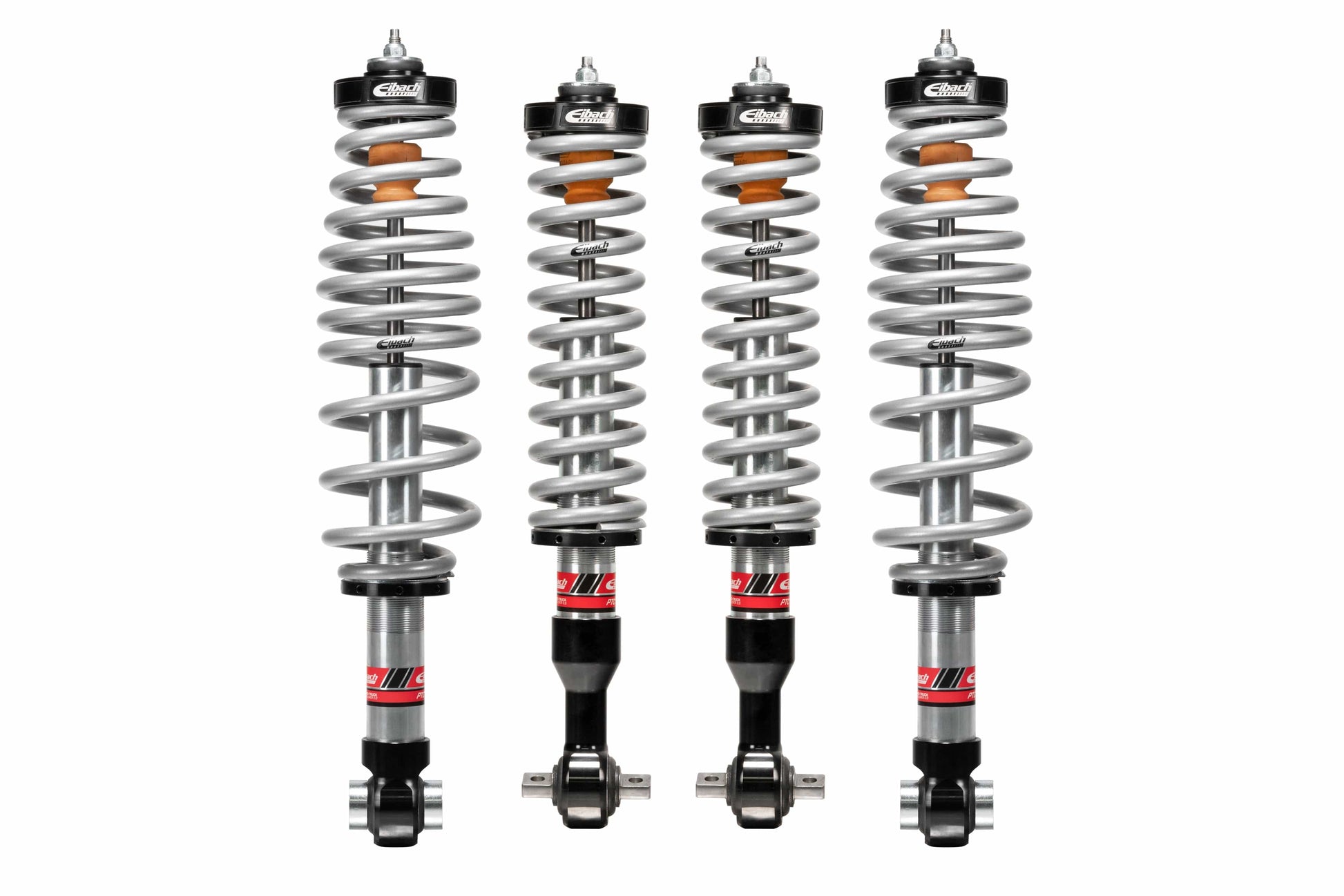

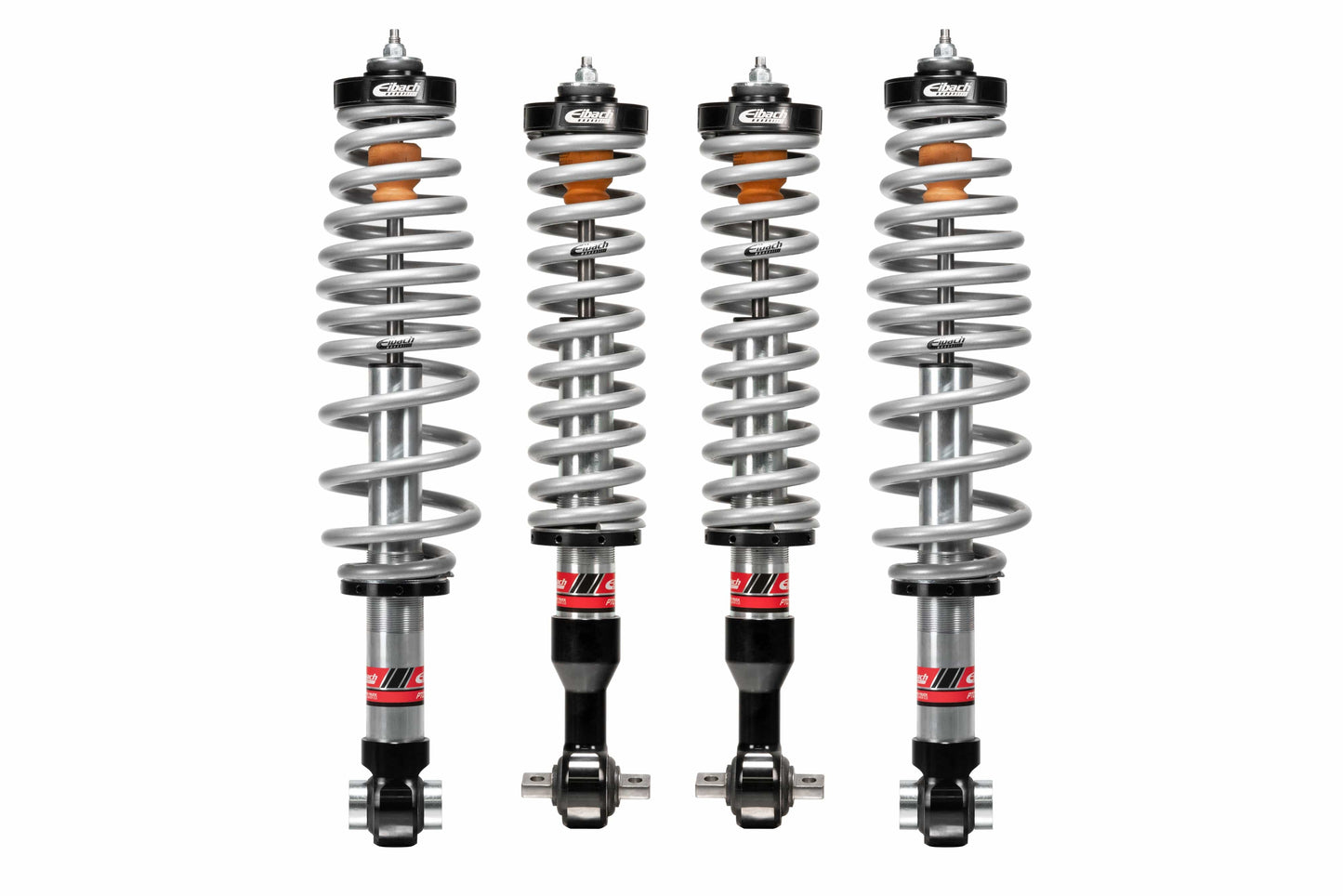

The Eibach Front and Rear Coilover Set is a high-performance suspension upgrade designed specifically for the 2021–2024 Ford Bronco. This Stage 2 system features Pro-Truck-Coilover 2.0 components, offering enhanced handling, load capacity, and off-road capability. The coilovers are equipped with anodized 6061-T6 billet aluminum mounts, a 46mm piston, and a monotube design filled with nitrogen, ensuring durability and consistent performance under demanding conditions. The front adjustable threaded spring perch allows for increased load accommodation and maximum clearance, making it ideal for off-road adventures and heavy-duty use. Built with precision engineering, these coilovers deliver improved ride quality, stability, and responsiveness for both street and off-road driving.

Designed specifically for the 2021–2024 Ford Bronco, these coilovers are a direct bolt-on upgrade that fit models equipped with the appropriate chassis and suspension setup. They are suitable for off-road enthusiasts, overlanders, and those seeking a robust suspension solution for demanding terrains. The kit includes front and rear coilovers with adjustable features to fine-tune ride height and damping characteristics. Installation is straightforward for experienced DIYers or professional installers. These coilovers provide a significant upgrade over stock suspension components, offering increased durability, load handling, and off-road clearance for a versatile driving experience across various terrains and conditions.

Part #: E86-35-056-05-22 - Set of Front & Rear Coilovers
Comment: Exact lift heights may vary depending on exact packages and weight distributions of vehicle Listed heights are with 150lbs additional weight over front axle and 500lbs additional weight over rear axle. Listed lift heights are heights with full weight front and rear, range is full range of coil over adjustment (full low to full high).
Applications
Front
Rear
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 4-Door 2.7L V6 EcoBoost 4WD | Sasquatch
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco Badlands 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+0.3-2.6"
+1.7-3.1"
2021-2025 Ford Bronco Base 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Outer Banks 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco Base 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 4-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Outer Banks 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 4-Door 2.3L EcoBoost 4WD | Non Sasquatch
+0.8-3.4"
+1.7-3.1"
2021-2022 Ford Bronco WILDTRACK 4-Door 2.7L V6 EcoBoost 4WD | HOSS 2.0 | Bilstein
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco FIRST EDITION 4-Door 2.7L V6 EcoBoost 4WD
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 4-Door 2.3L EcoBoost 4WD | Sasquatch
+0.4-3.0"
+1.3-2.7"
2021-2025 Ford Bronco Base 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco OUTERBANKS 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+1.0-3.3"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 2-Door 2.7L V6 EcoBoost 4WD | Non Sasquatch
+0.3-2.6"
+1.7-3.1"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 2-Door 2.7L V6 EcoBoost 4WD | Sasquatch
+0-2.2"
+1.3-2.7"
2021-2022 Ford Bronco WILDTRACK 2-Door 2.7L V6 EcoBoost 4WD | HOSS 2.0 | Bilstein
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco FIRST EDITION 2-Door 2.7L V6 EcoBoost 4WD
+0-2.2"
+1.3-2.7"
2021-2025 Ford Bronco Base 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BIG BEND 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco BLACK DIAMOND 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco OUTERBANKS 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+1.5-4.1"
+2.4-3.8"
2021-2025 Ford Bronco Badlands 2-Door 2.3L EcoBoost 4WD | Non Sasquatch
+0.8-3.4"
+1.7-3.1"
2021-2025 Ford Bronco ANY MODEL W/ SASQUATCH 2-Door 2.3L EcoBoost 4WD
+0.4-3.0"
+1.3-2.7"

Overview

Front Adjustable Threaded Spring Perch for the 2021-2024 Ford Bronco to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.

Standard Features

  • Stage 2 system featuring Pro-Truck-Coilover 2.0's front and rear.
  • Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
  • Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
  • Individually Dyno Tested for Matched Performance and Reliability.
  • Engineered, Tested and Manufactured by Eibach in the U.S.A.
Specifications
Part Number E86-35-056-05-22
Part Name Coilover Spring and Shock Assembly
Vehicle 2021-2024 Ford Bronco
UPC 00803050550958
Spring Color Silver
Damper Color Zinc Coated
Notes Exact lift heights may vary depending on exact packages and weight distributions of vehicle; Listed heights are with 150lbs additional weight over front axle and 500lbs additional weight over rear axle.
Vehicle Fitment
  • 2021 Ford Bronco
  • 2022 Ford Bronco
  • 2023 Ford Bronco
  • 2024 Ford Bronco
