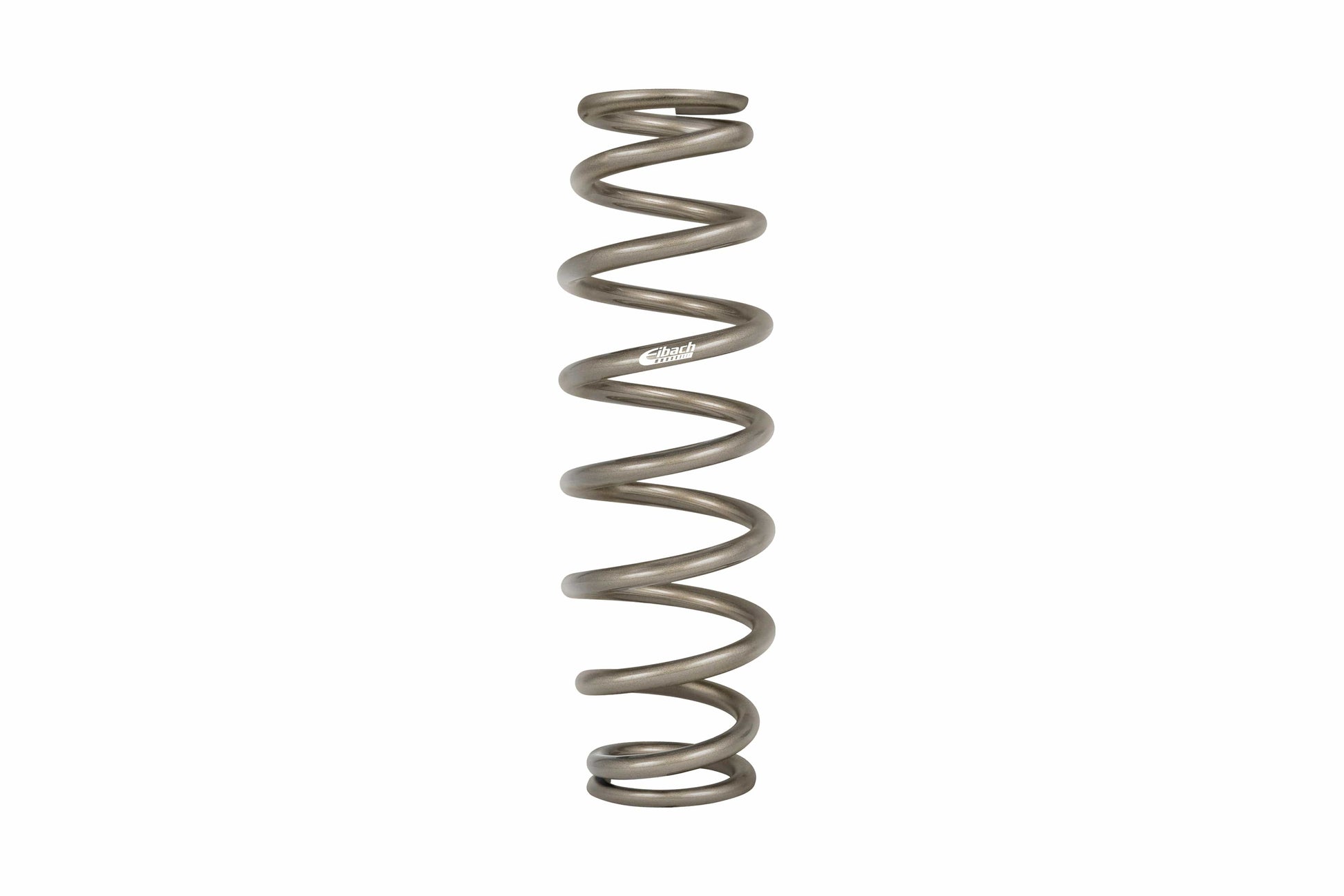

Eibach Platinum Barrel Main Single Coil Spring - 225 lbs/in Rate
Eibach Platinum Barrel Main Single Coil Spring - 225 lbs/in Rate
SKU:P1400.2530.0225
Out of stock
Couldn't load pickup availability
The Eibach Platinum Barrel Main Single Coil Spring with a 225 lbs/in rate is a high-performance suspension component designed for racing and enthusiast applications. Crafted by Eibach, a renowned manufacturer in the industry, this coil spring offers precise linear spring characteristics, ensuring consistent handling and ride quality. Manufactured with strict quality controls, the spring features a durable construction that withstands demanding conditions, providing improved stability and responsiveness. Its specific spring rate of 225 lbs/in makes it suitable for performance tuning, track days, or aggressive street driving, delivering enhanced grip and control during cornering and acceleration.
Designed for use in various vehicle applications, this coil spring is compatible with models requiring a single barrel main spring. It is suitable for race cars, modified street vehicles, or any chassis needing a reliable upgrade for suspension performance. Installation typically involves replacing the existing spring with this direct-fit component, ensuring a straightforward upgrade process. The spring's robust design and manufacturing precision make it ideal for drivers seeking improved handling, reduced body roll, and a more responsive driving experience. It is recommended for use in setups where a 225 lbs/in spring rate is appropriate for the vehicle's weight and performance goals.
Share
Overview
Overview
Eibach's ERS line has evolved over the years to be the world's most prominent, comprehensive and superior Race Spring System. Eibach Race Springs are all manufactured in series production, often repeated, with a strong manufacturing experience. Thus, Eibach constantly achieves the most linear spring characteristic (rate) while maintaining the lowest tolerances and the highest quality in the industry.
Eibach PRO-SPACER wheel spacers for cars, trucks, and UTVs are the ideal solution for improving stability and handling, increasing clearance for larger tires, and giving your vehicle that aggressive and commanding presence. By widening the vehicle's track width, wheel spacers lower the center of gravity, reduce body roll, and ultimately enhance capability of your vehicle on- or off-road.
Made from lightweight Neoprene material, Eliminates mud packing inside coils, Keeps spring adjuster and damper shaft clean for extended life, Easy Velcro split opening for shock & spring adjustment, Washable material.
Standard Features
- Redesigned Barrel Spring shape with increased suspension travel and linearity - will replace the XT Barrel counterparts
- Hi-Tensil Platinum Spring Coil Used
- Ultra-Lightweight for Reduced Unsprung Mass
- Each Spring Individually Tested
- Maximum Travel in Combination with Smallest Block Heights
Specifications
| Part Number | P1400.2530.0225 |
| Part Name | Coil Spring |
| Length | 14 in. |
| Diameter | 2.50 I.D. |
| Spring Rate | 225 lbs/in |
| Block Height | 4.28 in. |
| Travel | 9.72 in. |
| Block Load | 2187 lbs. |
| Color | Silver |
| Series | Platinum Series |
| Notes | Without QuadraSteer |
