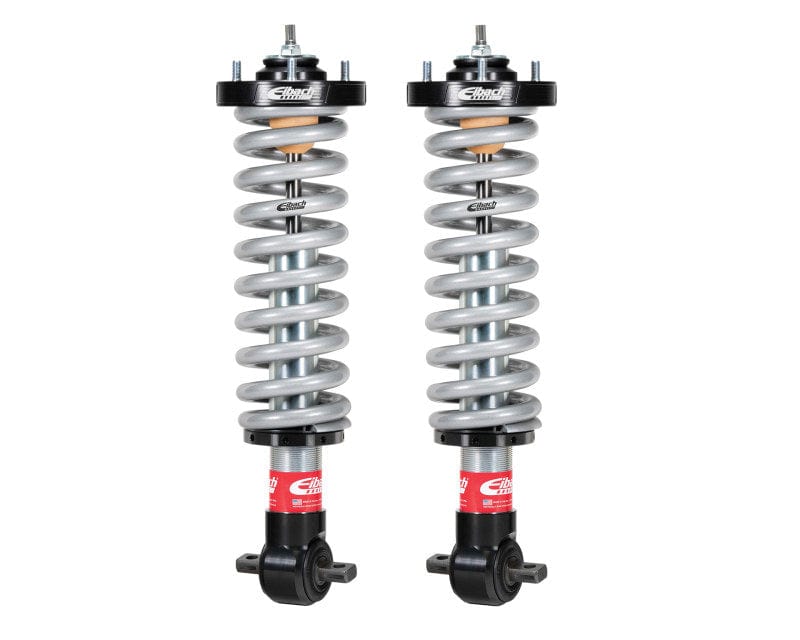

Eibach PRO-TRUCK Coilovers (Front) for 2014-2018 Chevrolet Silverado 1500 RWD
Eibach PRO-TRUCK Coilovers (Front) for 2014-2018 Chevrolet Silverado 1500 RWD
SKU:E86-23-032-01-20
Couldn't load pickup availability
Eibach's PRO-TRUCK Coilovers 2.0 for the 2014-2018 Chevrolet Silverado 1500 RWD features threaded bodies for fine-tuning ride height and improved damping performance delivering maximum off-road capability. Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails.
Weight Compensation
The adjustable threaded spring perch allows the accommodation of additional weight and maximizes clearance. This is important when trucks are equipped with heavy gear such as metal front bumpers, winches, lights, skid plates, and more.
Variable Force Valving
Designed to provide a controlled comfortable ride on road, and as force and piston speeds increase off-road our proprietary valve stack activates to control the vehicle over large bumps and g-outs.
Standard Features
- Lift heights ranging from 2-4" depending on application.
- Threaded spring perch for fine height adjustment
- Developed to provide balanced ride quality and control, both on and off-road
Increased travel and ground clearance
- Monotube damper design
- Pre-Assembled, Factory Direct Replacement Front Coilovers - No Additional Parts Required. Sold in Pairs.
- Adjustable Threaded Spring Perch to Accommodate Increased Loads and
- Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
- Anodized 6061-T6 Billet Aluminum Mounts, 46mm Piston, Monotube Design with
- Nitrogen Filled Variable Force Valving.
- Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
- Engineered, Tested and Manufactured by Eibach in the U.S.A.
- Limited Lifetime Warranty
Downloads
Specifications
| Part Number | E86-23-032-01-20 |
| Part Name | PRO-TRUCK Coilovers |
| UPC | 803050498540 |
| Vehicle | 2014-2018 Chevrolet Silverado 1500 RWD |
| Ride-Height Adjustable | +1.75-4.0 in. |
| Damping Adjustable | Yes |
| Adjustment Type | 1-Way |
| Quantity | Pair of Front Coilovers |
| Notes | Forged aluminum forged Steel or upgraded aftermarket control arms highly recommended for trucks equipped with stamped steel control arms from the factory. |
| Country of Origin | Germany, USA, China |
Vehicle Fitment
- 2014 Chevrolet Silverado 1500 RWD
- 2015 Chevrolet Silverado 1500 RWD
- 2016 Chevrolet Silverado 1500 RWD
- 2017 Chevrolet Silverado 1500 RWD
- 2018 Chevrolet Silverado 1500 RWD
