• Eibach PRO-TRUCK Coilovers (Front) for 2016-2021 Toyota Tundra 4WD
  • Eibach PRO-TRUCK Coilovers (Front) for 2016-2021 Toyota Tundra 4WD
1 2
â–¶ Suspension Drop / Lift Rates
Part #: E86-82-067-01-22 - Pair of Front Coilovers + Rear Shocks
Comment: Tested with factory dampers.
Applications
Front
Rear
2007-2015 Toyota Tundra 4WD
+0-2.75"
+0-1.5"
2016-2021 Toyota Tundra 2WD
+0-2.75"
+0-1.5"
2007-2021 Toyota Tundra 4WD
+0-2.75"
+0-1.5"
2007-2015 Toyota Tundra 2WD
+0-3.0"
+0-1.5"

Eibach PRO-TRUCK Coilovers (Front) for 2016-2021 Toyota Tundra 4WD

Eibach PRO-TRUCK Coilovers (Front) for 2016-2021 Toyota Tundra 4WD

E86-82-067-01-22

In stock

$1,118.15 USD
$1,440.04 USD $1,118.15 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
â–¶ Suspension Drop / Lift Rates
Part #: E86-82-067-01-22 - Pair of Front Coilovers + Rear Shocks
Comment: Tested with factory dampers.
Applications
Front
Rear
2007-2015 Toyota Tundra 4WD
+0-2.75"
+0-1.5"
2016-2021 Toyota Tundra 2WD
+0-2.75"
+0-1.5"
2007-2021 Toyota Tundra 4WD
+0-2.75"
+0-1.5"
2007-2015 Toyota Tundra 2WD
+0-3.0"
+0-1.5"

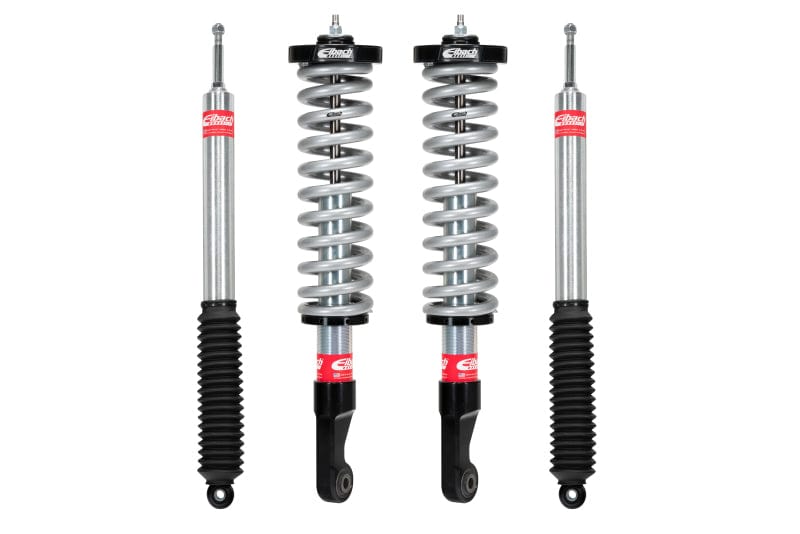

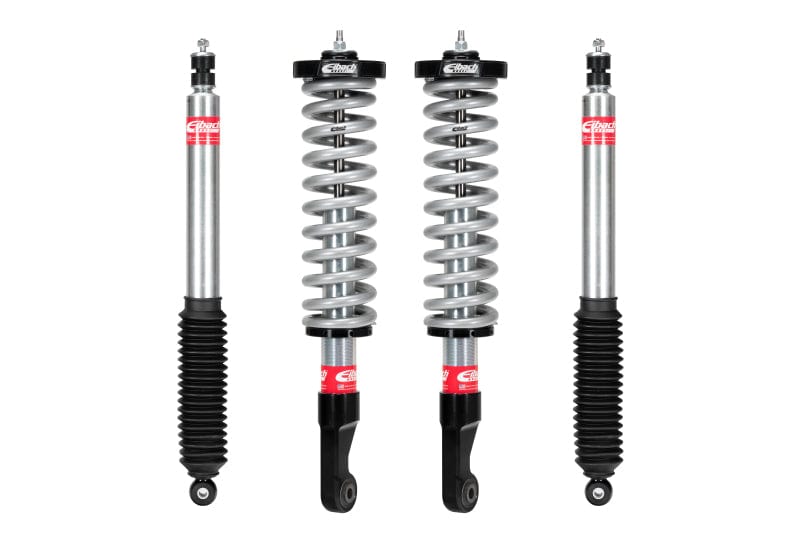

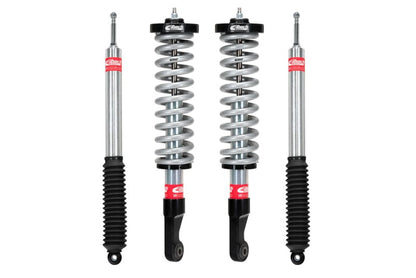

The Eibach PRO-TRUCK Coilovers (Front) are high-performance suspension components designed specifically for the 2016–2021 Toyota Tundra 4WD. These coilovers feature threaded bodies that allow precise ride height adjustment, enabling users to fine-tune their vehicle’s stance and handling. Built with an extended-travel monotube design and variable force valving, they deliver enhanced damping performance for both on-road comfort and off-road capability. The coilovers provide maximum off-road traction while maintaining control during street driving, making them ideal for trucks that require versatile suspension performance. Their construction emphasizes durability and responsiveness, ensuring long-lasting performance in demanding conditions.

Designed to fit 2016–2021 Toyota Tundra 4WD models, these coilovers are a direct bolt-on upgrade that replaces factory components for improved suspension dynamics. They accommodate additional weight through an adjustable threaded spring perch, making them suitable for trucks with payload or towing needs. The coilovers are intended for off-road enthusiasts and daily drivers alike, offering a balance of ride quality and rugged performance. Installation involves replacing the existing front suspension components, and no additional modifications are typically required. The kit includes the coilover units, providing a comprehensive upgrade for enhanced control and traction in various driving environments.

Overview

Eibach's PRO-TRUCK Coilovers 2.0 for the 2016-2021 Toyota Tundra 4WD features threaded bodies for fine-tuning ride height and improved damping performance delivering maximum off-road capability. Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails.

Weight Compensation

The adjustable threaded spring perch allows the accommodation of additional weight and maximizes clearance. This is important when trucks are equipped with heavy gear such as metal front bumpers, winches, lights, skid plates, and more.

Variable Force Valving

Designed to provide a controlled comfortable ride on road, and as force and piston speeds increase off-road our proprietary valve stack activates to control the vehicle over large bumps and g-outs.

Standard Features

  • Lift heights ranging from 2-4" depending on application.
  • Threaded spring perch for fine height adjustment
  • Developed to provide balanced ride quality and control, both on and off-road
    Increased travel and ground clearance
  • Monotube damper design
  • Pre-Assembled, Factory Direct Replacement Front Coilovers - No Additional Parts Required. Sold in Pairs.
  • Adjustable Threaded Spring Perch to Accommodate Increased Loads and
  • Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
  • Anodized 6061-T6 Billet Aluminum Mounts, 46mm Piston, Monotube Design with
  • Nitrogen Filled Variable Force Valving.
  • Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
  • Engineered, Tested and Manufactured by Eibach in the U.S.A.
  • Limited Lifetime Warranty

Downloads

Specifications
Part Number E86-82-067-01-22
Part Name PRO-TRUCK Coilovers
UPC 803050508027
Vehicle 2016-2021 Toyota Tundra 4WD
Ride-Height Adjustable +0-2.75 in.
Damping Adjustable Yes
Adjustment Type 1-Way
Quantity Set of 4 Coilovers
Country of Origin Germany, USA, China
Vehicle Fitment
  • 2016 Toyota Tundra 4WD
  • 2017 Toyota Tundra 4WD
  • 2018 Toyota Tundra 4WD
  • 2019 Toyota Tundra 4WD
  • 2020 Toyota Tundra 4WD
  • 2021 Toyota Tundra 4WD
