| Year | Make | Model |
|---|---|---|
| 2019 - 2023 | Ram | 1500 Laramie |
| 2019 - 2021 | Ram | 1500 Laramie Longhorn |
| 2019 - 2023 | Ram | 1500 Limited |
| 2019 - 2023 | Ram | 1500 Rebel |
1
/
of
3
▶ Suspension Drop / Lift Rates
E86-27-011-01-20 - Pair of Front Coilovers
Applications
Front
Rear
2019-2024 Ram 1500 V8 2WD
+0-3.6"
N/A
2019-2024 Ram 1500 1500 Crew Cab 5.7L HEMI V8 4WD
+0-3.2"
N/A
2019-2024 Ram 1500 REBEL Crew Cab
+0-2.2"
N/A

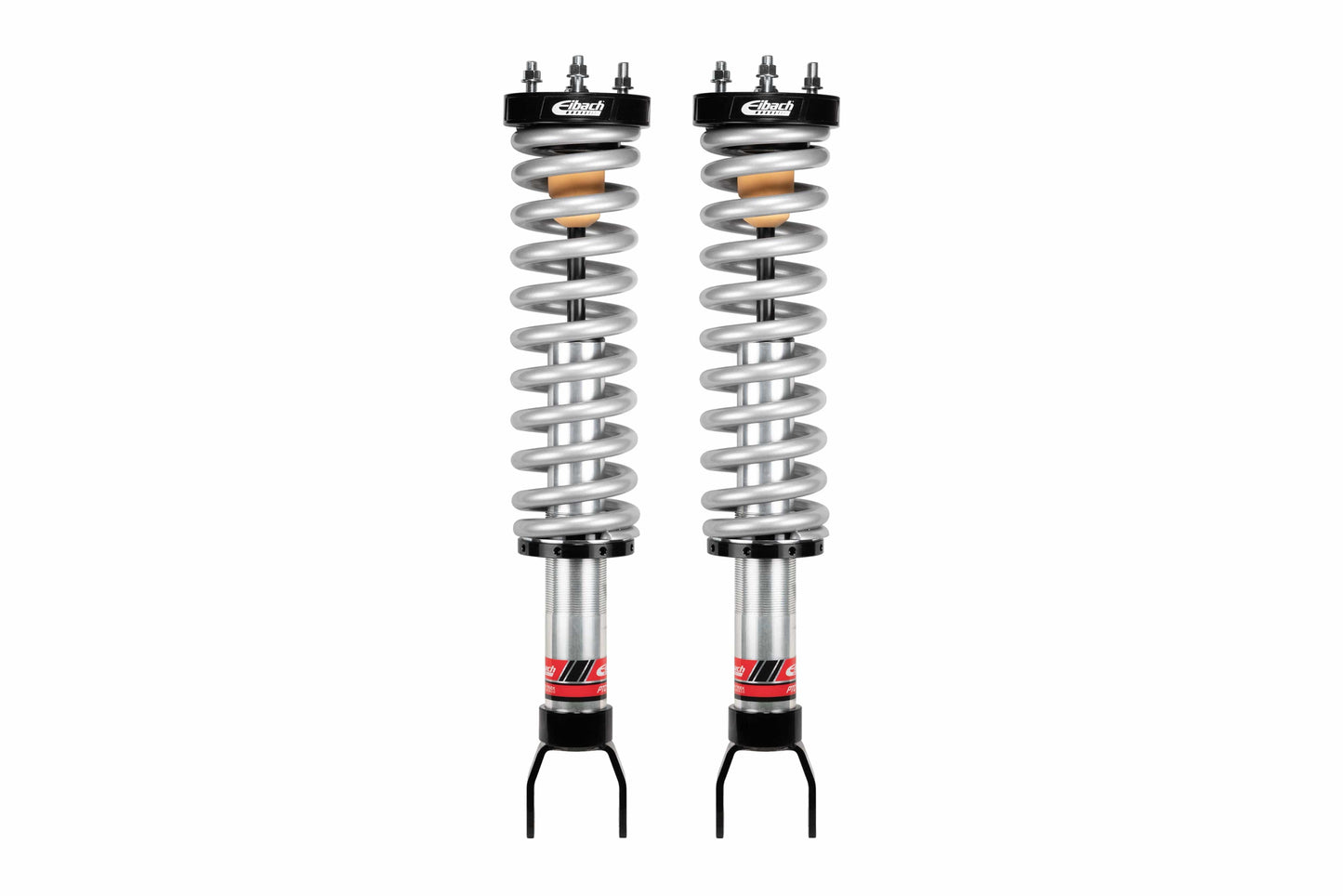

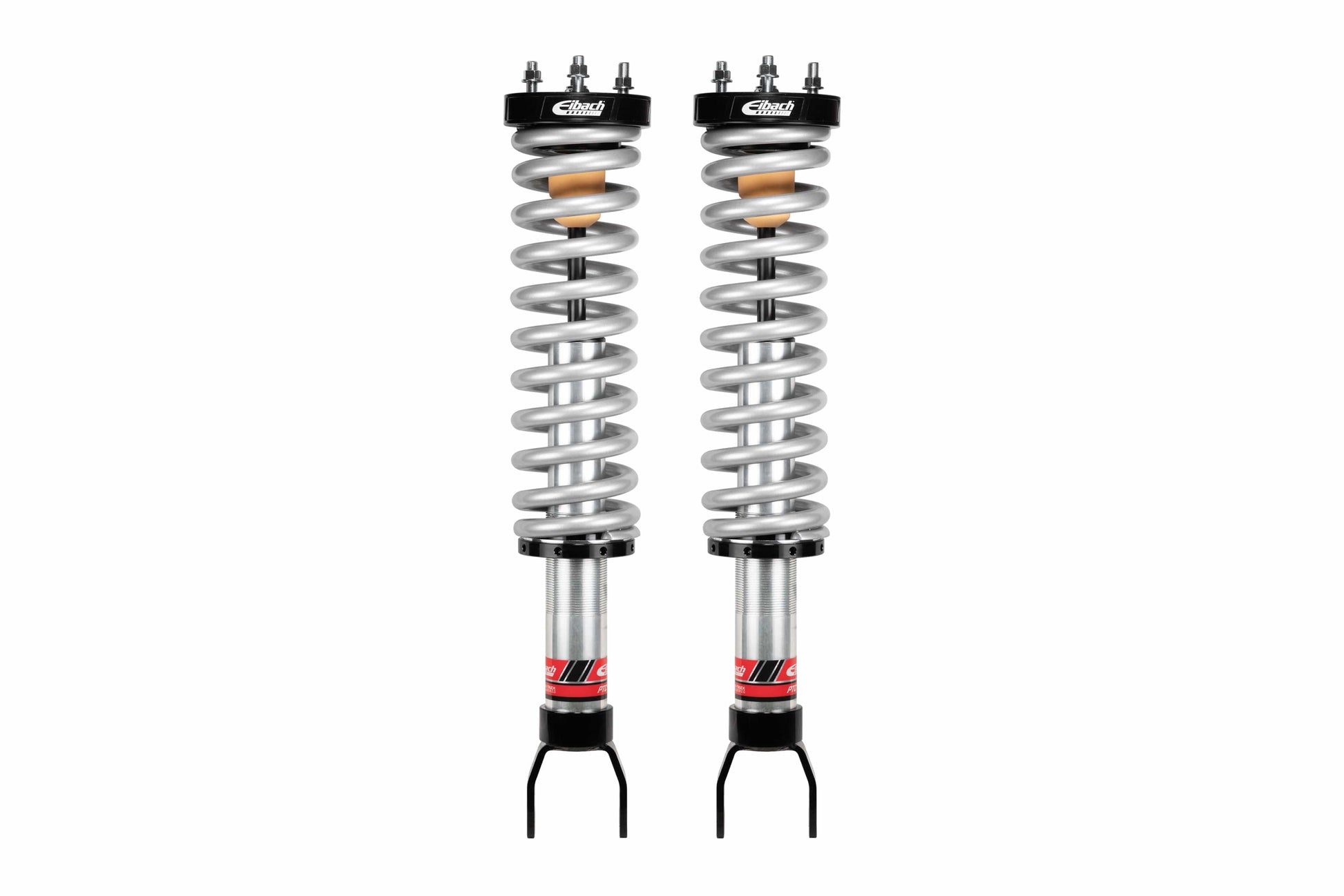

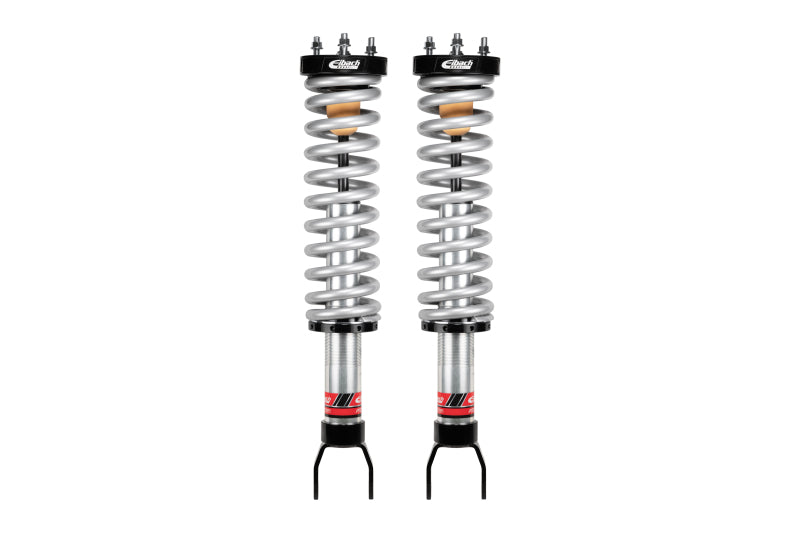

Eibach PRO-TRUCK Coilovers (Front) for 2019-2024 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
Eibach PRO-TRUCK Coilovers (Front) for 2019-2024 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
SKU:E86-27-011-01-20
In stock
Regular price
$995.00 USD
Regular price
$1,105.56 USD
Sale price
$995.00 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
E86-27-011-01-20 - Pair of Front Coilovers
Applications
Front
Rear
2019-2024 Ram 1500 V8 2WD
+0-3.6"
N/A
2019-2024 Ram 1500 1500 Crew Cab 5.7L HEMI V8 4WD
+0-3.2"
N/A
2019-2024 Ram 1500 REBEL Crew Cab
+0-2.2"
N/A
The Eibach PRO-TRUCK Coilovers (Front) are high-performance suspension components designed specifically for the 2019-2024 Ram 1500 Crew Cab with a 5.7L HEMI V8 and 4WD drivetrain. Engineered with threaded bodies, these coilovers allow precise ride height adjustments to suit both on-road and off-road conditions. Featuring an extended-travel monotube design and variable force valving, they enhance damping performance for improved control and stability. The coilovers deliver maximum off-road capability while maintaining excellent handling during daily driving, thanks to their advanced construction and tuning. The adjustable threaded spring perch provides the flexibility to fine-tune the suspension setup, ensuring optimal traction and ride quality across diverse terrains and driving styles.
Designed for use on 2019-2024 Ram 1500 Crew Cab models equipped with the 5.7L HEMI V8 engine and 4WD system, these coilovers serve as a direct upgrade or replacement for the factory front suspension components. They are ideal for off-road enthusiasts, truck owners seeking improved ride height, or those wanting enhanced control and comfort on varied surfaces. Installation involves bolt-on mounting, with the coilovers replacing the stock front struts or shocks. The kit includes the coilover units with threaded bodies and adjustable spring perches, enabling precise height and damping adjustments. Suitable for both trail and street use, these coilovers provide a versatile upgrade to maximize your Ram 1500’s performance and handling capabilities.
Share
Overview
Overview
Eibach's PRO-TRUCK Coilovers 2.0 for the 2019-2024 Ram 1500 Crew Cab 5.7L HEMI V8 4WD features threaded bodies for fine-tuning ride height and improved damping performance delivering maximum off-road capability. Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails.
Weight Compensation
The adjustable threaded spring perch allows the accommodation of additional weight and maximizes clearance. This is important when trucks are equipped with heavy gear such as metal front bumpers, winches, lights, skid plates, and more.
Variable Force Valving
Designed to provide a controlled comfortable ride on road, and as force and piston speeds increase off-road our proprietary valve stack activates to control the vehicle over large bumps and g-outs.
Standard Features
- Lift heights ranging from 2-4" depending on application.
- Threaded spring perch for fine height adjustment
- Developed to provide balanced ride quality and control, both on and off-roadIncreased travel and ground clearance
- Monotube damper design
- Pre-Assembled, Factory Direct Replacement Front Coilover - No Additional Parts Required. Sold in Pairs.
- Adjustable Threaded Spring Perch to Accommodate Increased Loads and
- Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
- Anodized 6061-T6 Billet Aluminum Mounts, 46mm Piston, Monotube Design with
- Nitrogen Filled Variable Force Valving.
- Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
- Engineered, Tested and Manufactured by Eibach in the U.S.A.
- Limited Lifetime Warranty
Downloads
Specifications
| Part Number | E86-27-011-01-20 |
| Part Name | PRO-TRUCK Coilovers |
| UPC | 803050509659 |
| Vehicle | 2024 Ram 1500 Crew Cab 5.7L HEMI V8 4WD |
| Ride Height Adjustable - Front | +0-3.2 in. |
| Damping Adjustable | Yes |
| Adjustment Type | 1-Way |
| Quantity | Pair of Front Coilovers |
| Country of Origin | USA |
Vehicle Fitment
- 2019 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
- 2020 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
- 2021 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
- 2022 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
- 2023 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
- 2024 Ram 1500 Crew Cab 5.7L HEMI V8 4WD
