Suspension Drop / Lift Rates
Part #: E86-82-070-01-20 - Pair of Front Coilovers
Comment: Tested with factory dampers.
Applications
Front
Rear
2016-2022 Toyota Hilux 4WD N80 | Int'l Model
+0-2.5"
N/A
2005-2015 Toyota Hilux 4WD N70 | Int'l Model
+0-2.5"
N/A

Eibach PTCO Front Coilovers (Pair) for 2005-2015 Toyota Hilux

Eibach PTCO Front Coilovers (Pair) for 2005-2015 Toyota Hilux

SKU:E86-82-070-01-20

Out of stock

Regular price $859.12 USD
Regular price $1,106.44 USD Sale price $859.12 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
Suspension Drop / Lift Rates
Part #: E86-82-070-01-20 - Pair of Front Coilovers
Comment: Tested with factory dampers.
Applications
Front
Rear
2016-2022 Toyota Hilux 4WD N80 | Int'l Model
+0-2.5"
N/A
2005-2015 Toyota Hilux 4WD N70 | Int'l Model
+0-2.5"
N/A

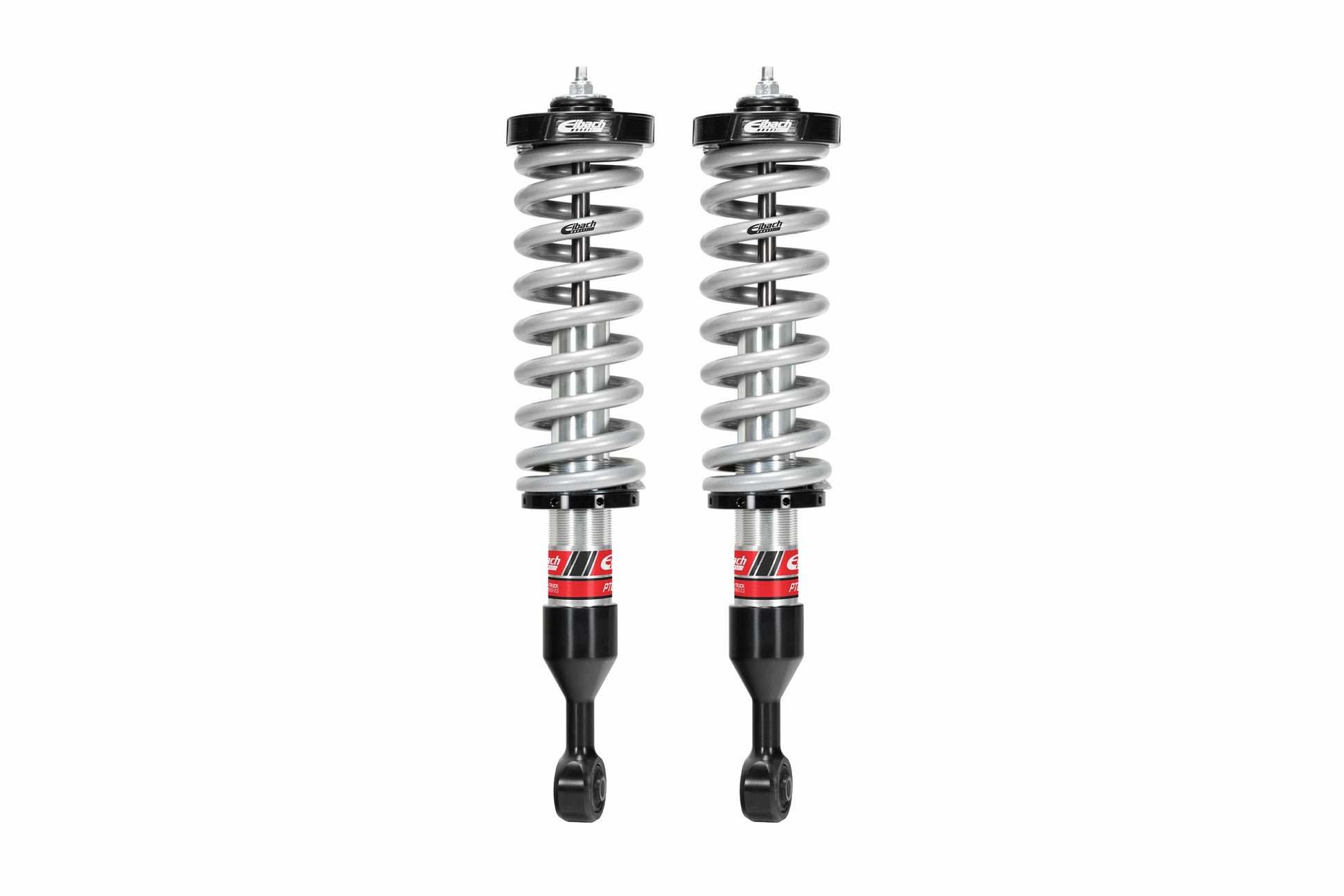

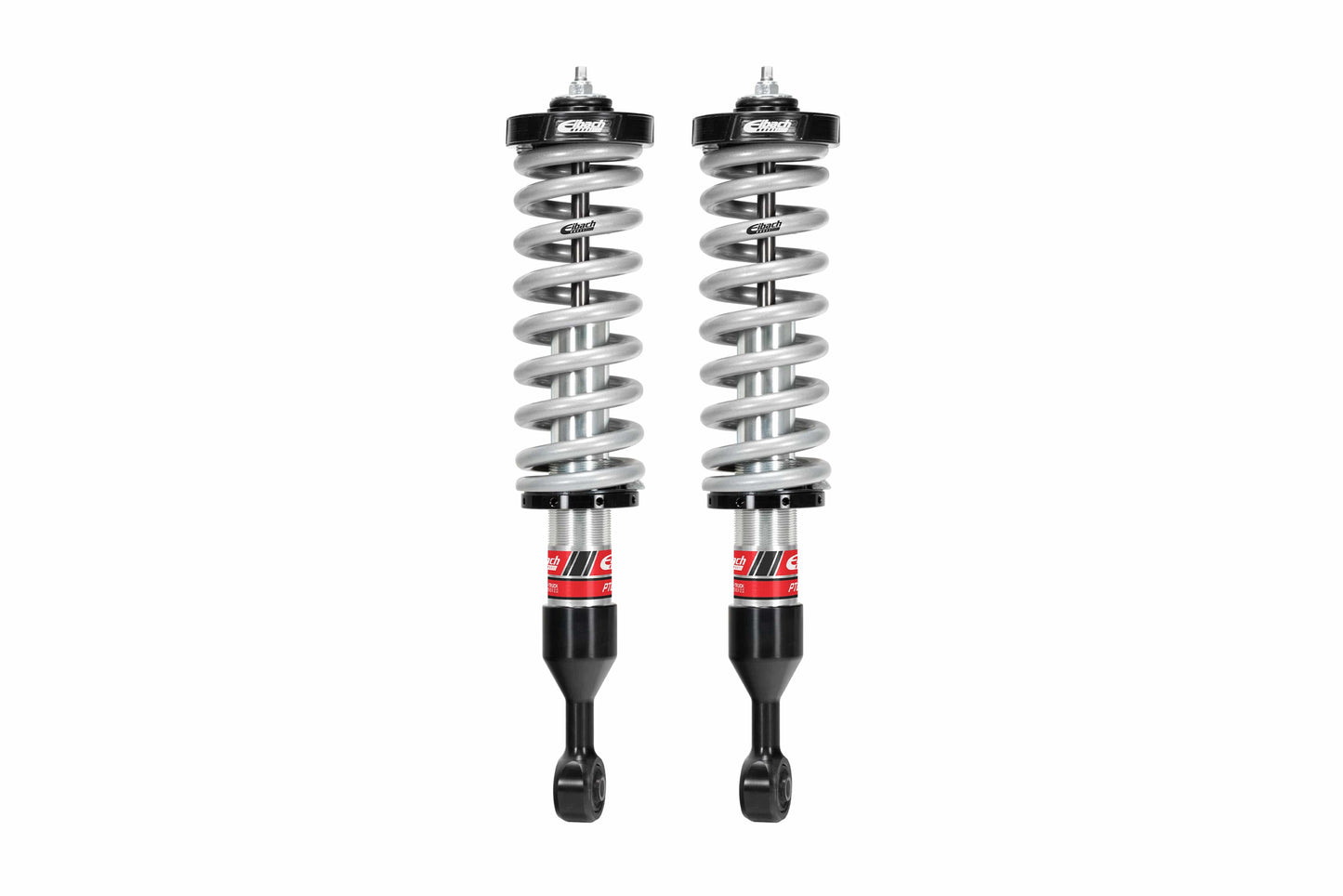

The Eibach PTCO Front Coilovers for the 2005-2015 Toyota Hilux are high-performance suspension components designed to enhance load capacity and ground clearance. These coilovers feature an adjustable threaded spring perch, allowing for precise tuning to accommodate increased loads and maximize clearance for off-road applications. Equipped with ERO off-road race springs, they deliver improved stability and durability under demanding conditions. Constructed with anodized 6061-T6 billet aluminum mounts and a 46mm piston within a monotube design, these coilovers ensure consistent damping performance and resistance to corrosion. They are pre-assembled as factory direct replacements, simplifying installation and reducing setup time. These coilovers are engineered to provide a balanced combination of ride quality, handling, and off-road capability, making them suitable for enthusiasts seeking reliable performance upgrades.

Designed specifically for the 2005-2015 Toyota Hilux, these coilovers fit models with various configurations and are intended for off-road, towing, or heavy-duty use. They are sold in pairs and serve as direct bolt-on replacements for the factory front suspension components. The adjustable threaded spring perch allows users to fine-tune ride height and load handling, ensuring optimal performance for different driving conditions. These coilovers are compatible with the vehicle's chassis and suspension geometry, providing a seamless upgrade without additional parts required. Ideal for off-road adventures, daily driving, or load-carrying applications, they enhance vehicle stability and handling while maintaining a factory-like fit and finish.

Overview

Adjustable Threaded Spring Perch for the 2005-2015 Toyota Hilux to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.

Standard Features

  • Pre-Assembled, Factory Direct Replacement Front Coilover - No Additional Parts Required. Sold in Pairs.
  • Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
  • Anodized 6061-T6 Billet Aluminum Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
  • Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
  • Engineered, Tested and Manufactured by Eibach in the U.S.A.
Specifications
Part Number E86-82-070-01-20
Part Name Coilover Spring and Shock Assembly
Vehicle 2005-2015 Toyota Hilux
UPC 00803050535146
Front Lifted 0 - 2.5 in.
Spring Color Silver
Height Adjustable Yes
Notes Without QuadraSteer
Vehicle Fitment
  • 2005 Toyota Hilux
  • 2006 Toyota Hilux
  • 2007 Toyota Hilux
  • 2008 Toyota Hilux
  • 2009 Toyota Hilux
  • 2010 Toyota Hilux
  • 2011 Toyota Hilux
  • 2012 Toyota Hilux
  • 2013 Toyota Hilux
  • 2014 Toyota Hilux
  • 2015 Toyota Hilux
