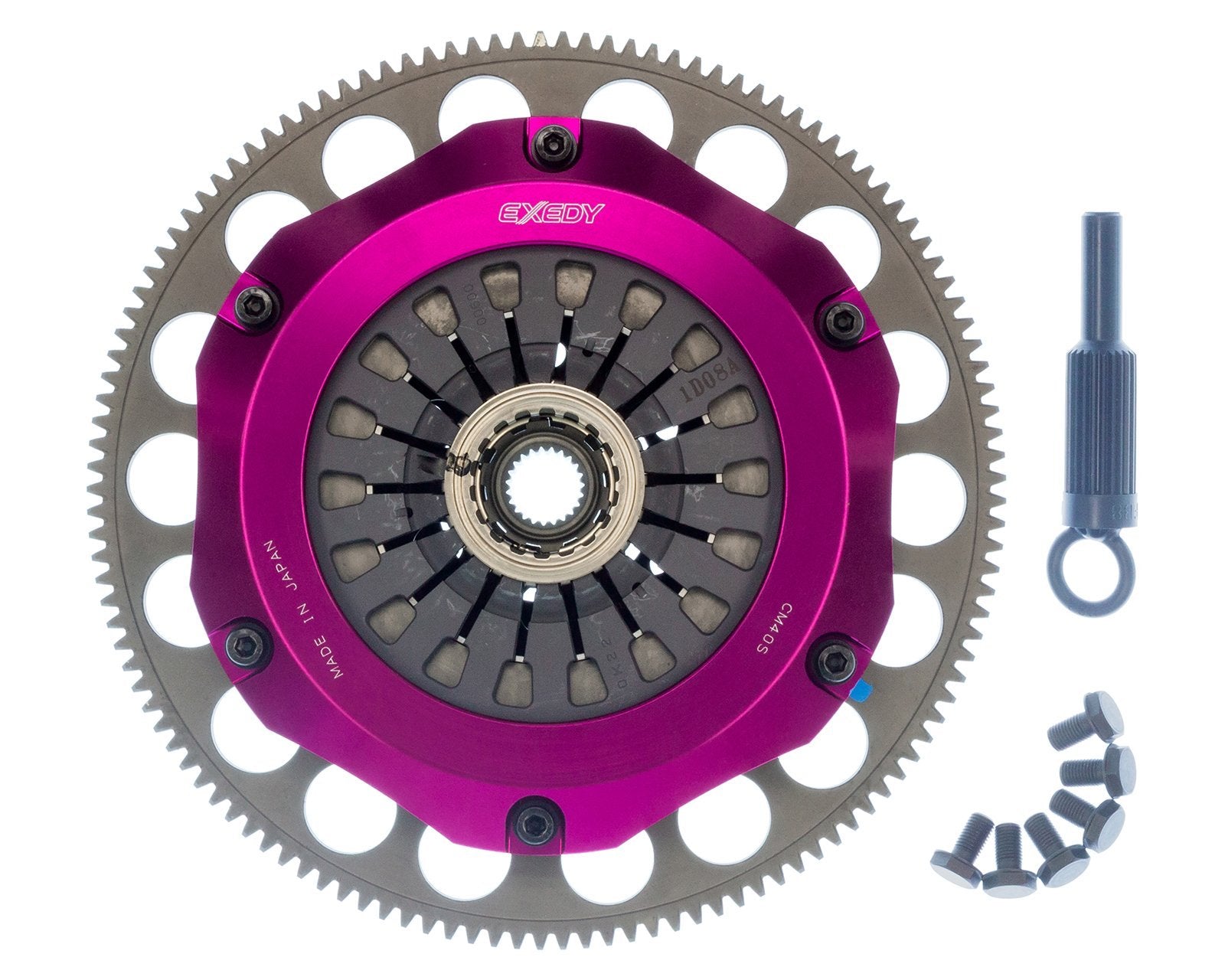

Exedy Hyper Compe-R Twin Cerametallic Clutch | 1993-1995 Mazda RX-7 (ZM022SBL)

1993-1995 Mazda RX-7 Hyper Compe-R Twin Cerametallic Clutch by Exedy

The new standard for racing clutches is now available, with the EXEDY Hyper Compe Series. The ultralight metal multi-plate was developed with a focus on those interested in racing of all sorts. This fields-proven performer has posted numerous wins and boasts excellent reliability in a variety of leading categories. Exceptionally fast shifting and the lowest possible weight are the features of this competition model.

Available in both Compe-R and Compe-D configuration, drivers are given the choice of rigid or damper discs depending on their needs. Both however come equipped with a lightweight forged aluminum clutch cover and ultra-light drilled chromium-molydenum flywheel, which allows us to achieve the lightest possible setup. Additionally, the grooved center plate provides improved disc release for better disengagement at any RPM.

Features

• CLAMP LOAD : 2428
• DISC DIAMETER (INCHES) : 7.9
• DISC DIAMETER (MILLIMETERS) : 200
• KIT CONTENTS : CM40S, PP09, IM05, DL01R, DL01R, CH07, DB02, FM22, BS05, PR02, BF07
• SPLINE COUNT : 23
• SPLINE SIZE (INCHES) : 1-1/16
• SPLINE SIZE (MILLIMETERS) : 26.4
• TORQUE CAPACITY (FT/LBS.) : 511

Benefits

• Absolute lightest setup available
• Excels in environments such as time attack and Gymkhana
• Fast shifting is desired over streetability

Please Note: All referenced torque ratings are measured at the wheels.

For use w/ Hyper Accessory Kit MZAK102

Applications

• 1993-1995 Mazda RX-7

What's In The Box?

• 1 - Hyper Compe-R Twin Cerametallic Clutch

Warranty

• Exedy 60-Day Limited Warranty
