• Exedy Hyper Triple Cerametallic Clutch | 1990-1996 Nissan 300ZX (NM063SR)
1 1

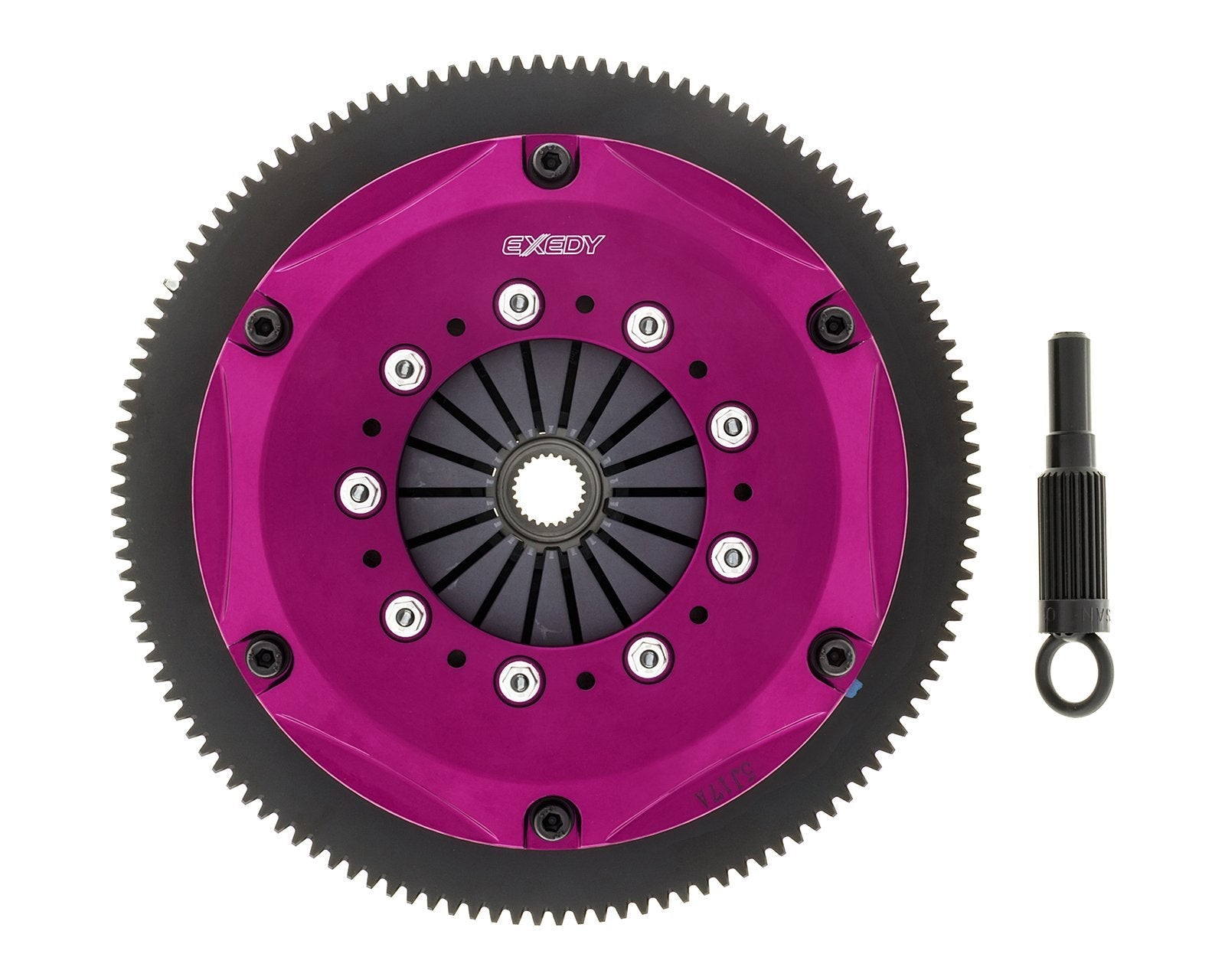

Exedy Hyper Triple Cerametallic Clutch | 1990-1996 Nissan 300ZX (NM063SR)

Exedy Hyper Triple Cerametallic Clutch | 1990-1996 Nissan 300ZX (NM063SR)

NM063SR

Out of stock

$4,736.65 USD
$5,572.67 USD $4,736.65 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Exedy Hyper Triple Cerametallic Clutch for the 1990-1996 Nissan 300ZX is a high-performance clutch designed to handle demanding driving conditions. Engineered with triple multi-plate construction, this clutch provides exceptional durability and increased torque capacity, rated at approximately 800 ft/lbs at the flywheel. Made from cerametallic materials, it offers superior heat resistance and consistent engagement, making it suitable for high-powered street use, drag racing, rally, and road racing applications. The clutch's robust design ensures reliable power transfer and longevity under extreme conditions, catering to enthusiasts seeking a high-performance upgrade.

This clutch is specifically designed for 1990-1996 Nissan 300ZX models, compatible with various engine configurations. It serves as a direct replacement for stock units, providing enhanced performance for high-torque applications. Installation involves standard bolt-on procedures, and the kit typically includes the triple multi-plate assembly and necessary components for a straightforward upgrade. Ideal for street, track, or rally use, this clutch delivers increased clamping force and improved handling of high horsepower setups, ensuring optimal performance and durability during aggressive driving.

Overview

1990-1996 Nissan 300ZX Hyper Triple Cerametallic Clutch by Exedy

For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque and the triple plates are rated for approximately 800 ft/lbs of torque, both figures at the flywheel. Twins come with both spring damper discs or solid discs depending on application, whereas triples are all solid discs and not recommended for street use.

All EXEDY Hyper Multi-Plate clutches come with a lightweight, chromoly steel flywheel and the famous purple anodized forged aluminum clutch cover. Depending on the application, we have both strap drive and lug drive models. All have T5001 cerametallic friction materials for extreme heat resistance. Surprisingly, even with it's additional power capability, most multi-plate clutches exhibit light pedal pressure thanks to a half-engaged "zone" provided by the patented clutch "cushion" function.

Features

  • Triple friction plates for up to 800 lbs.-ft.
  • All multi-plate clutch kits come with lightweight chromoly flywheel
  • Purple anodized forged aluminum cover
  • Strap or lug drive, depending on application
  • Spring damper discs or solid discs
  • Cerametallic or carbon friction material
  • Clamp Load : 2205
  • Disc Diameter (Inches) : 7.9
  • Disc Diameter (Millimeters) : 200
  • Kit Contents : CM01S, PP01, IM02, DL03R, DL03R, DL03R, CH12, FR01, FM05, BS05, BS01
  • Spline Count : 24
  • Spline Size (Inches) : 1
  • Spline Size (Millimeters) : 25.6
  • Torque Capacity (ft/lbs.) : 767

Benefits

  • Quicker shifts and faster lap times
  • Higher torque transmitting capacity
  • High burst strength can be achieved in all temperature ranges.

Please Note: All referenced torque ratings are measured at the wheels.

Applications

  • 1990-1996 Nissan 300ZX

What's In The Box?

  • 1 - Hyper Triple Cerametallic Clutch

Warranty

  • Exedy 60-Day Limited Warranty
View full details
