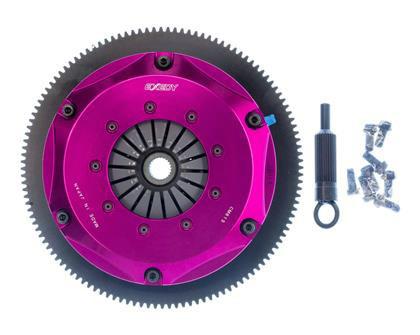

Exedy Racing Hyper Multi Series Clutch | Multiple Subaru Fitments (FM032SD)

Racing Hyper Multi Series by Exedy

For high-powered applications, EXEDY offers twin and triple Multi-Plate clutches. These are designed for high power street action as well as drag, road and rally racing. The twin plate clutches are rated for approximately 500 ft/lbs of torque and the triple plates are rated for approximately 800 ft/lbs of torque, both figures at the flywheel. Twins come with both spring damper discs or solid discs depending on application, whereas triples are all solid discs and not recommended for street use.All EXEDY Hyper Multi-Plate clutches come with a lightweight, chromoly steel flywheel and the famous purple anodized forged aluminum clutch cover. Depending on the application, we have both strap drive and lug drive models. All have T5001 cerametallic friction materials for extreme heat resistance. Surprisingly, even with it’s additional power capability, most multi-plate clutches exhibit light pedal pressure thanks to a half-engaged “zone” provided by the patented clutch “cushion” function.SD TypeThis model has been developed for high powered street cars and race cars with up to approximately 600TQ @ FW. They feature ventilated, thick intermediate plates for improved life and spring damper discs to protect your transmission and drive line.

Features

• SD Type

Specifications

• Clamp Load: 2427
• Disc Diameter (Inches): 7.9
• Disc Diameter (Millimeters): 200
• Kit Contents: CM61S, PP41, IM01, DM16DA, DM16DB, FM13, BS05, BS01, BF08
• Spline Count: 24
• Spline Size (Inches): 1
• Spline Size (Millimeters): 25.2
• Torque Capacity (ft/lbs.): 563

Applications

• 2006-2007 Subaru WRX
• 2008-2014 Subaru WRX
• 2015-2019 Subaru WRX
• 2006-2008 Subaru Forester XT
• 2005-2009 Subaru Legacy GT
• 2005-2009 Subaru Outback XT

What's In The Box?

• Racing Hyper Multi Series Clutch
