Fabtech 1.5in Budget System w/ Dirt Logic 2.5 Coilovers & 2.25 Shocks | GM K1500 (19-22) (K1164DL)

Fabtech 1.5in Budget System w/ Dirt Logic 2.5 Coilovers & 2.25 Shocks | GM K1500 (19-22) (K1164DL)

K1164DL

Out of stock

$2,806.81 USD
$3,299.05 USD $2,806.81 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 1.5in Budget System with Dirt Logic 2.5 Coilovers and 2.25 shocks is a lift kit designed specifically for GM K1500 models from 2019 to 2022, including Trail Boss and AT4 trims. This suspension upgrade provides an additional 1.5 inches of ride height, enhancing ground clearance and allowing for larger tires, such as full-size 33/12.50R 18 or 20 inch wheels. Constructed with high-quality components, the kit maintains factory ride quality while preventing suspension bind at full droop. The Dirt Logic coilovers and shocks are engineered for durability and performance, offering improved off-road capability and stability.

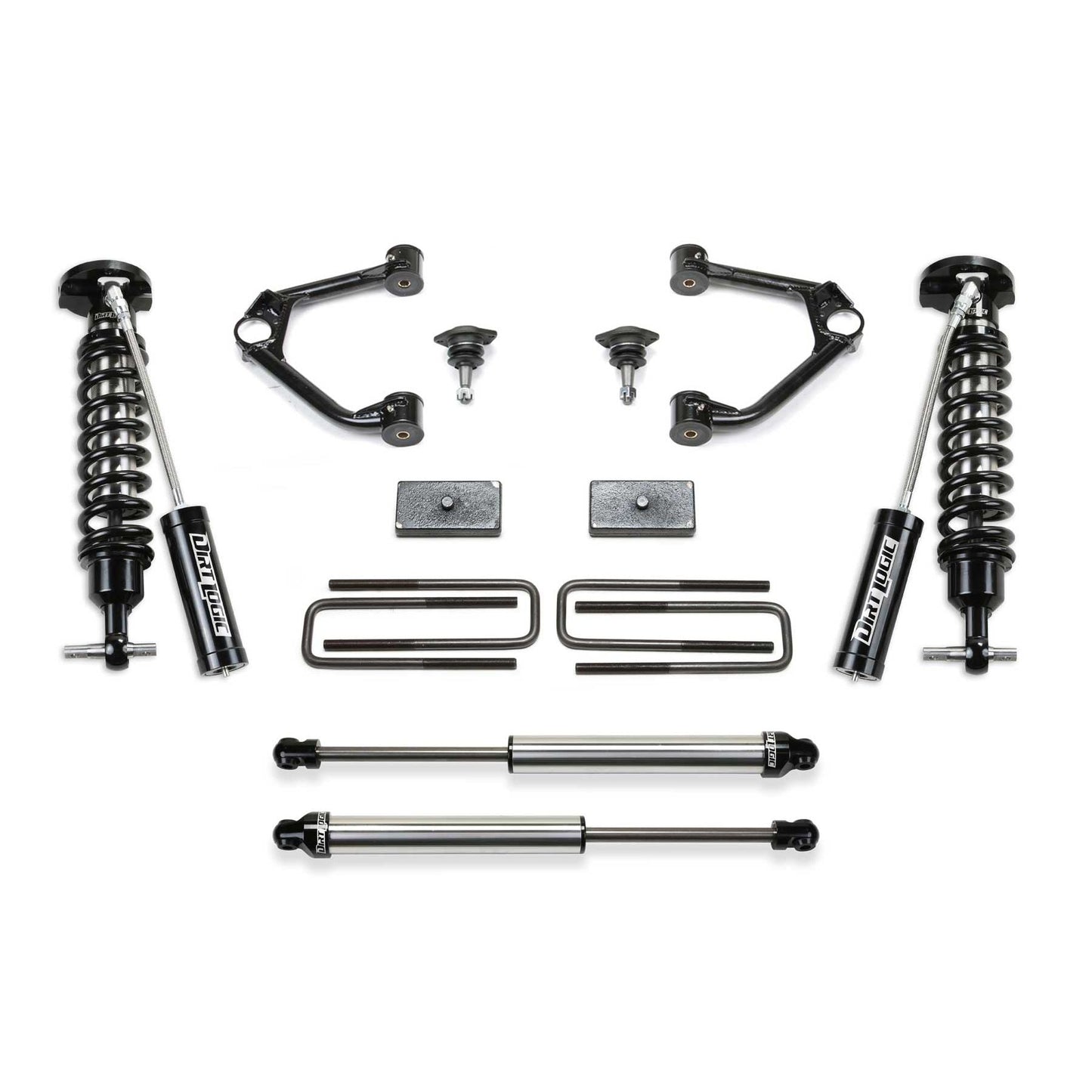

This lift kit is a direct bolt-on upgrade for 2019-2022 GM K1500 trucks with factory 2-inch lifts, intended for off-road enthusiasts and those seeking a more aggressive stance. It is suitable for Trail Boss and AT4 models, providing increased clearance for larger tires and enhanced off-road performance. The kit includes upper control arms, coilovers, shocks, and all necessary mounting hardware for straightforward installation. Designed for off-road use and daily driving, this system improves vehicle height and handling without compromising ride quality or safety.

Overview

Designed specifically for Trail Boss and AT4 owners that want a little more ride height out of their truck for clearance of full size 33/1250R 18 inch or 20 inch tires, this lift kit is the ticket. Fabtech's Upper Control Arm lift kit provides a 1.5in increased ride height on Trail Boss and AT4 models without creating suspension bind at full droop. These vehicles have a factory 2in lift. With the addition of this 1.5in lift kit, the vehicle will sit as high as a standard model with a 3.5in lift kit and clear a 33in tall tire. This 1.5in lift kit features the legendary stainless steel Dirt Logic 2.5 Coilover shocks. These Coilovers are built of the highest quality materials and will surpass all shocks in corrosion resistance due to the stainless steel body and NitroSteel piston rod. They will provide an outstanding ride quality both on and offroad. The tubular Upper Control Arms with heavy duty ball joints address the geometry of the front suspension with the new ride height for proper alignablity. Due to the new GM suspension geometry of the 2019, there are no differential drop brackets required for the CV axles to operate properly. Rear lift comes from 1in blocks and u bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle. The legendary Dirt Logic 2.25 rear shocks are constructed of a stainless steel body with NitroSteel piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use. Features: Increased ground clearance. Extended range upper ball joints provide a smooth quiet ride. Increased fender clearance for 33in tall tires. Suspension can be restored to stock. Easy installation.

Attributes:

  • GTIN: 00674866110526
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 24.75 x 15.13 inches
  • Weight: 110 lb
