Fabtech 1.5in Budget Lift w/ Performance Shocks | GM K1500 (19-22) Trail Boss/AT4 (K1152)

Fabtech 1.5in Budget Lift w/ Performance Shocks | GM K1500 (19-22) Trail Boss/AT4 (K1152)

K1152

In stock

$693.25 USD
$814.81 USD $693.25 USD
Special Discounts May Apply at Checkout Sold out

The Fabtech 1.5-inch Budget Lift with Performance Shocks for the GM K1500 (2019-2022) Trail Boss and AT4 models is a specialized suspension upgrade designed to enhance vehicle clearance and off-road capability. This lift kit provides an additional 1.5 inches of ride height, allowing for the installation of larger tires such as 33-inch or 35-inch tires on 18 or 20-inch wheels. Constructed with high-quality components, it maintains proper suspension geometry and prevents binding at full droop, ensuring a smooth and controlled ride. The kit includes performance shocks that complement the increased height, delivering improved handling and stability both on and off-road. Its design preserves factory ride quality while offering a noticeable lift for more aggressive styling and enhanced off-road performance.

This lift kit is specifically engineered for 2019-2022 GM K1500 models equipped with the factory 2-inch lift, including Trail Boss and AT4 trims. It is a bolt-on installation that does not require major modifications, making it suitable for both street and off-road use. The kit is ideal for owners seeking a modest lift to improve ground clearance, tire clearance, and overall appearance without sacrificing ride comfort. Compatibility is limited to models with the factory 2-inch lift, and it is intended for use with full-size trucks aiming for a balanced combination of performance and affordability. The package includes all necessary components for a straightforward installation, providing a reliable upgrade for off-road enthusiasts and daily drivers alike.

Overview

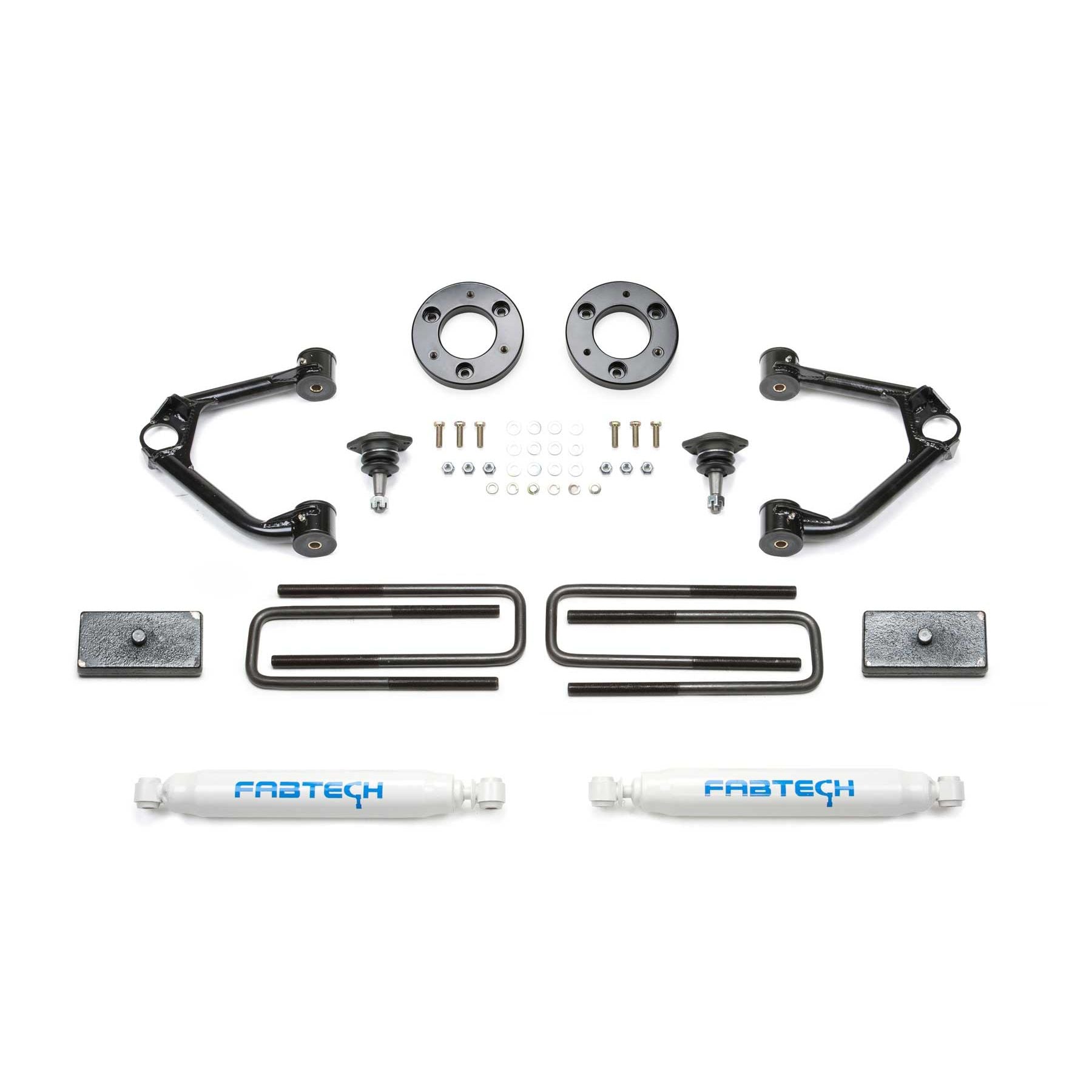

Designed specifically for Trail Boss and AT4 owners that want a little more ride height out of their truck for clearance of full size 33/1250R 18 inch or 20 inch tires, this lift kit is the ticket. Fabtech's Upper Control Arm lift kit provides a 1.5in increased ride height on Trail Boss and AT4 models without creating suspension bind at full droop. These vehicles have a factory 2in lift. With the addition of this 1.5in lift kit, the vehicle will sit as high as a standard model with a 3.5in lift kit and clear a 33in tall tire. Lift is accomplished with an aluminum spacer at the top and a small preload spacer under the coil of the factory Coilover shock. This positions the Coilover properly to provide height without coil bind or over extending the travel that can lead to damaged suspension parts in the future. The tubular Upper Control Arms with heavy duty ball joints address the geometry of the front suspension with the new ride height for proper alignablity. Due to the new GM suspension geometry of the 2019, there are no differential drop brackets required for the CV axles to operate properly. Rear lift comes from 1in blocks and u bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle. The Performance rear shocks are a twin tube design provide a good highway ride with the ability to handle offroad use. FEATURES: Increased ground clearance, Extended range upper ball joints provide a smooth quiet ride, Increased fender clearance for 33in tall tires, Suspension can be restored to stock, Easy installation.

Attributes:

  • GTIN: 00674866108868
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24 x 13.26 x 12.5 inches
  • Weight: 64.4 lb
