Fabtech 1.5in Budget System w/ Stealth | GM K1500 Pickup (19-22) w/ Trail Boss/AT4 Package (K1152M)

Fabtech 1.5in Budget System w/ Stealth | GM K1500 Pickup (19-22) w/ Trail Boss/AT4 Package (K1152M)

K1152M

Out of stock

$764.35 USD
$898.39 USD $764.35 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 1.5-inch Budget System with Stealth for GM K1500 Pickup (2019-2022) with Trail Boss or AT4 packages is a lift kit designed to enhance off-road capability and ground clearance. This kit provides an additional 1.5 inches of ride height, allowing for larger tires such as 33/1250R 18-inch or 20-inch wheels. Built with high-quality materials, it ensures durability and maintains proper suspension geometry, preventing bind at full droop. The system is engineered to improve off-road performance while preserving ride quality and handling characteristics, making it an ideal upgrade for truck enthusiasts seeking a subtle lift without sacrificing ride comfort.

Specifically tailored for 2019-2022 GM K1500 models equipped with Trail Boss or AT4 packages, this lift kit is a direct bolt-on upgrade that does not require extensive modifications. It complements the factory 2-inch lift, resulting in a total vehicle height comparable to a standard model with a 3.5-inch lift. The kit enhances off-road clearance and appearance, making it suitable for trail driving, off-road adventures, or aggressive street styling. Installation involves replacing factory components with the included upper control arms, providing a straightforward upgrade for owners looking to improve their truck’s stance and capability.

Overview

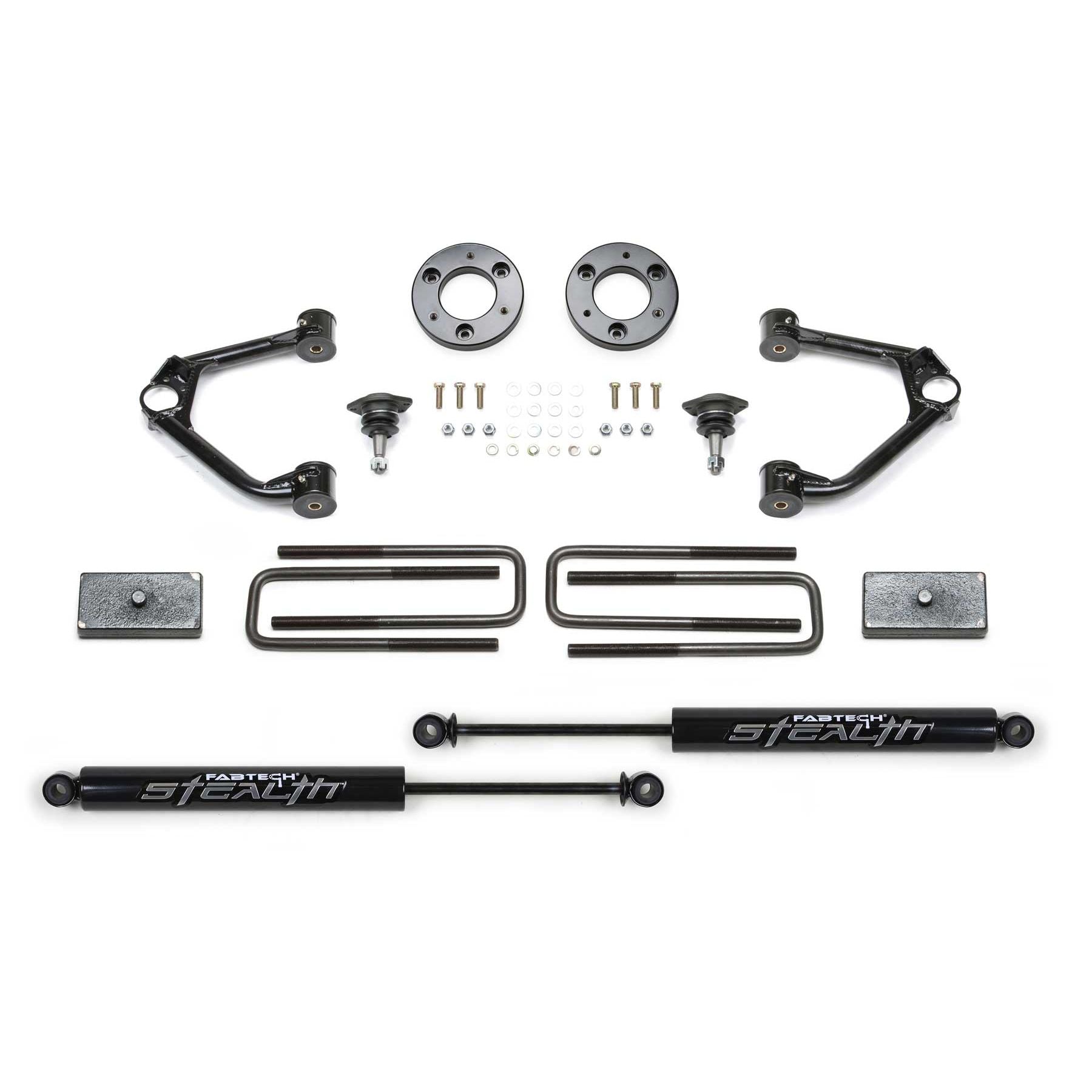

Designed specifically for Trail Boss and AT4 owners that want a little more ride height out of their truck for clearance of full size 33/1250R 18 inch or 20 inch tires, this lift kit is the ticket. Fabtech's Upper Control Arm lift kit provides a 1.5in increased ride height on Trail Boss and AT4 models without creating suspension bind at full droop. These vehicles have a factory 2in lift. With the addition of this 1.5in lift kit, the vehicle will sit as high as a standard model with a 3.5in lift kit and clear a 33in tall tire. Lift is accomplished with an aluminum spacer at the top and a small preload spacer under the coil of the factory Coilover shock. This positions the Coilover properly to provide height without coil bind or over extending the travel that can lead to damaged suspension parts in the future. The tubular Upper Control Arms with heavy duty ball joints address the geometry of the front suspension with the new ride height for proper alignablity. Due to the new GM suspension geometry of the 2019, there are no differential drop brackets required for the CV axles to operate properly. Rear lift comes from 1in blocks and u bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle. The Stealth rear shocks are a monotube design that have a Nitrocarb piston rod for corrosion resistance and resist rock chipping. They'll provide a great highway ride with good offroad damping capacity. FEATURES: Increased ground clearance, Extended range upper ball joints provide a smooth quiet ride, Increased fender clearance for 33in tall tires, Suspension can be restored to stock, Easy installation.

Attributes:

  • GTIN: 00674866108875
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24 x 13.26 x 12.5 inches
  • Weight: 65 lb
