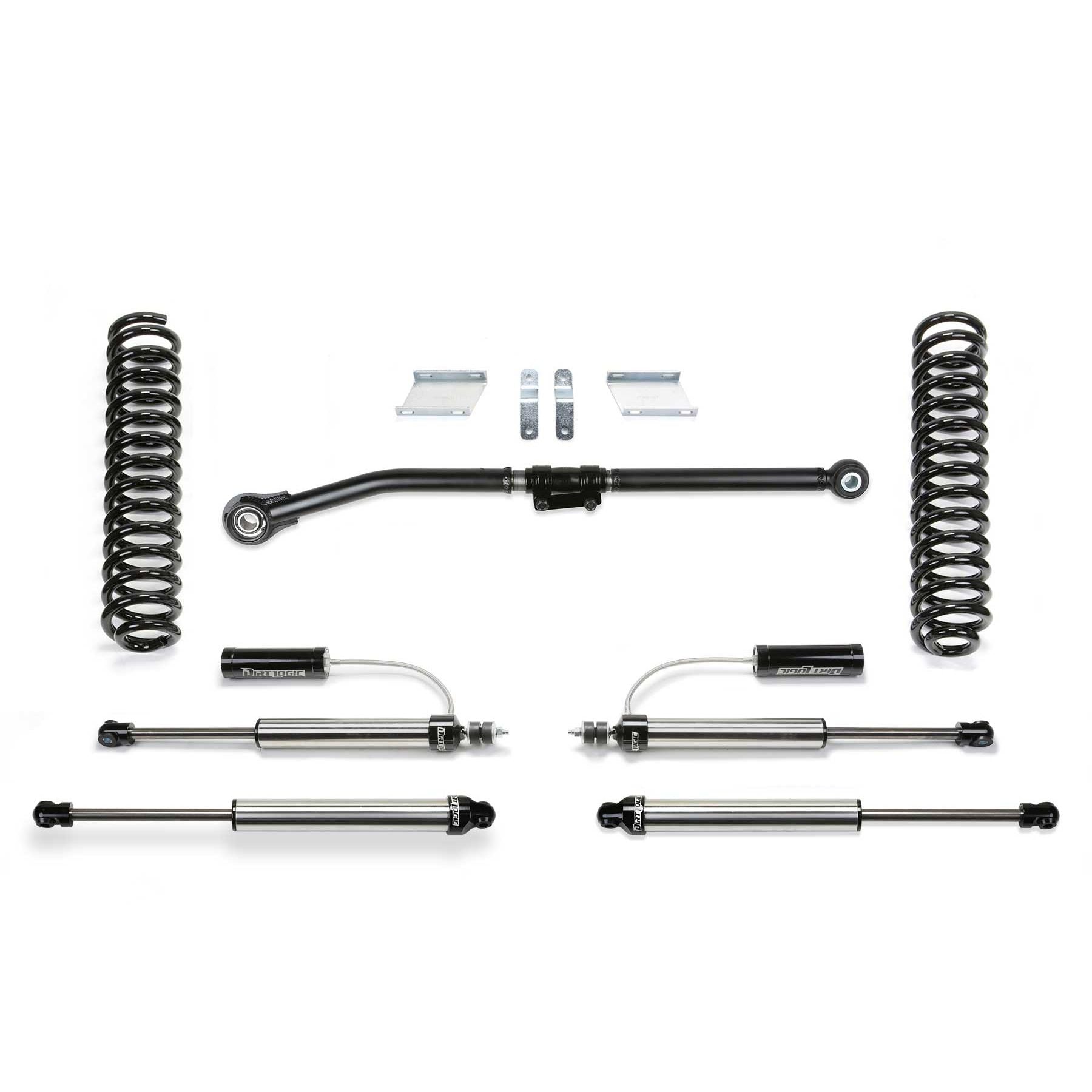

Fabtech 2.5in Basic Coil Kit w/ DL Resi | Ford F250/F350 4WD Diesel (17-20) (K2334DL)

Fabtech 2.5in Basic Coil Kit w/ DL Resi | Ford F250/F350 4WD Diesel (17-20) (K2334DL)

K2334DL

Out of stock

$2,119.97 USD
$2,491.76 USD $2,119.97 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 2.5-inch Basic Coil Kit with DL Resi is a suspension lift designed for the Ford F250 and F350 4WD Diesel models from 2017 to 2020. This lift kit enhances off-road capability by providing additional wheel travel and increased ground clearance, making it ideal for enthusiasts seeking to run oversized tires up to 35 inches tall. Constructed with high-quality coil springs and durable bracketry, it maintains the factory load-carrying capacity while allowing for an extra inch of compression travel over stock. The kit features large Super Duty wheelwell openings to accommodate larger tires and improve articulation, ensuring better off-road performance without compromising ride quality or durability.

This lift kit is a direct bolt-on upgrade for 2017-2020 Ford Super Duty trucks equipped with diesel engines. It is specifically designed to fit 4WD models and is suitable for off-road, trail, or aggressive street use. The installation involves replacing factory components with the included coil springs and brackets, providing a straightforward upgrade process. The kit includes all necessary hardware for installation, ensuring a secure fit and reliable performance. It is ideal for owners looking to enhance their truck’s off-road capabilities while maintaining load capacity and ride comfort for daily driving.

Overview

This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional Wheel travel for offroad use. With the large Super Duty Wheelwell openings and this quality 2.5in lift kit, you can run 35in tall tires with ease. Fabtech's coil springs retain the factory load carrying capacity while providing increased suspension travel. The coil springs and associated bracketry allow for an additional inch of compression travel over stock without binding the suspension. This extra travel helps when offroading in rugged terrain. Sway bar drop brackets are included to reposition the front bar so that the link ends do not go over center at full droop and cause bind. The brake lines are relocated down on the frame with extension brackets to eliminate the possibility of overstretching the lines throughout the new travel range. Fabtech provides extension brackets rather than longer brake lines to keep the factory brake system sealed for fast and trouble-free installation. This suspension kit utilizes the factory bump stops without extensions. This allows for more travel with the Fabtech coil springs and components. To help keep the factory alignment specifications of the vehicle, Fabtech includes 2 degree adjustable alignment ball joint inserts. They help retain the factory caster specifications for optimum driveability. After a Super Duty is lifted the front axle is pushed to one side due to the length of the track bar. To address this issue Fabtech provides a heavy-duty adjustable track bar. The Fabtech track bar allows for on the vehicle adjustment to center the axle under the vehicle. This provides proper tracking of the front and rear axle for excellent highway manners. This Super Duty lift kit comes with Dirt Logic 2.25 shocks. They are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance and durability. They will provide a superior ride quality both on and offroad with excellent damping for of

Attributes:

  • GTIN: 00674866110106
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 39 x 25 x 15 inches
  • Weight: 131.4 lb
