Fabtech 2.5in Budget Coil Kit w/ Stealth | Ford F250/F350 4WD Diesel (17-20) (K2339M)

Fabtech 2.5in Budget Coil Kit w/ Stealth | Ford F250/F350 4WD Diesel (17-20) (K2339M)

K2339M

Out of stock

$729.41 USD
$857.30 USD $729.41 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

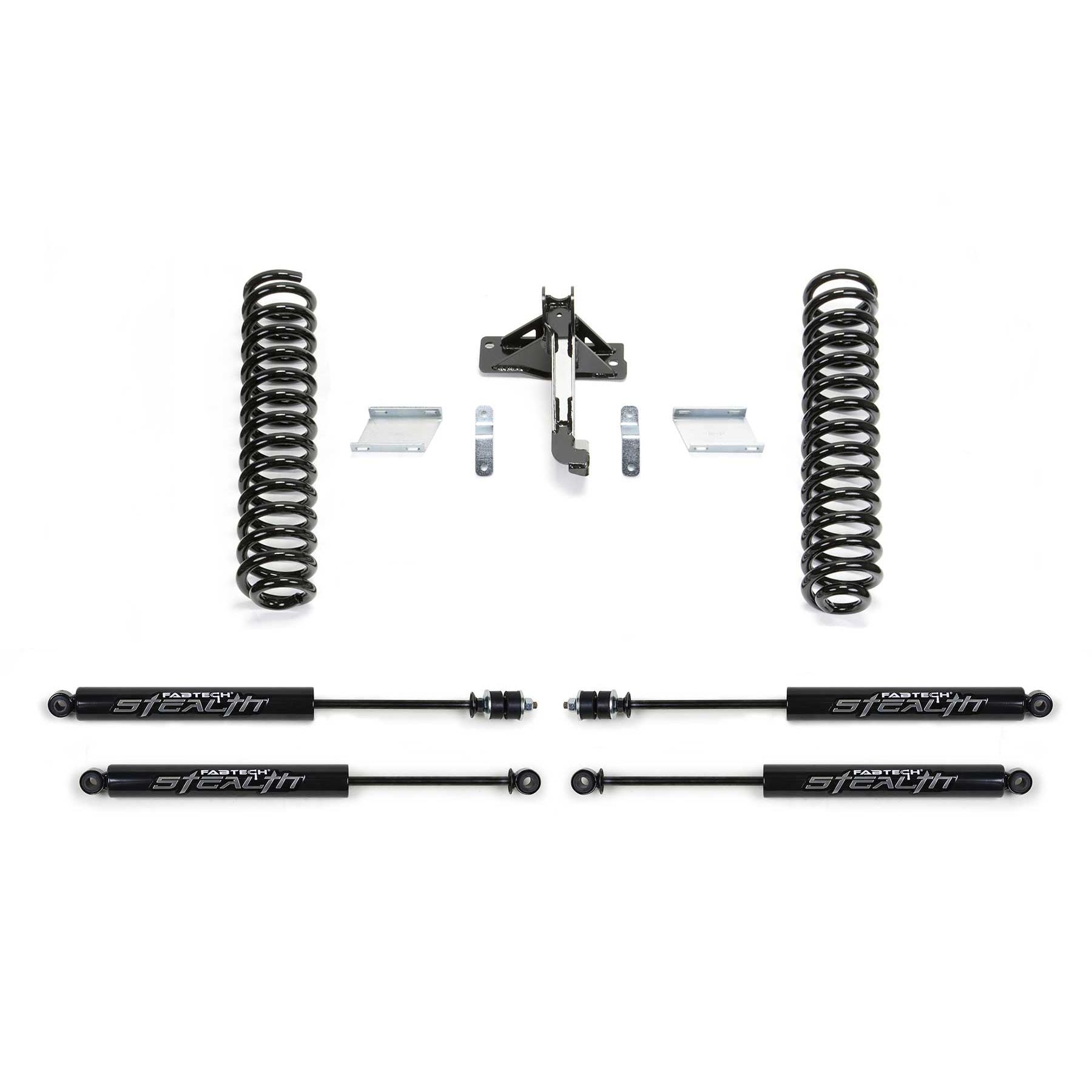

The Fabtech 2.5-inch Budget Coil Kit with Stealth is a lift suspension system designed for the Ford F250 and F350 4WD Diesel models from 2017 to 2020. This kit enhances off-road capability by allowing the installation of oversized tires, specifically up to 35 inches in height, thanks to the increased wheelwell openings. Constructed with high-quality coil springs, it maintains the factory load-carrying capacity while providing additional suspension travel. The springs and brackets are engineered to deliver an extra inch of compression travel over stock, improving wheel articulation and off-road performance without causing suspension binding. This setup offers a balanced combination of durability, improved ground clearance, and enhanced off-road handling for serious enthusiasts.

Designed for 2017–2020 Ford F250 and F350 4WD Diesel trucks, this lift kit is a direct bolt-on upgrade that does not require extensive modifications. It is ideal for off-road adventures, trail riding, and overlanding, providing increased wheel travel and ground clearance for rugged terrain. The kit includes coil springs and necessary brackets, ensuring a straightforward installation process. Suitable for those seeking a cost-effective lift solution, it enhances vehicle capability while preserving load capacity and ride quality. This kit is perfect for owners looking to customize their Super Duty trucks for off-road use without sacrificing daily driving comfort.

Overview

This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional Wheel travel for offroad use. With the large Super Duty Wheelwell openings and this quality 2.5in lift kit, you can run 35in tall tires with ease. Fabtech's coil springs retain the factory load carrying capacity while providing increased suspension travel. The coil springs and associated bracketry allow for an additional inch of compression travel over stock without binding the suspension. This extra travel helps when offroading in rugged terrain. Sway bar drop brackets are included to reposition the front bar so that the link ends do not go over center at full droop and cause bind. The brake lines are relocated down on the frame with extension brackets to eliminate the possibility of overstretching the lines throughout the new travel range. Fabtech provides extension brackets rather than longer brake lines to keep the factory brake system sealed for fast and trouble-free installation. This suspension kit utilizes the factory bump stops without extensions. This allows for more travel with the Fabtech coil springs and components. Typically, once a Super Duty is lifted the front axle is pushed to one side due to the length of the track bar and the location. To address this issue Fabtech provides a heavy-duty 1/4in thick steel Track Bar mount. It repositions the track bar and front axle under the vehicle to the factory specifications. This provides proper tracking of the front and rear axle for excellent highway manners. This Super Duty lift kit includes Fabtech Stealth shocks. They are a sealed monotube shock that has a Nitrocarb piston rod for corrosion resistance and resist rock chipping. They will provide a great highway ride with good offroad damping capacity. With the installation of this 2.5in lift the vehicle's stance front to rear will be nearly flat compared to the factory nose-down appearance. For owners that want to retain more of the factory nose-down

Attributes:

  • GTIN: 00674866110137
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24 x 23.52 x 15.7 inches
  • Weight: 94 lb
