• Fabtech 2" Upper Control Arm Kit w/ BJS & DLSS 2.5 C/O & Rear DLSS | Toyota Tundra 4WD TRD Pro (16-19) (K7073DL)
1 1

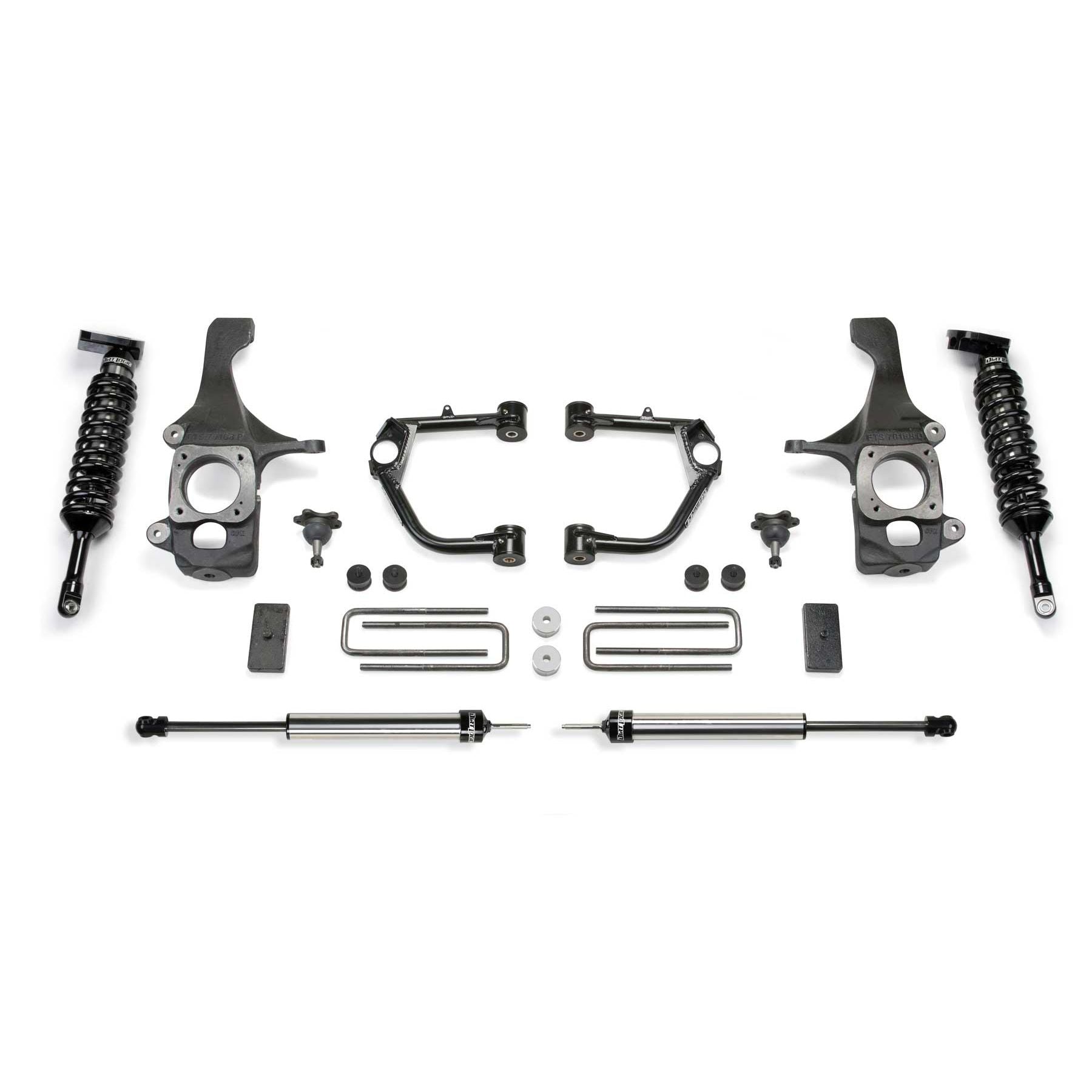

Fabtech 2in UCA Kit w/ BJS & DLSS 2.5 C/O | Toyota Tundra TRD Pro (16-19) (K7073DL)

Fabtech 2in UCA Kit w/ BJS & DLSS 2.5 C/O | Toyota Tundra TRD Pro (16-19) (K7073DL)

K7073DL

Out of stock

$2,966.14 USD
$3,486.32 USD $2,966.14 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 2-inch Upper Control Arm Kit with BJS and DLSS 2.5 Coilovers is a performance suspension upgrade designed specifically for the Toyota Tundra TRD Pro models from 2016 to 2019. This lift kit provides a 2-inch increase in ride height, enhancing ground clearance and allowing for the installation of 35-inch tires. Built with high-quality materials, the kit ensures improved suspension performance without causing suspension bind at full droop. The design maintains factory ride quality while offering a more aggressive stance and better off-road capability. The inclusion of BJS and DLSS 2.5 coilovers further enhances handling, stability, and durability under demanding conditions.

This lift kit is a direct bolt-on upgrade for 2016-2019 Toyota Tundra TRD Pro trucks with a factory 2-inch lift. It is intended for off-road enthusiasts and those seeking a higher stance for improved clearance and tire fitment. The kit maintains factory alignment specifications and is suitable for both street and off-road use. Installation involves replacing factory components with the included upper control arms and coilovers, providing a straightforward upgrade process. Compatible with models equipped with the factory 2-inch lift, this kit offers a reliable solution for enhancing vehicle height, suspension performance, and overall off-road capability.

Overview

This Tundra TRD PRO lift kit has been designed specifically for the owner that wants a little more ride height out of their truck for clearance of 35in tires along with improved suspension performance. Fabtech's Upper Control Arm lift kit provides a 2in increased ride height on TRD PRO models without creating suspension bind at full droop. These vehicles have a factory 2in lift. With the addition of this 2in lift kit the vehicle will sit as high as a standard model with a 4in lift kit and clear a 35in tall tire. The heart of this quality lift kit is the stainless steel Dirt Logic 2.5 Coilover shocks. They provide lift and offer excellent damping capacity for offroad use and a smooth highway ride. The stainless steel body and NitroSteel piston rods of the Dirt Logics provide maximum corrosion resistance for durability and longevity. To maximize the performance of the Dirt Logic Coilovers Fabtech includes tubular Ball Joint Upper Control Arms. They are built with .120 wall DOM tubing and have heavy duty extended range ball joints that provide additional strength to the front suspension. Working in conjunction with the Fabtech Upper Control Arms there are extended length ductile iron steering knuckles that allow for increased travel without bind and additional caster to handle oversized tires. The front differential is relocated to keep the CV angles operating freely during the full range of travel. Front bump stops extensions control the compression travel eliminating over cycling of the suspension. Rear lift comes from 1in blocks and u-bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle. Legendary stainless steel Dirt Logic 2.25 rear shocks are provided for a superior ride quality both on and offroad. This Tundra TRD PRO lift kit is an excellent choice for owners looking to increase ride height for 35in tall tires while enhancing the suspension performance of the vehicle. Comes with a free 5 year 60,000

Attributes:

  • GTIN: 00674866109100
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 30.25 x 22 inches
  • Weight: 203.2 lb
