Fabtech 3.5in BJ UCA Kit w/ DLSS Resi | GM K2500HD (20-22) (K1158DL)

Fabtech 3.5in BJ UCA Kit w/ DLSS Resi | GM K2500HD (20-22) (K1158DL)

K1158DL

Out of stock

$1,933.92 USD
$2,273.08 USD $1,933.92 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

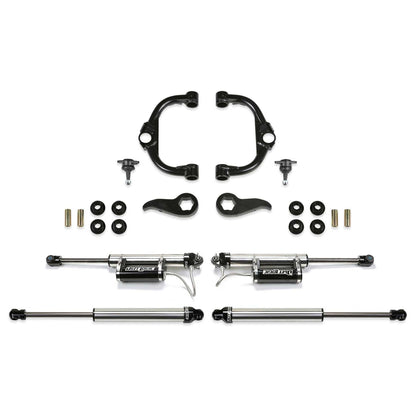

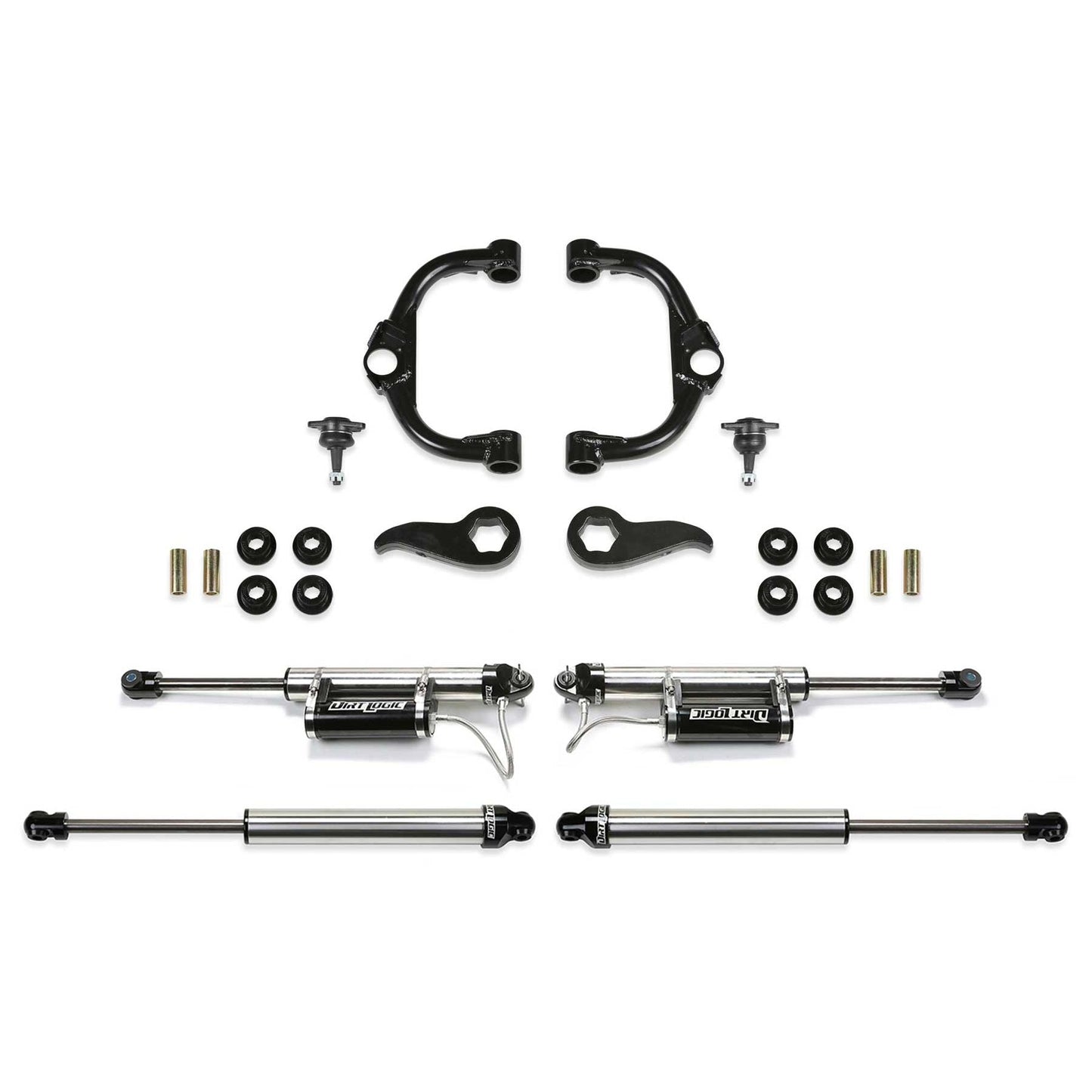

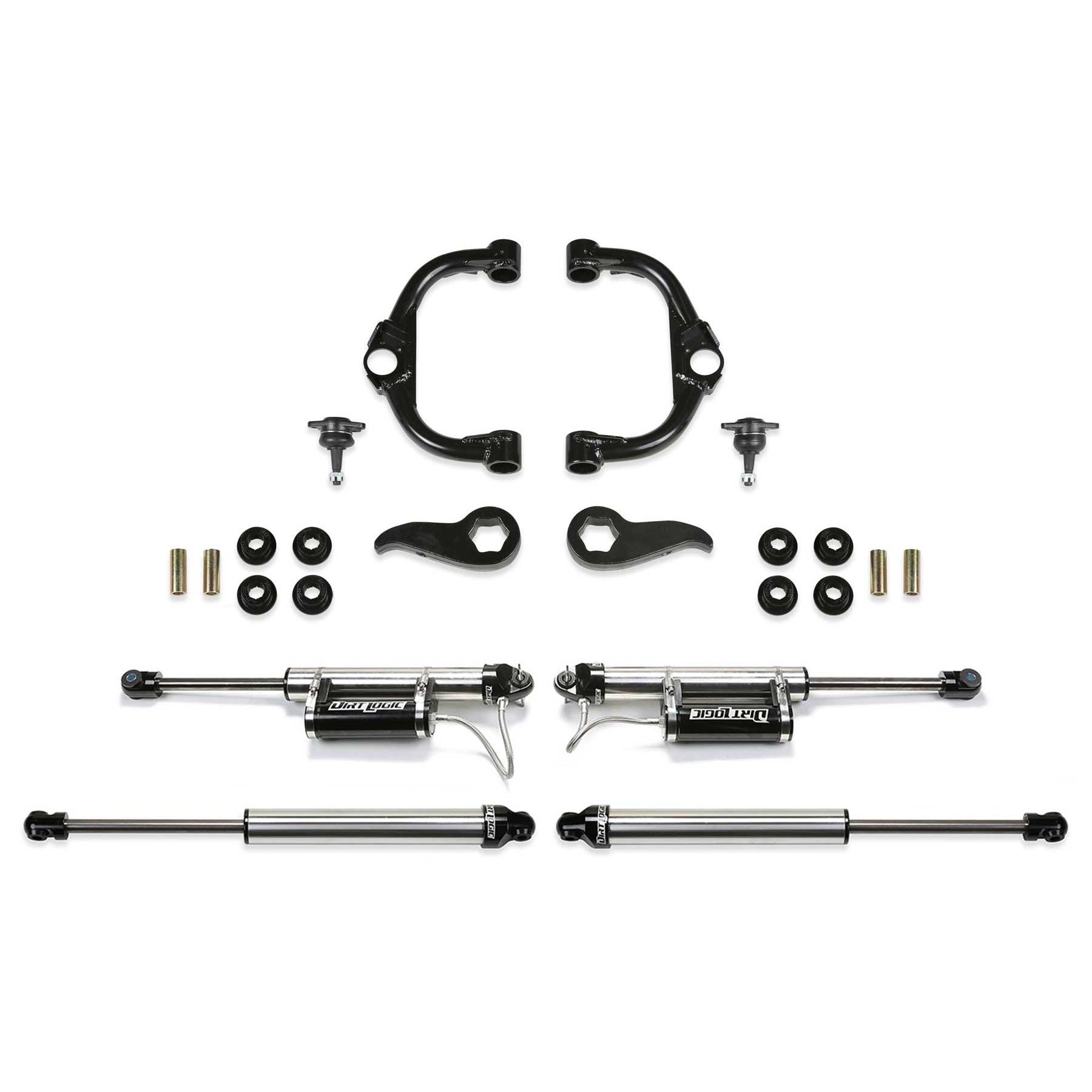

The Fabtech 3.5-inch BJ UCA Kit with DLSS Reservoir is a high-performance lift kit designed for the GM K2500HD models from 2020 to 2022. This kit provides an increased ride height, enabling the installation of 35-inch tires for improved off-road capability and a more aggressive stance. The kit replaces the factory GM upper control arms with heavy-duty tubular ball joint arms made from 1.50-inch OD DOM steel tubing, ensuring enhanced durability and strength. The high-travel ball joints are larger than stock, offering increased articulation and reliability under demanding off-road conditions. This setup not only boosts ground clearance but also improves handling and stability during off-road adventures, making it a robust upgrade for enthusiasts seeking performance and durability.

Designed specifically for 2020-2022 GM K2500HD trucks, this lift kit is a direct bolt-on replacement that maintains proper alignment and suspension geometry. It is ideal for off-road use, trail driving, and those wanting a more commanding vehicle stance. The kit includes heavy-duty tubular control arms with high-travel ball joints and DLSS reservoirs for optimal shock performance. Suitable for both street and off-road applications, it enhances vehicle capability while preserving ride quality. Proper installation requires basic mechanical skills, and the components are engineered to fit seamlessly with the factory suspension setup, providing a reliable upgrade for off-road enthusiasts and daily drivers alike.

Overview

This high quality GM 2500HD lift kit offers an increased ride height for enthusiasts looking to run a 35in tall tire with enhanced offroad capabilities. The stance of the vehicle will become more level front to rear for an aggressive look. The factory GM upper control arms are replaced with Fabtech's heavy duty ball joint tubular arms. They are constructed with 1.50in OD DOM steel tubing and feature a high travel ball joint that is sizably larger than stock. This provides for increased strength both on and offroad. Fabtech sets the ball joint angle to allow for full travel without bind throughout the travel range. Fabtech's forged torsion bar keys replace the factory units and allow for additional ride height adjustment to work in conjunction with the new upper control arms. Fabtech offers their top of the line Dirt Logic 2.25 shocks with this quality 2500HD lift kit. They are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance and durability. The front shocks comes with remote aluminum reservoirs to help cool the shock oil for more consistent damping in rugged terrain. These high quality Dirt Logic shocks will provide a superior ride quality both on and offroad with excellent damping for offroad use. This 3.5in HD lift kit comes with high quality components that add strength and reliability to the vehicle while giving it a commanding presence. Tubular Steel Upper Control Arms. Additional 1 degree of caster built in. 1.5in OD x .120in wall DOM tubing. High travel oversized ball joint. 2.25in OD x .250in wall DOM bushing barrels. Heavy duty forged torsion bar keys.

Attributes:

  • GTIN: 00674866110915
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 32 x 23 x 15 inches
  • Weight: 80 lb
