Fabtech 3.5in Ultimate System w/ Uniball UCA & Perf Shocks | GM C/K2500HD/3500HD (11-19) (K1064)

Fabtech 3.5in Ultimate System w/ Uniball UCA & Perf Shocks | GM C/K2500HD/3500HD (11-19) (K1064)

K1064

Out of stock

$1,444.31 USD
$1,697.61 USD $1,444.31 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 3.5-inch Ultimate System for GM C/K2500HD/3500HD trucks is a comprehensive suspension upgrade designed to enhance off-road capability and vehicle stance. This system features heavy-duty ductile iron steering knuckles and forged adjusting torsion bar keys, providing a reliable lift without causing CV joint bind. The inclusion of Uniball Upper Control Arms, constructed with .120-inch wall 4130 Chromoly tubing and stainless PTFE Uniballs, allows for 9 inches of front wheel travel, improving articulation and handling. Built for durability and performance, this kit ensures a level stance by correcting factory rake, offering a balanced and aggressive look while maintaining ride quality and control.

Designed for 2011–2019 model years of GM C/K2500HD and 3500HD trucks, this system is a direct bolt-on upgrade that preserves factory geometry and steering. It is suitable for off-road enthusiasts, towing, and daily drivers seeking increased ground clearance and improved suspension performance. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. This system is ideal for those looking to enhance their truck’s off-road capabilities while maintaining a factory-like ride and handling characteristics.

Overview

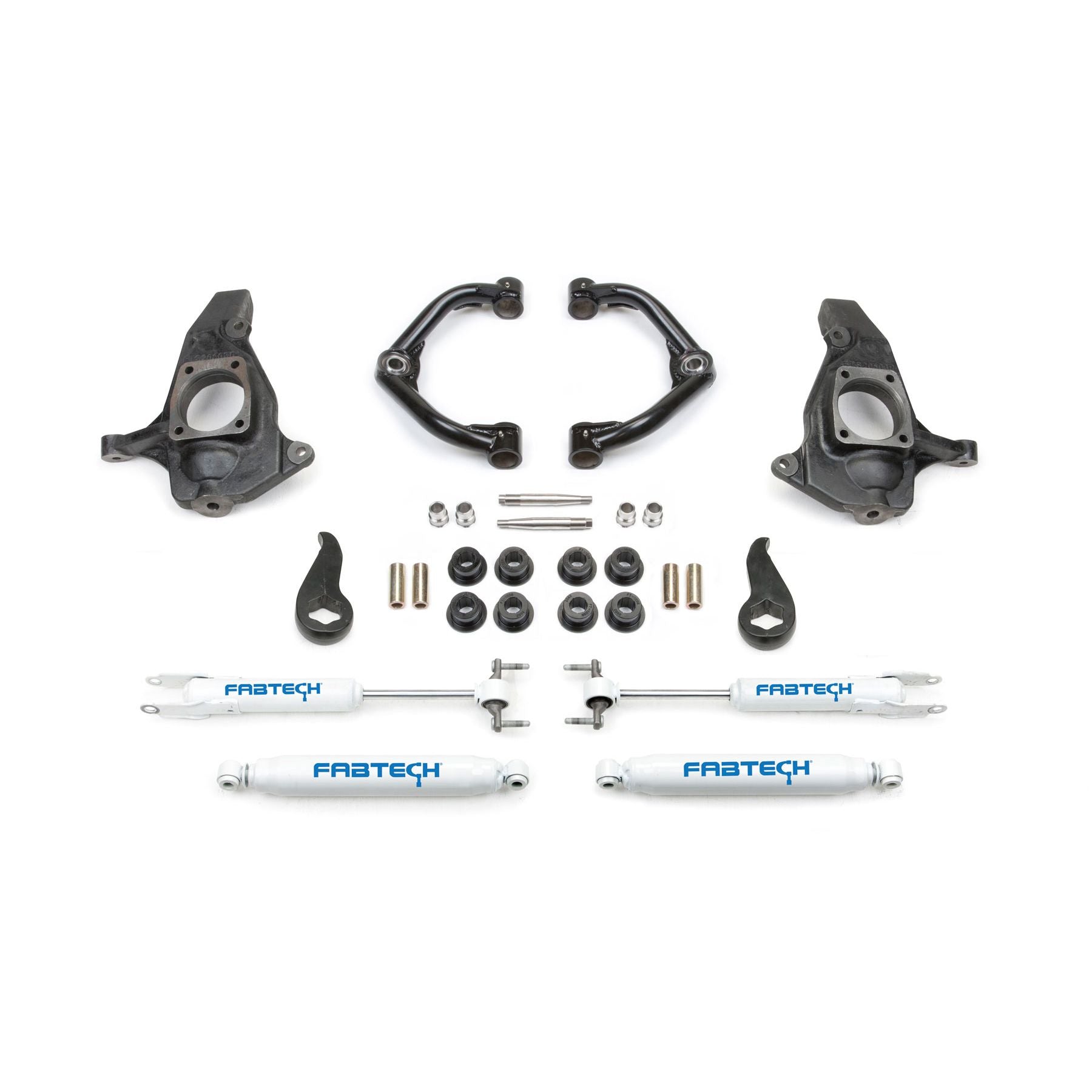

The 4'' Ultimate System is available with our Uniball Upper Control Arms that feature .120'' wall 4130 Chromoly tubing with a 1.50'' OD 1'' FK Stainless PTFE Uniballs for 9'' of front Wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind. The system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1'' rear block kit is available. Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech'suspensions or other aftermarket suspension systems.

Attributes:

  • GTIN: 00674866037311
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 37.1 x 14.8 x 19.9 inches
  • Weight: 143 lb
