• Fabtech 3.5in Uniball Upper Control Arm Kit w/ DLSS | GM K3500HD (20-21) (K1181DL)
  • Fabtech 3.5in Uniball Upper Control Arm Kit w/ DLSS | GM K3500HD (20-21) (K1181DL)
1 2

Fabtech 3.5in Uniball Upper Control Arm Kit w/ DLSS | GM K3500HD (20-21) (K1181DL)

Fabtech 3.5in Uniball Upper Control Arm Kit w/ DLSS | GM K3500HD (20-21) (K1181DL)

K1181DL

Out of stock

$2,165.33 USD
$2,545.08 USD $2,165.33 USD
Special Discounts May Apply at Checkout Sold out

The Fabtech 3.5-inch Uniball Upper Control Arm Kit with DLSS for the GM K3500HD (20-21) is a high-performance suspension upgrade designed to enhance off-road capability and vehicle stance. This kit replaces the factory GM upper control arms with durable Uniball control arms, which provide increased wheel travel and an additional degree of caster for improved handling and stability. Constructed from premium materials, including .120-inch wall 4130 chromoly tubing with a 1.50-inch outer diameter, these control arms are built for strength and longevity. The kit offers an increased ride height suitable for fitting 35-inch tires, giving the vehicle a more aggressive, level stance front to rear. This upgrade not only boosts off-road performance but also enhances the vehicle's overall appearance and capability.

Designed specifically for 2020-2021 GM K3500HD models, this lift kit is intended for off-road enthusiasts seeking a reliable, bolt-on solution to increase ground clearance and wheel articulation. It is compatible with vehicles equipped with the factory suspension and is ideal for off-road adventures, trail driving, or aggressive street use. The installation involves replacing the factory upper control arms with the included Uniball units, providing a direct fit and improved suspension geometry. The kit does not specify additional components, but it is suitable for those looking to upgrade their suspension for increased off-road performance and a more commanding stance.

Overview

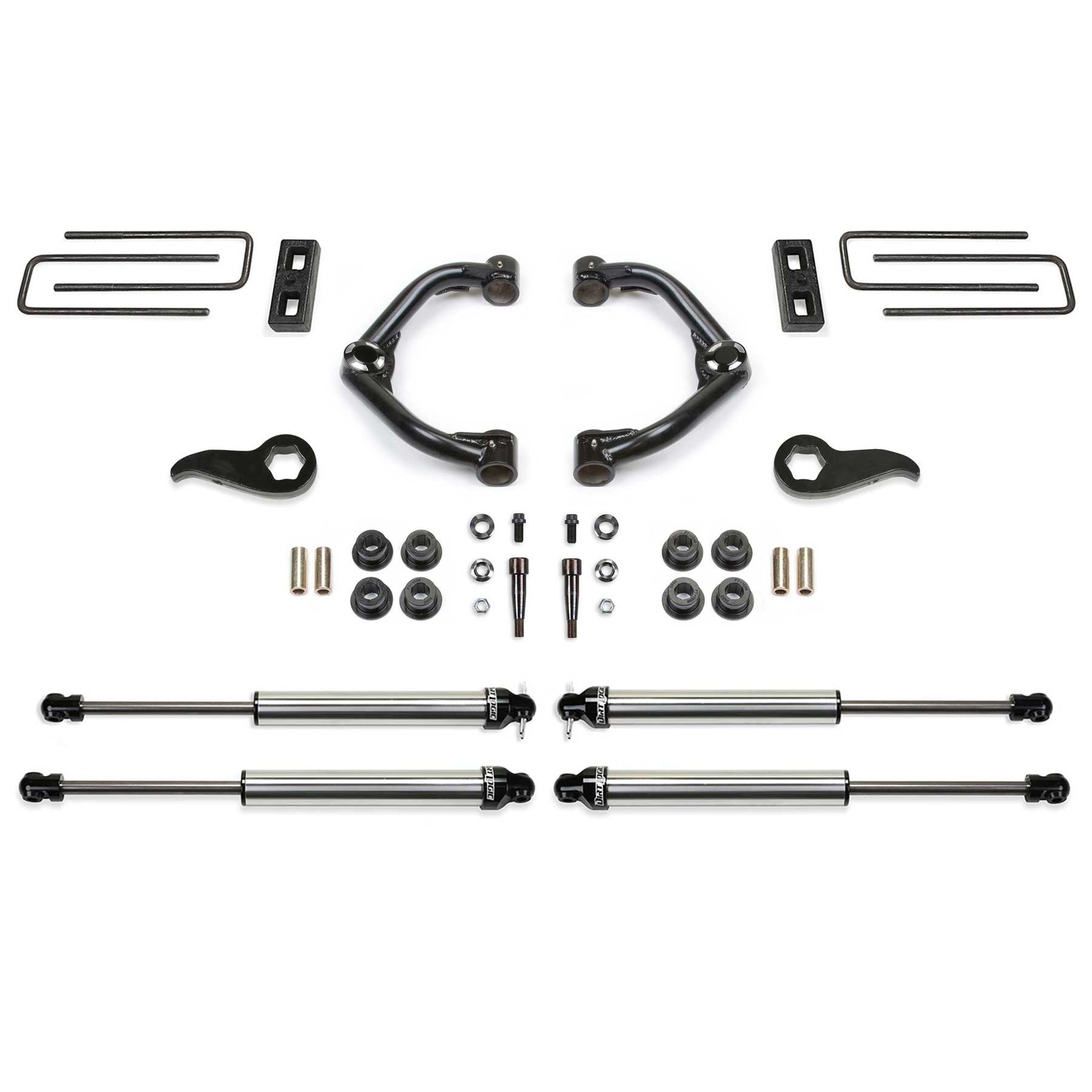

This high quality GM 3500HD lift kit offers an increased ride height for enthusiasts looking to run a 35in tall tire with enhanced offroad capabilities. The stance of the vehicle will become more level front to rear for an aggressive look. The factory GM upper control arms are replaced with Fabtech's Uniball Upper Control Arms that provide additional Wheel travel with an extra degree of caster compared to stock UCA's. They are constructed of the finest material with .120in wall 1.50in OD 4130 Chromoly tubing. High quality 1in FK Stainless PTFE lined Uniball bearings are utilized in place of ball joints. These super stout Control Arms are designed for increased longevity in rugged offroad conditions while providing a more positive on road feel. Fabtech's forged torsion bar keys replace the factory units and allow for additional ride height adjustment to work in conjunction with the new upper control arms. The rear receives 2in blocks and U-bolts to help level the stance of the vehicle. Fabtech offers their top of the line Dirt Logic 2.25 shocks with this 3500HD lift kit. They are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance and durability. These high quality Dirt Logic shocks will provide a superior ride quality both on and offroad with excellent damping for offroad use. This 3.5in HD lift kit comes with high quality components that add strength and reliability to the vehicle while giving it a commanding presence. Fabtech UCA's eliminate factory upper ball joint with super strong 1in ID Stainless Steel American Uniball for increased suspension strength. Additional caster is built into Arms for enhanced align ability with oversized tires. 1.50in OD .120in wall 4130 Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. 17-4 Stainless steel misalignments for

Attributes:

  • GTIN: 00674866110885
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 32 x 29.6 x 15 inches
  • Weight: 102.4 lb
View full details
