Fabtech 3.5in Uniball Upper Control Arm Kit w/ DLSS | GM K2500HD (20-22) (K1155DL)

Fabtech 3.5in Uniball Upper Control Arm Kit w/ DLSS | GM K2500HD (20-22) (K1155DL)

K1155DL

Out of stock

$2,018.46 USD
$2,372.45 USD $2,018.46 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 3.5-inch Uniball Upper Control Arm Kit with DLSS is a high-performance suspension upgrade designed for the GM K2500HD models from 2020 to 2022. This kit replaces the factory upper control arms with durable Uniball control arms, allowing for increased wheel travel and improved off-road capability. The control arms are constructed from premium materials, featuring .120-inch wall thickness with a 1.50-inch OD 4130 chromoly tube, ensuring strength and longevity. The design provides an additional degree of caster, which enhances steering response and stability, especially when running larger tires. The kit is engineered to support a 35-inch tall tire, offering a more aggressive stance and a level front-to-rear profile for improved aesthetics and performance.

This control arm kit is a direct bolt-on upgrade for 2020-2022 GM K2500HD trucks, suitable for off-road enthusiasts and those seeking increased suspension articulation. It is designed for use with lifted vehicles and is ideal for off-road, trail, and aggressive driving applications. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatibility is specific to GM K2500HD models within the specified years, and the kit is optimized for vehicles with increased ride height and off-road use. Proper installation will enhance wheel travel, caster, and overall suspension performance for demanding driving conditions.

Overview

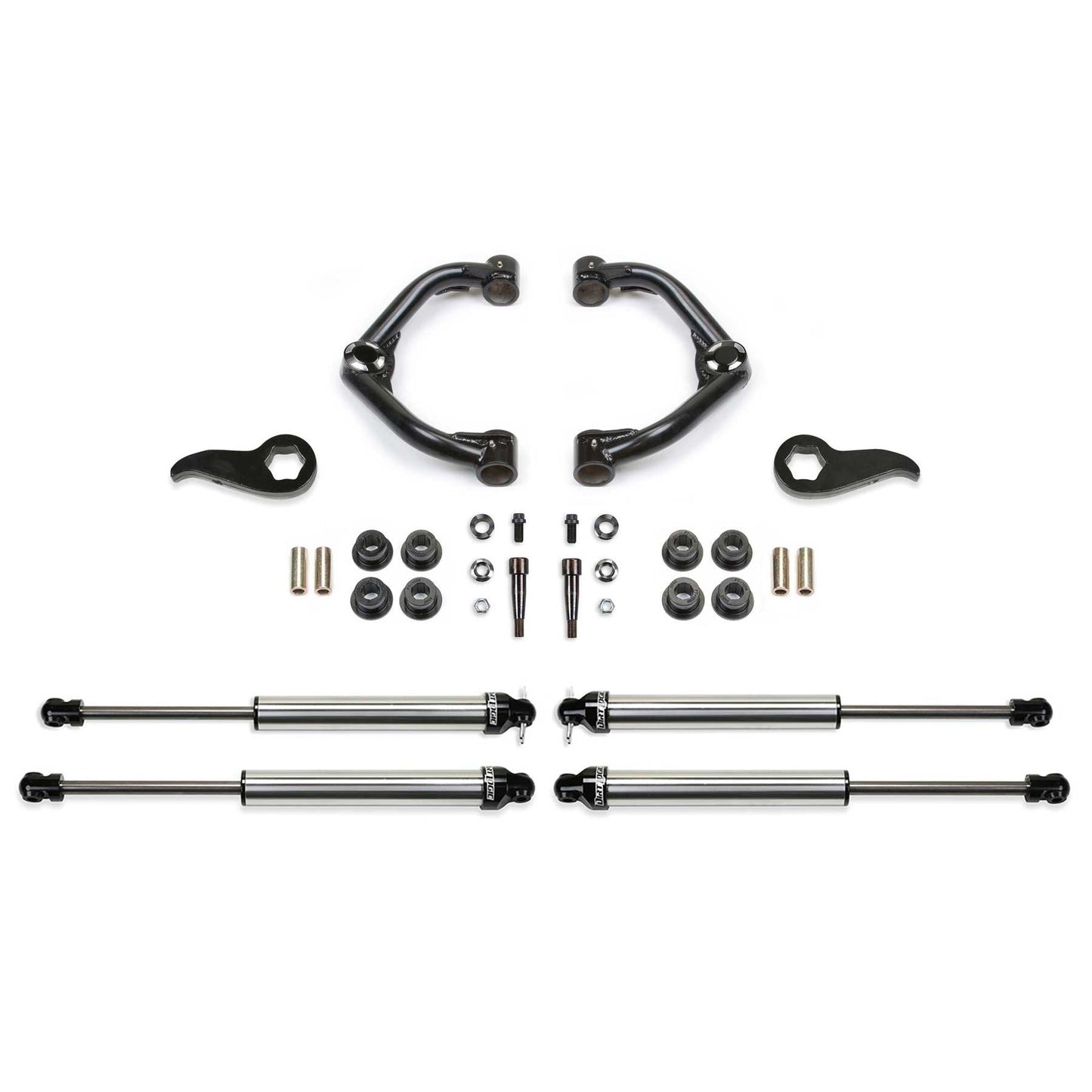

This high quality GM 2500HD lift kit offers an increased ride height for enthusiasts looking to run a 35in tall tire with enhanced offroad capabilities. The stance of the vehicle will become more level front to rear for an aggressive look. The factory GM upper control arms are replaced with Fabtech's Uniball Upper Control Arms that provide additional Wheel travel with an extra degree of caster compared to stock UCA's. They are constructed of the finest material with .120in wall 1.50in OD 4130 Chromoly tubing. High quality 1in FK Stainless PTFE lined Uniball bearings are utilized in place of ball joints. These super stout Control Arms are designed for increased longevity in rugged offroad conditions while providing a more positive on road feel. Fabtech's forged torsion bar keys replace the factory units and allow for additional ride height adjustment to work in conjunction with the new upper control arms. Fabtech offers their top of the line Dirt Logic 2.25 shocks with this 2500HD lift kit. They are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance and durability. These high quality Dirt Logic shocks will provide a superior ride quality both on and offroad with excellent damping for offroad use. This 3.5in HD lift kit comes with high quality components that add strength and reliability to the vehicle while giving it a commanding presence. Fabtech UCA's eliminate factory upper ball joint with super strong 1in ID Stainless Steel American Uniball for increased suspension strength. Additional caster is built into Arms for enhanced align ability with oversized tires. 1.50in OD .120in wall 4130 Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. 17-4 Stainless steel misalignments for proper clearance of large Uniballs throughout the travel range. Billet Uniball cap

Attributes:

  • GTIN: 00674866110823
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 32 x 24 x 15 inches
  • Weight: 75.8 lb
