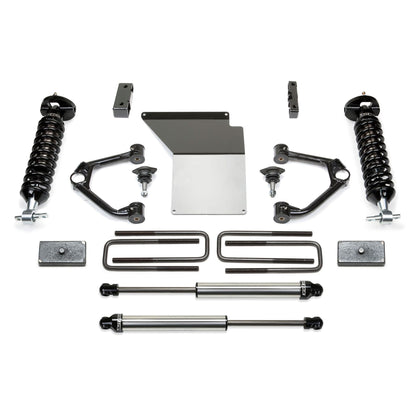

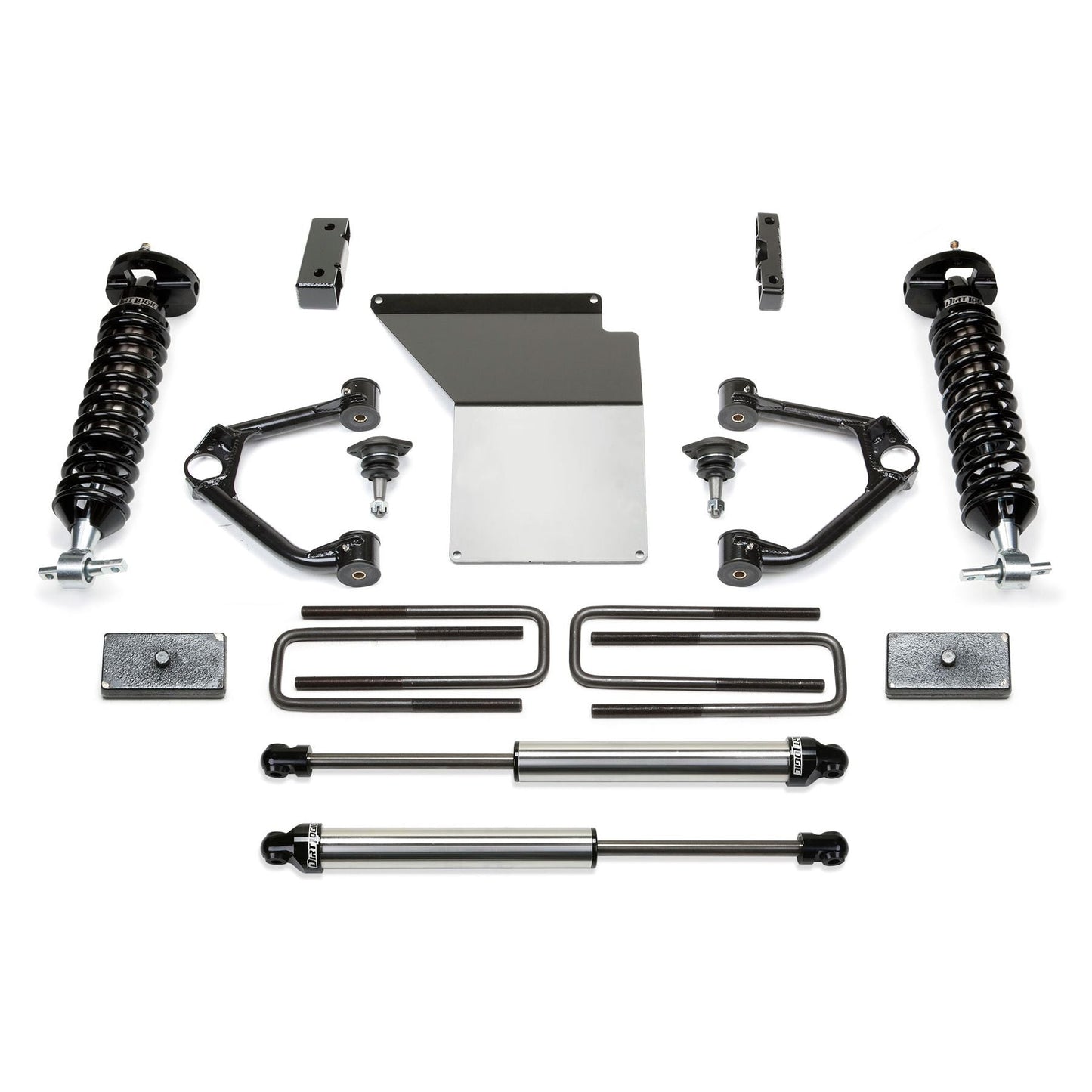

Fabtech 3.5in UCA System w/ DL 2.5in Coilovers & Rear DL Shocks | GM C/K1500 (07-18) (K1059DL)

Fabtech 3.5in UCA System w/ DL 2.5in Coilovers & Rear DL Shocks | GM C/K1500 (07-18) (K1059DL)

K1059DL

Out of stock

$2,542.08 USD
$2,987.89 USD $2,542.08 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 3.5-inch UCA System with DL 2.5-inch Coilovers and Rear DL Shocks is a comprehensive suspension upgrade designed for the GM C/K1500 trucks from 2007 to 2018. This system offers a mild lift height of approximately 4 inches, enhancing ground clearance while maintaining a smooth and comfortable ride. The kit features heavy-duty DOM upper tubular control arms equipped with extended range ball joints, which provide increased strength and unrestricted movement across the suspension travel. Additionally, the front differential housing is relocated to optimize CV joint angles, improving overall suspension geometry and durability. Built with quality materials, this system ensures reliable performance for both daily driving and light off-road use, making it an excellent choice for enthusiasts seeking improved ride height and handling.

This lift kit is specifically designed for 2007-2018 GM C/K1500 models, accommodating 33-inch tall tires for a balanced combination of performance and appearance. It is intended for use on trucks that require a mild lift with enhanced suspension articulation. The installation involves replacing factory components with the included tubular control arms, coilovers, and shocks, providing a direct bolt-on upgrade that does not require extensive modifications. Suitable for street and light off-road applications, this system improves vehicle stance and capability while maintaining ride quality. It is ideal for owners looking to enhance their truck’s performance and aesthetics with a reliable, engineered suspension solution.

Overview

Designed for the value minded enthusiast, the 4in Budget System for 2007-13 GM C/K1500's provides a mild lift height with a supple ride for use with 33in tall tires. Fabtech's replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. The front differential housing is relocated to keep CV angles proper with the new ride height while a 1/4in thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2in lift block and u bolt system. The 4in Budget is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Performance Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.

Attributes:

  • GTIN: 00674866095731
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 13 x 14.5 inches
  • Weight: 123.2 lb
