Fabtech 3.5in Budget UCA System w/ DL 2.5 Coilovers & Rear DL Shocks | GM C/K1500 (14-18) (K1070DL)

Fabtech 3.5in Budget UCA System w/ DL 2.5 Coilovers & Rear DL Shocks | GM C/K1500 (14-18) (K1070DL)

K1070DL

Out of stock

$2,542.08 USD
$2,987.89 USD $2,542.08 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

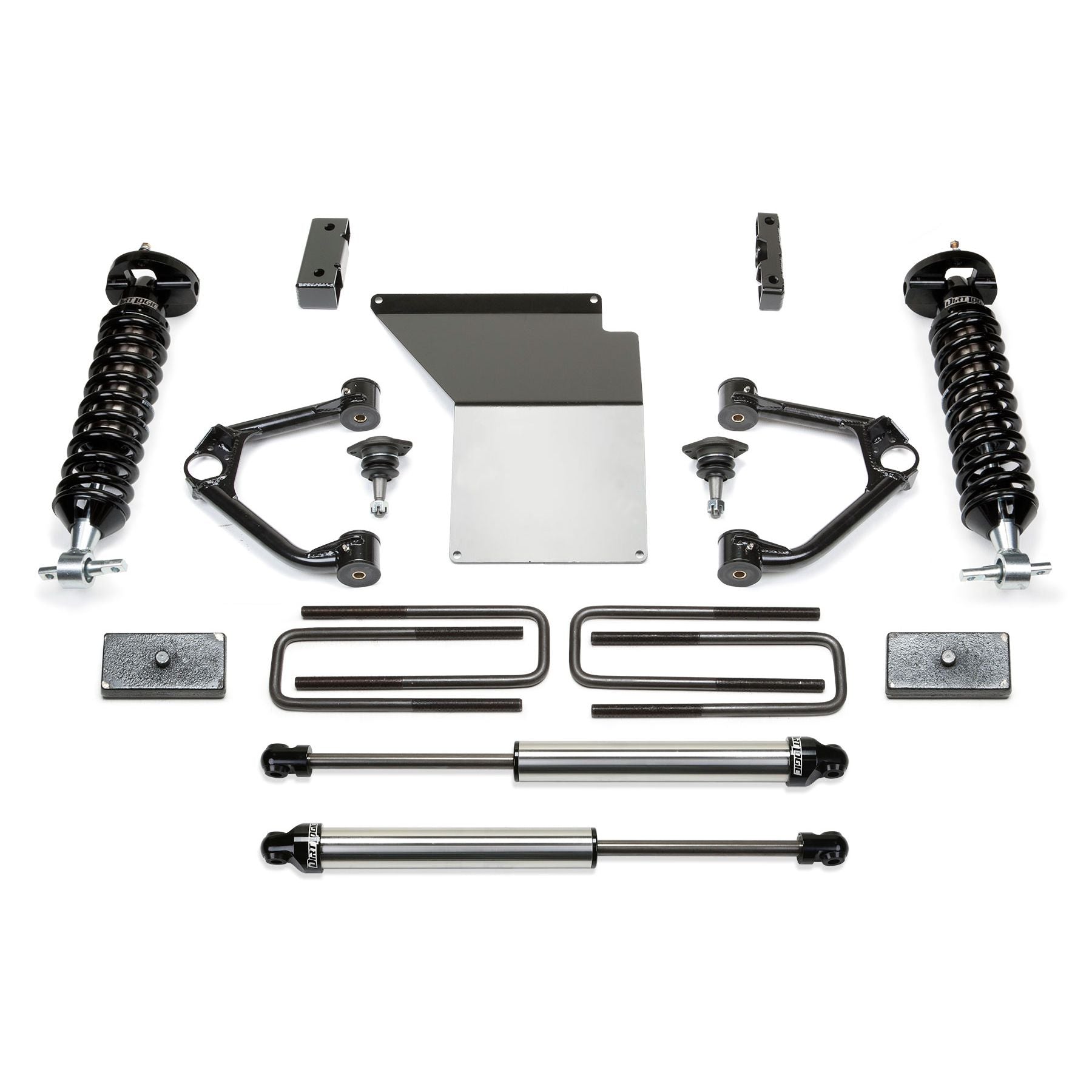

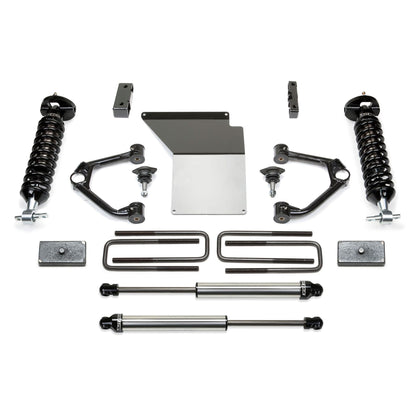

The Fabtech K1070DL is a budget-friendly upper control arm (UCA) system designed for the Chevrolet Silverado and GMC Sierra 1500 models from 2014 to 2018. This kit provides a mild lift height, enabling clearance for 33-inch tall tires, making it suitable for light off-road adventures and improved ground clearance. The system features Dirt Logic 2.5 coilovers that deliver superior damping performance, ensuring a balanced ride quality for both aggressive off-road driving and highway cruising. The control arms are constructed from thick wall DOM tubing and incorporate heavy-duty extended range ball joints, which enhance suspension durability and strength compared to stock components. Additionally, the front differential is relocated to accommodate the lift and tire size, optimizing vehicle geometry and performance.

This lift kit is designed as a direct bolt-on upgrade for 2014-2018 GM C/K1500 trucks, offering straightforward installation with minimal modifications required. It is ideal for off-road enthusiasts seeking reliable suspension enhancement without extensive customization. The kit includes the Dirt Logic 2.5 coilovers, upper control arms, and rear shocks, providing a complete suspension upgrade. Suitable for off-road, trail, and light-duty applications, this system improves vehicle stance, handling, and tire clearance, making it a practical choice for those looking to enhance their truck’s capabilities and appearance while maintaining a comfortable highway ride.

Overview

This system offers a mild lift height with easy installation for clearance of 33in tall tires on K1500's. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4in thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2in rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use. - Value priced system with Fabtech quality Increased ground clearance Includes Dirt Logic 2.5 Coilovers for superior damping Extended range upper ball joints provide a smooth quiet ride Increased fender clearance compared to a Leveling Kit for 33in tall tires Suspension can be restored to stock.

Attributes:

  • GTIN: 00674866095816
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 13 x 14.5 inches
  • Weight: 124.2 lb
