Fabtech 3" Trail w/ DLSS Resi Shocks | Jeep JL 4WD 4-Door (18-22) (K4118DL)

Fabtech 3" Trail w/ DLSS Resi Shocks | Jeep JL 4WD 4-Door (18-22) (K4118DL)

K4118DL

Out of stock

$3,024.24 USD
$3,554.61 USD $3,024.24 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech K4118DL Trail suspension system is a comprehensive upgrade designed for the Jeep JL 4WD 4-Door models from 2018 to 2022. This system features a 3-inch lift with DLSS reservoir shocks, enhancing off-road performance across a variety of terrains including rock crawling, aggressive trail riding, and overland expeditions. Constructed with heavy-duty link arms and utilizing factory control arm mounts, it offers a durable and reliable solution for demanding off-highway use. On-road, the suspension is tuned with dual-rate coil springs and specialized shock valving to deliver a smooth, compliant ride, balancing off-road capability with daily driving comfort.

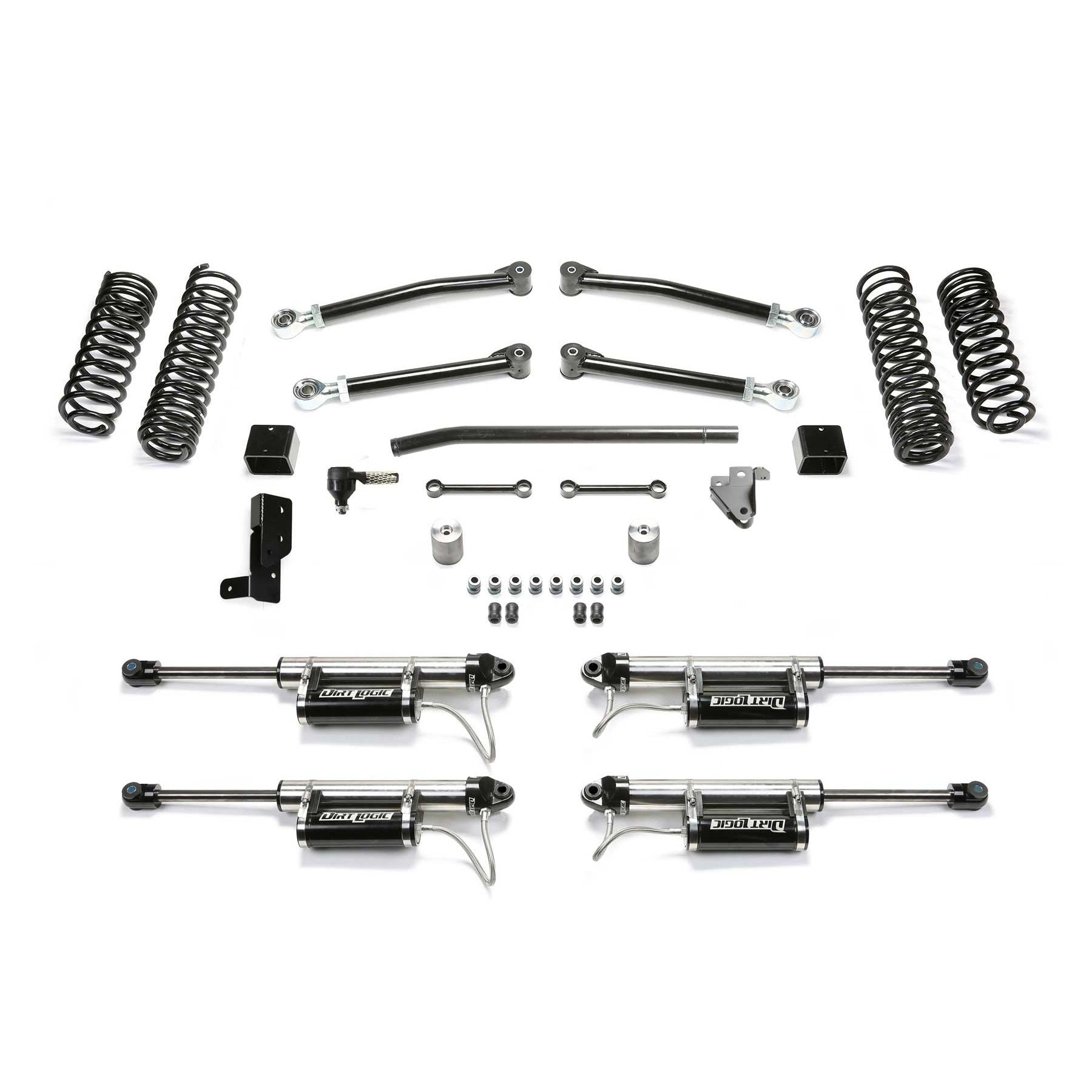

This complete short arm suspension kit is engineered for Jeep JL models equipped with four-wheel drive, fitting 2018-2022 4-door variants. It is designed as a direct bolt-on replacement that simplifies installation without the need for extensive modifications. The kit includes all necessary components for a full suspension upgrade, making it suitable for off-road enthusiasts seeking increased ground clearance and improved handling. Ideal for off-road adventures, trail driving, and overland expeditions, this system provides enhanced durability, performance, and ride quality for demanding outdoor use.

Overview

This Trail system provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. On road, the suspension has been tuned with proper dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate. The system is a complete short arm suspension that utilizes the factory control arm mounts for an easy installation. The Fabtech heavy duty link arms are constructed of 1.75in OD. .250in thick wall steel tubing that are guaranteed never to bend. They come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint for longevity and a quiet ride. Fabtech's long travel Dual Rate coil Springs are corner specific to the JL. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. To address the steering geometry with the increased ride height, a Draglink Flip System along with a heavy duty Track Bar bracket is included. This relocates the steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions. The factory angle of the draglink to the pitman arm does not change and there is no increased side load on the steering box sector shaft as compared to using a dropped pitman arm. This helps extends the life of the steering box with the increased ride height. The heavy duty rear Track Bar bracket with side support maintains the factory roll center of the vehicle while centering the axle. Front and rear bumps stop extensions protect the suspension from over cycling. Each Fabtech component has been designed with specific features and benefits that create this quality

Attributes:

  • GTIN: 00674866106550
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 39 x 45.8 x 21.6 inches
  • Weight: 204.2 lb
